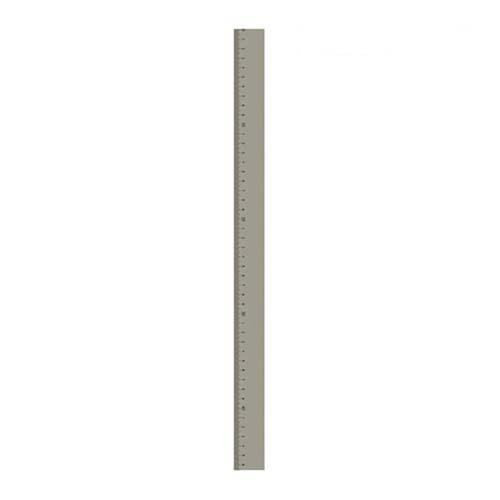

Maxigear Carbon Straight Edge 1mm Graduation 500-3000mm, 500

Maxigear carbon steel straight edges are available with a bevelled edge, with 1mm graduation, in lengths from 500mm (SE500GRAD) to 3000mm (SE3MGRAD).

These straight edges are finished precision ground on both sides and edges, with one edge bevelled to 35°. Each part number has its own width and thickness.

Where this product is used

• Use as a straight edge with one bevelled edge, graduated every 1mm

Features

• Finished precision ground on both sides and edges
• One edge bevelled to 35°
• Graduated markings every 1mm
• Width and thickness given for each length: 40 x 8mm and 50 x 8mm

Key specifications

Choosing the right option

Pick the part number by length: SE500GRAD is 500mm, SE1MGRAD is 1000mm, SE1.5MGRAD is 1500mm, SE2MGRAD is 2000mm and SE3MGRAD is 3000mm. SE3MGRAD is 50mm wide and SE500GRAD, SE1MGRAD, SE1.5MGRAD and SE2MGRAD 40mm wide, all 8mm thick. For plain faces see the ungraduated carbon steel straight edge; for stainless steel see the graduated stainless steel straight edge.
