Sutton E1840300 3mm 2 Flute Long Slot Drill - HSS Co.8 TiAlN R30 N
Available

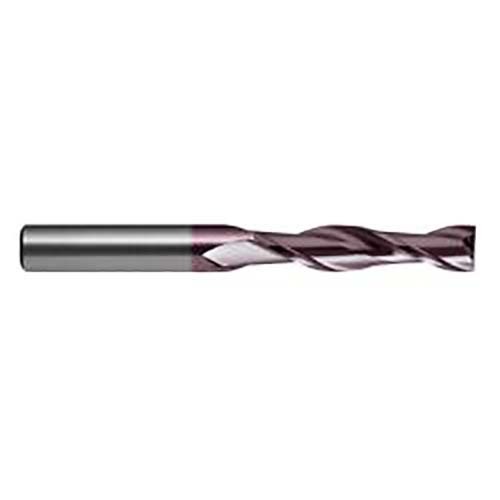

The Sutton E184 is a 2 flute long series slot drill in 12 sizes from 3 to 20 mm cutting diameter. It is made from 8% cobalt high speed steel (HSS Co.8) with a TiAlN coating, has R30 helix geometry (designation N) and is made to DIN 844 L with a DIN 1835 form A plain shank (h6 tolerance). It is for long-reach slotting in soft steels and non-ferrous materials, up to 1000 N/mm².
The 2 flute geometry is designed to let the slot drill plunge into the workpiece and then cut sideways, so one tool starts and finishes a slot. The long series gives extra flute and overall length for deeper slots (a 53 mm flute and 110 mm overall length on the 12 mm size). The TiAlN coating is designed for longer tool life, and the cutting diameter has an e8 tolerance.
Where this product is used
- Long-reach slotting, keyway cutting and pocketing where extra flute length is needed.
- Milling soft steels and non-ferrous materials up to 1000 N/mm².
- Plunging to start a slot, then milling along its length with the one tool.
- Applications include DIY, trade, industrial, metalworking, machine shop and MRO work.
Design features
- 2 flute slot drill, R30 helix (designation N).
- HSS Co.8 (8% cobalt high speed steel): designed for strength, hardness and wear resistance.
- TiAlN coating: designed for longer tool life.
- Long series (DIN 844 L) for deeper slots.
- DIN 1835 form A plain shank, h6 tolerance; e8 cutting diameter tolerance.
- Suitable for materials up to 1000 N/mm²: soft steels and non-ferrous materials.
- 12 sizes from 3 to 20 mm.
Using the slot drill
- Hold the endmill in a milling chuck, collet or side-lock holder that suits the shank and runs true.
- Take a light radial and axial step in deep slots and clear the chips often.
- Use cutting data suited to the material, and keep the tool clamped as short as the job allows.
- Use cutting fluid or coolant where the material and machine allow it.
Sizes and item numbers
| Sutton item no. | Diameter (mm) | Flute length (mm) | Overall length (mm) | Shank (mm) |
|---|---|---|---|---|
| E184 0300 | 3 | 12 | 56 | 6 |
| E184 0350 | 3.5 | 15 | 59 | 6 |
| E184 0400 | 4 | 19 | 63 | 6 |
| E184 0500 | 5 | 24 | 68 | 6 |
| E184 0600 | 6 | 24 | 68 | 6 |
| E184 0800 | 8 | 38 | 88 | 10 |
| E184 1000 | 10 | 45 | 95 | 10 |
| E184 1200 | 12 | 53 | 110 | 12 |
| E184 1400 | 14 | 53 | 110 | 12 |
| E184 1600 | 16 | 63 | 123 | 16 |
| E184 1800 | 18 | 63 | 123 | 16 |
| E184 2000 | 20 | 75 | 141 | 20 |
Key specifications
| Specification | Detail |
|---|---|
| Series | Sutton E184, 2 flute slot drill, long |
| Sizes | 3 mm, 3.5 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm and 20 mm |
| Flutes | 2 |
| Helix / designation | R30 / N |
| Material | HSS Co.8 (8% cobalt high speed steel) |
| Coating | TiAlN |
| Standard | DIN 844 L (long series) |
| Shank | DIN 1835 form A plain shank, h6 |
| Cutting diameter tolerance | e8 |
| Overall length | 56 to 141 mm |
| Flute length | 12 to 75 mm |
Related products
Related Sutton endmills: E1060635 1/4" long slot drill (threaded shank), E126 4 flute endmill and E147 long roughing endmill.
