Sutton 4-10mm 90° Deburring Countersink Cross Hole C101 - HSS - 43mm OAL
Available

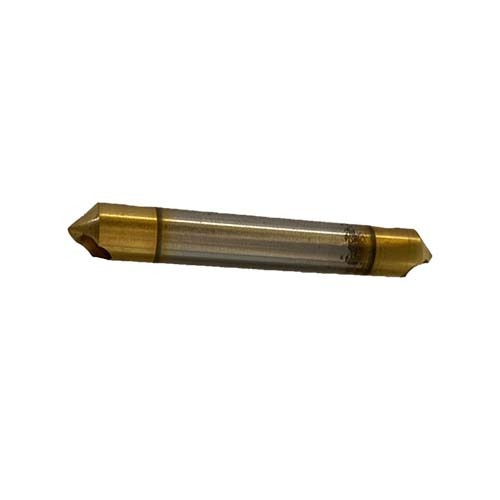

The Sutton C101 is a 90° cross hole deburring countersink in HSS. It is a deburring tool with a smooth cutting action, with a cross hole for removing burrs. This range has 6 sizes covering 3-6, 4-10, 5-13, 8-20, 14-28 and 13-37 mm. The 0901 size is double ended.
The bright finish suits general purpose use. Shank sizes are 6.35 mm (1/4 in) and 12.7 mm (1/2 in).
Where this product is used
- Deburring drilled holes and the edges of machined parts.
- Removing burrs from drilled holes in steel, non-ferrous metals and plastics.
Sizes and item numbers
Every size in the range, with its Sutton item number.
| Item no. | Range (mm) | Overall length (mm) | Shank d2 (mm) |
|---|---|---|---|
| C101 0901 | 3-6 | 45 | 6.35 |
| C101 0902 | 4-10 | 43 | 6.35 |
| C101 0903 | 5-13 | 48 | 6.35 |
| C101 0904 | 8-20 | 67 | 12.7 |
| C101 0905 | 14-28 | 72 | 12.7 |
| C101 0906 | 13-37 | 89 | 12.7 |
Using the tool
- Use light pressure at a low to moderate speed and let the cutting edges remove the burr.
- Use cutting fluid when working steel or stainless steel.
- Hold the work firmly so the tool does not grab as it breaks through.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | C101 (90° cross hole deburring countersink) |
| Material | HSS |
| Finish | Bright |
| Point angle | 90° |
| Sizes in this range | 6 sizes, 3 to 37 mm |
Related products
Compare other Sutton countersinks: C102 TiN coated, C101SC1 5 piece set, C103 single flute countersink, C105 three flute countersink and C201 HSS three flute countersinks 8.3 to 25 mm. Browse all countersink bit sets and deburring tools.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton C101 90° Deburring Countersink Bit Cross Hole - HSS: 43
SKU: A0002637 | Model: C1010902
Overall Length (mm) 43. Descriptions
Deburring tool
Smooth cutting action
Feature
Cross Hole Deburring Countersink 90°
