Description

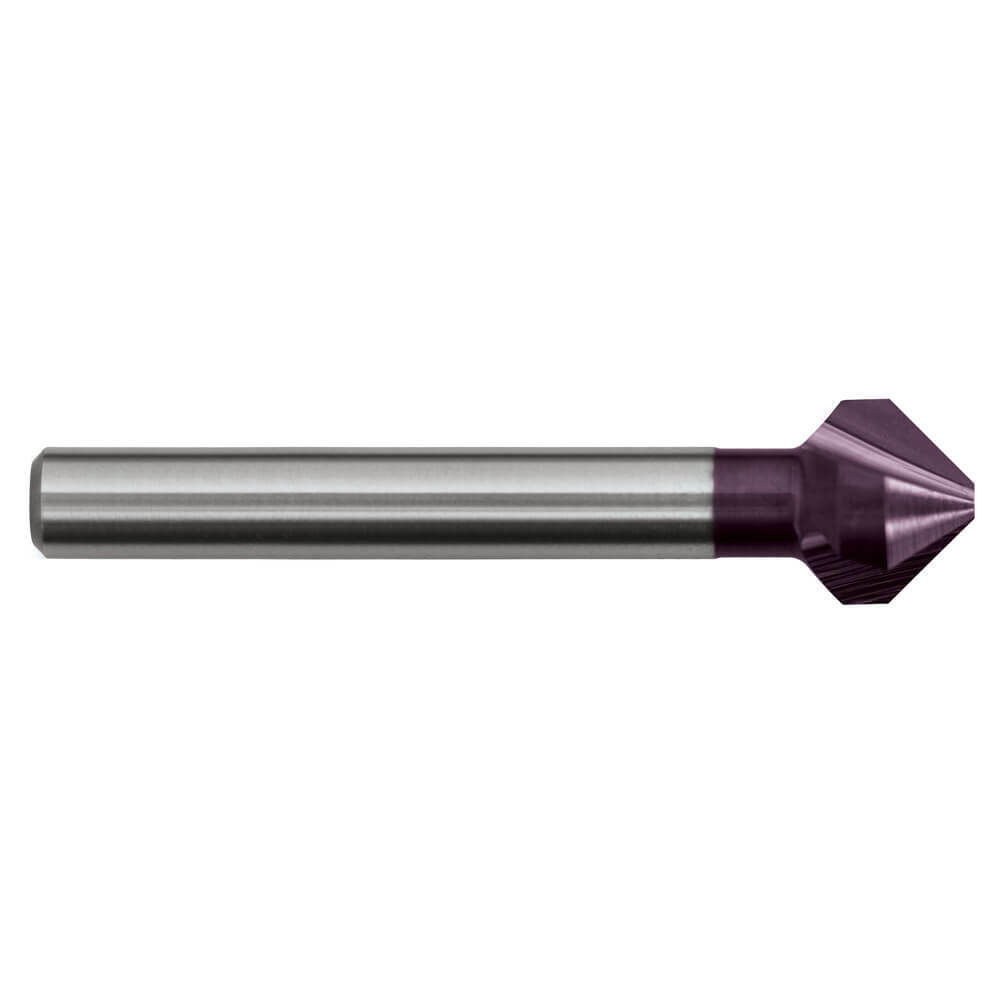

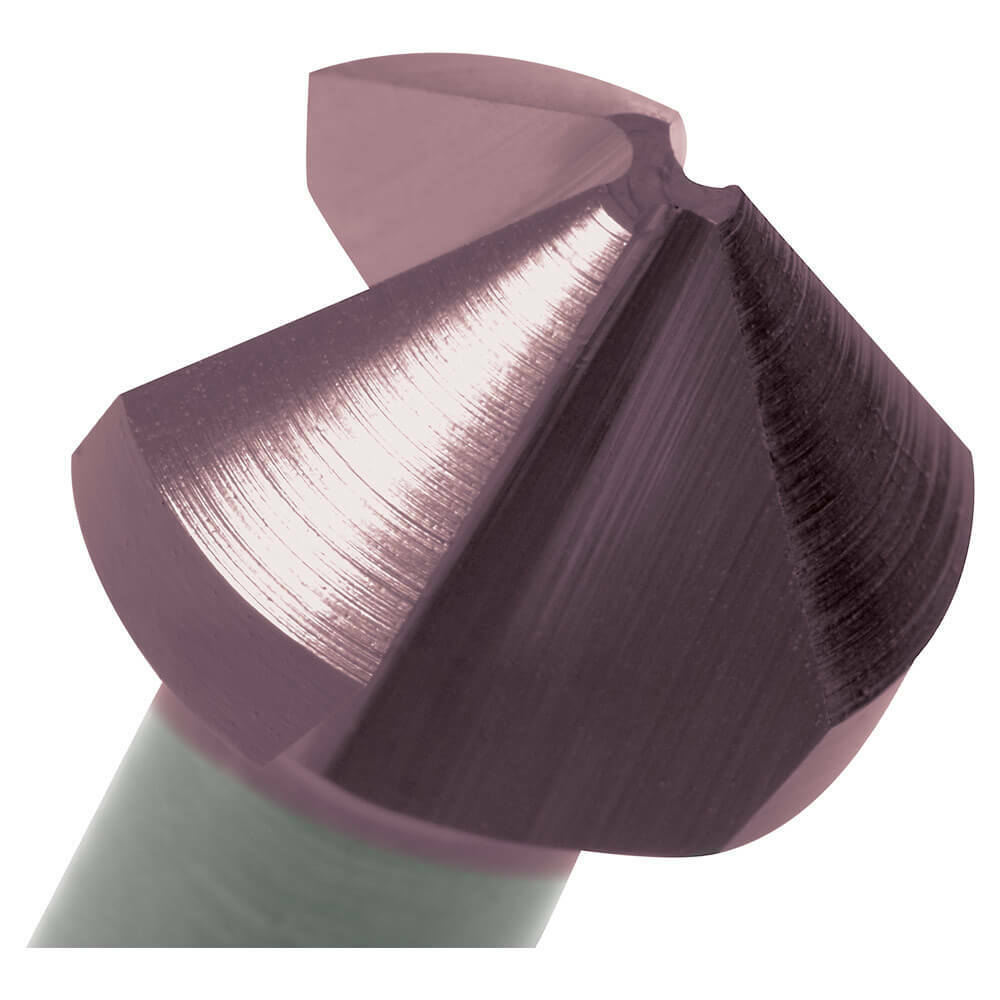

Three Flute Countersink 90°, DIN 335, UNI

Countersinking / Counterboring screw holes

For Countersunk screws acc. to DIN 963, 964, 965, 966, 7513, 7516

For Countersunk screws acc. to ISO 2009, 2010, 7046-1, 7046-2, 7047

Chamfering of tapping holes

Specifications

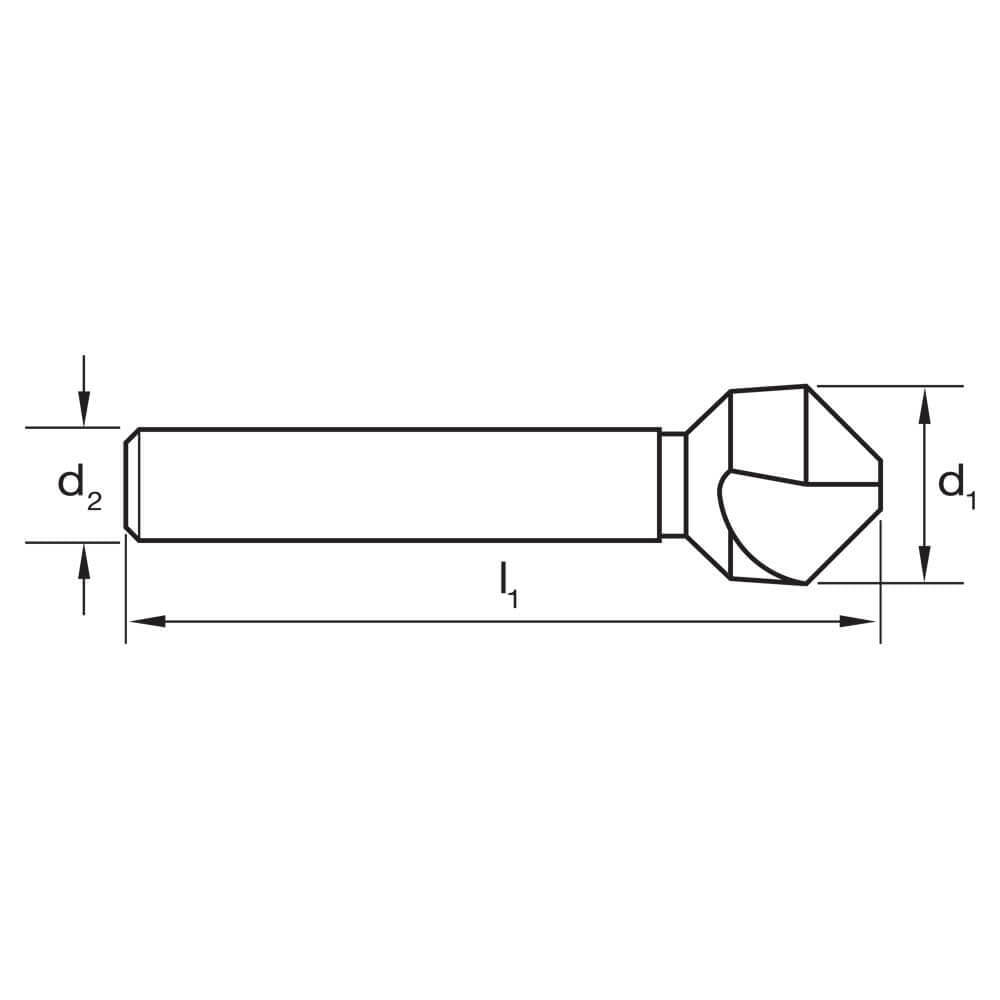

d1 (mm): 6.3, 10.4, 16.5, 20.5
Pack Quantity: 4
Designation: UNI
Material: High Speed Steel-Cobalt
Finish: TiAIN
Shank Tolerance: h9
Standard: DIN 335
Point Type: 90°

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
Optimal for Steel - Corrosion resistant & cast – Martensitic- 240 HB
Optimal for Stainless Steel – Austenitic- 180 HB
Optimal for Stainless Steel – Duplex- 250 HB
Optimal for Stainless Steel - Precipitation Hardening- 250 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Cast Iron, Nodular (GGG) – Pearlitic- 250 HB
Optimal for Cast Iron, Malleable – Ferritic- 130 HB
Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable- 75 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable- 90 HB
Optimal for Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable- 130 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 – 110 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)- 90 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)- 100 HB
Optimal for Cast Iron – Chilled – 400 HB

Features & Benefits

For use in machine applications
Type N - For non-ferrous, Type UNI - For difficult to machine materials

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton C1080004 90° Countersink Set 4 piece Three Flute DIN - Cobalt TiAlN

Name: Sutton C1080004 90° Countersink Set 4 piece Three Flute DIN - Cobalt TiAlN
Brand: Sutton Tools
SKU: A0002691
Price: 348.74 AUD
Availability: InStock

SKU: A0002691

Type: Three Flute Countersink Set

$348.74

Tax included. Shipping calculated at checkout.

Wide Range
Reliable Services
Proven Trust

Available

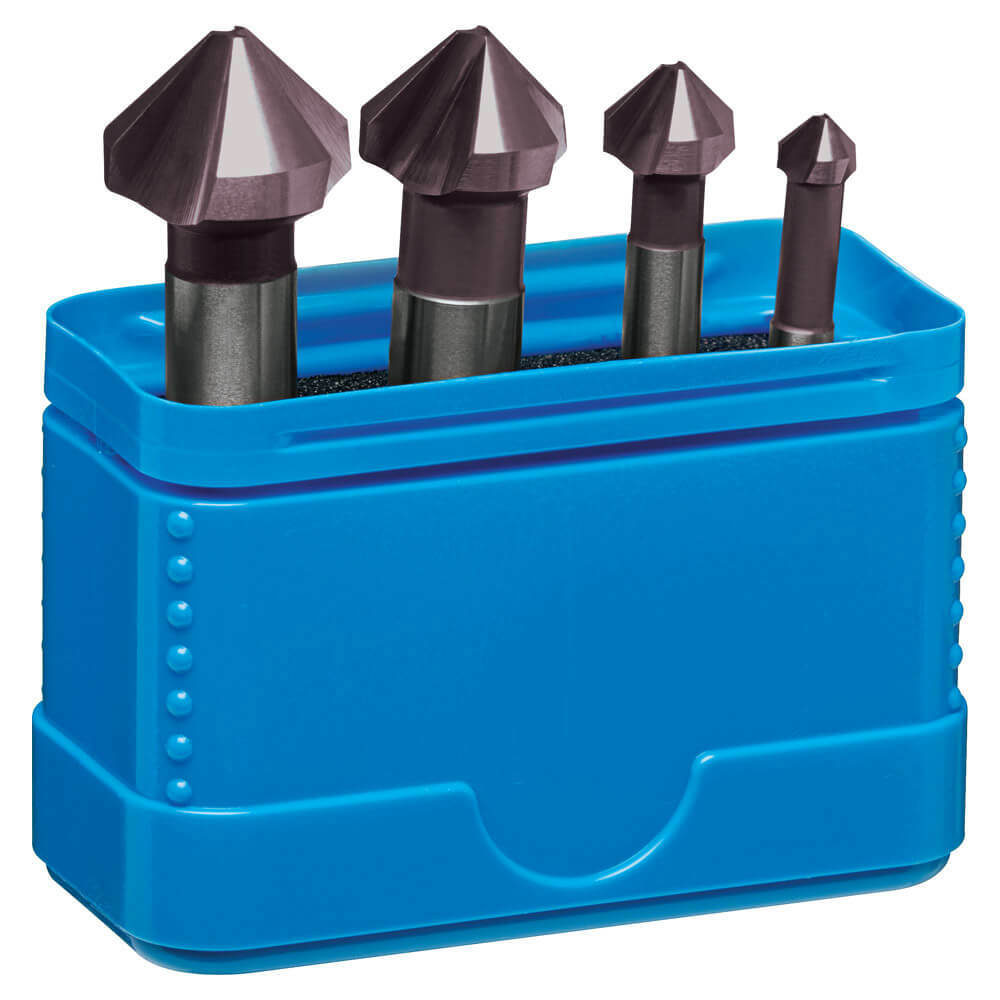

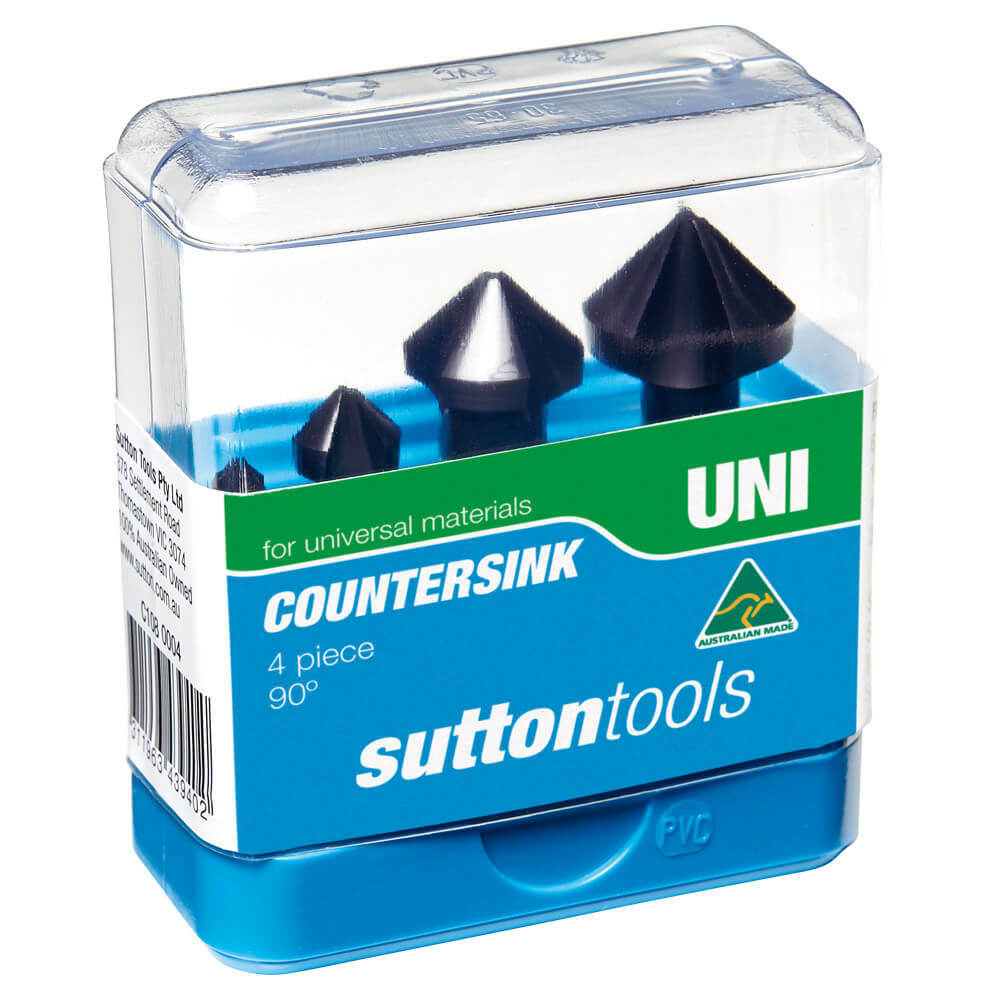

The Sutton C1080004 90° Countersink Set comprises four high-speed steel-cobalt pieces with a TiAlN finish. With sizes of 6.3mm, 10.4mm, 16.5mm, and 20.5mm, it's ideal for countersinking and chamfering tasks.
