Sutton 1/8" (3.18mm) D131 Shortie Panel Drill - HSS
Available

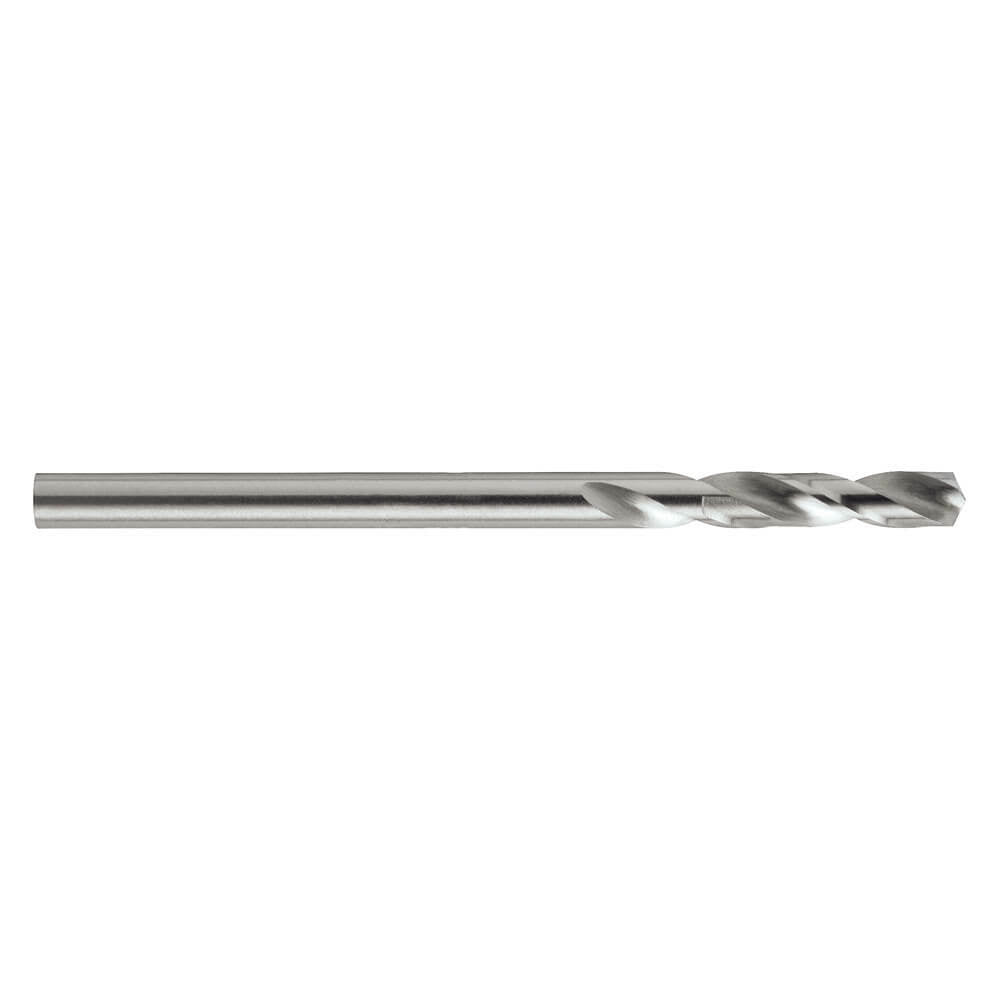

The Sutton D131 Shortie panel drill is a single-ended high speed steel drill with a bright finish and a 135° self-centring point, developed to drill rivet holes in flat and curved panels in sheet metal fabrication. It comes as a carded 2 pack, in 4 sizes from Ø3.18 mm to Ø4.9 mm.
The self-centring point minimises wandering when starting, and the flute is designed for shallow holes no deeper than 1.25 × the drill diameter.
Where this product is used
- Rivet holes in flat and curved panels in sheet metal fabrication.
- Shallow holes no deeper than 1.25 × the drill diameter.
- Applications for the range include: DIY, trade, automotive, electrical, plumbing, general contracting, metalworking and MRO work.
Design features

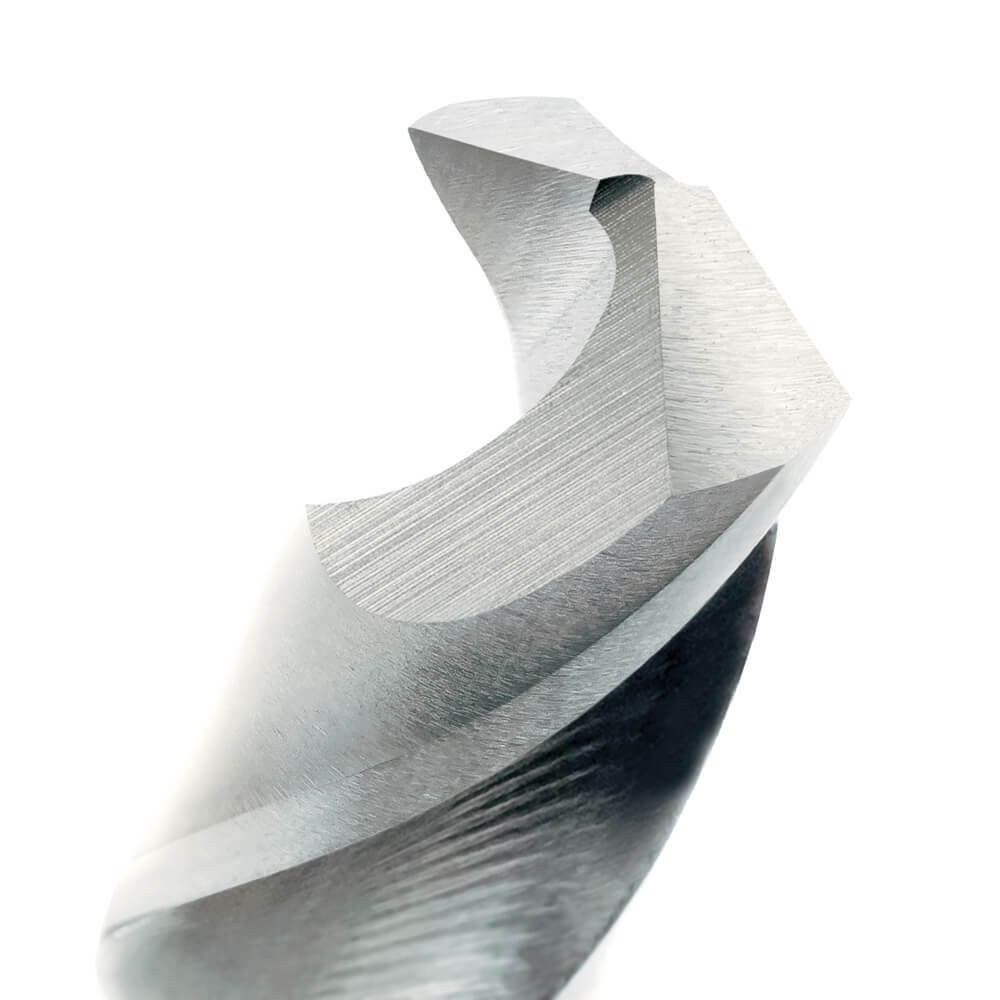

- 135° self-centring point: minimises wandering when starting.
- Flute length: designed for shallow hole drilling no deeper than 1.25 × the drill diameter.
- Made from high speed steel.
- Bright finish.
Sizes and rivet sizes
Each size is matched to the rivet it suits. Overall and flute lengths do not include the drill point. Lengths are in millimetres.
| Gauge / inch | Diameter (mm) | Overall length (mm) | Flute length (mm) | Rivet size | Sutton item no. |
|---|---|---|---|---|---|
| 1/8 | 3.18 | 54 | 19.1 | 3.0 mm | D131 0318 |
| #30 | 3.3 | 54 | 19.1 | 1/8 in | D131 0326 |

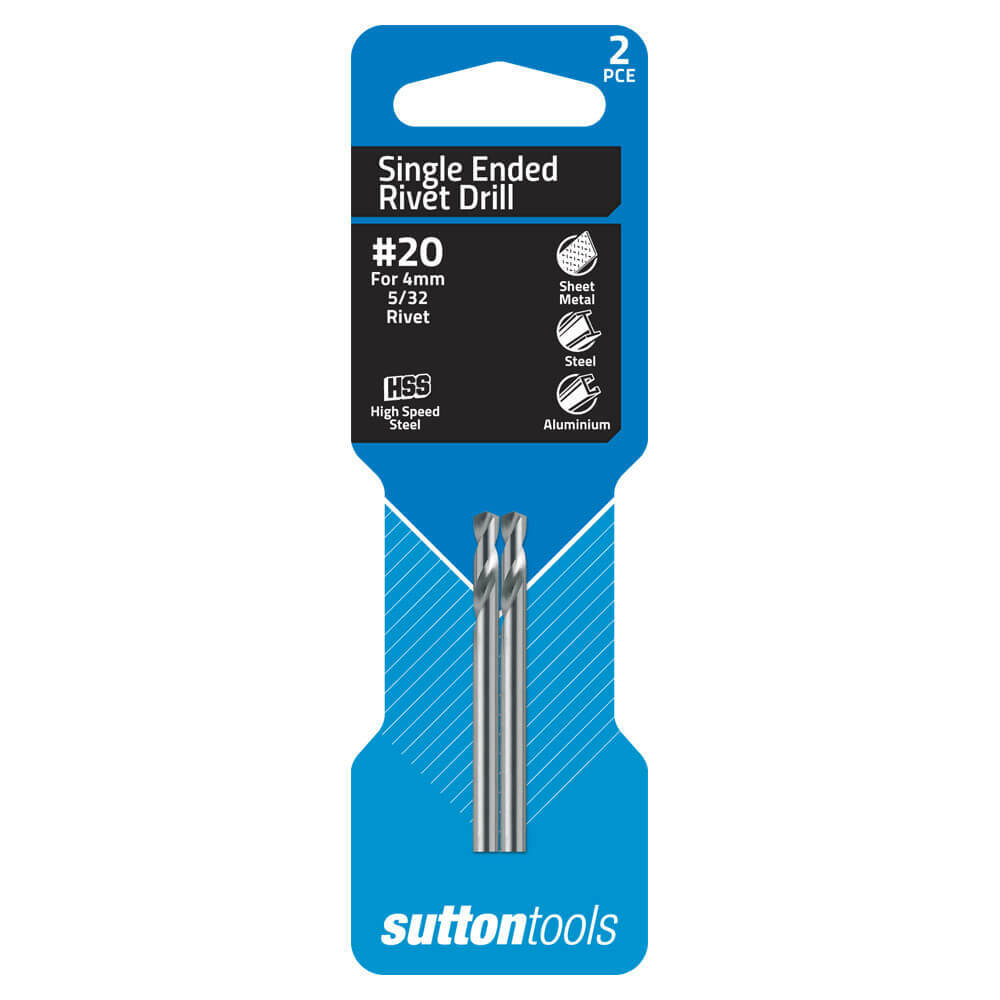

| #20 | 4.1 | 54 | 22.2 | 4.0 mm and 5/32 in | D131 0409 |
| #11 | 4.9 | 54 | 22.2 | 3/16 in | D131 0485 |
Key specifications
| Specification | Value |
|---|---|
| Catalogue code | D131 |
| Type | Shortie panel drill |
| Ends | single-ended |
| Material | High speed steel |
| Finish | Bright |
| Point | 135° self-centring point |
| Flute depth | No deeper than 1.25 × drill diameter |
| Pack | Carded 2 pack (2 per pack) |
| Sizes | 4 sizes, Ø3.18 to Ø4.9 mm |
Related drilling products
Compare other Sutton panel drills: D132 in a hang pack of 10, D121 Silver Bullet Shortie panel drill (10 pack) and D122 Silver Bullet Tupoint panel drill (10 pack). Browse the Panel Drill Bit Sets collection, or the Jobber Drill Bits collection for standard hole sizes. Our cutting tool troubleshooting guide covers drilling problems and fixes.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-

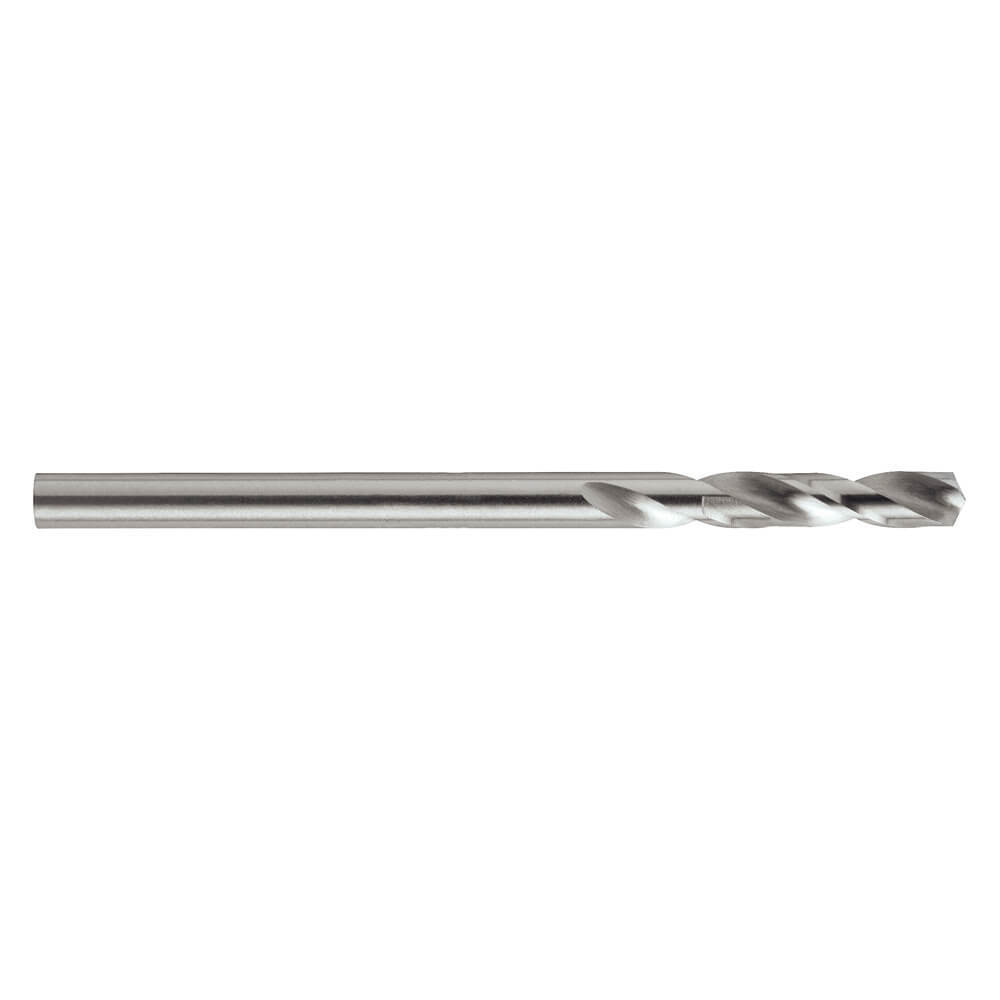

1/8mm drill bit
Model Number: D1310318
-

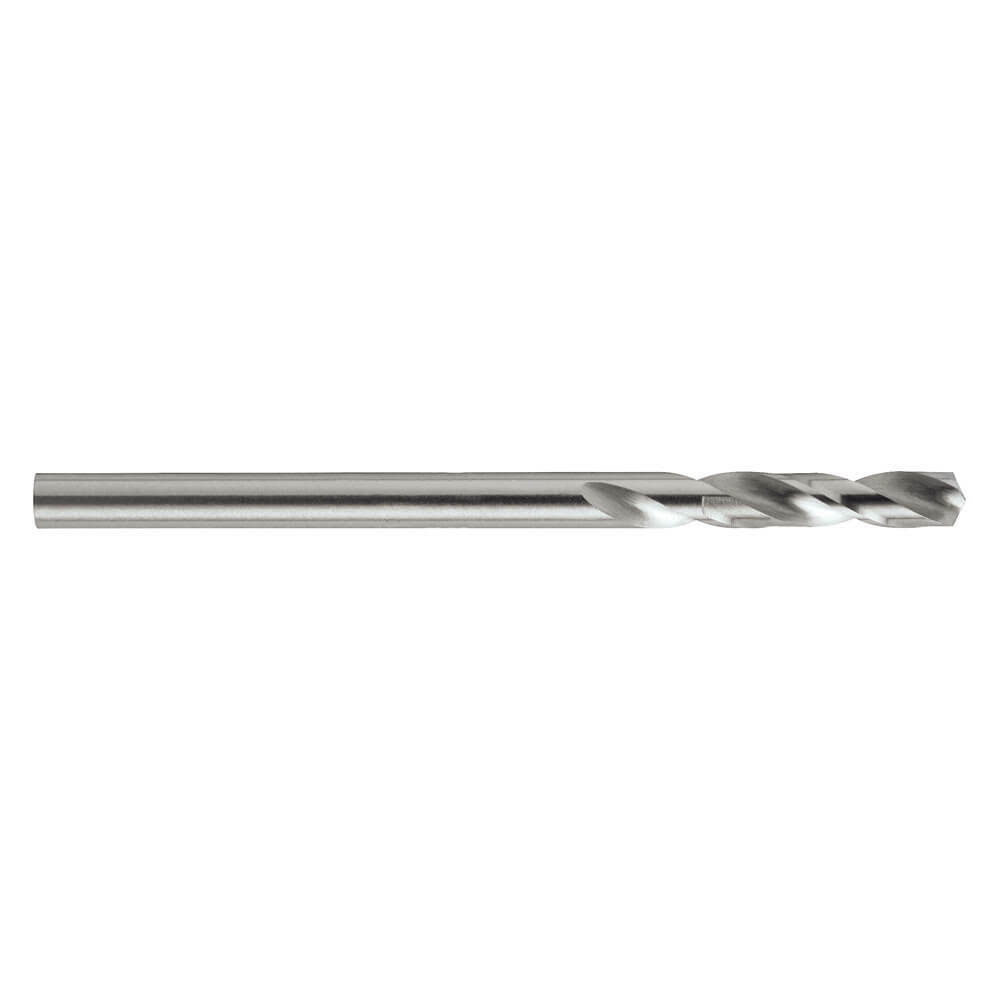

#11mm drill bit
