Sutton 1/8" (3.18mm) D132 Shortie Panel Drill - HSS
Available

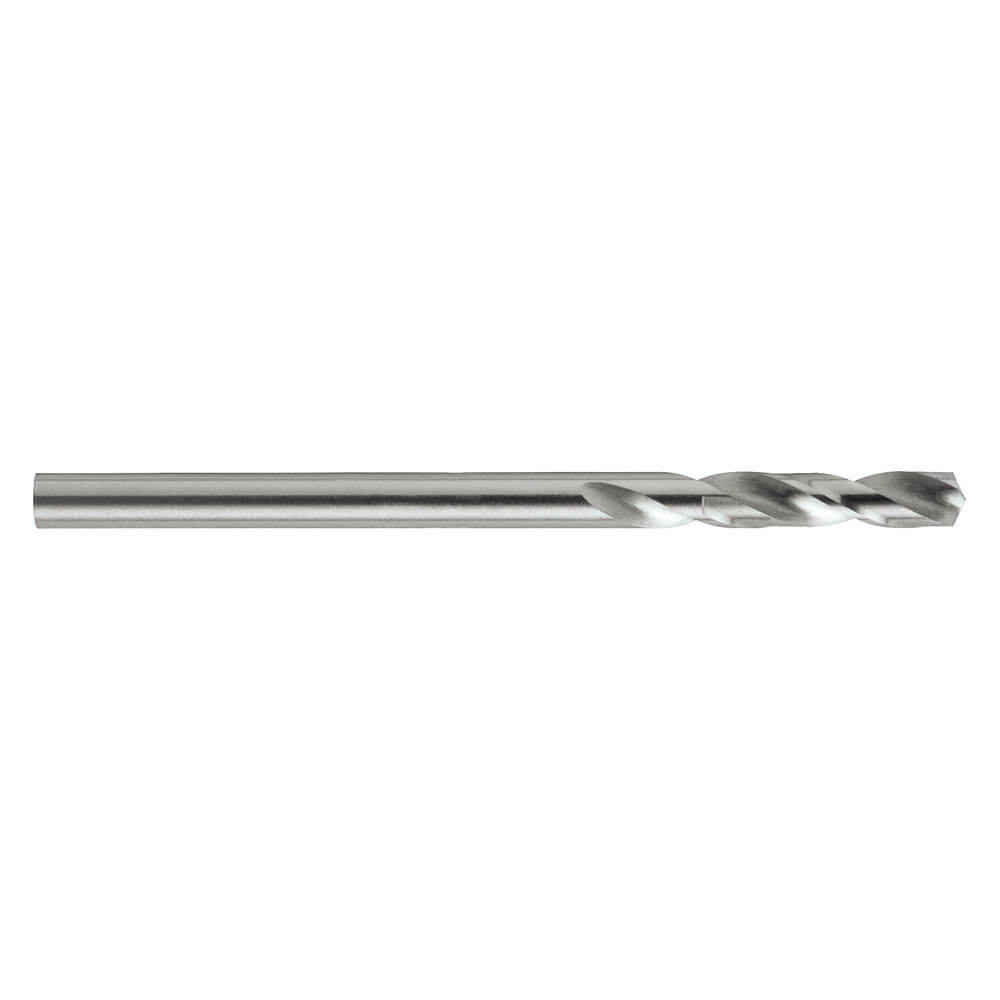

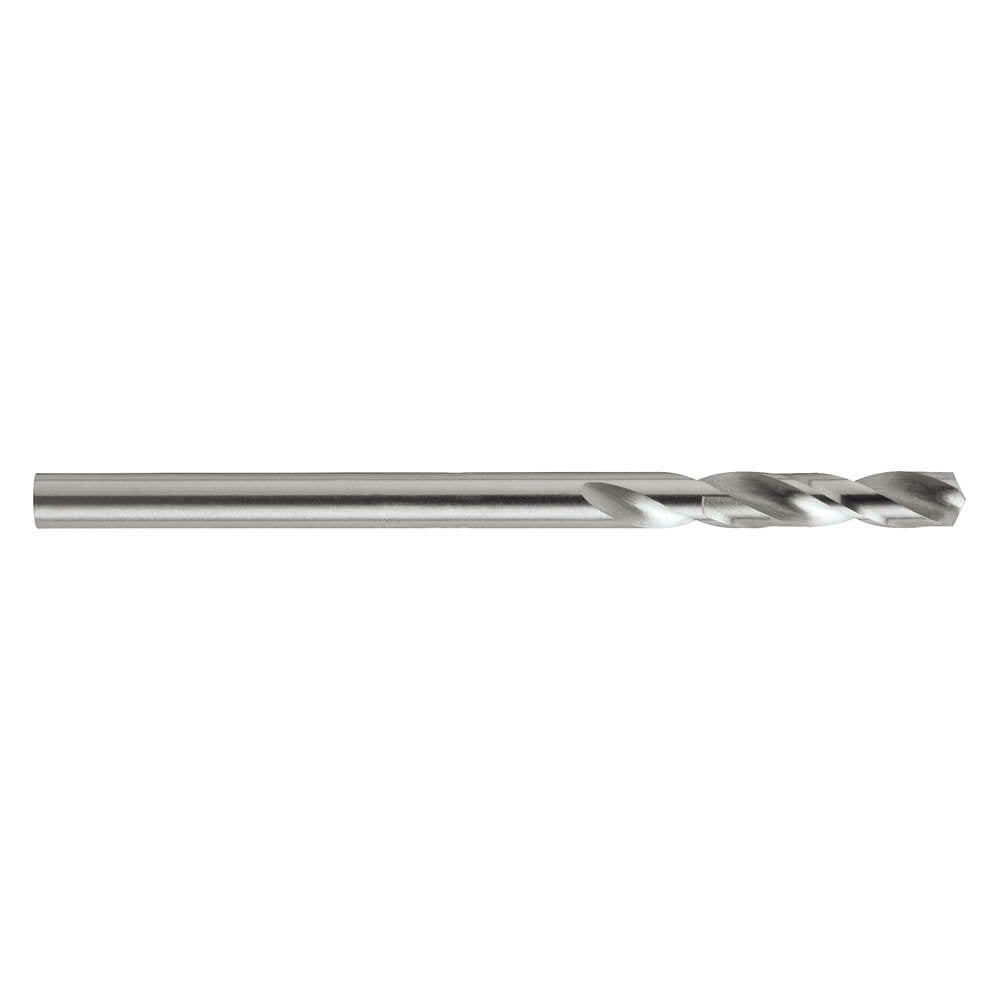

The Sutton D132 Shortie panel drill is a single-ended high speed steel drill with a bright finish and a 135° self-centring point, developed to drill rivet holes in flat and curved panels in sheet metal fabrication. It comes as a hang pack of 10, in 4 sizes from Ø3.18 mm to Ø4.9 mm.
The self-centring point minimises wandering when starting, and the flute is designed for shallow holes no deeper than 1.25 × the drill diameter.
Where this product is used
- Rivet holes in flat and curved panels in sheet metal fabrication.
- Shallow holes no deeper than 1.25 × the drill diameter.
- Applications for the range include: DIY, trade, automotive, electrical, plumbing, general contracting, metalworking and MRO work.
Design features

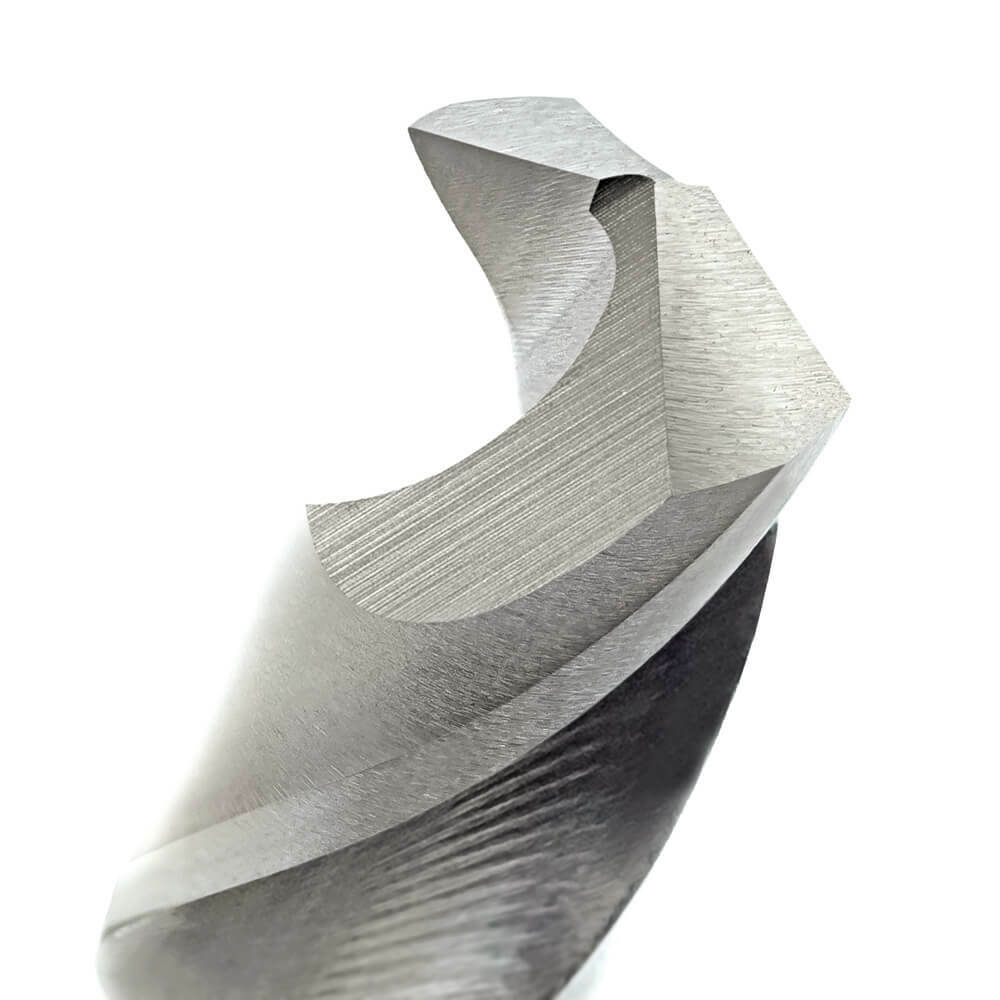

- 135° self-centring point: minimises wandering when starting.
- Flute length: designed for shallow hole drilling no deeper than 1.25 × the drill diameter.
- Made from high speed steel.
- Bright finish.
Sizes and rivet sizes
Each size is matched to the rivet it suits. Overall and flute lengths do not include the drill point. Lengths are in millimetres.
| Gauge / inch | Diameter (mm) | Overall length (mm) | Flute length (mm) | Rivet size | Sutton item no. |
|---|---|---|---|---|---|

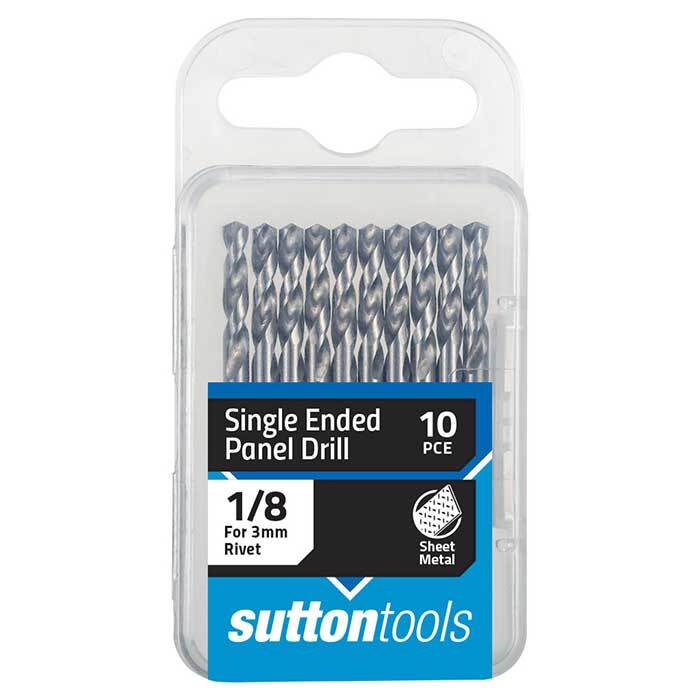

| 1/8 | 3.18 | 54 | 19.1 | 3.0 mm | D132 0318 |

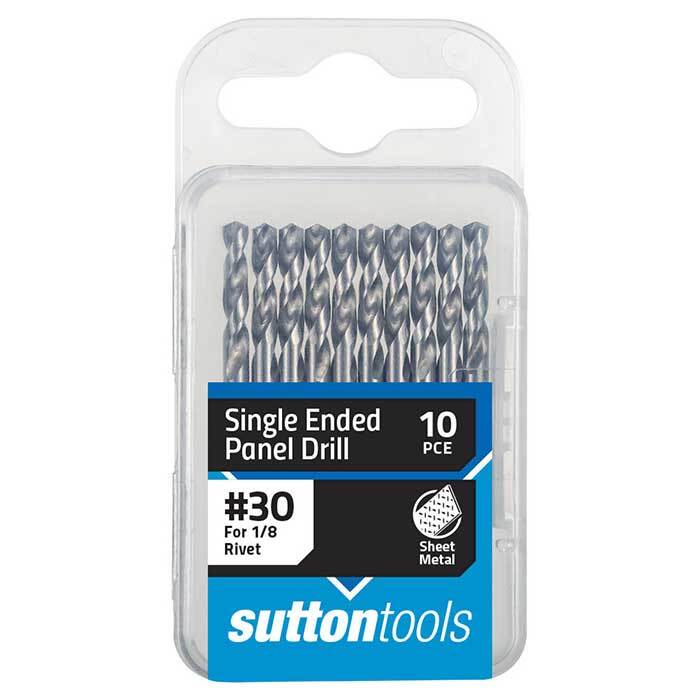

| #30 | 3.3 | 54 | 19.1 | 1/8 in | D132 0326 |

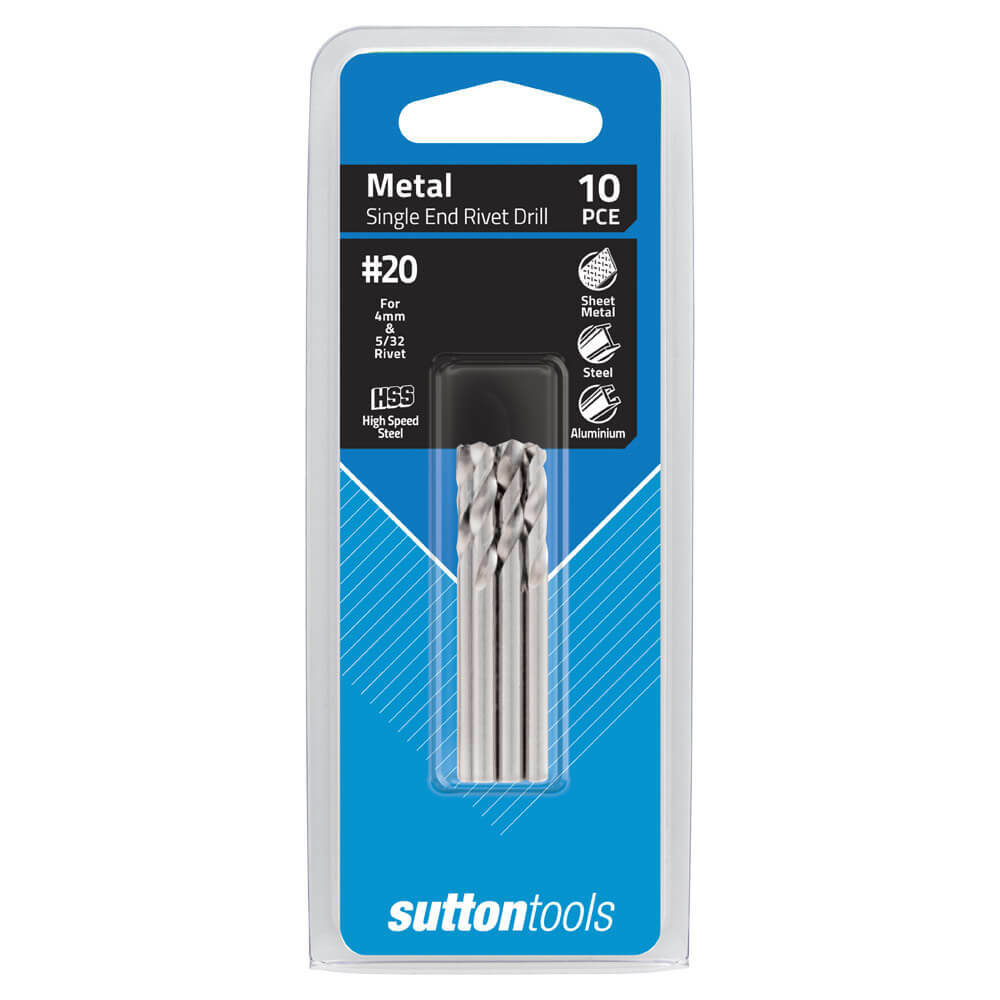

| #20 | 4.1 | 54 | 22.2 | 4.0 mm and 5/32 in | D132 0409 |

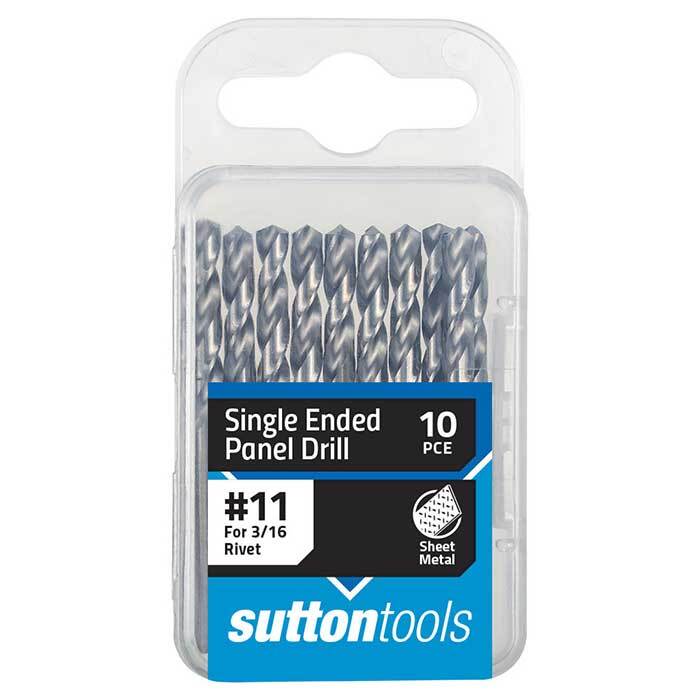

| #11 | 4.9 | 54 | 22.2 | 3/16 in | D132 0485 |
Key specifications
| Specification | Value |
|---|---|
| Catalogue code | D132 |
| Type | Shortie panel drill |
| Ends | single-ended |
| Material | High speed steel |
| Finish | Bright |
| Point | 135° self-centring point |
| Flute depth | No deeper than 1.25 × drill diameter |
| Pack | Hang pack of 10 (10 per pack) |
| Sizes | 4 sizes, Ø3.18 to Ø4.9 mm |
Related drilling products
Compare other Sutton panel drills: D131 in a carded 2 pack, D121 Silver Bullet Shortie panel drill (10 pack) and D122 Silver Bullet Tupoint panel drill (10 pack). Browse the Panel Drill Bit Sets collection, or the Jobber Drill Bits collection for standard hole sizes. Our cutting tool troubleshooting guide covers drilling problems and fixes.
