Sutton D1411000 10mm MT1 Heavy Duty Cobalt Morse Taper Shank Drill - DIN 345
Available

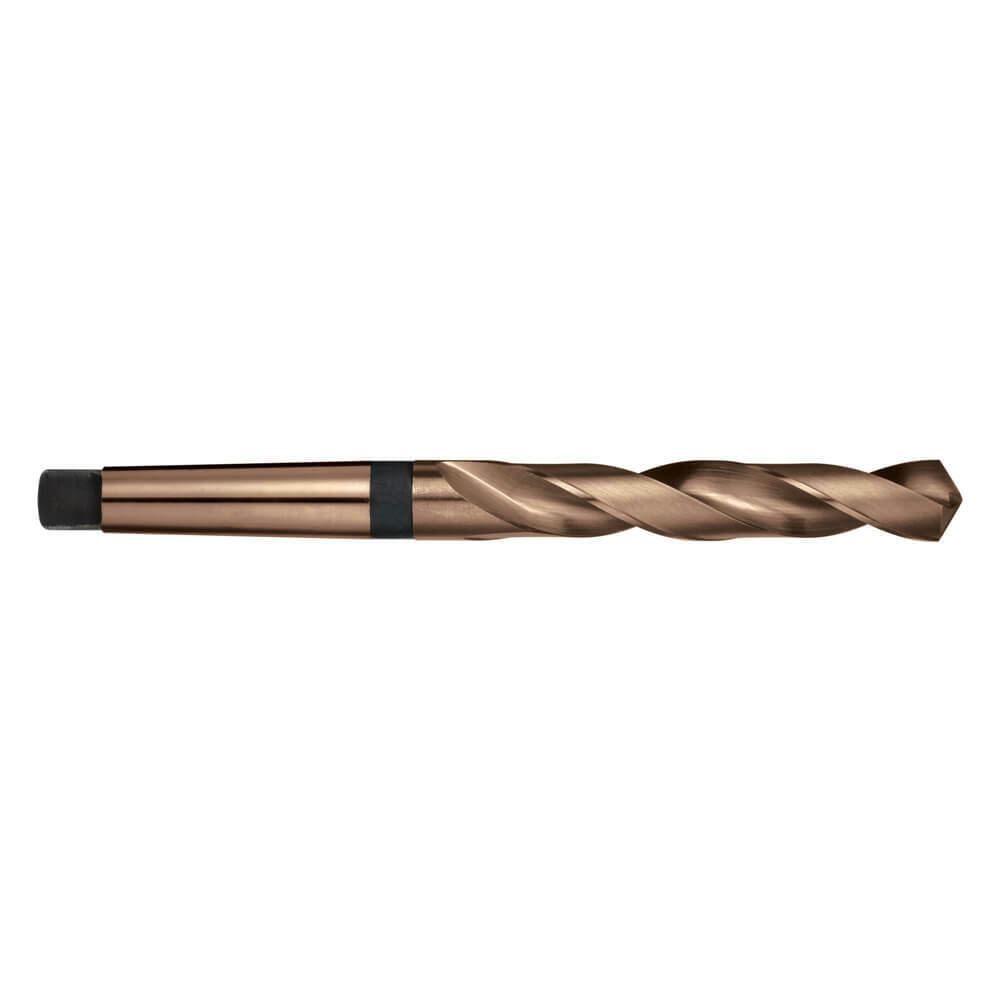

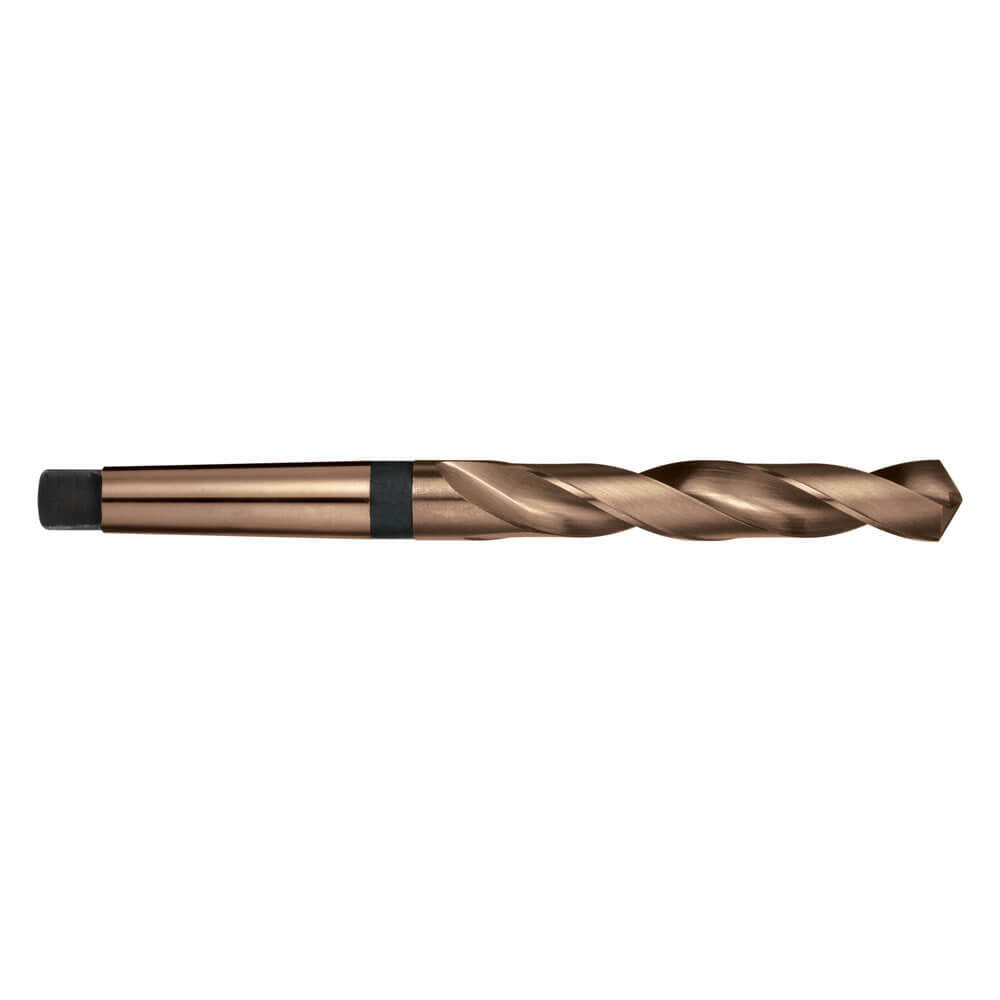

The Sutton D141 is a heavy duty cobalt twist drill with a Morse taper shank (DIN 345), supplied in 45 sizes from 10 mm to 32 mm across MT1 to MT4. It has a Colour Temp finish and a 118° Form A point, and is suited to materials up to 1400 N/mm².
The Morse taper shank locates the drill in a matching spindle or sleeve: the taper provides the drive and alignment, and the tang at the end of the shank is used to eject the drill with a drift key. The drill has an R30 helix, an h8 diameter tolerance and a 118° Form A point. Cobalt content: designed to give high abrasion resistance.
Where this product is used
- Drilling in steel, cast iron and other materials up to 1400 N/mm² on drilling machines with a Morse taper spindle.
- Machine drilling in workshops, maintenance and production, where a Morse taper shank is required.
- Applications include trade, industrial, metalworking, machine shop and MRO work.
Design features
- Morse taper shank (DIN 345): MT1 to MT4.
- HSS-Co (cobalt) construction.
- Surface finish: Colour Temp.

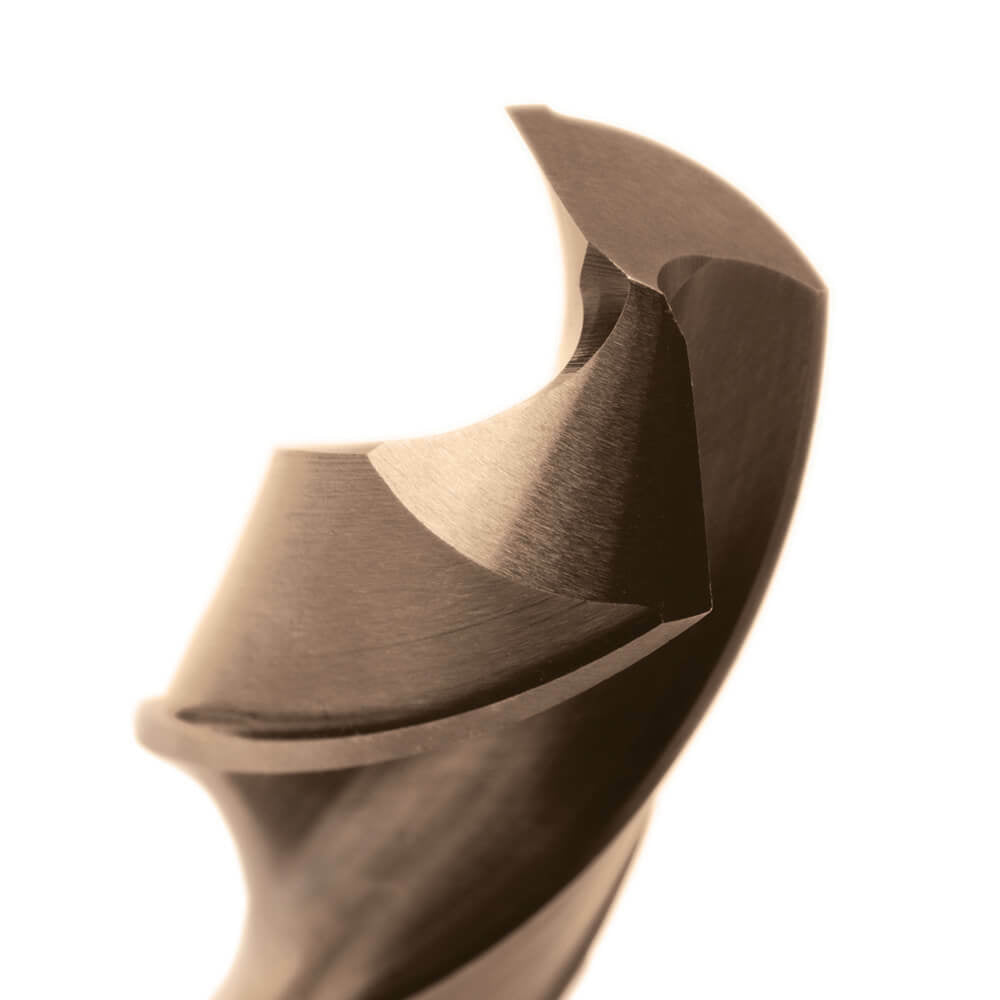

- R30 helix, 118° Form A point.
- Suitable for materials up to 1400 N/mm².
- Cobalt content: designed to give high abrasion resistance.
- 45 sizes, 10 mm to 32 mm.
Sizes and item numbers

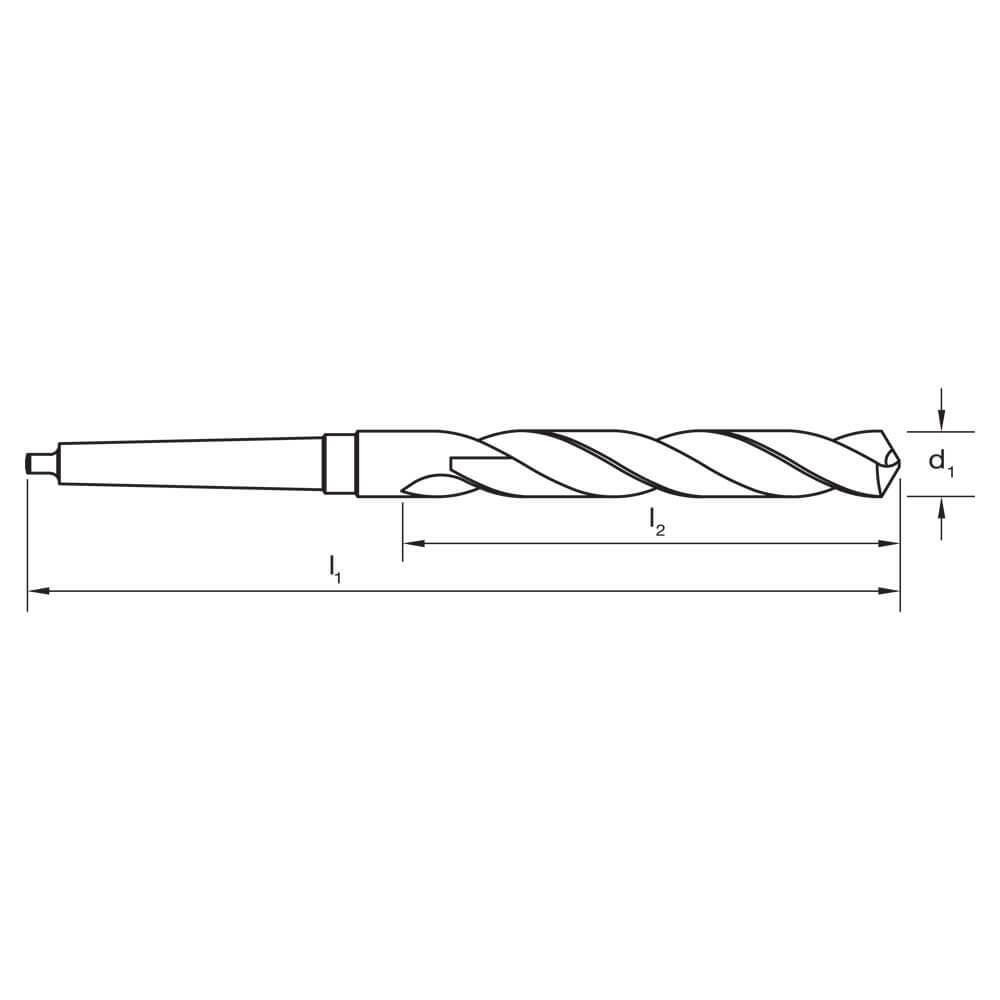

Each size is a single drill. Overall and flute lengths are in millimetres.
MT1 shank sizes (9 sizes, 10 to 14 mm)
| Diameter (mm) | Overall length (mm) | Flute length (mm) | Sutton item no. |
|---|---|---|---|
| 10 | 168 | 87 | D141 1000 |
| 10.5 | 168 | 87 | D141 1050 |
| 11 | 175 | 94 | D141 1100 |
| 11.5 | 175 | 94 | D141 1150 |
| 12 | 182 | 101 | D141 1200 |
| 12.5 | 182 | 101 | D141 1250 |
| 13 | 182 | 101 | D141 1300 |
| 13.5 | 189 | 108 | D141 1350 |
| 14 | 189 | 108 | D141 1400 |
MT2 shank sizes (18 sizes, 14.5 to 23 mm)
| Diameter (mm) | Overall length (mm) | Flute length (mm) | Sutton item no. |
|---|---|---|---|
| 14.5 | 212 | 114 | D141 1450 |
| 15 | 212 | 114 | D141 1500 |
| 15.5 | 218 | 120 | D141 1550 |
| 16 | 218 | 120 | D141 1600 |
| 16.5 | 223 | 125 | D141 1650 |
| 17 | 223 | 125 | D141 1700 |
| 17.5 | 228 | 130 | D141 1750 |
| 18 | 228 | 130 | D141 1800 |
| 18.5 | 233 | 135 | D141 1850 |
| 19 | 233 | 135 | D141 1900 |
| 19.5 | 238 | 140 | D141 1950 |
| 20 | 238 | 140 | D141 2000 |
| 20.5 | 243 | 145 | D141 2050 |
| 21 | 243 | 145 | D141 2100 |
| 21.5 | 248 | 150 | D141 2150 |
| 22 | 248 | 150 | D141 2200 |
| 22.5 | 253 | 155 | D141 2250 |
| 23 | 253 | 155 | D141 2300 |
MT3 shank sizes (17 sizes, 23.5 to 31.5 mm)
| Diameter (mm) | Overall length (mm) | Flute length (mm) | Sutton item no. |
|---|---|---|---|
| 23.5 | 276 | 155 | D141 2350 |
| 24 | 281 | 160 | D141 2400 |
| 24.5 | 281 | 160 | D141 2450 |
| 25 | 281 | 160 | D141 2500 |
| 25.5 | 286 | 165 | D141 2550 |
| 26 | 286 | 165 | D141 2600 |
| 26.5 | 286 | 165 | D141 2650 |
| 27 | 291 | 170 | D141 2700 |
| 27.5 | 291 | 170 | D141 2750 |
| 28 | 291 | 170 | D141 2800 |
| 28.5 | 296 | 175 | D141 2850 |
| 29 | 296 | 175 | D141 2900 |
| 29.5 | 296 | 175 | D141 2950 |
| 30 | 296 | 175 | D141 3000 |
| 30.5 | 301 | 180 | D141 3050 |
| 31 | 301 | 180 | D141 3100 |
| 31.5 | 301 | 180 | D141 3150 |
MT4 shank sizes (1 sizes, 32 to 32 mm)
| Diameter (mm) | Overall length (mm) | Flute length (mm) | Sutton item no. |
|---|---|---|---|
| 32 | 334 | 185 | D141 3200 |
Using the drills
- Check the drill shank taper (MT1/MT2/MT3/MT4) matches the machine spindle, or use a D118 Morse taper sleeve to fit a smaller taper to a larger spindle.
- Seat the taper clean and dry so the drill drives and runs true.
- Eject the drill with a D142 drift key, using the slot in the spindle or sleeve.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D141 |
| Type | Heavy duty cobalt twist drill, Morse taper shank |
| Sizes | 45 sizes, 10 to 32 mm |
| Morse taper | MT1 to MT4 |
| Standard | DIN 345 |
| Material | HSS-Co (cobalt) |
| Surface finish | Colour Temp |
| Helix | R30 |
| Point | 118° Form A |
| Diameter tolerance | h8 |
| Suitable for | Materials up to 1400 N/mm² |
Related products
Morse taper shank drills: D115 hss morse taper shank drill and D140 long series morse taper shank drill. Morse taper sleeves: D118 Morse taper sleeves. Drill drift keys: D142 drill drift keys. Browse the drilling range.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton D141 Heavy Duty Cobalt (HSS-Co) Morse Taper Shank Drill Bits 10mm to 32mm - MT1 to MT4, DIN 345: 10
SKU: A0004373 | Model: D1411000
This is the 10mm diameter option of the Sutton D141 Heavy Duty Cobalt (HSS-Co) Morse Taper Shank Drill Bits 10mm to 32mm - MT1 to MT4, DIN 345. Key details for this option: flute length 87mm, overall length 168mm.
Descriptions
General purpose cobalt drill
Suitable for materials up to 1400N/mm2
