Description
Description
- Precision drill for machine use
- Refer to Carbide Drill section for VHM Spotting Drills
Specifications
Specifications

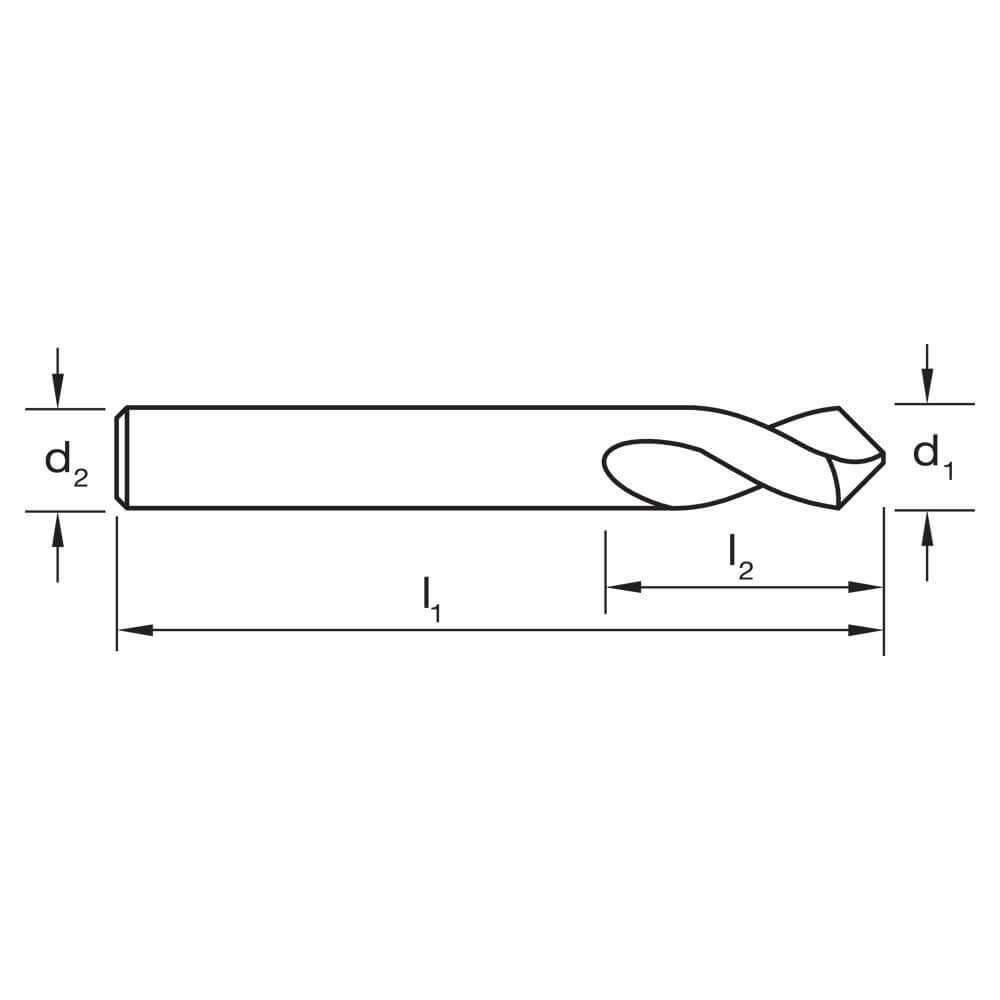

Dimensions
- d1 (mm): 3
- d2 (mm): 3
- l1 (mm): 49
- l2 (mm): 16
- Pack Quantity: 1
- Designation: N
- Material: High Speed Steel Cobalt
- Finish: TiN
- Shank Form: A
- X: als
- Point Tolerance: h8
- Shank Tolerance: h9
- Point Type: 90°
- Cutting Edges: ul
- Standard: DIN 1897
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Stainless Steel – Austenitic- 180 HB
- Optimal for Stainless Steel – Duplex- 250 HB
- Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
- Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
- Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB
Features & Benefits
Features & Benefits
- Spotting Drill for “seat” position accuracy
- 90° offers hole chamfering & spotting with the one tool
- 120° for spotting, matching a typical drill point
- Only drill to the depth of the point
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

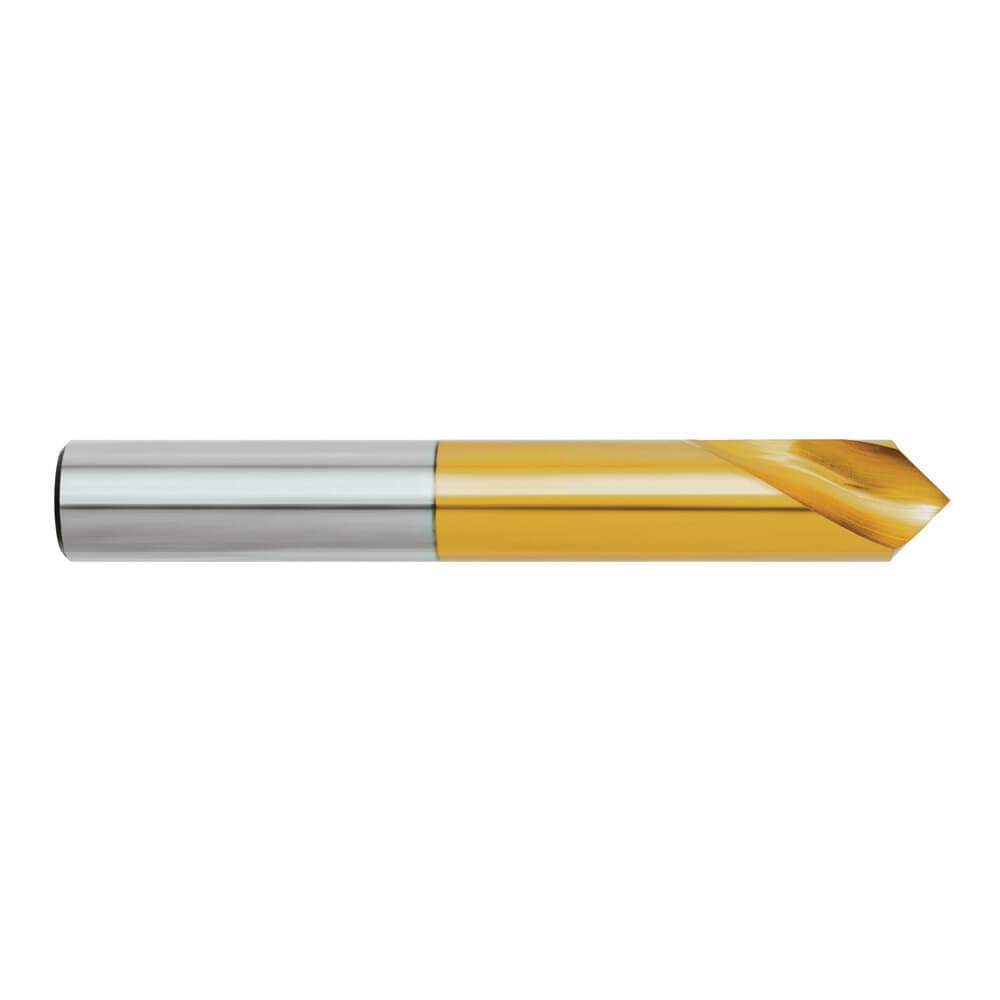

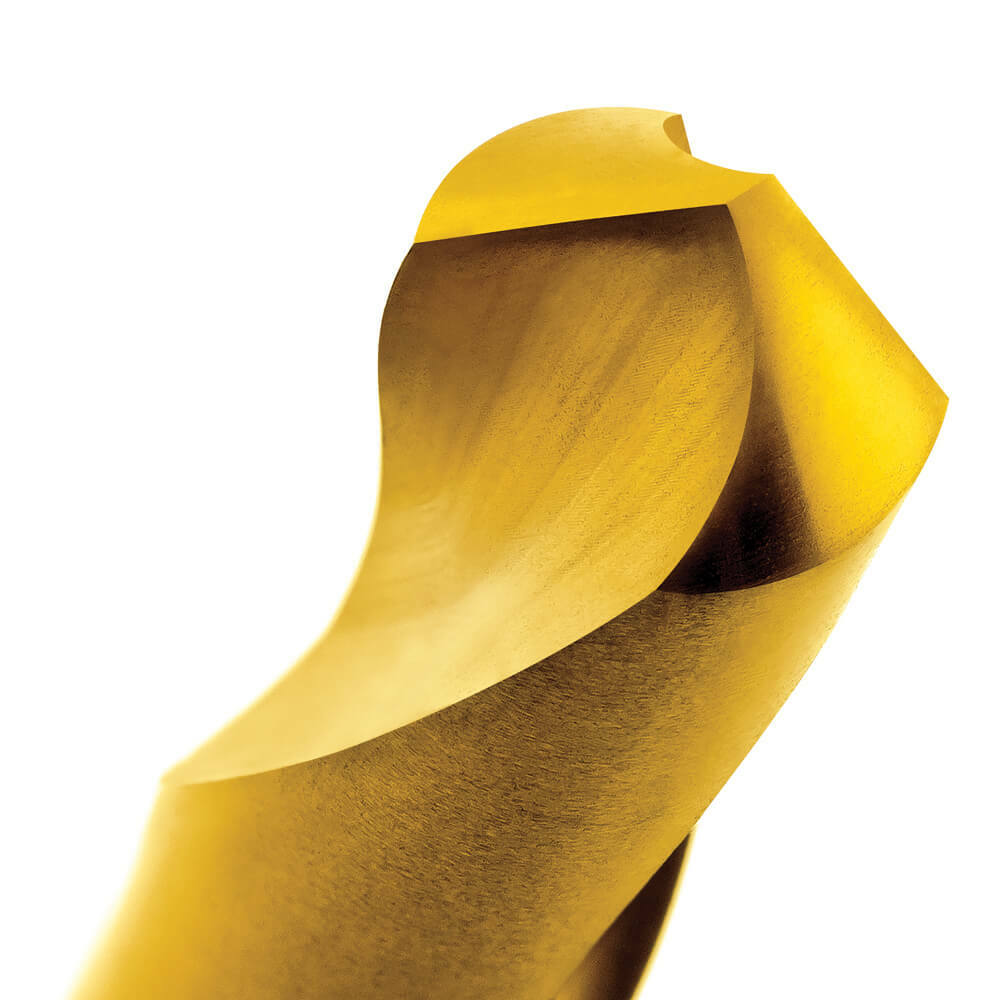

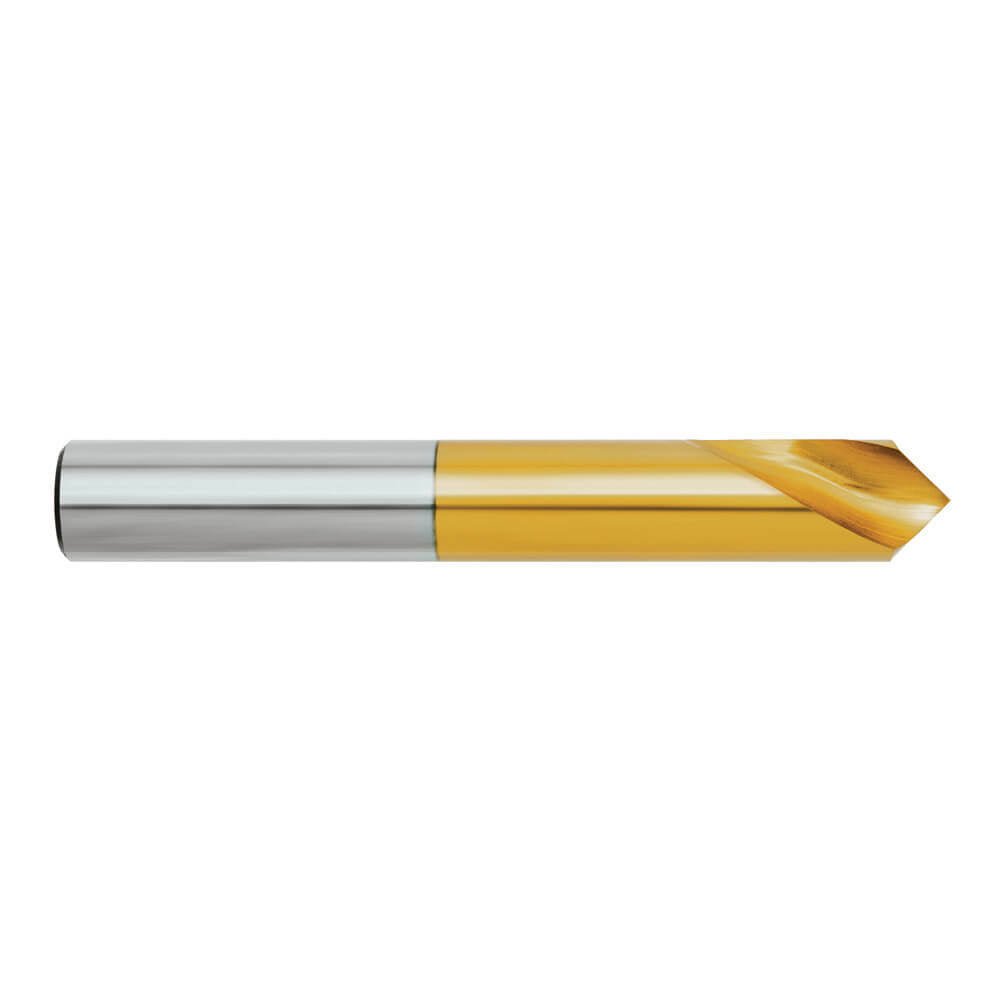

Sutton D175 90° Spotting Drill Bit DIN1897 - Cobalt Steel - TiN
Sutton D175 90° Spotting Drill Bit DIN1897 - Cobalt Steel - TiN
SKU: A0005898
Type: Spotting Drill Bit
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton D175 90° Spotting Drill Bit DIN1897 by Sutton Tools is a Spotting Drill Bit with TiN finish. It offers d1 10 mm and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C).
