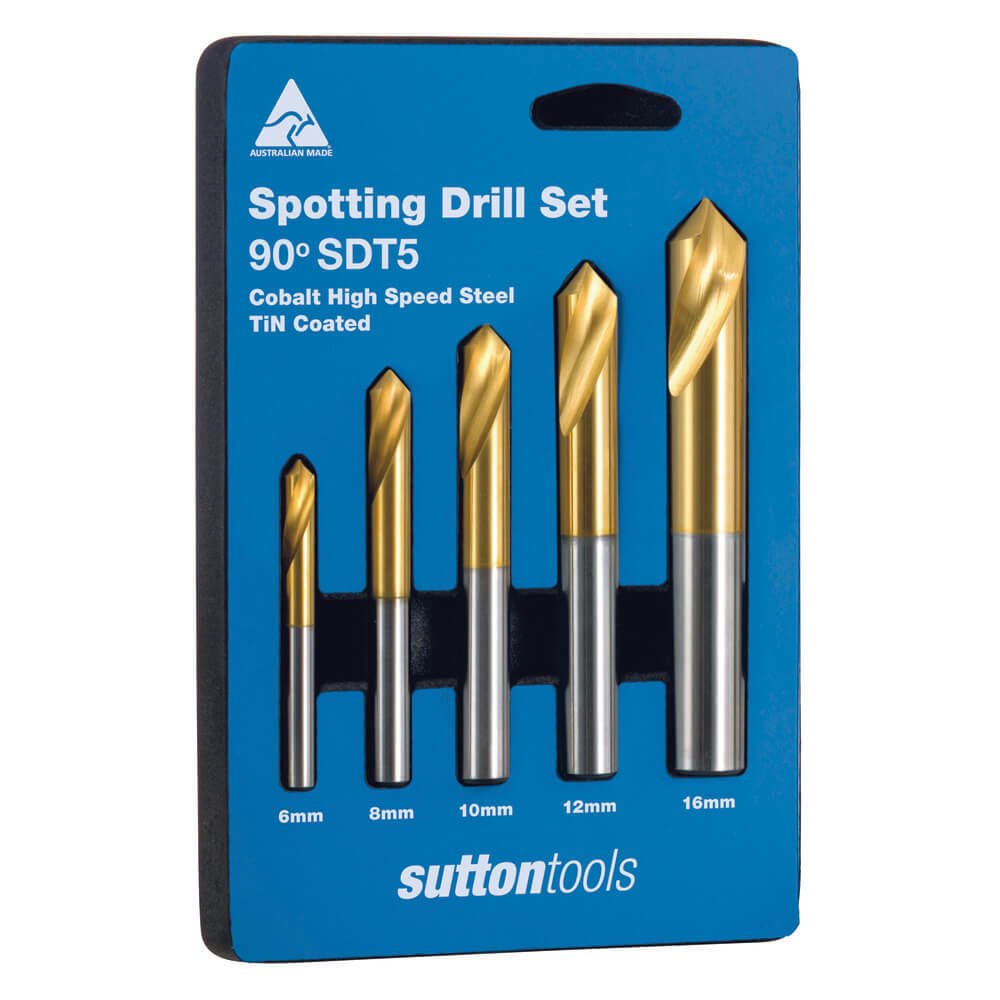

Sutton D175SDT5 90° Spotting Drill Set 5 piece - 5% Cobalt HSS - TiN1

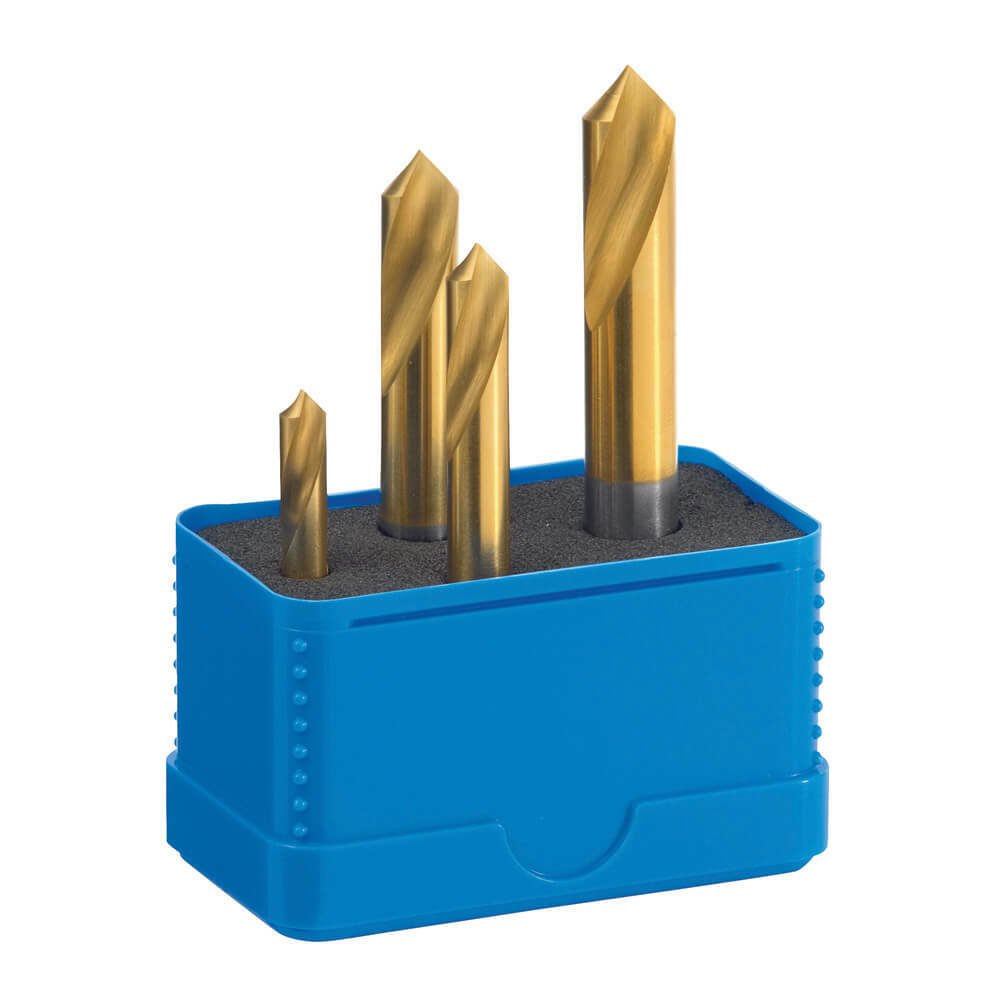

Sutton D175SDT5 90° Spotting Drill Set 5 piece - 5% Cobalt HSS - TiN2

Description +

Precision drill for machine use

Refer to Carbide Drill section for VHM Spotting Drills

Specifications +

d1 (mm): 6, 8, 10, 12, 16
Pack Quantity: 5
Designation: N
Material: High Speed Steel Cobalt
Finish: TiN
Shank Form: A
X: als
Point Tolerance: h8
Shank Tolerance: h9
Point Type: 90°
Cutting Edges: ul
Standard: DIN 1897

Application +

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Stainless Steel – Austenitic- 180 HB
Optimal for Stainless Steel – Duplex- 250 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB

Features & Benefits +

Spotting Drill for “seat” position accuracy
90° offers hole chamfering & spotting with the one tool
120° for spotting, matching a typical drill point
Only drill to the depth of the point

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton D175SDT5 90° Spotting Drill Set 5 piece - 5% Cobalt HSS - TiN

SKU: A0005908

Type: Spotting Drill Set

$315.93

Inc. GST

Buy It Now

Available

The Sutton D175SDT5 90° Spotting Drill Set, crafted from high-speed steel cobalt, is a precision tool designed for machine use. With a 90° point, it enables hole chamfering and spotting. The set comprises five drills of 6, 8, 10, 12, and 16mm diameters.
