Sutton D1760004 4 Piece 120° Spotting Drill Set - HSS-Co TiN - DIN 1897
Available

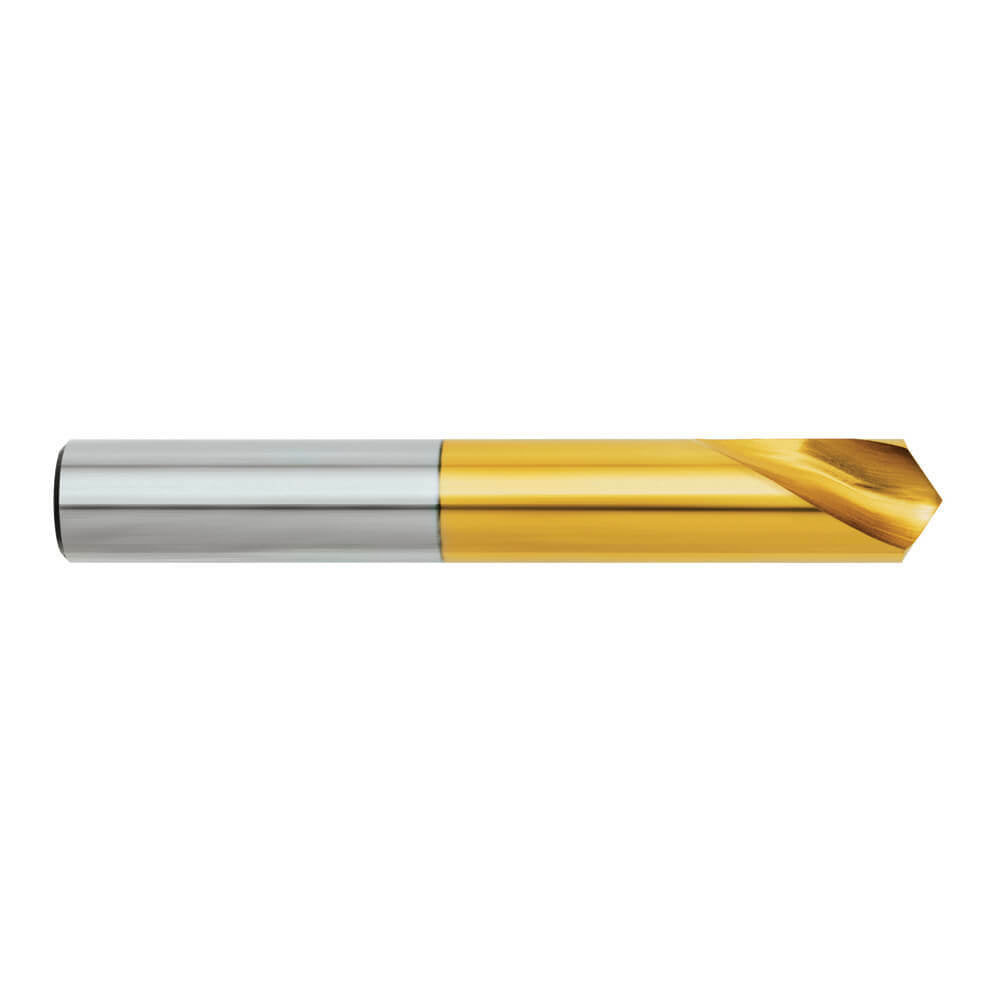

The Sutton D1760004 is a 4 piece 120° NC spotting drill set (6, 8, 10, 12 mm), made from 5% cobalt high speed steel (HSS-Co) with a TiN coating. The drills have straight shanks (shank form A) and are made to DIN 1897.
It is a precision set for machine use. The rigid design is for “seat” position accuracy, and the 120° point suits spotting ahead of a drill because it matches a typical drill point. Only drill to the depth of the point. Each drill is a D176 item, so single replacements can be ordered by the item number in the contents table.

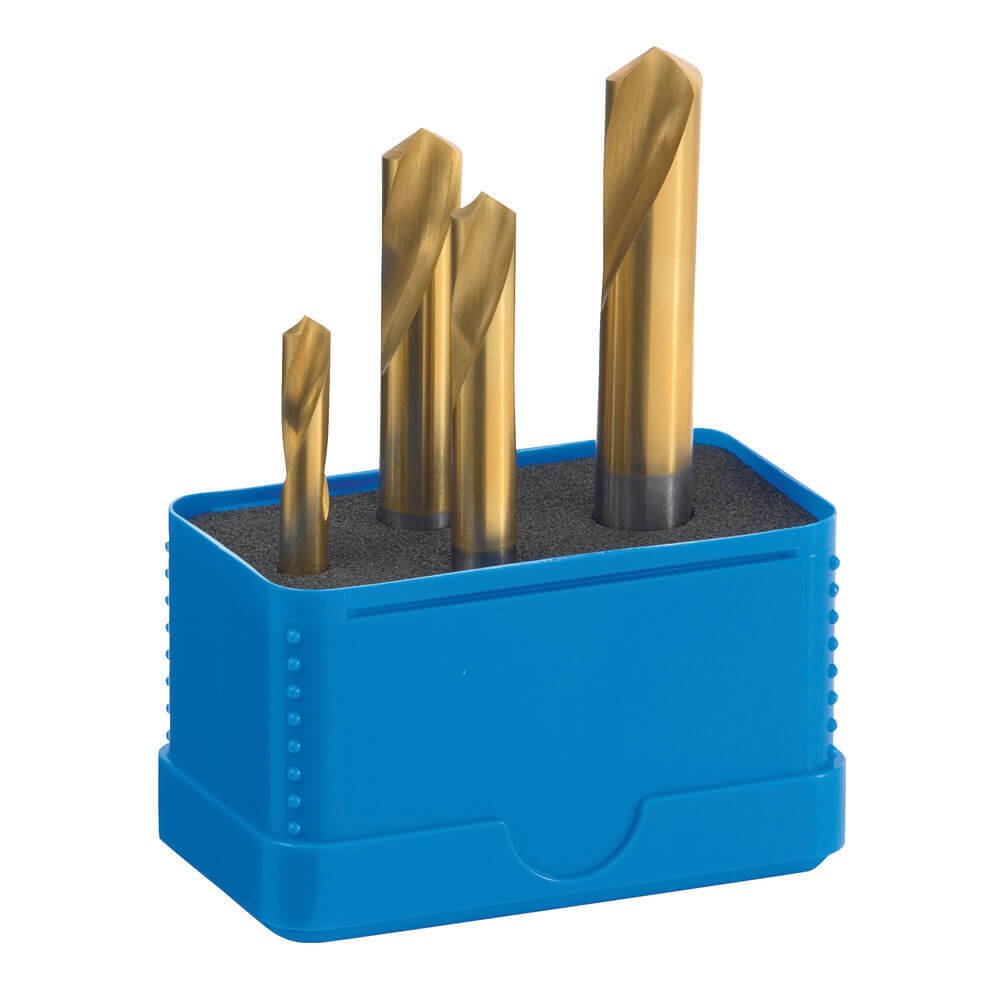

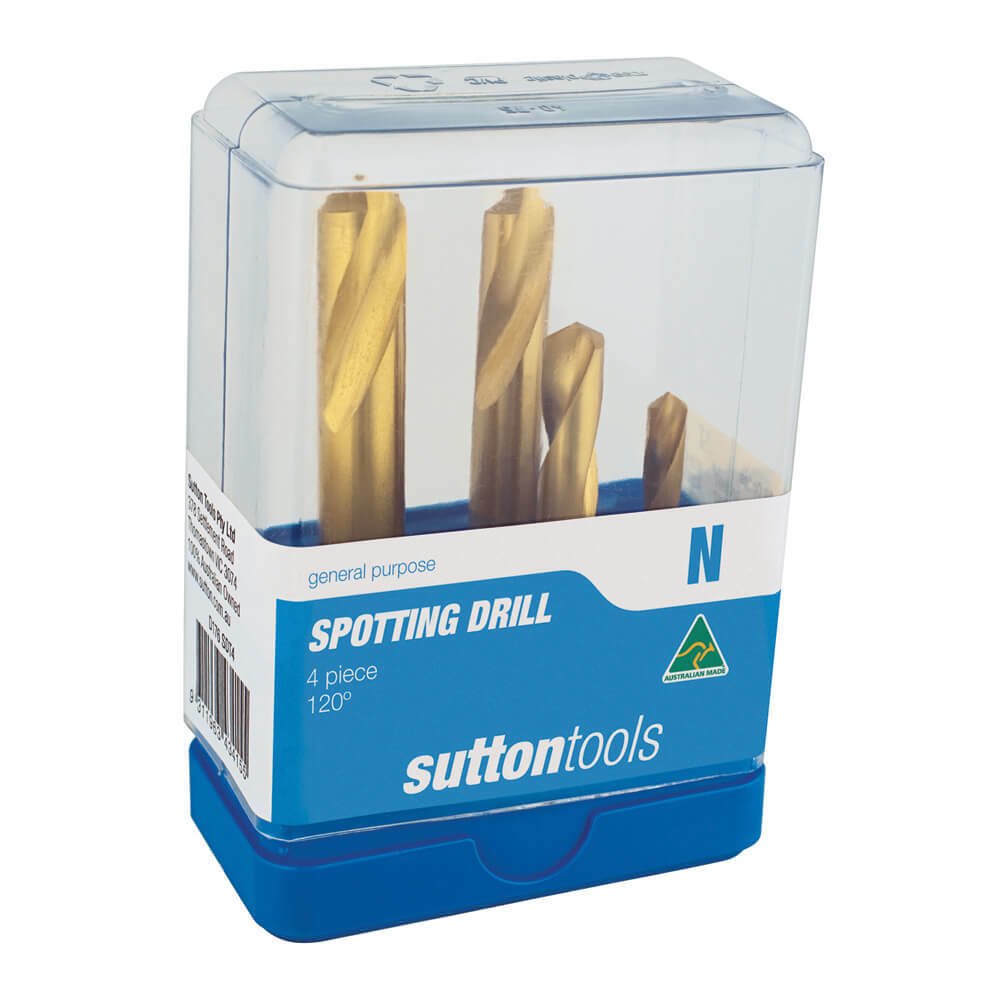

What is in the set

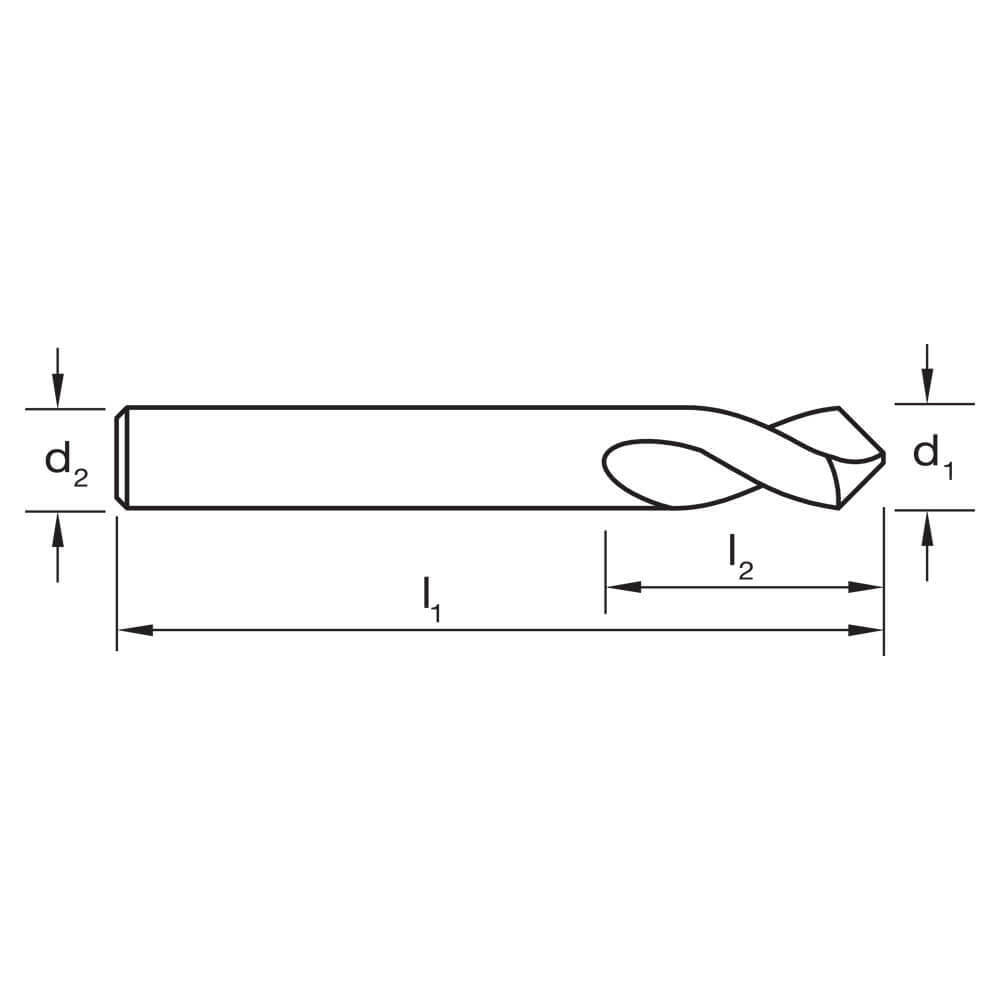

The set contains 4 spotting drills: 6, 8, 10, 12 mm. Flute length (l2) and overall length (l1) are in millimetres.
| Piece | Drill size | Replacement item no. | Flute length l2 (mm) | Overall length l1 (mm) |
|---|---|---|---|---|
| 1 | 6 mm | D176 0600 | 25 | 66 |
| 2 | 8 mm | D176 0800 | 29 | 79 |
| 3 | 10 mm | D176 1000 | 32 | 89 |
| 4 | 12 mm | D176 1200 | 32 | 102 |
Where this product is used
- Spotting for a drill to follow: the 120° point matches a typical drill point.
- NC and CNC machine drilling, where the position of the hole is set by the spot.
- Workshop and machining kit: one set covering 6 to 12 mm.
- Materials rated Optimal for this drill: austenitic stainless steel; duplex stainless steel; wrought aluminium and magnesium alloys; and cast aluminium and magnesium alloys (up to 12% Si).
- Also rated Effective: annealed high-alloy and tool steel; ferritic and martensitic stainless steels; precipitation-hardening stainless steel; malleable cast iron; aluminium and magnesium cast alloys over 12% Si; thermosetting and fibre-reinforced plastics; Fe-based high-temperature alloys; annealed Ni / Co based high-temperature alloy, age-hardened Ni / Co based high-temperature alloy; titanium alpha alloys, annealed titanium alpha / beta alloys, annealed titanium beta alloys; hardened steel (45 HRC); and chilled cast iron.
- Rated Optimal for some grades and Effective for others: non-alloy steels; low-alloy steels; grey cast iron; nodular cast iron; and copper alloys, brass and bronze.
Finish
Titanium nitride (TiN) is a single-layer coating with a microhardness of 2300 HV and thermal stability to about 600 °C (1112 °F). It is a general-purpose coating for a wide range of materials, and is designed to give longer tool life than an uncoated tool and allow higher speeds and feeds.
Spot depth
A spotting drill makes a conical spot, so the depth of the spot is set by the point angle. For a 120° point the depth of the cone is spot diameter ÷ 3.46 (calculated from the point angle). The spot can be as large as the diameter of the drill itself.
| Spot diameter (mm) | Depth of point cone (mm) |
|---|---|
| 2 | 0.58 |
| 3 | 0.87 |
| 4 | 1.15 |
| 5 | 1.44 |
| 6 | 1.73 |
| 8 | 2.31 |
| 10 | 2.89 |
| 12 | 3.46 |
Drilling notes
- Drill only to the depth of the point.
- For optimal positional accuracy and hole size, spot the hole first.
- No separate speed table is published for the spotting drills. Use the D163 DHJ cobalt jobber drill speed table at the same diameter as a sensible reference for starting speed, adjusted for the machine, set-up and coolant.
Accuracy
The drill diameter (d1) tolerance is h8 and the shank tolerance is h9. An h8 drill diameter may be at nominal or smaller, never larger.
| Drill diameter (mm) | h8 tolerance (minus only, ISO 286-2) |
|---|---|
| 0.2 to 3 | 14 µm |
| 3 to 6 | 18 µm |
| 6 to 10 | 22 µm |
| 10 to 18 | 27 µm |
| 18 to 30 | 33 µm |
| 30 to 50 | 39 µm |
Troubleshooting
- Drill breaks. Dull point: sharpen; Drill has front taper due to wearing: sharpen; Insufficient lip clearance on point: grind correctly; Lip clearance too great: regrind to correct clearance angle.
- Outer corner breaks down. Flutes clogged with chips: remove drill from hole and clear the flutes; Cutting speed too high: reduce speed; Dry cutting, no lubricant at cutting edges: apply cutting fluid.
- Cutting edges chip. Lip clearance too great: regrind to correct clearance angle; Feed too heavy: reduce feed.
- Hole rough. Dull point: sharpen; Feed too heavy: reduce feed; Dry cutting, no lubricant at cutting edges: apply cutting fluid; Fixture/clamping not rigid: secure job firmly.
- Hole oversize. Unequal angle or uneven length of cutting edges: regrind to same lip lengths and angles; Spindle run-out / loose spindle: check machine.
Key specifications
| Specification | Detail |
|---|---|
| Set number | D1760004 |
| Catalogue code | D176 (120° NC Spotting Drill) |
| Pieces | 4 |
| Sizes | 6, 8, 10, 12 mm |
| Material | High Speed Steel Cobalt (HSS Co, 5% cobalt) |
| Finish | Titanium nitride (TiN) |
| Point | 120° |
| Shank | Straight shank (form A) |
| Standard | DIN 1897 |
| Drill diameter tolerance (d1) | h8 |
| Shank tolerance | h9 |
| Designation | N |
