Description
Description
- 3xD Drill Straight Flute GG

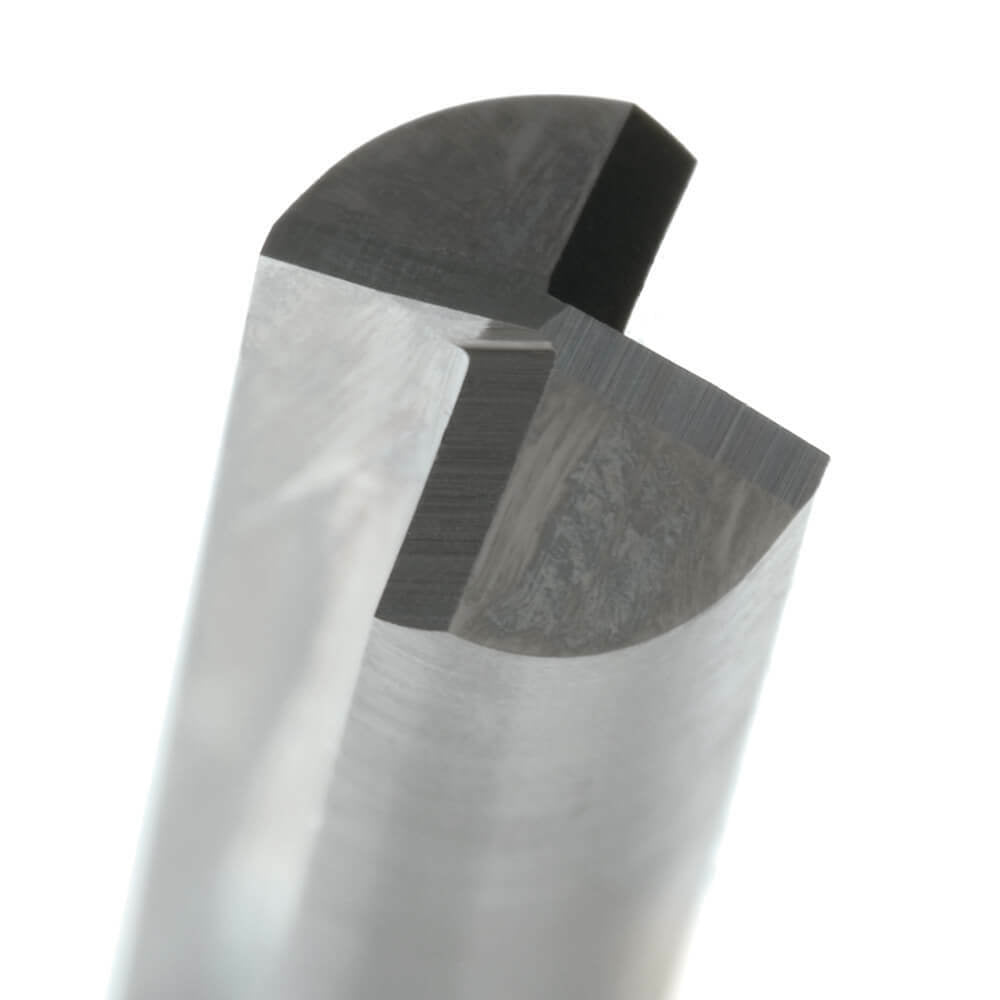

- Straight flutes for increased strength and chip control
Specifications
Specifications

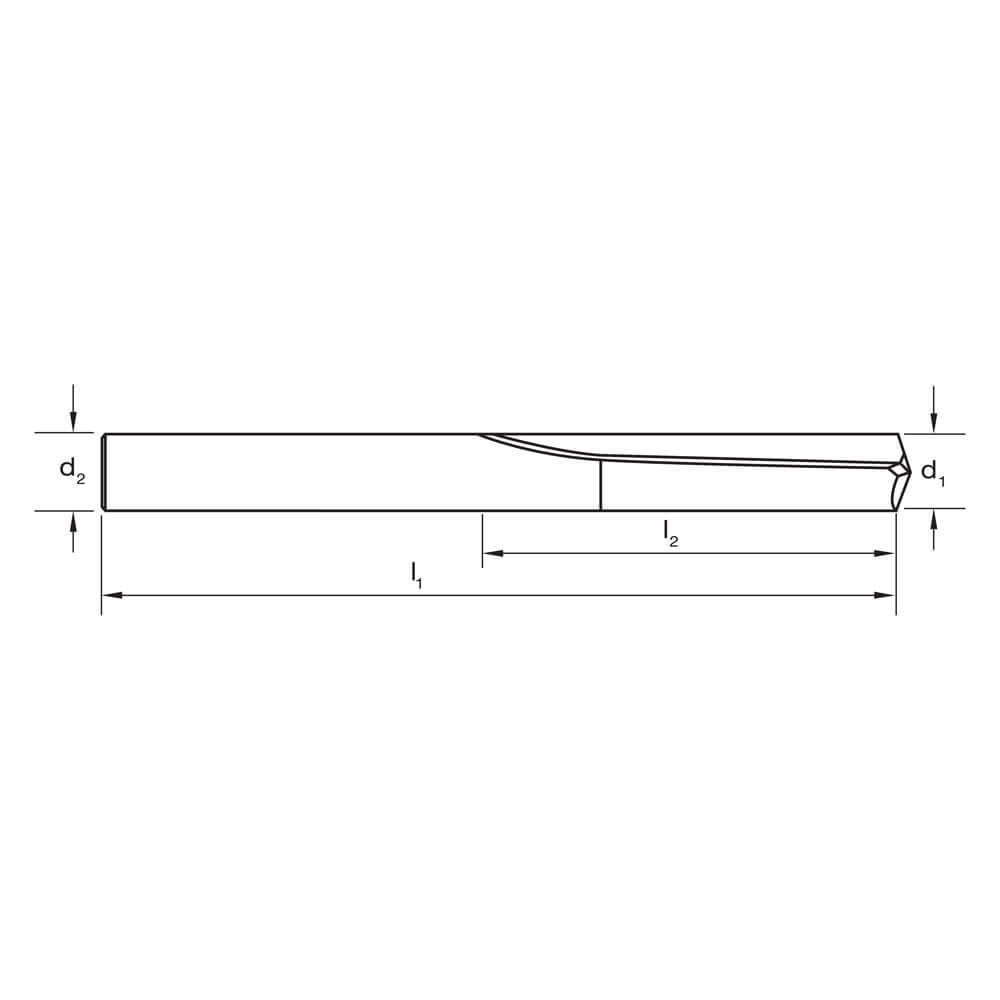

Dimensions
- d1 (in): 1/16
- d2 (in): 1/16
- l1 (in): 1-5/8
- l2 (in): 5/8
- Pack Quantity: 1
- Designation: CG
- Material: VHM
- Finish: Bright
- Maximum Cut Depth: 3XD
- Shank Form: HA
- X: als
- Point Tolerance: m7
- Shank Tolerance: h6
- Point Angle: 140°
- Point Form: Form C (Facet)
- Cutting Edges: ul
- Standard: Sutton
Applications
Applications
- Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
- Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
- Optimal for Cast Iron, Nodular (GGG) – Ferritic- 160 HB
- Optimal for Cast Iron, Pearlitic (GGG) – Ferritic- 250 HB
- Optimal for Cast Iron, Malleable – Ferritic- 130 HB
- Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
- Optimal for Aluminum & Magnesium, cast alloy >12% Si - Heat Treatable- 130 HB
- Optimal for Cast Iron – Chilled- 400 HB
Features & Benefits
Features & Benefits
- Suitable for cast irons
- TiCN coated for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

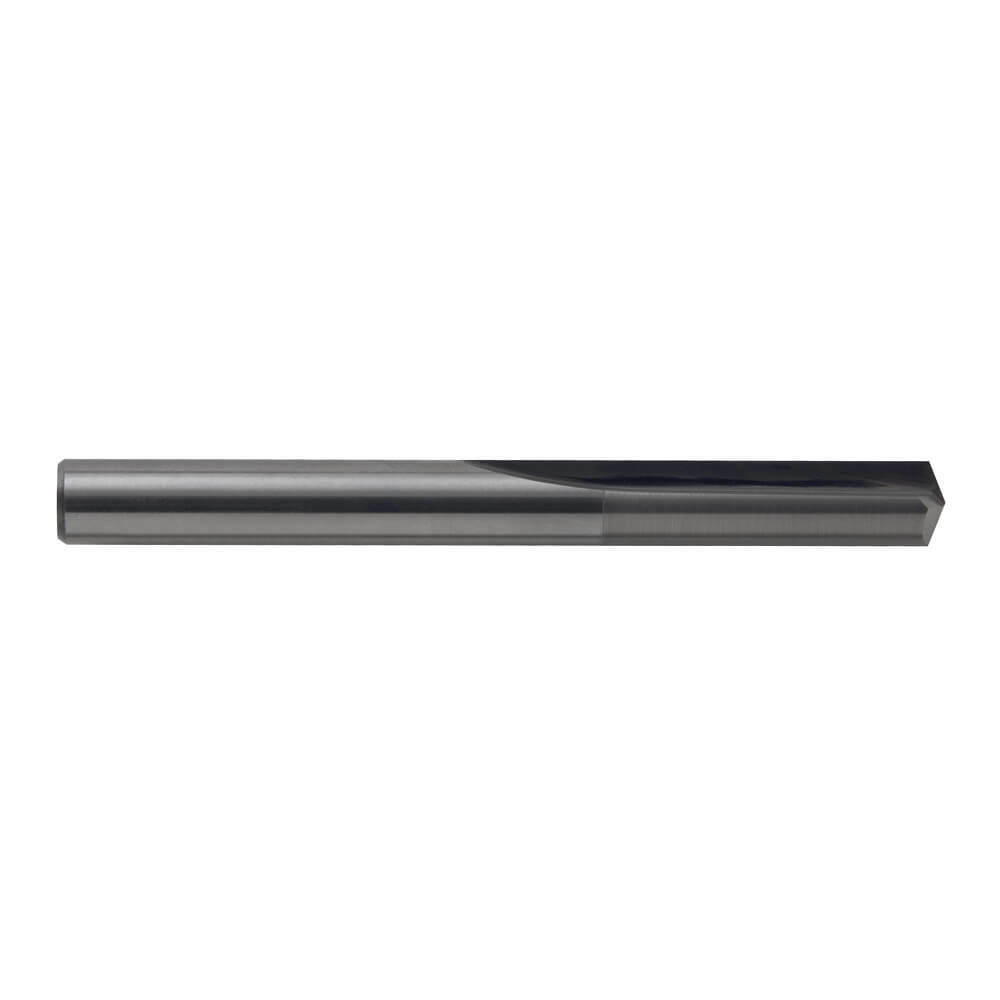

Sutton D300 Carbide Drill Bit - Imperial - 3xD - Straight Flute - VHM
Sutton D300 Carbide Drill Bit - Imperial - 3xD - Straight Flute - VHM
SKU: A0007056
Type: Carbide Drill Bit
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton D300 Carbide Drill Bit by Sutton Tools is a Carbide Drill Bit made of VHM material. It offers a Maximum Cut Depth of 3XD and is suitable for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB.
