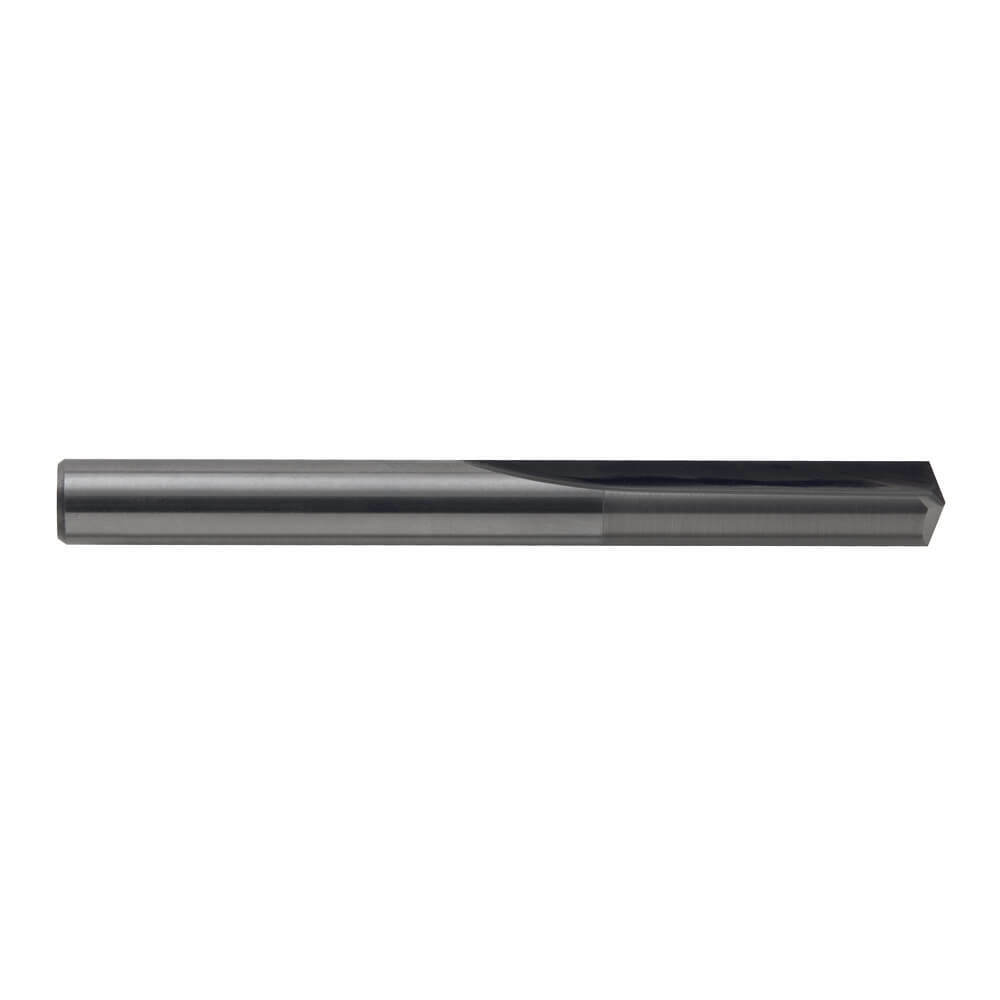

Sutton D3000200 2mm Solid Carbide Drill - 3xD Straight Flute, Bright
Available

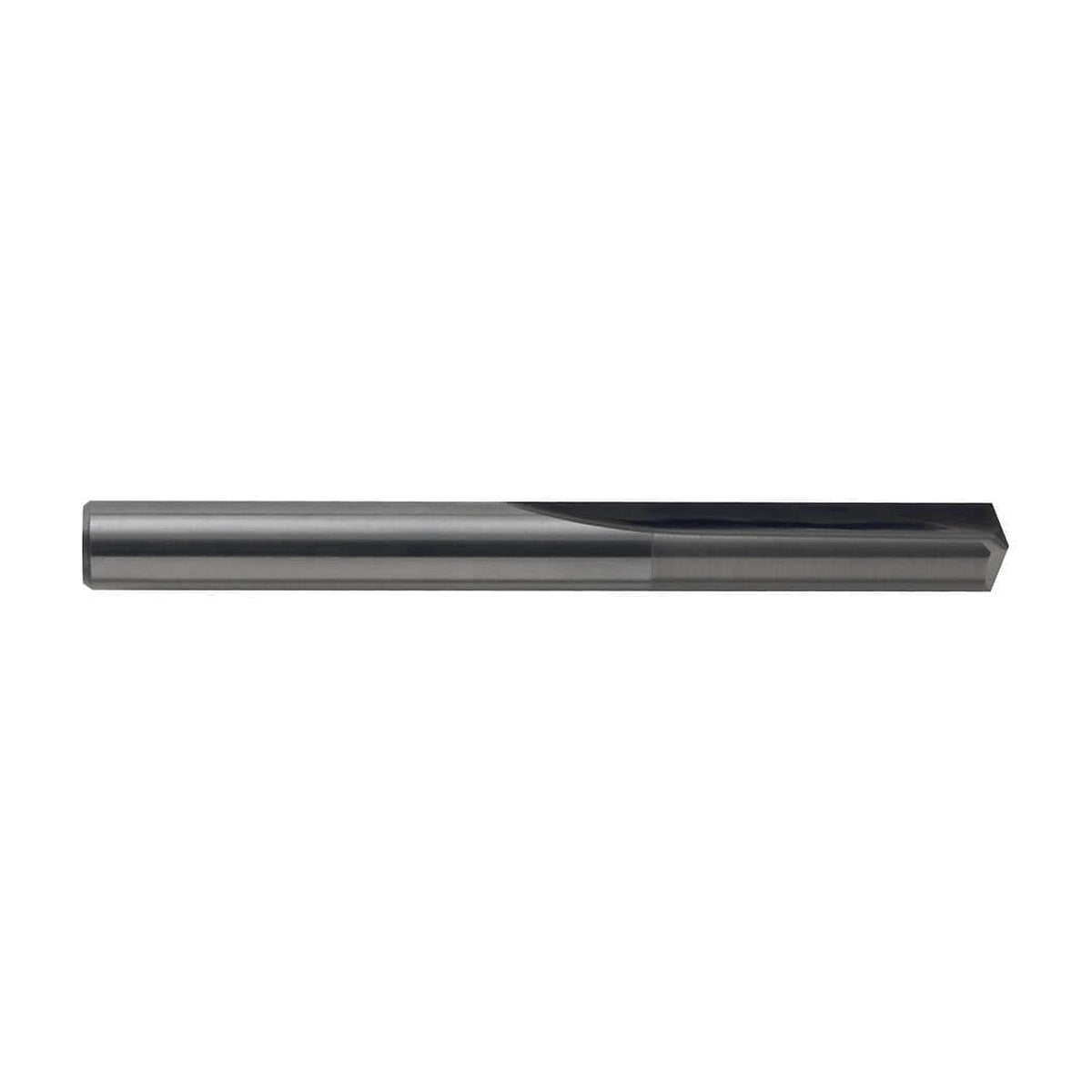

The Sutton D300 metric solid carbide drills are 3 x D straight flute drills in 19 sizes from 1.5 to 12 mm, with a 140° Form C (facet) point. They are made from solid carbide (VHM) with a bright finish and are used for drilling cast irons.
The rigid twist drill with straight flutes is designed for increased strength and chip control, and is suitable for cast irons. The bright finish is uncoated. The point is a 140° Form C (facet) with an m7 drill diameter tolerance, the shank diameter equals the drill diameter with a -0.025 tolerance, and the maximum drilling depth is 3 x the drill diameter.
Where this product is used
- Drilling cast irons with a rigid, straight flute carbide drill.
- Short, rigid drilling up to 3 x the drill diameter in a machine or fixture.
- Applications include DIY, trade, industrial, metalworking, machine shop and MRO work.
Design features
- Solid carbide (VHM) construction: rigid twist drill.

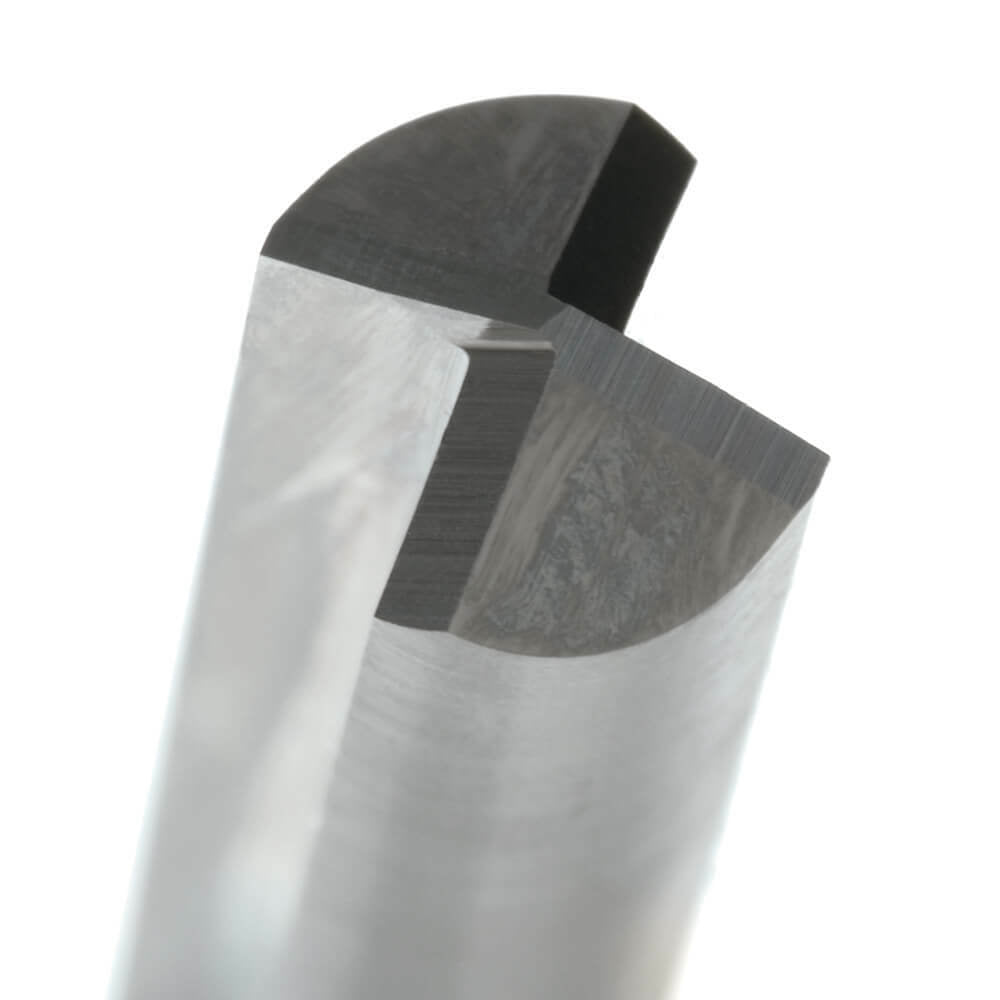

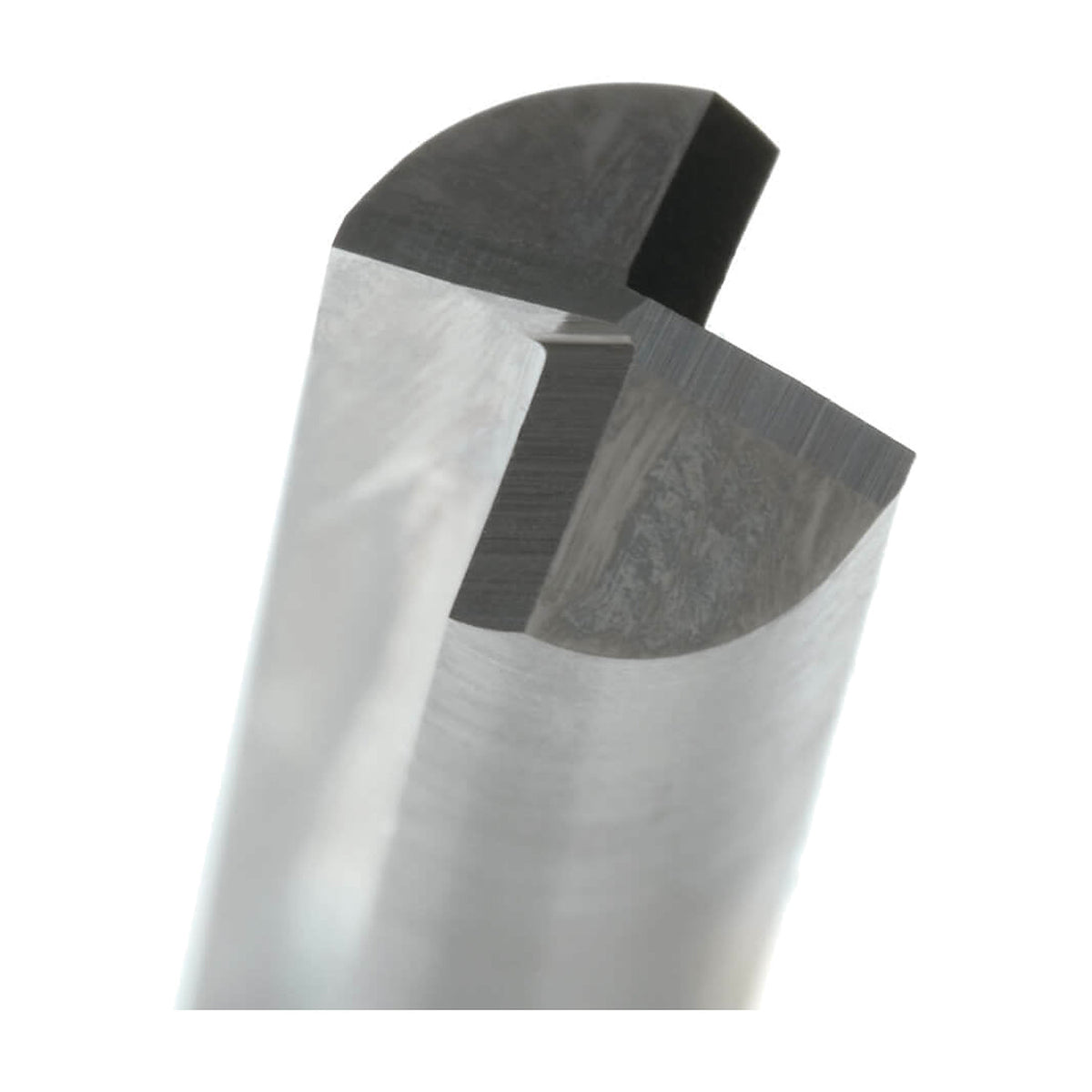

- Straight flutes: designed for increased strength and chip control.
- 140° Form C (facet) point.
- 3 x D maximum drilling depth.
- Bright finish.
- Plain shank, the same diameter as the drill.
- 19 metric sizes, 1.5mm to 12mm.
Sizes and item numbers
Each size is a single drill.

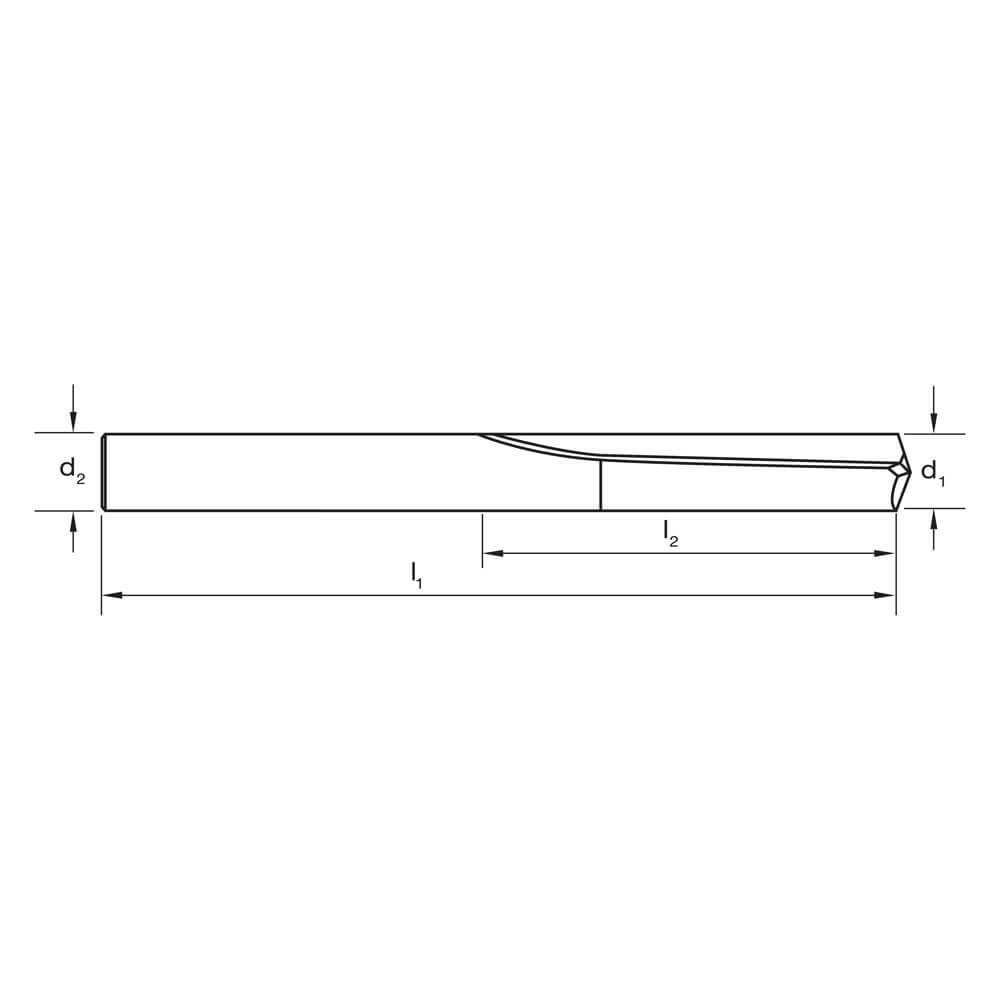

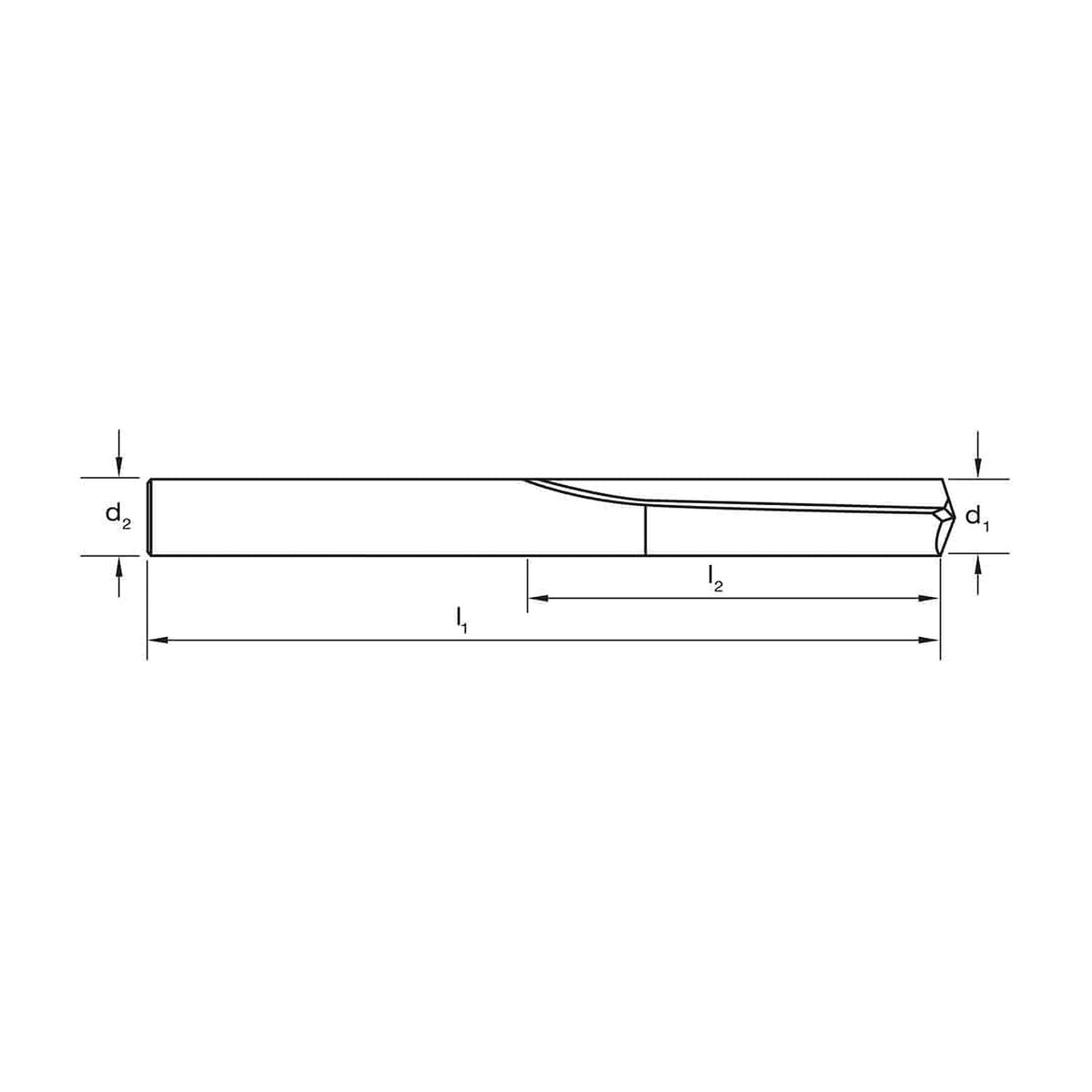

| Diameter (mm) | Overall length (mm) | Flute length (mm) | Shank (mm) | Sutton item no. |
|---|---|---|---|---|
| 1.5 | 38 | 12.7 | 1.5 | D300 0150 |
| 2 | 44 | 19 | 2 | D300 0200 |
| 2.5 | 46 | 21 | 2.5 | D300 0250 |
| 3 | 48 | 22 | 3 | D300 0300 |
| 3.5 | 49 | 24 | 3.5 | D300 0350 |
| 4 | 54 | 27 | 4 | D300 0400 |
| 4.5 | 56 | 29 | 4.5 | D300 0450 |
| 5 | 57 | 30 | 5 | D300 0500 |
| 5.5 | 60 | 32 | 5.5 | D300 0550 |
| 6 | 62 | 33 | 6 | D300 0600 |
| 6.5 | 64 | 35 | 6.5 | D300 0650 |
| 7 | 68 | 38 | 7 | D300 0700 |
| 7.5 | 70 | 40 | 7.5 | D300 0750 |
| 8 | 71 | 41 | 8 | D300 0800 |
| 8.5 | 76 | 43 | 8.5 | D300 0850 |
| 9 | 78 | 44 | 9 | D300 0900 |
| 10 | 83 | 48 | 10 | D300 1000 |
| 11 | 87 | 52 | 11 | D300 1100 |
| 12 | 92 | 54 | 12 | D300 1200 |
Using the drills
- Hold the drill in a collet or chuck that grips the plain shank accurately and runs true.
- Keep the hole depth to 3 x the drill diameter or less.
- Carbide is brittle: avoid side loads and keep the workpiece clamped rigidly.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D300 |
| Type | Solid carbide drill, 3 x D, straight flute |
| Sizes | 19 sizes, 1.5 to 12 mm |
| Point | 140° Form C (facet) |
| Finish | Bright |
| Material | Solid carbide (VHM) |
| Maximum drilling depth | 3 x D |
| Drill diameter tolerance | m7 |
| Shank tolerance | -0.025 |
| Suited to | Cast irons |
Related products
TiCN coated version: D306 metric carbide drills. Same range in imperial drills: D300 imperial carbide drills.
