Description
Description
Used to drill female 60° centre holes in the end of shafts and components, which will later revolve between centres
Suitable for materials up to 1600N/mm2
Specifications
Specifications

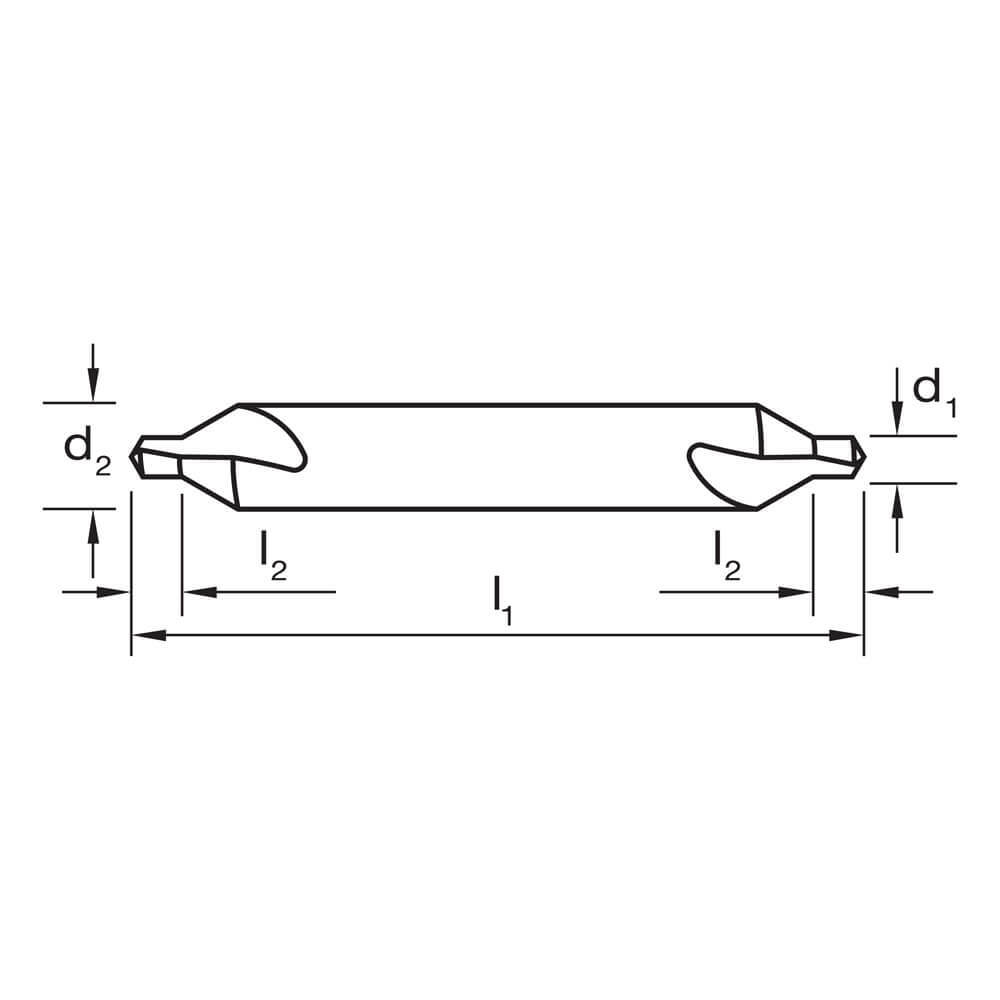

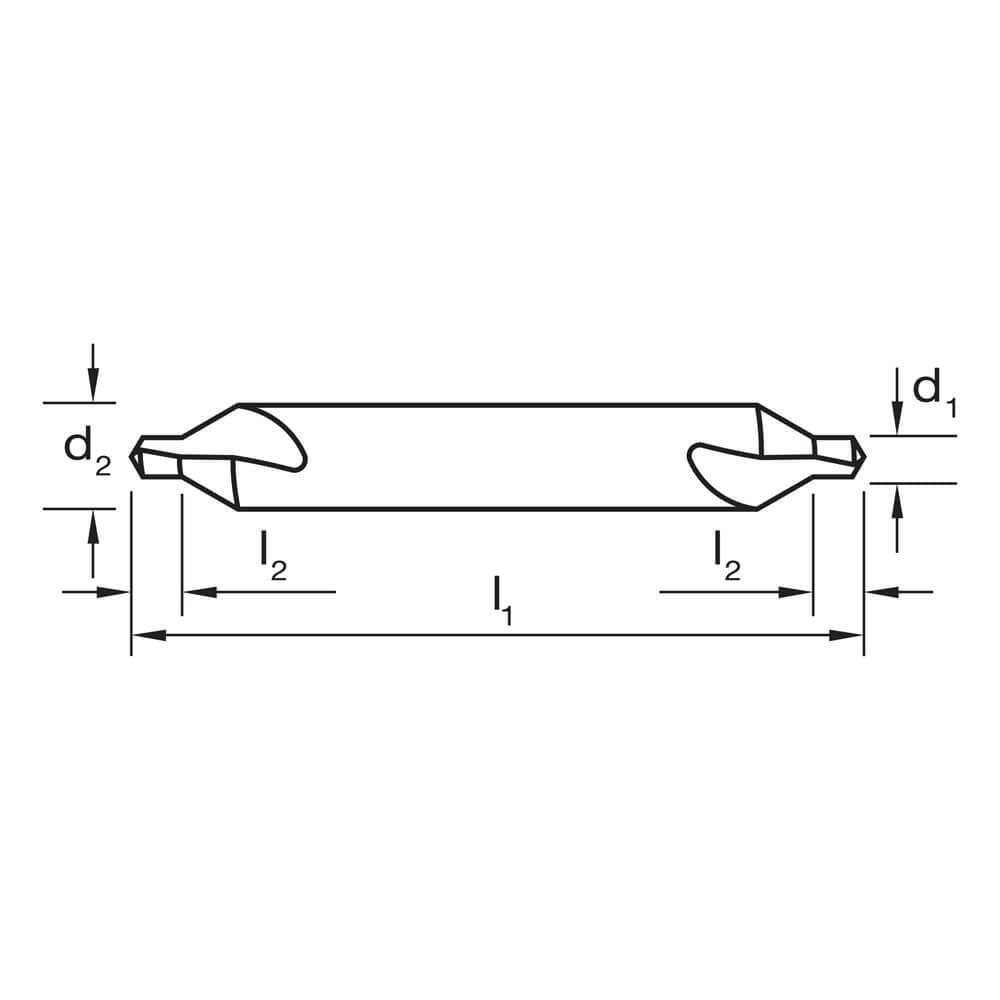

- Size: 1
- d1 (in): 3/64
- d2 (in): 1/8
- l1 (in): 1-1/4
- l2 (in): 3/64
- Pack Quantity: 1
- Designation: N
- Material: VHM
- Finish: TiCN
- Shank Form: HA
- X:als
- Shank Tolerance: h6
- Point Type: 60° Stepped
- Cutting Edges: ul
- Standard: ANSI B94-11
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
- Optimal for Steel - High alloy, cast & tool- 325 HB
- Optimal for Steel - Corrosion resistant & cast – Martensitic- 240 HB
- Optimal for Stainless Steel – Austenitic- 180 HB
- Optimal for Stainless Steel – Duplex- 250 HB
- Optimal for Stainless Steel - Precipitation Hardening- 250 HB
- Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic – 180 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Cast Iron, Malleable - Ferritic- 130 HB
- Optimal for Hardened Steel- 45 HRC
Features & Benefits
Features & Benefits
- Drills, Carbide, Centre
- Designed to maintain accurate centre holes on long production runs
- Also used to ensure accurate starting and centering when precision drilling is required
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

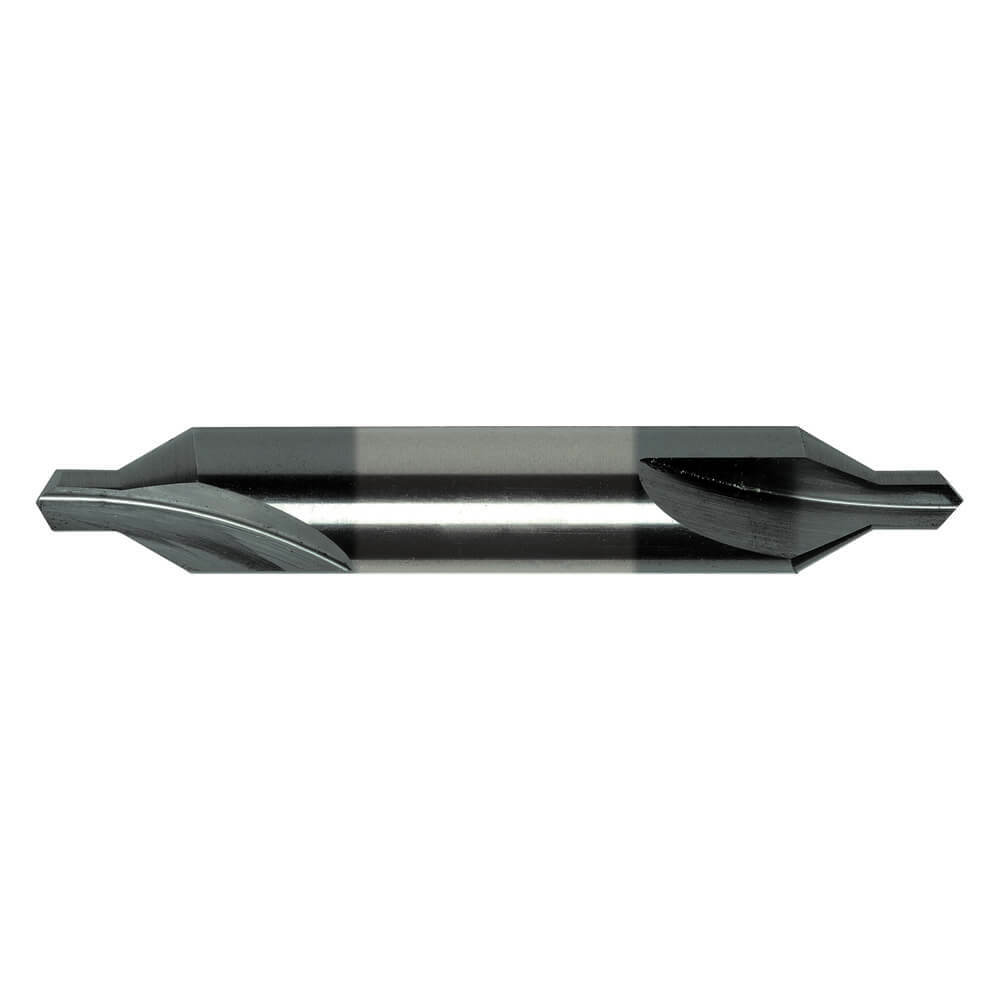

Sutton D319 Carbide Centre Drill Bit 60° Plain ANSI B94-11 VHM TiCN
Sutton D319 Carbide Centre Drill Bit 60° Plain ANSI B94-11 VHM TiCN
SKU: A0007180
Type: Carbide Drill Bit
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton D319 Carbide Centre Drill Bit 60° Plain ANSI B94-11 VHM TiCN by Sutton Tools is a Carbide Drill Bit with TiCN finish. It provides suitability for materials up to 1600N/mm2 and is suitable for Hardened Steel- 45 HRC.
