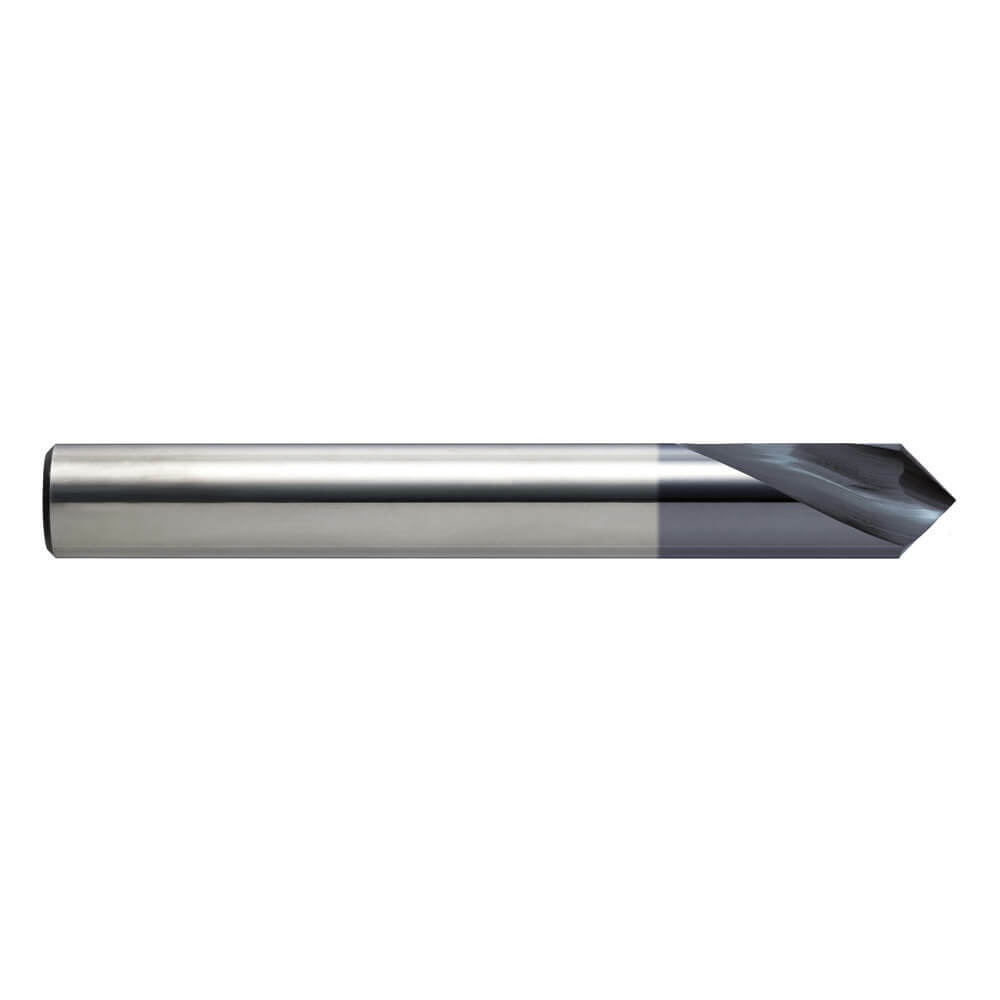

Sutton 3mm D364 90° Carbide Spotting Drill Bit - VHM
Available

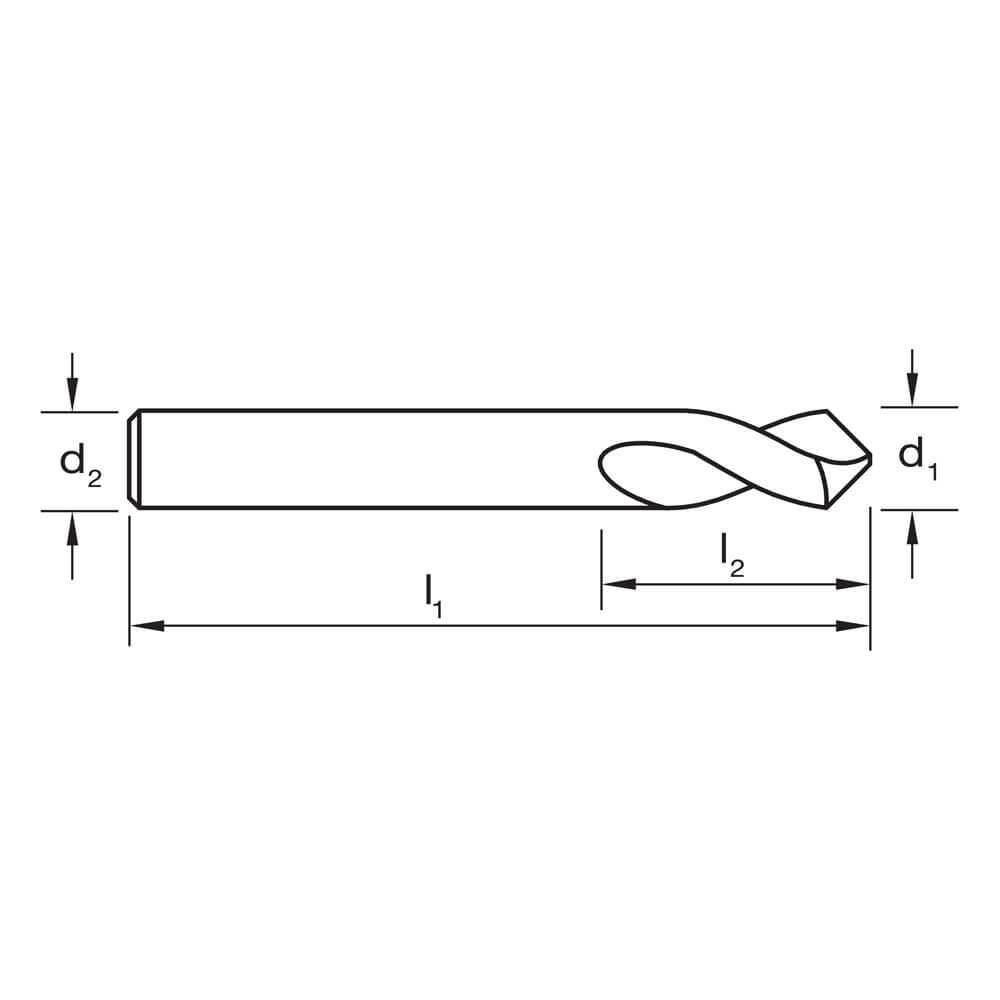

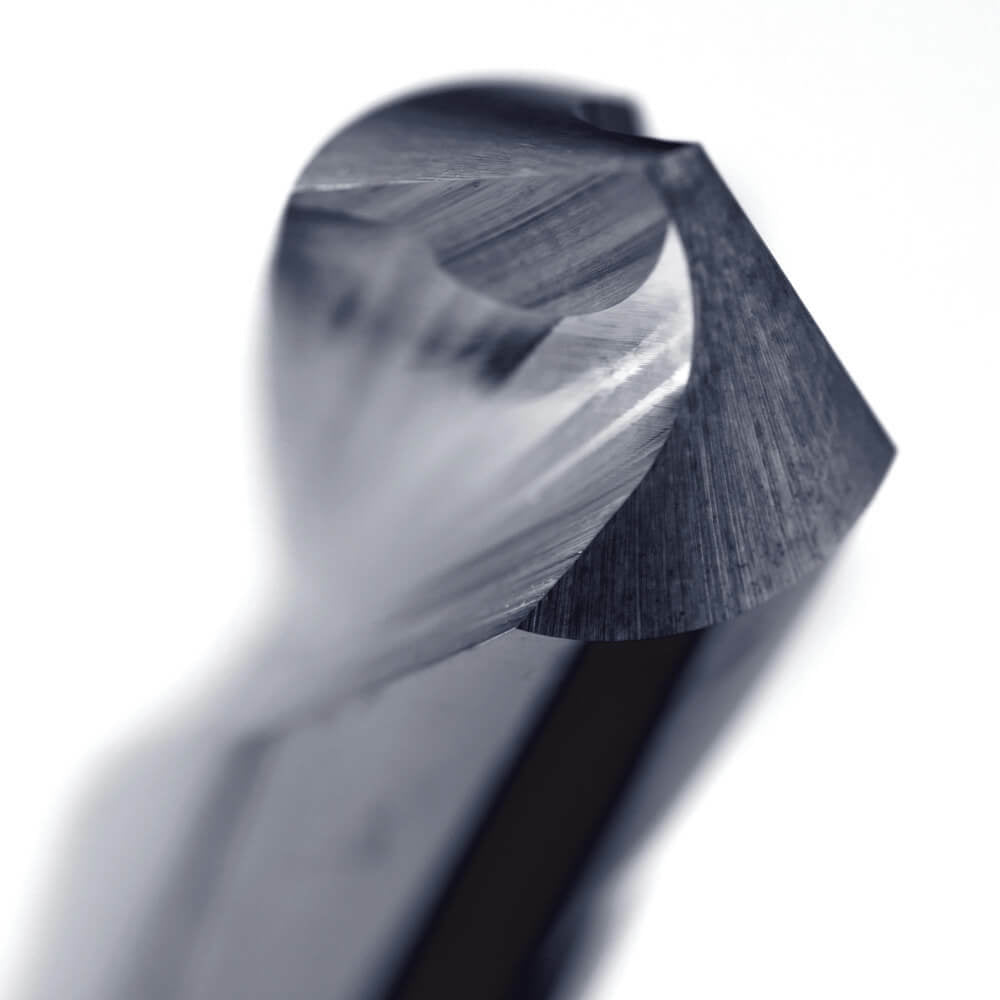

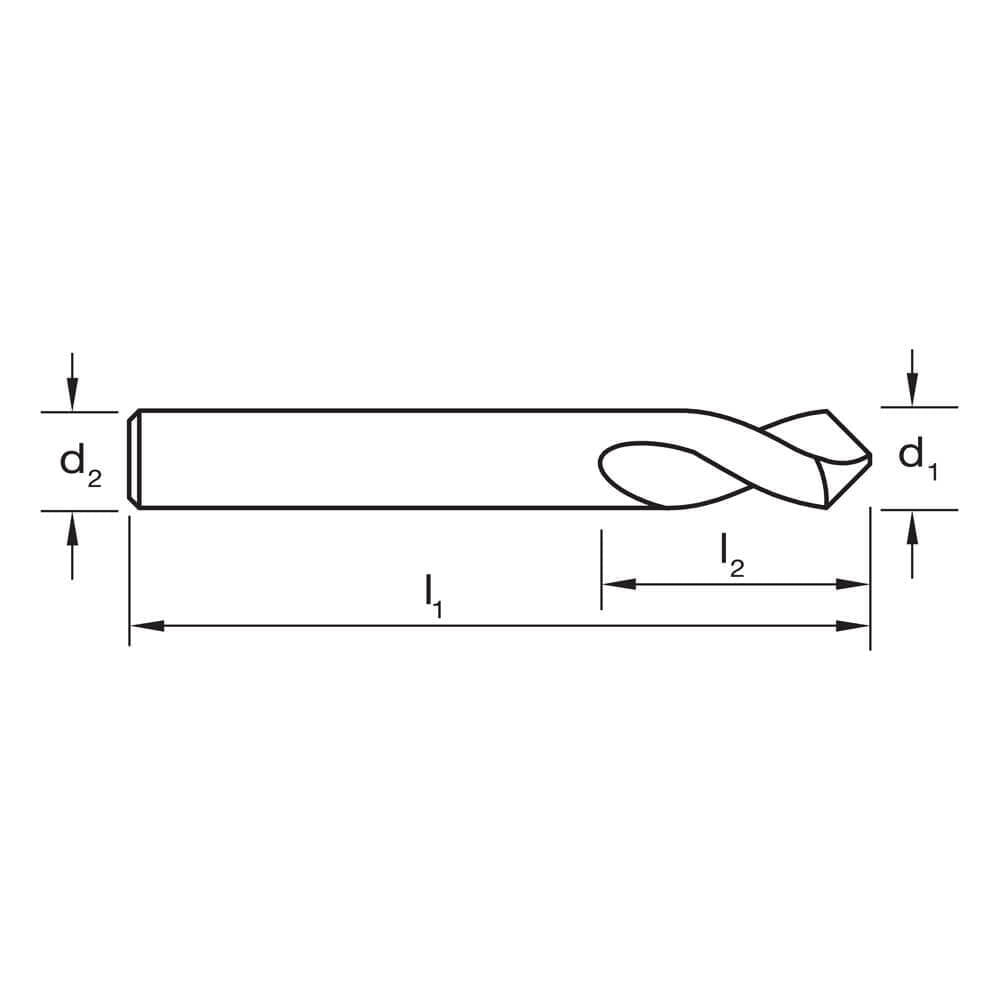

The Sutton D364 is a solid carbide spotting drill with a 90° Form A point and an AlCrN coating. The drill diameter (d1) is h6 and the shank is h9, and the drill is made to approximately DIN 1897.
Precision drill for machine use; rigid design for "seat" position accuracy; 90° offers hole chamfering and spotting with the one tool; only drill to the depth of the point.
This is the metric range: 9 sizes from 3 to 20 mm, with flute lengths of 9 to 35 mm and overall lengths of 46 to 131 mm.
Where this product is used
- Spotting holes before drilling, with the drill used only to the depth of its point. The 90° point also chamfers the hole in the same operation.
- Materials rated Optimal for this drill: non-alloy steels; low-alloy steels; high-alloy and tool steels; ferritic and martensitic stainless steels; austenitic stainless steel; duplex stainless steel; and precipitation-hardening stainless steel.
- Also rated Effective: Fe-based high-temperature alloys; Ni / Co based high-temperature alloys; titanium and titanium alloys; and chilled and hardened cast iron.
- Rated Optimal for some grades and Effective for others: grey cast iron; nodular cast iron; malleable cast iron; and hardened steel (45 to 62 HRC).
Finish
Aluminium chromium nitride (AlCrN). AlCrN has a microhardness of 3200 HV and thermal stability up to about 1100 °C (2012 °F), and is used for low-alloy and high-tensile steels, hardened steels up to 54 HRC, high-speed machining and use with minimum quantity lubrication (MQL) and dry machining.
Cutting speeds and feeds
Cutting speeds (Vc) and feed numbers for this drill are from the Sutton High Performance catalogue application guide. The table lists the material groups covered. Optimal ratings are shown in bold and Effective ratings in regular type. The rpm and feed columns show what the speed and feed number work out to at Ø6 mm and Ø10 mm (speed in rpm = Vc × 1000 ÷ (π × Ø)). Treat these as starting values and adjust for the machine, set-up and coolant.
| Material (VDI 3323 group) | Rating | Vc (m/min) | Feed no. | Ø6 mm: rpm / feed | Ø10 mm: rpm / feed |
|---|---|---|---|---|---|
| Non-alloy steel, about 0.15 %C, annealed (125 HB) | Optimal | 96 | 6 | 5,090 rpm / 0.16 mm/rev | 3,060 rpm / 0.24 mm/rev |
| Non-alloy steel, about 0.45 %C, annealed (190 HB) | Optimal | 96 | 6 | 5,090 rpm / 0.16 mm/rev | 3,060 rpm / 0.24 mm/rev |
| Non-alloy steel, about 0.45 %C, quenched and tempered (250 HB) | Optimal | 78 | 6 | 4,140 rpm / 0.16 mm/rev | 2,480 rpm / 0.24 mm/rev |
| Non-alloy steel, about 0.75 %C, annealed (270 HB) | Optimal | 78 | 6 | 4,140 rpm / 0.16 mm/rev | 2,480 rpm / 0.24 mm/rev |
| Non-alloy steel, about 0.75 %C, quenched and tempered (300 HB) | Optimal | 60 | 5 | 3,180 rpm / 0.12 mm/rev | 1,910 rpm / 0.19 mm/rev |
| Low-alloy and cast steel (under 5% alloying), annealed (180 HB) | Optimal | 78 | 6 | 4,140 rpm / 0.16 mm/rev | 2,480 rpm / 0.24 mm/rev |
| Low-alloy steel, quenched and tempered (275 HB) | Optimal | 72 | 6 | 3,820 rpm / 0.16 mm/rev | 2,290 rpm / 0.24 mm/rev |
| Low-alloy steel, quenched and tempered (300 HB) | Optimal | 60 | 5 | 3,180 rpm / 0.12 mm/rev | 1,910 rpm / 0.19 mm/rev |
| Low-alloy steel, quenched and tempered (350 HB) | Optimal | 60 | 5 | 3,180 rpm / 0.12 mm/rev | 1,910 rpm / 0.19 mm/rev |
| High-alloy, cast and tool steel, annealed (200 HB) | Optimal | 60 | 5 | 3,180 rpm / 0.12 mm/rev | 1,910 rpm / 0.19 mm/rev |
| High-alloy, cast and tool steel, hardened and tempered (325 HB) | Optimal | 60 | 5 | 3,180 rpm / 0.12 mm/rev | 1,910 rpm / 0.19 mm/rev |
| Corrosion-resistant steel, ferritic / martensitic, annealed (200 HB) | Optimal | 35 | 3 | 1,860 rpm / 0.08 mm/rev | 1,110 rpm / 0.12 mm/rev |
| Corrosion-resistant steel, martensitic, quenched and tempered (240 HB) | Optimal | 60 | 5 | 3,180 rpm / 0.12 mm/rev | 1,910 rpm / 0.19 mm/rev |
| Austenitic stainless steel, age hardened (180 HB) | Optimal | 50 | 4 | 2,650 rpm / 0.1 mm/rev | 1,590 rpm / 0.16 mm/rev |
| Duplex stainless steel (250 HB) | Optimal | 40 | 3 | 2,120 rpm / 0.08 mm/rev | 1,270 rpm / 0.12 mm/rev |
| Precipitation-hardening stainless steel (250 HB) | Optimal | 35 | 3 | 1,860 rpm / 0.08 mm/rev | 1,110 rpm / 0.12 mm/rev |
| Grey cast iron, ferritic / pearlitic (180 HB) | Optimal | 84 | 6 | 4,460 rpm / 0.16 mm/rev | 2,670 rpm / 0.24 mm/rev |
| Grey cast iron, pearlitic (260 HB) | Effective | 84 | 5 | 4,460 rpm / 0.12 mm/rev | 2,670 rpm / 0.19 mm/rev |
| Nodular cast iron, ferritic (160 HB) | Optimal | 84 | 5 | 4,460 rpm / 0.12 mm/rev | 2,670 rpm / 0.19 mm/rev |
| Nodular cast iron, pearlitic (250 HB) | Effective | 84 | 5 | 4,460 rpm / 0.12 mm/rev | 2,670 rpm / 0.19 mm/rev |
| Malleable cast iron, ferritic (130 HB) | Optimal | 84 | 5 | 4,460 rpm / 0.12 mm/rev | 2,670 rpm / 0.19 mm/rev |
| Malleable cast iron, pearlitic (230 HB) | Effective | 84 | 5 | 4,460 rpm / 0.12 mm/rev | 2,670 rpm / 0.19 mm/rev |
| High-temperature alloy, Fe based, annealed (200 HB) | Effective | 40 | 5 | 2,120 rpm / 0.12 mm/rev | 1,270 rpm / 0.19 mm/rev |
| High-temperature alloy, Fe based, age hardened (280 HB) | Effective | 35 | 5 | 1,860 rpm / 0.12 mm/rev | 1,110 rpm / 0.19 mm/rev |
| High-temperature alloy, Ni / Co based, annealed (250 HB) | Effective | 40 | 5 | 2,120 rpm / 0.12 mm/rev | 1,270 rpm / 0.19 mm/rev |
| High-temperature alloy, Ni / Co based, age hardened (350 HB) | Effective | 30 | 4 | 1,590 rpm / 0.1 mm/rev | 955 rpm / 0.16 mm/rev |
| High-temperature alloy, Ni / Co based, cast (320 HB) | Effective | 35 | 5 | 1,860 rpm / 0.12 mm/rev | 1,110 rpm / 0.19 mm/rev |
| Titanium, commercially pure (400 MPa) | Effective | 50 | 3 | 2,650 rpm / 0.08 mm/rev | 1,590 rpm / 0.12 mm/rev |
| Titanium alpha alloys (860 MPa) | Effective | 50 | 3 | 2,650 rpm / 0.08 mm/rev | 1,590 rpm / 0.12 mm/rev |
| Titanium alpha / beta alloys, annealed (960 MPa) | Effective | 50 | 3 | 2,650 rpm / 0.08 mm/rev | 1,590 rpm / 0.12 mm/rev |
| Titanium alpha / beta alloys, age hardened (1170 MPa) | Effective | 45 | 3 | 2,390 rpm / 0.08 mm/rev | 1,430 rpm / 0.12 mm/rev |
| Titanium beta alloys, annealed (830 MPa) | Effective | 50 | 3 | 2,650 rpm / 0.08 mm/rev | 1,590 rpm / 0.12 mm/rev |
| Titanium beta alloys, age hardened (1400 MPa) | Effective | 45 | 3 | 2,390 rpm / 0.08 mm/rev | 1,430 rpm / 0.12 mm/rev |
| Hardened steel, 45 HRC | Optimal | 48 | 3 | 2,550 rpm / 0.08 mm/rev | 1,530 rpm / 0.12 mm/rev |
| Hardened steel, 55 HRC | Effective | 36 | 3 | 1,910 rpm / 0.08 mm/rev | 1,150 rpm / 0.12 mm/rev |
| Hardened steel, 58 HRC | Effective | 36 | 3 | 1,910 rpm / 0.08 mm/rev | 1,150 rpm / 0.12 mm/rev |
| Hardened steel, 62 HRC | Effective | 36 | 3 | 1,910 rpm / 0.08 mm/rev | 1,150 rpm / 0.12 mm/rev |
| Chilled cast iron (400 HB) | Effective | 84 | 3 | 4,460 rpm / 0.08 mm/rev | 2,670 rpm / 0.12 mm/rev |
| Cast iron, hardened and tempered, 55 HRC | Effective | 36 | 3 | 1,910 rpm / 0.08 mm/rev | 1,150 rpm / 0.12 mm/rev |
Feed rates (mm/rev) for the feed numbers above:
| Ø (mm) | Feed no. 3 (mm/rev) | Feed no. 4 (mm/rev) | Feed no. 5 (mm/rev) | Feed no. 6 (mm/rev) |
|---|---|---|---|---|
| 2 | 0.03 | 0.04 | 0.05 | 0.06 |
| 3 | 0.045 | 0.055 | 0.07 | 0.09 |
| 4 | 0.06 | 0.075 | 0.09 | 0.12 |
| 5 | 0.07 | 0.09 | 0.11 | 0.14 |
| 6 | 0.08 | 0.1 | 0.12 | 0.16 |
| 8 | 0.1 | 0.13 | 0.16 | 0.2 |
| 10 | 0.12 | 0.16 | 0.19 | 0.24 |
| 12 | 0.15 | 0.18 | 0.23 | 0.28 |
| 16 | 0.19 | 0.23 | 0.29 | 0.36 |
| 20 | 0.23 | 0.28 | 0.34 | 0.42 |
| 25 | 0.27 | 0.33 | 0.41 | 0.5 |
Drilling notes
- Only drill to the depth of the point.
- When drilling a cast or black (not machined) surface, reduce the drilling speed by 20%.
- For optimal positional accuracy and hole size, the use of spot drills is recommended prior to drilling the desired hole; see Sutton's spotting drill range (D175).
Accuracy
The drill diameter (d1) tolerance is h6 and the shank tolerance is h9.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D364 |
| Range | 90° Carbide Spotting Drill |
| Material | Solid carbide (VHM) |
| Finish | Aluminium chromium nitride (AlCrN) |
| Point | 90° Form A |
| Shank | Plain cylindrical shank, d2 to h9 |
| Standard | approx. DIN 1897 |
| Drill diameter tolerance (d1) | h6 |
| Shank tolerance | h9 |
| Designation | NC |
| Sizes in this range | 9 sizes, 3-20mm |
