Sutton 3.1mm D326 5xD Carbide Drill Bit - Metric - VHM AlCrN
Regular price
$130.50
Sale price
$130.50
Regular price
Inc. GST
Available

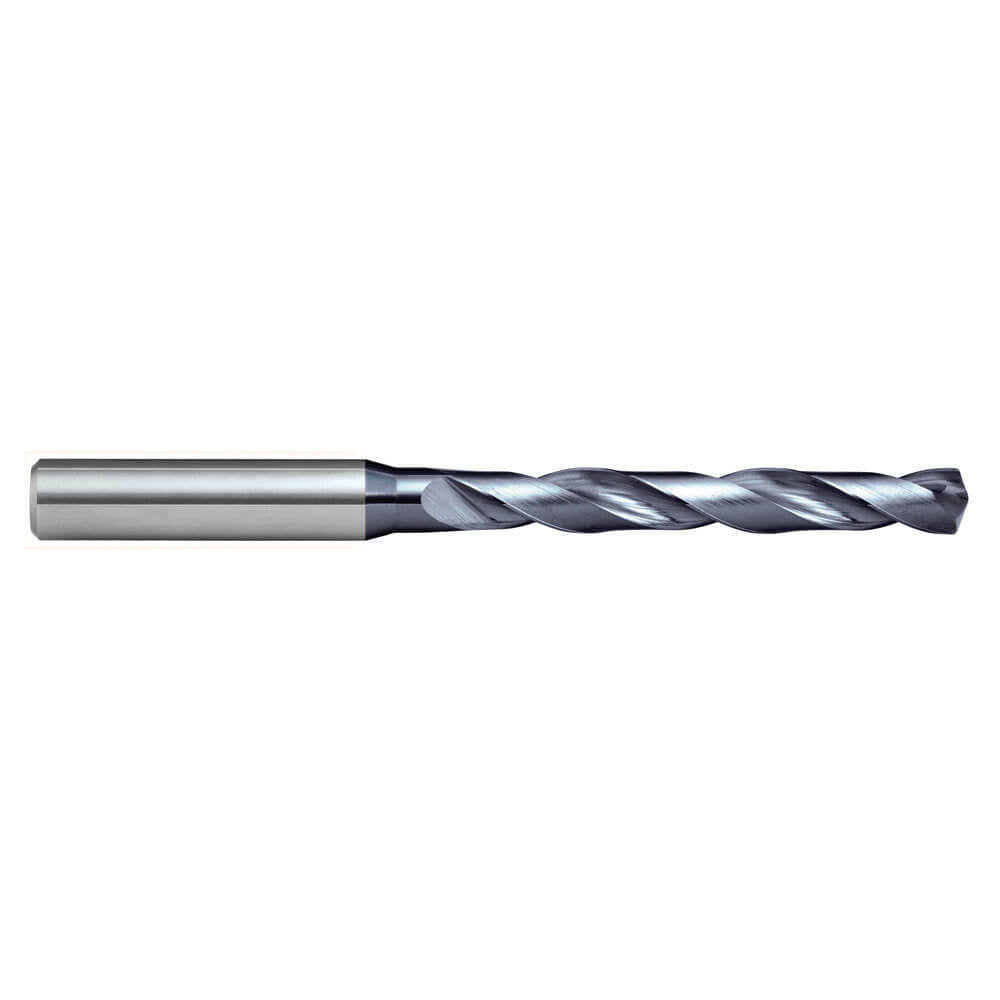

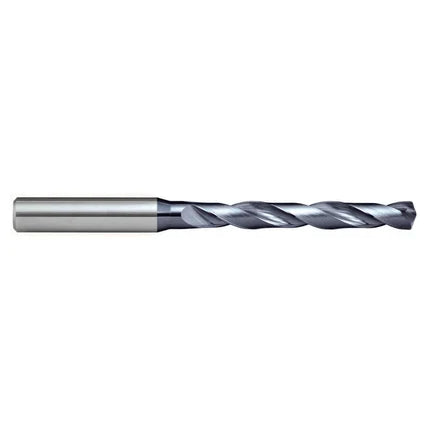

The Sutton D326 is a 5 × Ø solid carbide drill with an AlCrN coating. It has 30° right-hand helix flutes (R30), a 140° Form C point and a DIN 6535 HA shank, d2 to h6. It is made to DIN 6537.
Suitable for materials up to 1400 N/mm²; micro geometry and surface conditioning for optimal chip control; AlCrN for maximum tool life.
This is the metric range: 139 sizes from 3 to 20 mm, with flute lengths of 28 to 101 mm and overall lengths of 66 to 153 mm.
Where this product is used
- Production drilling in materials up to 1400 N/mm², the limit for this carbide drill.
- Materials rated Optimal for this drill: non-alloy steels; low-alloy steels; high-alloy and tool steels; ferritic and martensitic stainless steels; grey cast iron; nodular cast iron; malleable cast iron; and chilled and hardened cast iron.
- Also rated Effective: precipitation-hardening stainless steel; titanium and titanium alloys; and hardened steel (45 to 62 HRC).
- Hole depths to 5 × Ø. Step feeding or pecking is required beyond 3 × Ø.
Finish
Aluminium chromium nitride (AlCrN). AlCrN has a microhardness of 3200 HV and thermal stability up to about 1100 °C (2012 °F), and is used for low-alloy and high-tensile steels, hardened steels up to 54 HRC, high-speed machining and use with minimum quantity lubrication (MQL) and dry machining.
Cutting speeds and feeds
Cutting speeds (Vc) and feed numbers for this drill are from the Sutton High Performance catalogue application guide. The table lists the material groups covered. Optimal ratings are shown in bold and Effective ratings in regular type. The rpm and feed columns show what the speed and feed number work out to at Ø6 mm and Ø10 mm (speed in rpm = Vc × 1000 ÷ (π × Ø)). Treat these as starting values and adjust for the machine, set-up and coolant.
| Material (VDI 3323 group) | Rating | Vc (m/min) | Feed no. | Ø6 mm: rpm / feed | Ø10 mm: rpm / feed |
|---|---|---|---|---|---|
| Non-alloy steel, about 0.15 %C, annealed (125 HB) | Optimal | 90 | 8 | 4,770 rpm / 0.24 mm/rev | 2,860 rpm / 0.37 mm/rev |
| Non-alloy steel, about 0.45 %C, annealed (190 HB) | Optimal | 90 | 8 | 4,770 rpm / 0.24 mm/rev | 2,860 rpm / 0.37 mm/rev |
| Non-alloy steel, about 0.45 %C, quenched and tempered (250 HB) | Optimal | 85 | 8 | 4,510 rpm / 0.24 mm/rev | 2,710 rpm / 0.37 mm/rev |
| Non-alloy steel, about 0.75 %C, annealed (270 HB) | Optimal | 85 | 8 | 4,510 rpm / 0.24 mm/rev | 2,710 rpm / 0.37 mm/rev |
| Non-alloy steel, about 0.75 %C, quenched and tempered (300 HB) | Optimal | 50 | 6 | 2,650 rpm / 0.16 mm/rev | 1,590 rpm / 0.24 mm/rev |
| Low-alloy and cast steel (under 5% alloying), annealed (180 HB) | Optimal | 85 | 8 | 4,510 rpm / 0.24 mm/rev | 2,710 rpm / 0.37 mm/rev |
| Low-alloy steel, quenched and tempered (275 HB) | Optimal | 65 | 7 | 3,450 rpm / 0.19 mm/rev | 2,070 rpm / 0.3 mm/rev |
| Low-alloy steel, quenched and tempered (300 HB) | Optimal | 50 | 6 | 2,650 rpm / 0.16 mm/rev | 1,590 rpm / 0.24 mm/rev |
| Low-alloy steel, quenched and tempered (350 HB) | Optimal | 30 | 5 | 1,590 rpm / 0.12 mm/rev | 955 rpm / 0.19 mm/rev |
| High-alloy, cast and tool steel, annealed (200 HB) | Optimal | 50 | 6 | 2,650 rpm / 0.16 mm/rev | 1,590 rpm / 0.24 mm/rev |
| High-alloy, cast and tool steel, hardened and tempered (325 HB) | Optimal | 30 | 5 | 1,590 rpm / 0.12 mm/rev | 955 rpm / 0.19 mm/rev |
| Corrosion-resistant steel, martensitic, quenched and tempered (240 HB) | Optimal | 30 | 5 | 1,590 rpm / 0.12 mm/rev | 955 rpm / 0.19 mm/rev |
| Precipitation-hardening stainless steel (250 HB) | Effective | 20 | 4 | 1,060 rpm / 0.1 mm/rev | 635 rpm / 0.16 mm/rev |
| Grey cast iron, ferritic / pearlitic (180 HB) | Optimal | 75 | 6 | 3,980 rpm / 0.16 mm/rev | 2,390 rpm / 0.24 mm/rev |
| Grey cast iron, pearlitic (260 HB) | Optimal | 65 | 6 | 3,450 rpm / 0.16 mm/rev | 2,070 rpm / 0.24 mm/rev |
| Nodular cast iron, ferritic (160 HB) | Optimal | 65 | 5 | 3,450 rpm / 0.12 mm/rev | 2,070 rpm / 0.19 mm/rev |
| Nodular cast iron, pearlitic (250 HB) | Optimal | 65 | 5 | 3,450 rpm / 0.12 mm/rev | 2,070 rpm / 0.19 mm/rev |
| Malleable cast iron, ferritic (130 HB) | Optimal | 65 | 5 | 3,450 rpm / 0.12 mm/rev | 2,070 rpm / 0.19 mm/rev |
| Malleable cast iron, pearlitic (230 HB) | Optimal | 65 | 5 | 3,450 rpm / 0.12 mm/rev | 2,070 rpm / 0.19 mm/rev |
| Titanium, commercially pure (400 MPa) | Effective | 40 | 4 | 2,120 rpm / 0.1 mm/rev | 1,270 rpm / 0.16 mm/rev |
| Titanium alpha alloys (860 MPa) | Effective | 35 | 3 | 1,860 rpm / 0.08 mm/rev | 1,110 rpm / 0.12 mm/rev |
| Titanium alpha / beta alloys, annealed (960 MPa) | Effective | 35 | 3 | 1,860 rpm / 0.08 mm/rev | 1,110 rpm / 0.12 mm/rev |
| Titanium beta alloys, annealed (830 MPa) | Effective | 35 | 3 | 1,860 rpm / 0.08 mm/rev | 1,110 rpm / 0.12 mm/rev |
| Hardened steel, 45 HRC | Effective | 20 | 4 | 1,060 rpm / 0.1 mm/rev | 635 rpm / 0.16 mm/rev |
| Chilled cast iron (400 HB) | Optimal | 65 | 6 | 3,450 rpm / 0.16 mm/rev | 2,070 rpm / 0.24 mm/rev |
Feed rates (mm/rev) for the feed numbers above:
| Ø (mm) | Feed no. 3 (mm/rev) | Feed no. 4 (mm/rev) | Feed no. 5 (mm/rev) | Feed no. 6 (mm/rev) | Feed no. 7 (mm/rev) | Feed no. 8 (mm/rev) |
|---|---|---|---|---|---|---|
| 2 | 0.03 | 0.04 | 0.05 | 0.06 | 0.075 | 0.095 |
| 3 | 0.045 | 0.055 | 0.07 | 0.09 | 0.11 | 0.14 |
| 4 | 0.06 | 0.075 | 0.09 | 0.12 | 0.14 | 0.18 |
| 5 | 0.07 | 0.09 | 0.11 | 0.14 | 0.17 | 0.21 |
| 6 | 0.08 | 0.1 | 0.12 | 0.16 | 0.19 | 0.24 |
| 8 | 0.1 | 0.13 | 0.16 | 0.2 | 0.25 | 0.31 |
| 10 | 0.12 | 0.16 | 0.19 | 0.24 | 0.3 | 0.37 |
| 12 | 0.15 | 0.18 | 0.23 | 0.28 | 0.34 | 0.42 |
| 16 | 0.19 | 0.23 | 0.29 | 0.36 | 0.44 | 0.54 |
| 20 | 0.23 | 0.28 | 0.34 | 0.42 | 0.52 | 0.64 |
| 25 | 0.27 | 0.33 | 0.41 | 0.5 | 0.6 | 0.74 |
Drilling notes
- Step feeding or pecking is required for drilling greater than 3 x Ø.
- When drilling a cast or black (not machined) surface, reduce the drilling speed by 20%.
- For optimal positional accuracy and hole size, the use of spot drills is recommended prior to drilling the desired hole; see Sutton's spotting drill range (D175).
- For hole depths greater than 7 x Ø, pre-drill a pilot hole first for more accurate hole position and to stop the drill wandering. The pilot can be drilled with a short, rigid drill about 3 x Ø deep at reduced feed.
Accuracy

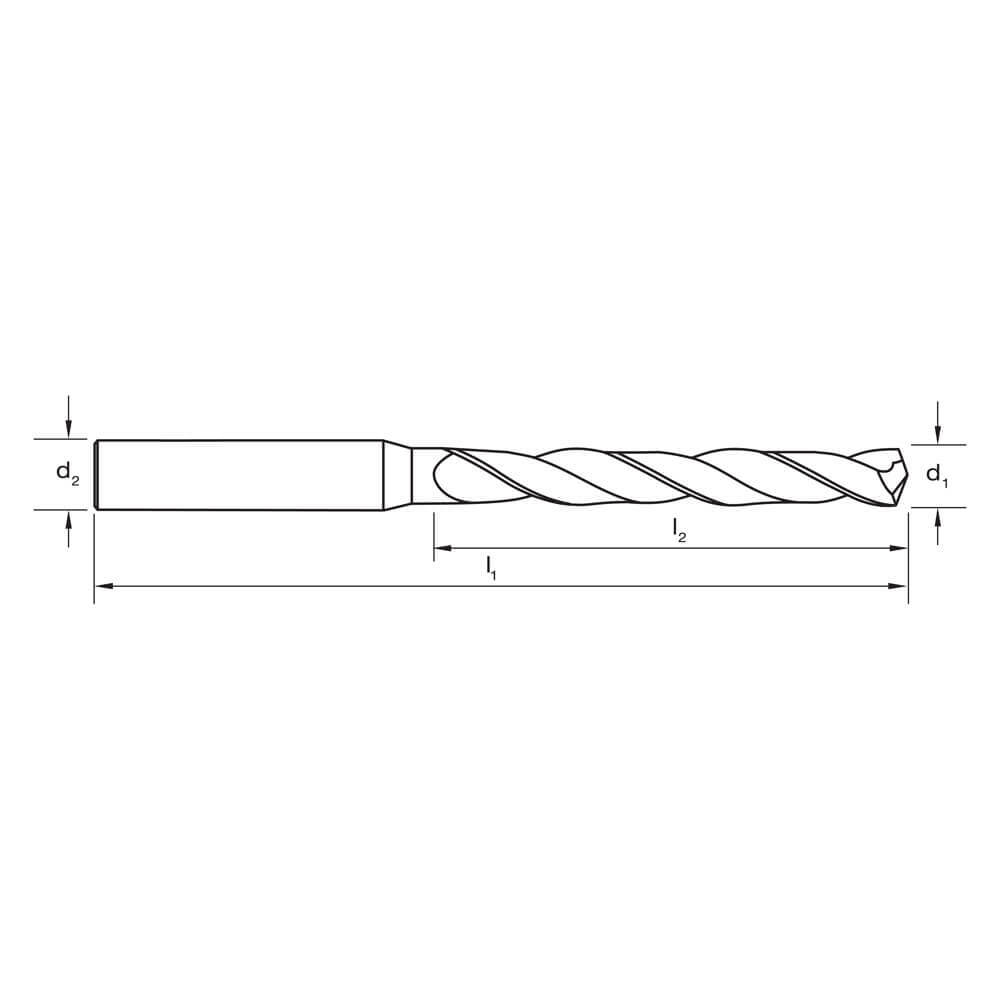

The drill diameter (d1) tolerance is m7 and the shank tolerance is h6.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D326 |
| Range | 5xD Carbide Drill |
| Material | Solid carbide (VHM) |
| Finish | Aluminium chromium nitride (AlCrN) |
| Flute geometry | 30° right-hand helix (R30) |

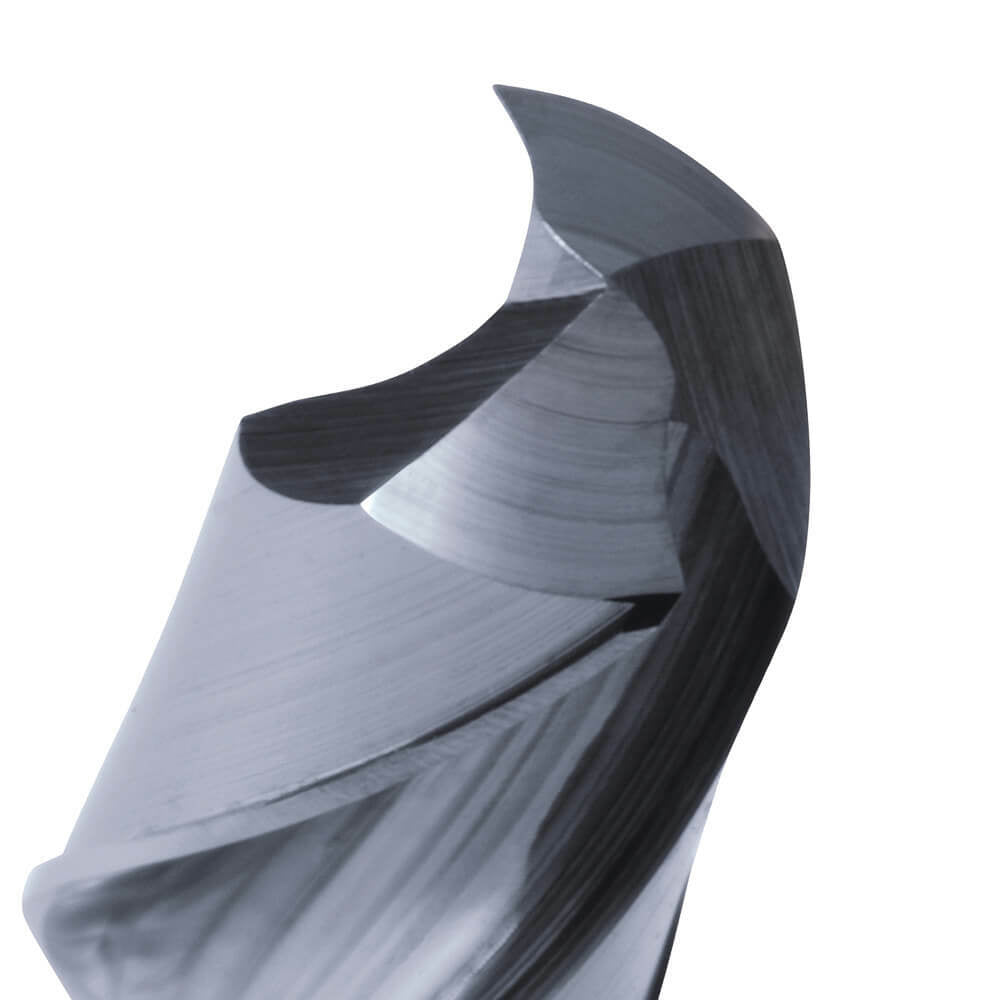

| Point | 140° Form C |
| Shank | DIN 6535 HA shank, d2 to h6 |
| Standard | DIN 6537 |
| Drill diameter tolerance (d1) | m7 |
| Shank tolerance | h6 |
| Designation | N |
| Drilling depth | up to 5 × Ø |
| Sizes in this range | 139 sizes, 3-20mm |
