Sutton 3mm D358 Black Magic 5xD Carbide Drill Bit - VHM
Available

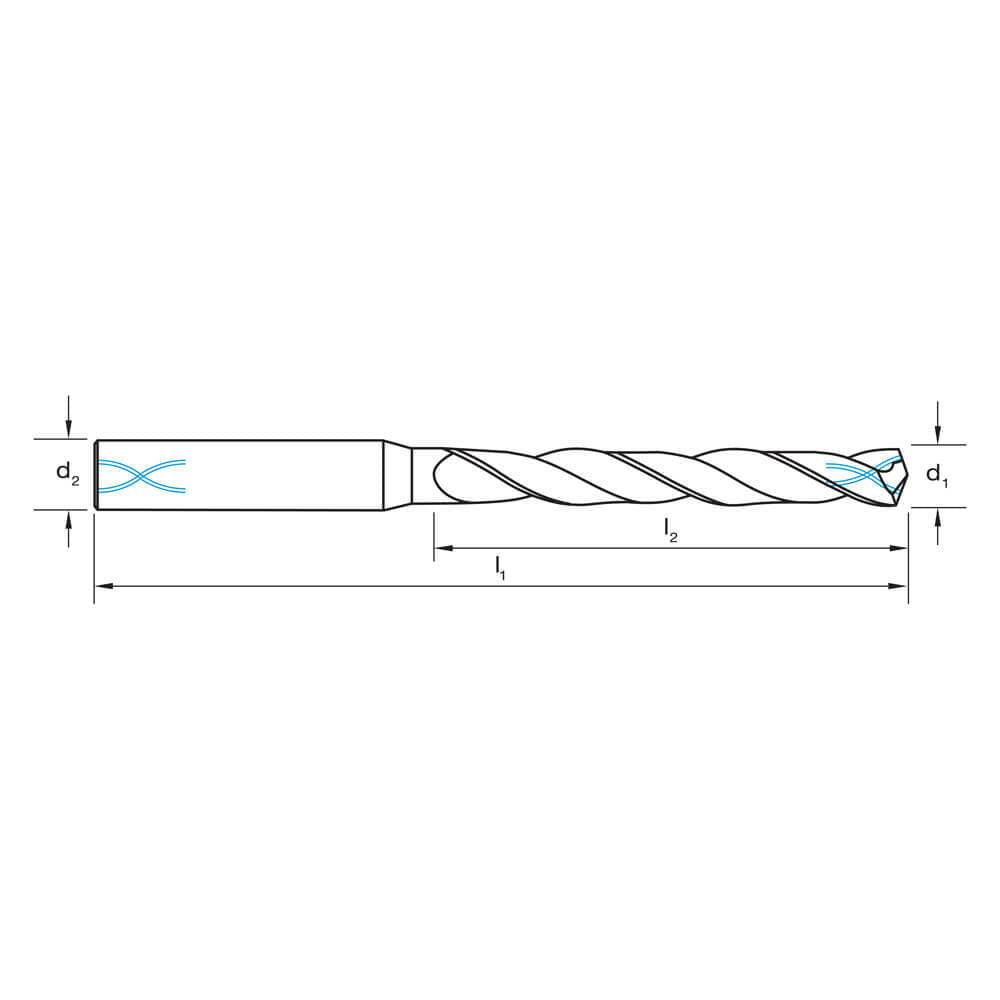

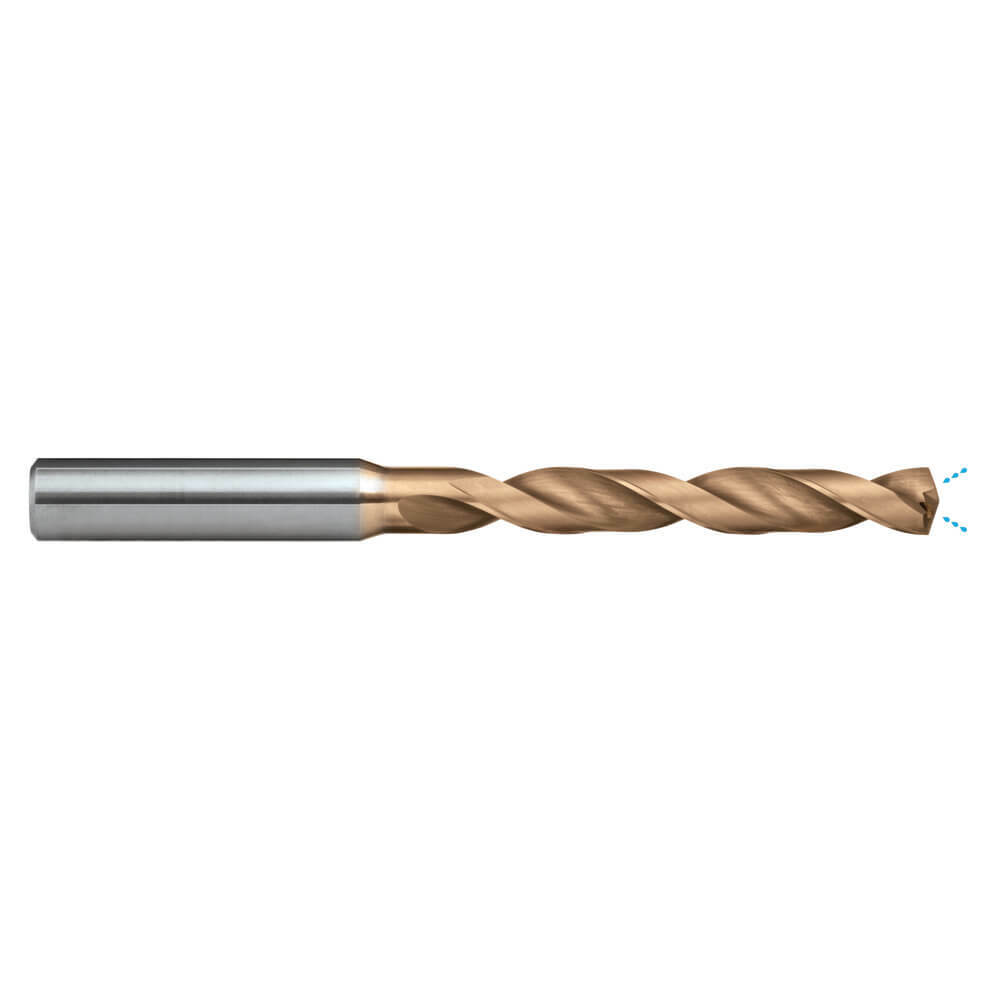

The Sutton D358 is a 5 × Ø through-coolant solid carbide drill with a HELICA coating. It has 30° right-hand helix flutes (R30, internal coolant), a 140° 4 facet Form C point and a DIN 6535 HA shank, d2 to h6. It is made to DIN 6537.

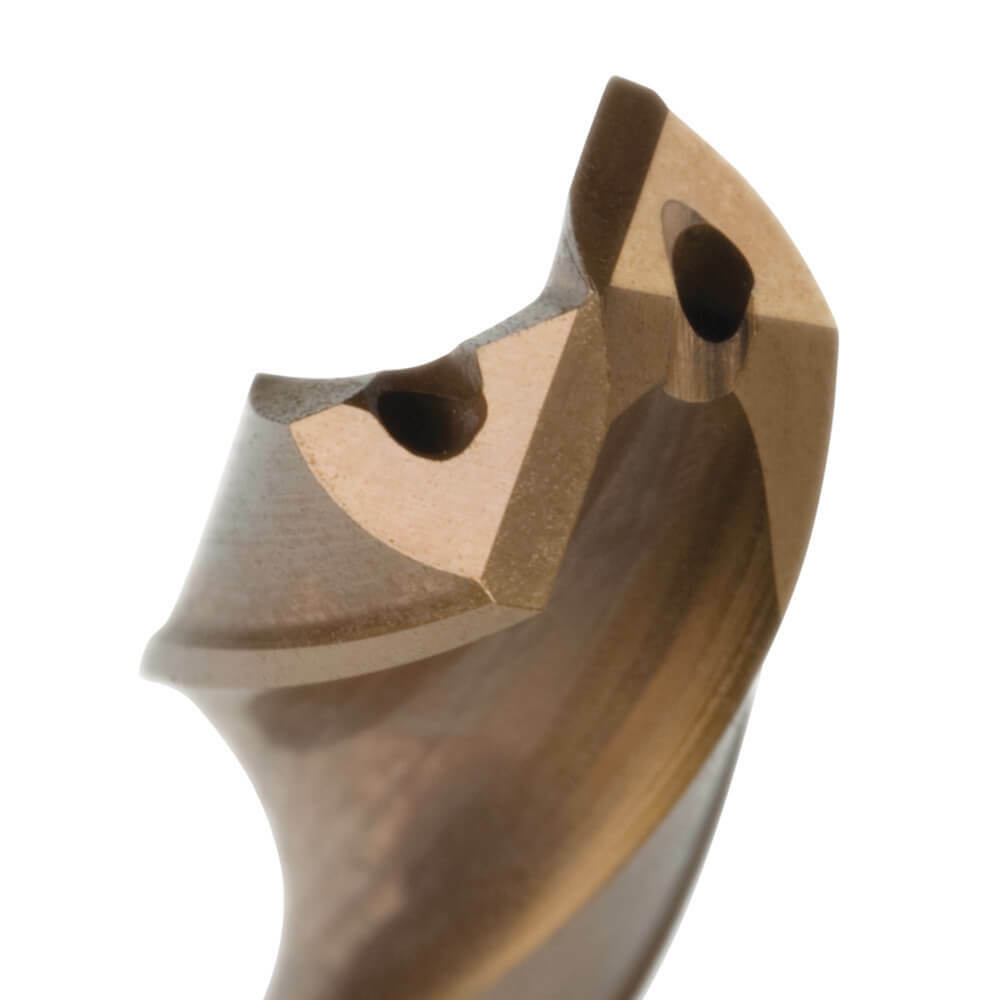

Excellent solution for stainless steels and difficult super alloy type materials; optimised geometry ensures no work hardening and high productivity; HELICA for outstanding oxidation resistance and hot hardness. The Black Magic carbide drill ranges target stainless steels and super alloys such as austenitic stainless steels 304 and 316, duplex grades and Inconel 718 and 725 in aerospace and oil and gas work. It has a specially developed edge profile for stainless steel with post-grind treatment of the cutting edges, a 30° helix with an optimised flute core and 'S' type point gash, ultra micro grain solid carbide, and internal coolant to supply the cutting edge and help evacuate chips from the hole.
This is the metric range: 145 sizes from 3 to 20 mm, with flute lengths of 28 to 101 mm and overall lengths of 66 to 153 mm.
Where this product is used
- Austenitic stainless steels and most long-chipping materials, the main targets of this drill (optimised geometry so the material does not work harden).
- Materials rated Optimal for this drill: austenitic stainless steel; duplex stainless steel; precipitation-hardening stainless steel; wrought aluminium and magnesium alloys; cast aluminium and magnesium alloys (up to 12% Si); aluminium and magnesium cast alloys over 12% Si; and titanium and titanium alloys.
- Also rated Effective: high-alloy and tool steels.
- Rated Optimal for some grades and Effective for others: non-alloy steels; low-alloy steels; ferritic and martensitic stainless steels; Fe-based high-temperature alloys; and Ni / Co based high-temperature alloys.
- Hole depths to 5 × Ø. Step feeding or pecking is required beyond 3 × Ø.
Finish
HELICA (AlCrN-based multi-layer). HELICA has a microhardness of 3000 HV and thermal stability up to 1100 °C, and offers superb chip evacuation, improved hole quality, a greater number of regrinds and excellent performance in abrasive material.
Cutting speeds and feeds
Cutting speeds (Vc) and feed numbers for this drill are from the Sutton High Performance catalogue application guide. The table lists the material groups covered. Optimal ratings are shown in bold and Effective ratings in regular type. The rpm and feed columns show what the speed and feed number work out to at Ø6 mm and Ø10 mm (speed in rpm = Vc × 1000 ÷ (π × Ø)). Treat these as starting values and adjust for the machine, set-up and coolant.
| Material (VDI 3323 group) | Rating | Vc (m/min) | Feed no. | Ø6 mm: rpm / feed | Ø10 mm: rpm / feed |
|---|---|---|---|---|---|
| Non-alloy steel, about 0.15 %C, annealed (125 HB) | Optimal | 130-180 | 7 | 6,900-9,550 rpm / 0.19 mm/rev | 4,140-5,730 rpm / 0.3 mm/rev |
| Non-alloy steel, about 0.45 %C, annealed (190 HB) | Optimal | 110-160 | 7 | 5,840-8,490 rpm / 0.19 mm/rev | 3,500-5,090 rpm / 0.3 mm/rev |
| Non-alloy steel, about 0.45 %C, quenched and tempered (250 HB) | Optimal | 110-160 | 7 | 5,840-8,490 rpm / 0.19 mm/rev | 3,500-5,090 rpm / 0.3 mm/rev |
| Non-alloy steel, about 0.75 %C, annealed (270 HB) | Optimal | 110-160 | 7 | 5,840-8,490 rpm / 0.19 mm/rev | 3,500-5,090 rpm / 0.3 mm/rev |
| Non-alloy steel, about 0.75 %C, quenched and tempered (300 HB) | Effective | 70-100 | 7 | 3,710-5,310 rpm / 0.19 mm/rev | 2,230-3,180 rpm / 0.3 mm/rev |
| Low-alloy and cast steel (under 5% alloying), annealed (180 HB) | Optimal | 110-160 | 7 | 5,840-8,490 rpm / 0.19 mm/rev | 3,500-5,090 rpm / 0.3 mm/rev |
| Low-alloy steel, quenched and tempered (275 HB) | Effective | 110-160 | 7 | 5,840-8,490 rpm / 0.19 mm/rev | 3,500-5,090 rpm / 0.3 mm/rev |
| Low-alloy steel, quenched and tempered (300 HB) | Effective | 110-160 | 7 | 5,840-8,490 rpm / 0.19 mm/rev | 3,500-5,090 rpm / 0.3 mm/rev |
| High-alloy, cast and tool steel, annealed (200 HB) | Effective | 90-120 | 7 | 4,770-6,370 rpm / 0.19 mm/rev | 2,860-3,820 rpm / 0.3 mm/rev |
| Corrosion-resistant steel, ferritic / martensitic, annealed (200 HB) | Optimal | 30-50 | 5 | 1,590-2,650 rpm / 0.12 mm/rev | 955-1,590 rpm / 0.19 mm/rev |
| Corrosion-resistant steel, martensitic, quenched and tempered (240 HB) | Effective | 40-50 | 5 | 2,120-2,650 rpm / 0.12 mm/rev | 1,270-1,590 rpm / 0.19 mm/rev |
| Austenitic stainless steel, age hardened (180 HB) | Optimal | 50-70 | 5 | 2,650-3,710 rpm / 0.12 mm/rev | 1,590-2,230 rpm / 0.19 mm/rev |
| Duplex stainless steel (250 HB) | Optimal | 40-60 | 5 | 2,120-3,180 rpm / 0.12 mm/rev | 1,270-1,910 rpm / 0.19 mm/rev |
| Precipitation-hardening stainless steel (250 HB) | Optimal | 30-50 | 5 | 1,590-2,650 rpm / 0.12 mm/rev | 955-1,590 rpm / 0.19 mm/rev |
| Wrought aluminium and magnesium alloy, non heat treatable (60 HB) | Optimal | 300-400 | 8 | 15,920-21,220 rpm / 0.24 mm/rev | 9,550-12,730 rpm / 0.37 mm/rev |
| Wrought aluminium and magnesium alloy, heat treatable (100 HB) | Optimal | 300-400 | 8 | 15,920-21,220 rpm / 0.24 mm/rev | 9,550-12,730 rpm / 0.37 mm/rev |
| Cast aluminium and magnesium alloy (up to 12% Si), non heat treatable (75 HB) | Optimal | 220-320 | 8 | 11,670-16,980 rpm / 0.24 mm/rev | 7,000-10,190 rpm / 0.37 mm/rev |
| Cast aluminium and magnesium alloy (up to 12% Si), heat treatable (90 HB) | Optimal | 220-320 | 8 | 11,670-16,980 rpm / 0.24 mm/rev | 7,000-10,190 rpm / 0.37 mm/rev |
| Aluminium and magnesium cast alloy over 12% Si (130 HB) | Optimal | 200-280 | 7 | 10,610-14,850 rpm / 0.19 mm/rev | 6,370-8,910 rpm / 0.3 mm/rev |
| High-temperature alloy, Fe based, annealed (200 HB) | Optimal | 30-40 | 4 | 1,590-2,120 rpm / 0.1 mm/rev | 955-1,270 rpm / 0.16 mm/rev |
| High-temperature alloy, Fe based, age hardened (280 HB) | Effective | 30-40 | 4 | 1,590-2,120 rpm / 0.1 mm/rev | 955-1,270 rpm / 0.16 mm/rev |
| High-temperature alloy, Ni / Co based, annealed (250 HB) | Optimal | 30-40 | 4 | 1,590-2,120 rpm / 0.1 mm/rev | 955-1,270 rpm / 0.16 mm/rev |
| High-temperature alloy, Ni / Co based, age hardened (350 HB) | Optimal | 25-35 | 3 | 1,330-1,860 rpm / 0.08 mm/rev | 795-1,110 rpm / 0.12 mm/rev |
| High-temperature alloy, Ni / Co based, cast (320 HB) | Effective | 30-40 | 4 | 1,590-2,120 rpm / 0.1 mm/rev | 955-1,270 rpm / 0.16 mm/rev |
| Titanium, commercially pure (400 MPa) | Optimal | 50-70 | 4 | 2,650-3,710 rpm / 0.1 mm/rev | 1,590-2,230 rpm / 0.16 mm/rev |
| Titanium alpha alloys (860 MPa) | Optimal | 40-60 | 4 | 2,120-3,180 rpm / 0.1 mm/rev | 1,270-1,910 rpm / 0.16 mm/rev |
| Titanium alpha / beta alloys, annealed (960 MPa) | Optimal | 40-60 | 4 | 2,120-3,180 rpm / 0.1 mm/rev | 1,270-1,910 rpm / 0.16 mm/rev |
| Titanium alpha / beta alloys, age hardened (1170 MPa) | Optimal | 30-50 | 4 | 1,590-2,650 rpm / 0.1 mm/rev | 955-1,590 rpm / 0.16 mm/rev |
| Titanium beta alloys, annealed (830 MPa) | Optimal | 40-60 | 4 | 2,120-3,180 rpm / 0.1 mm/rev | 1,270-1,910 rpm / 0.16 mm/rev |
| Titanium beta alloys, age hardened (1400 MPa) | Optimal | 30-50 | 4 | 1,590-2,650 rpm / 0.1 mm/rev | 955-1,590 rpm / 0.16 mm/rev |
Feed rates (mm/rev) for the feed numbers above:
| Ø (mm) | Feed no. 3 (mm/rev) | Feed no. 4 (mm/rev) | Feed no. 5 (mm/rev) | Feed no. 7 (mm/rev) | Feed no. 8 (mm/rev) |
|---|---|---|---|---|---|
| 2 | 0.03 | 0.04 | 0.05 | 0.075 | 0.095 |
| 3 | 0.045 | 0.055 | 0.07 | 0.11 | 0.14 |
| 4 | 0.06 | 0.075 | 0.09 | 0.14 | 0.18 |
| 5 | 0.07 | 0.09 | 0.11 | 0.17 | 0.21 |
| 6 | 0.08 | 0.1 | 0.12 | 0.19 | 0.24 |
| 8 | 0.1 | 0.13 | 0.16 | 0.25 | 0.31 |
| 10 | 0.12 | 0.16 | 0.19 | 0.3 | 0.37 |
| 12 | 0.15 | 0.18 | 0.23 | 0.34 | 0.42 |
| 16 | 0.19 | 0.23 | 0.29 | 0.44 | 0.54 |
| 20 | 0.23 | 0.28 | 0.34 | 0.52 | 0.64 |
| 25 | 0.27 | 0.33 | 0.41 | 0.6 | 0.74 |
Drilling notes
- Step feeding or pecking is required for drilling greater than 3 x Ø.
- When drilling a cast or black (not machined) surface, reduce the drilling speed by 20%.
- For optimal positional accuracy and hole size, the use of spot drills is recommended prior to drilling the desired hole; see Sutton's spotting drill range (D175).
- For hole depths greater than 7 x Ø, pre-drill a pilot hole first for more accurate hole position and to stop the drill wandering. The pilot can be drilled with a short, rigid drill about 3 x Ø deep at reduced feed.
Accuracy
The drill diameter (d1) tolerance is m7 and the shank tolerance is h6.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D358 |
| Range | Black Magic 5xD Carbide Drill |
| Material | Solid carbide (VHM) |
| Finish | HELICA (AlCrN-based multi-layer) |
| Flute geometry | 30° right-hand helix (R30 - IK) |
| Point | 140° 4 facet Form C |
| Shank | DIN 6535 HA shank, d2 to h6 |
| Standard | DIN 6537 |
| Drill diameter tolerance (d1) | m7 |
| Shank tolerance | h6 |
| Designation | VA |
| Drilling depth | up to 5 × Ø |
| Sizes in this range | 145 sizes, 3-20mm |
