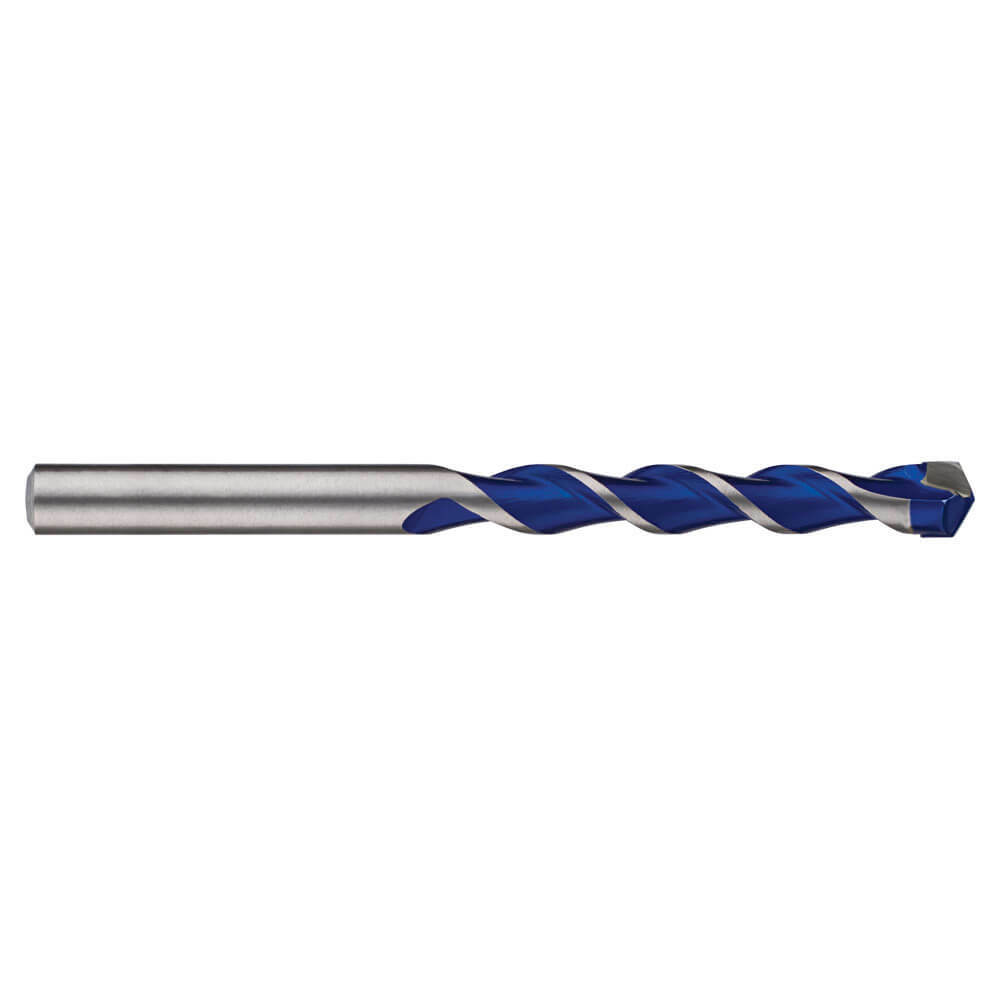

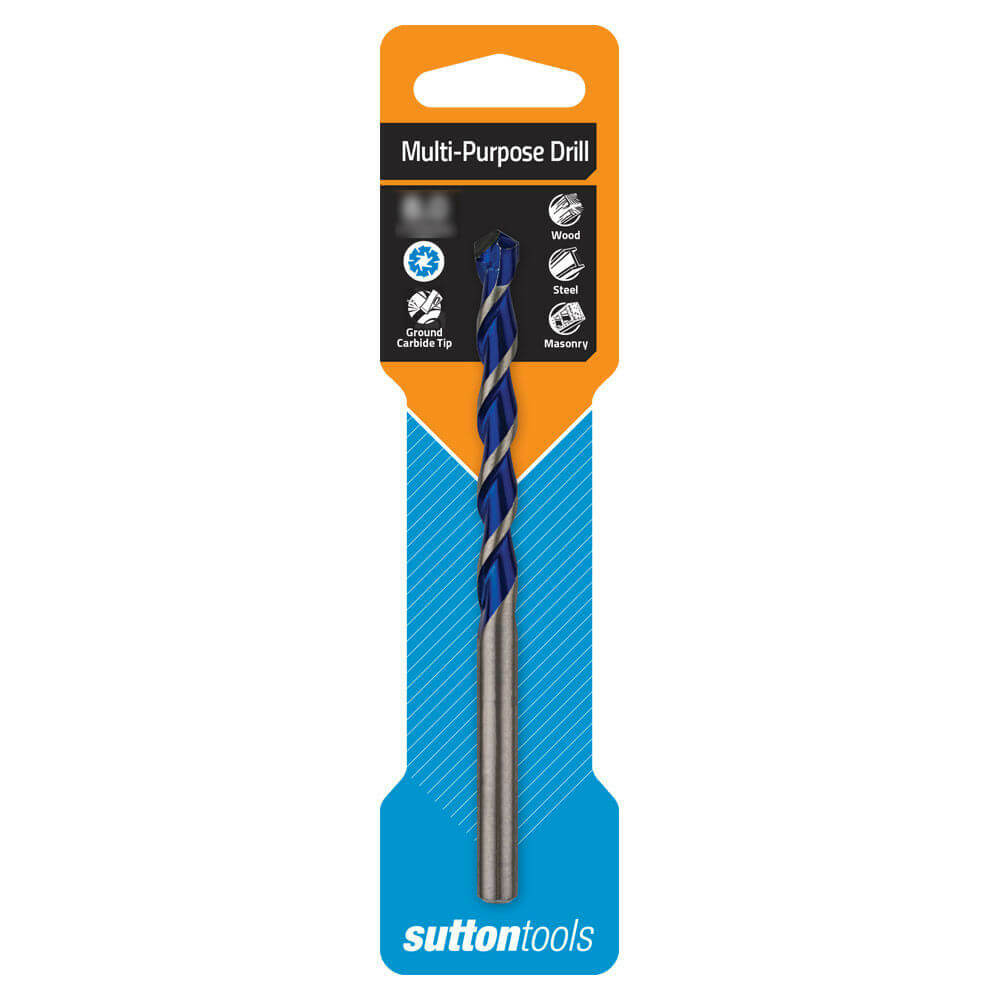

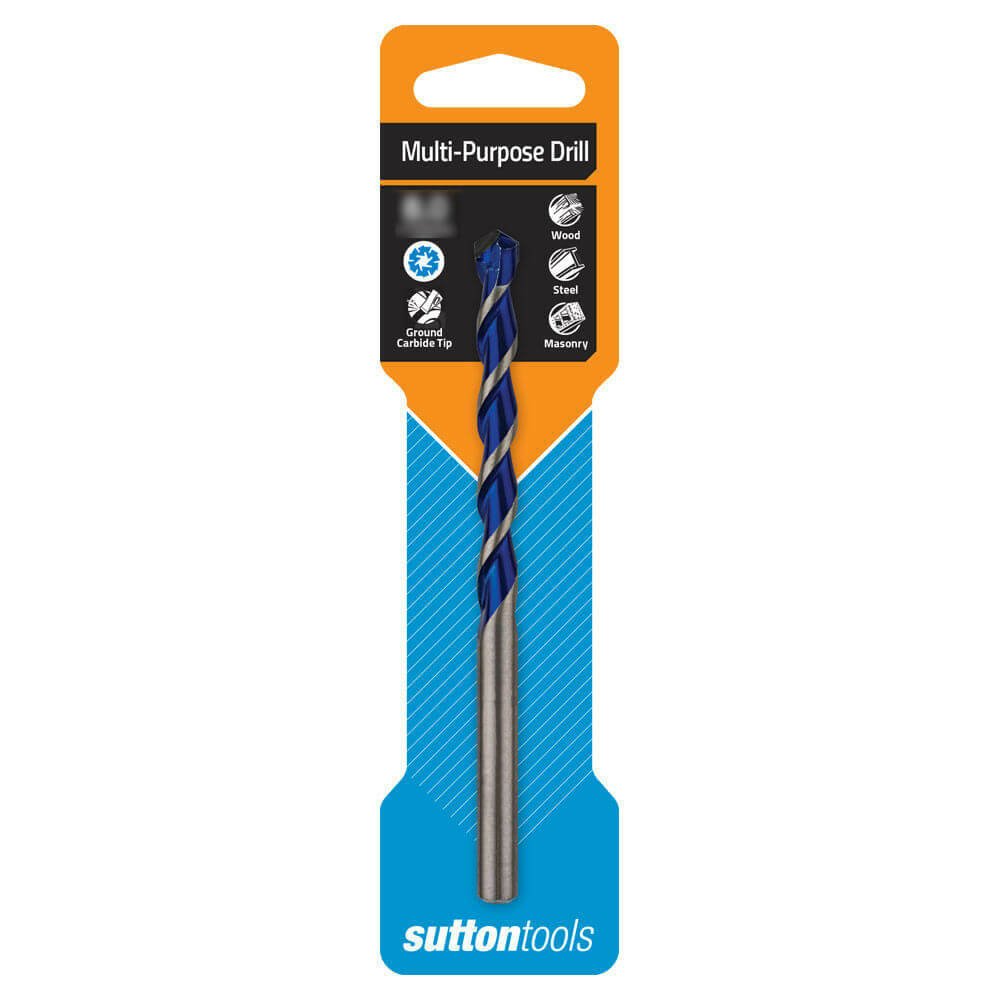

Sutton 3mm D610 Multi-Purpose Drill Bit - Standard Length - 60 mm

The Sutton D610 is the Standard Length multi-purpose drill bit with a tungsten carbide tip (TCT), in 15 sizes from 3 to 16 mm, with overall lengths of 60 to 150 mm. It is for drilling in various materials such as timber, concrete, brick, stainless steel, cast iron, steel and glass, and is especially suited to drilling multi-laminated construction materials.

Use hammer action for masonry materials only and rotary action for all other materials; drilling masonry materials before wood or steel will dull the tip and reduce cutting performance. The ground carbide tip has two cutting edges, a unique brazing process ensures a perfect bond between the tip and the body, and the L-profile spiral flute design efficiently extracts concrete, metal and wood particles. The parallel shank is for rotary or hammer drill applications.

Where this product is used

• Drilling in various materials such as timber, concrete, brick, stainless steel, cast iron, steel and glass.
• Especially suited to drilling multi-laminated construction materials.
• Use hammer action for masonry materials only and rotary action for all other materials. Drilling masonry materials before wood or steel will dull the tip and reduce cutting performance.
• Applications for the range include: DIY, trade, electrical, plumbing, carpentry, plastering and masonry work.

Design features

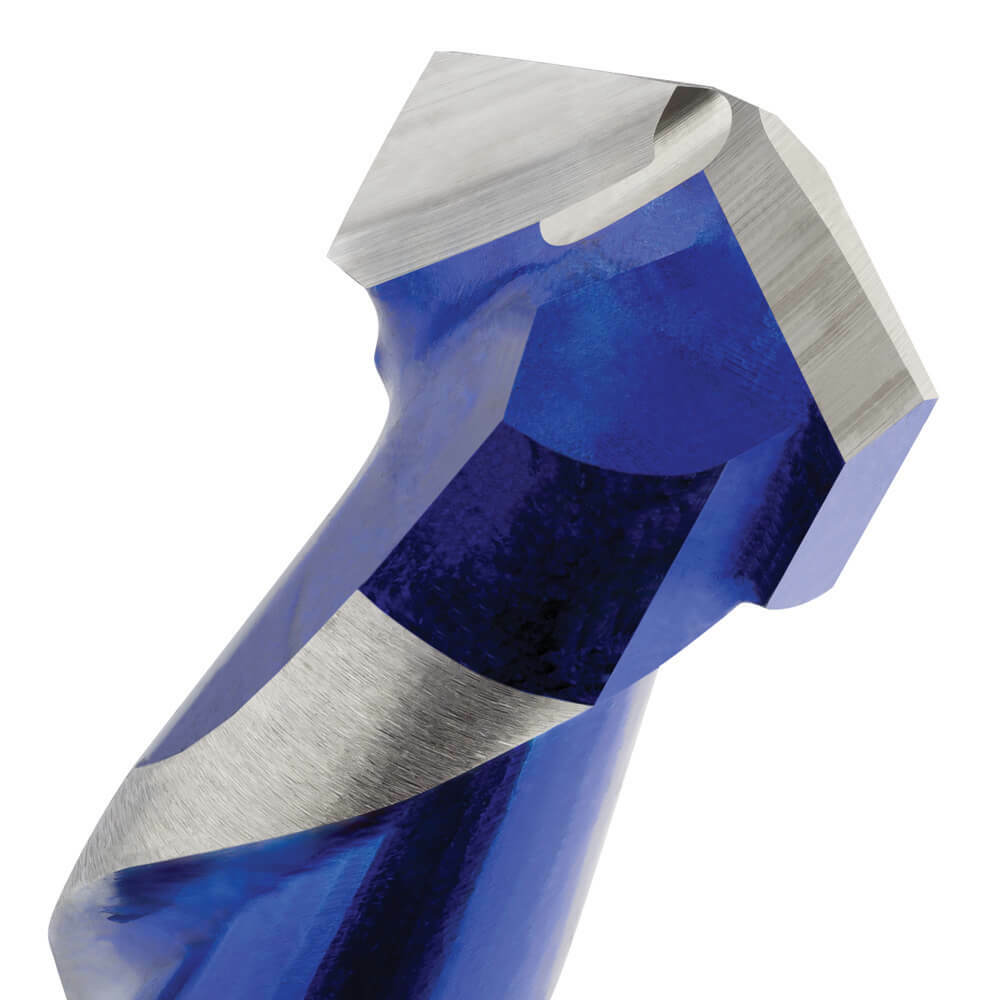

• TCT point: ground carbide tip with two cutting edges.
• Brazed tip: a unique brazing process ensures a perfect bond between tip and body.
• Spiral flute: the L-profile flute design efficiently extracts concrete, metal and wood particles.
• Parallel shank: for rotary or hammer drill applications.

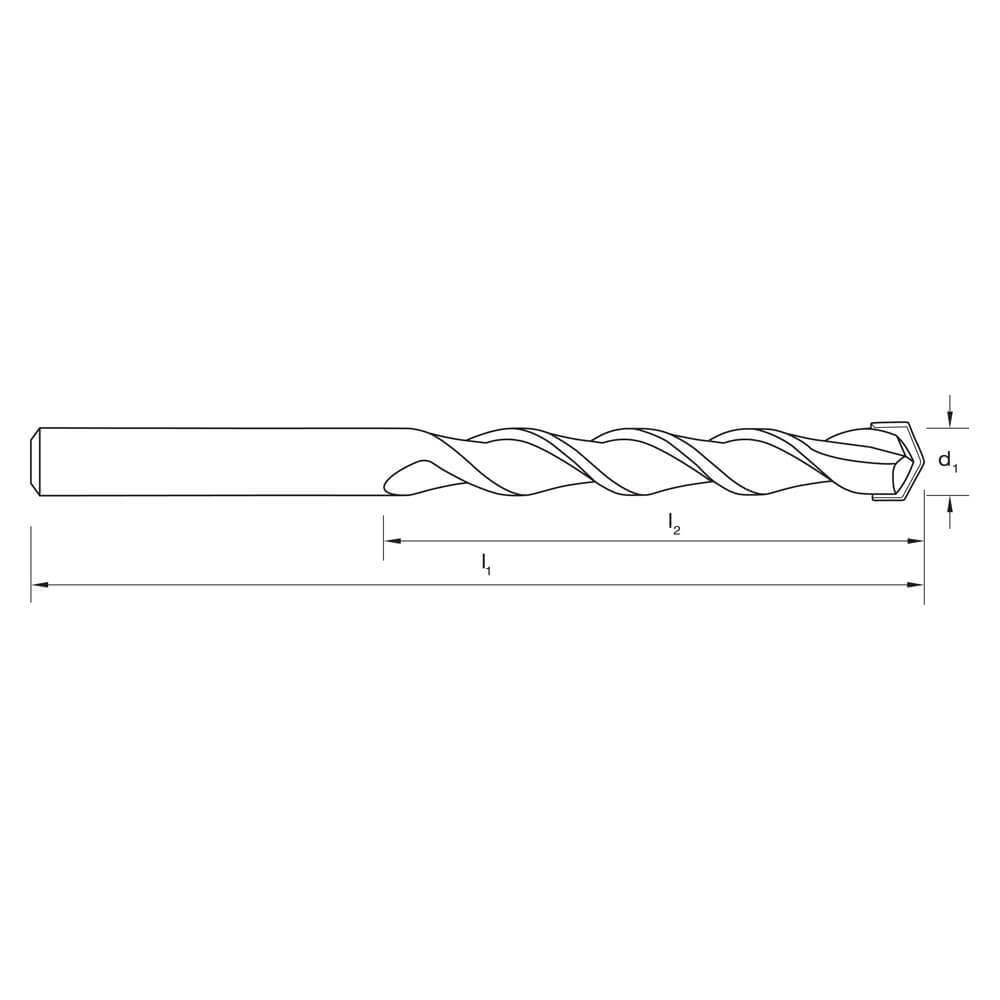

Sizes and lengths

Diameters and item numbers are shown below. Lengths are in millimetres.

Key specifications
