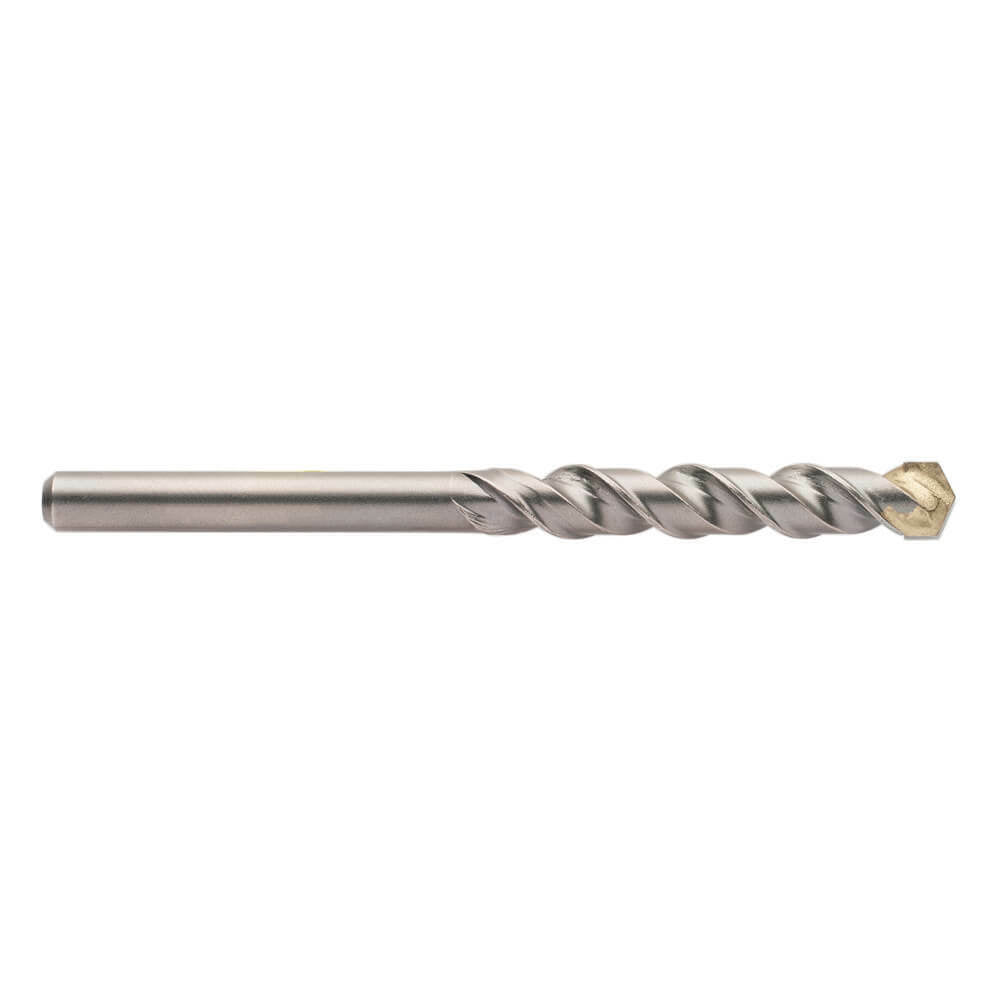

Sutton 3mm D600 Masonry Drill Bit - Standard Fixing - 60 mm
Available
The Sutton D600 is the Standard Fixing masonry drill bit with a tungsten carbide tip (TCT), in 12 sizes from 3 to 13 mm, with overall lengths of 60 to 120 mm. Tradesman quality, it is ideal for use in natural and artificial stone, masonry, brickwork and concrete.
It has a two-cutting-edge carbide percussion tip with a semi-positive profile for aggressive drilling in hard materials. A unique brazing process ensures a perfect bond between the tip and the body. The rolled double spiral flute provides greater dust extraction, extending drill life, and the parallel shank is for rotary hammer and percussion drilling. The 12 mm and 13 mm sizes have a 10 mm shank.
Where this product is used
- Natural and artificial stone, masonry, brickwork and concrete.
- Applications for the range include: DIY, trade, electrical, plumbing, carpentry, plastering and masonry work.
Design features

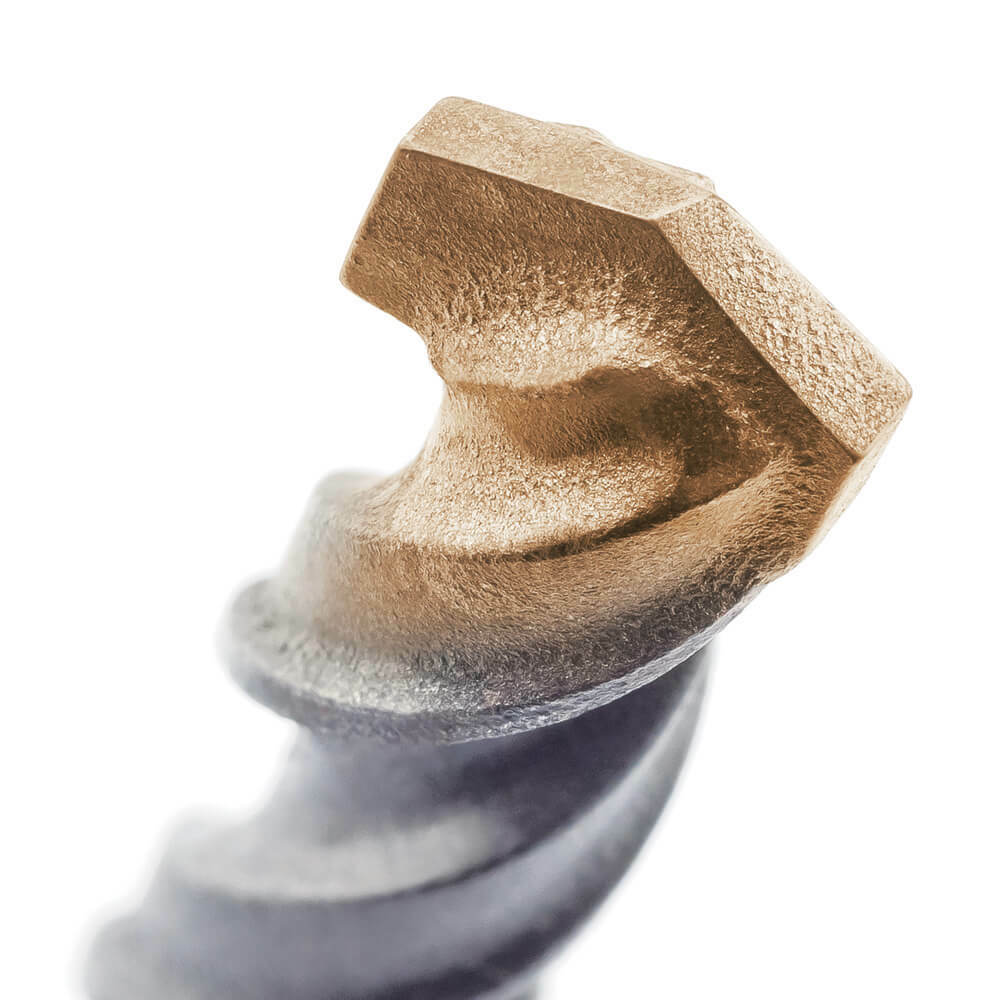

- TCT point: two-cutting-edge carbide percussion tip with a semi-positive profile, for aggressive drilling in hard materials.
- Brazed tip: a unique brazing process ensures a perfect bond between tip and body.
- Double spiral flute: the rolled double flute provides greater dust extraction, extending drill life.
- Parallel shank: for rotary hammer and percussion drilling.
Sizes and lengths
Diameters and item numbers are shown below. Lengths are in millimetres.
| Diameter (mm) | Overall length (mm) | Plug colour | Shank | Sutton item no. |
|---|---|---|---|---|
| 3 | 60 | Yellow | – | D600 0300 |
| 4 | 75 | Yellow | – | D600 0400 |
| 5 | 85 | White | – | D600 0500 |
| 5.5 | 95 | Red | – | D600 0550 |
| 6 | 100 | Red | – | D600 0600 |
| 6.5 | 100 | Green | – | D600 0650 |
| 7 | 100 | Green | – | D600 0700 |
| 8 | 120 | Blue | – | D600 0800 |
| 9 | 120 | Blue | – | D600 0900 |
| 10 | 120 | Orange | – | D600 1000 |
| 12 | 120 | Orange | 10 mm | D600 1200 |
| 13 | 120 | Orange | 10 mm | D600 1300 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D600 |
| Range name | Standard Fixing |
| Type | Masonry drill bit |
| Tip | Tungsten carbide (TCT), brazed |
| Flute | Double spiral |
| Shank | Parallel; 10 mm on the 12 mm and 13 mm sizes |
| Overall length | 60 to 120 mm |
| Sizes in this range | 12 sizes, 3-13 mm |
Related drilling products
Compare other Sutton masonry drill bits: D601 Single Brick and D602 Double Brick, or the D650 Standard Fix bulk pack. Browse all Masonry Drill Bits. Need help choosing? Our guide to choosing the right drill bit and drill bit selection guide cover drill types and materials.
