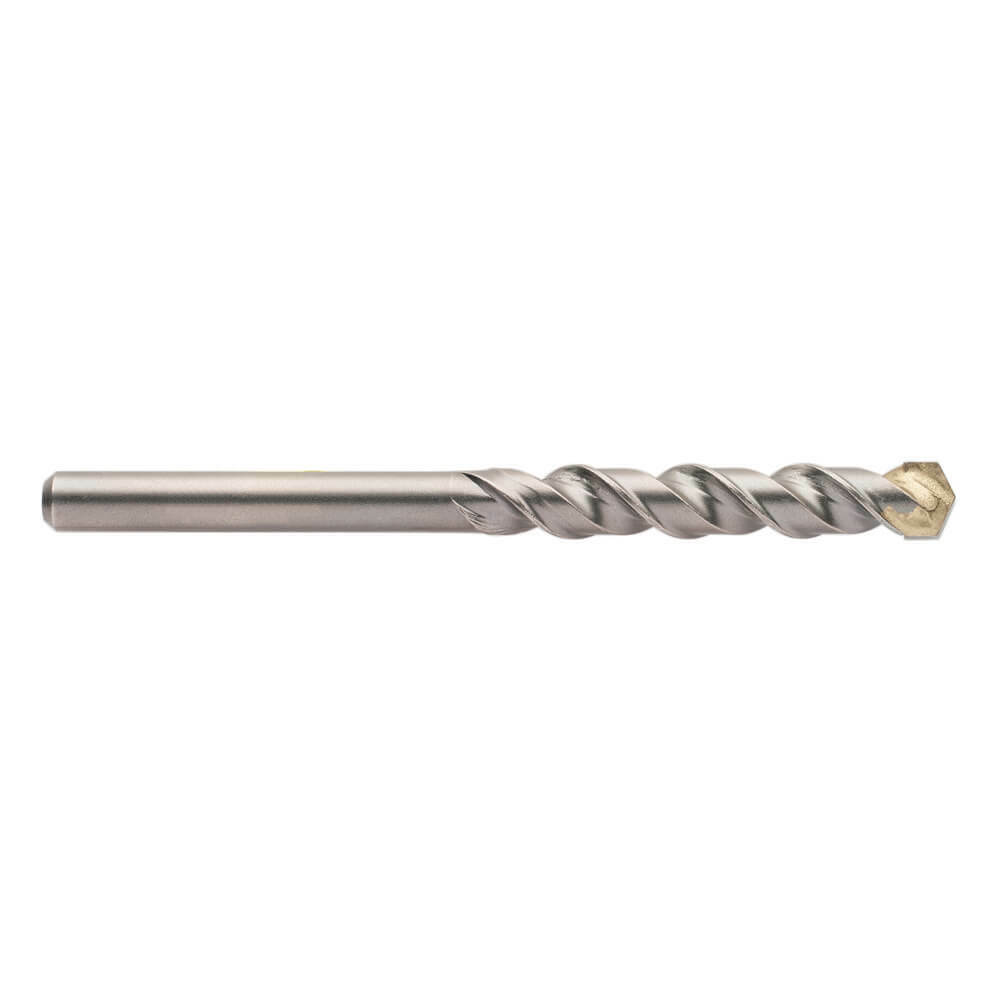

Sutton 5mm D601 Masonry Drill Bit - Single Brick - 150 mm
Available

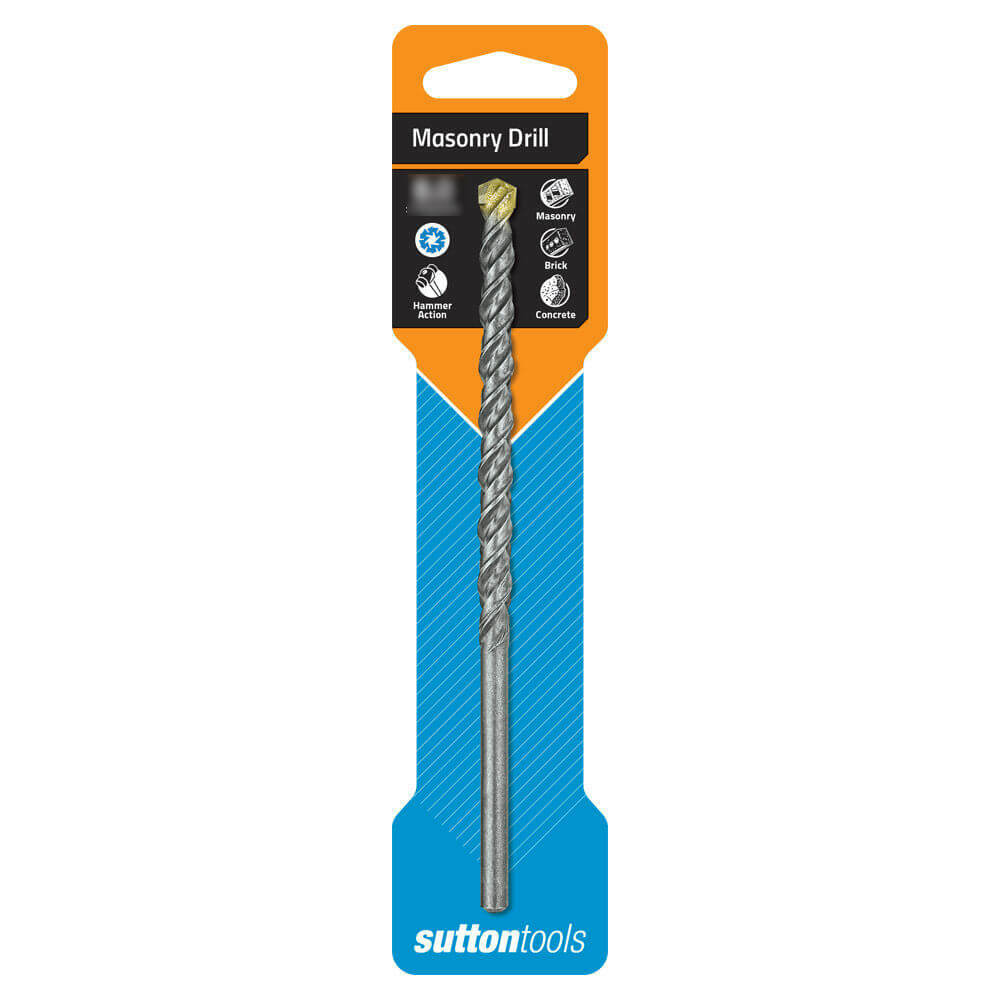

The Sutton D601 is the Single Brick masonry drill bit with a tungsten carbide tip (TCT), in 15 sizes from 5 to 25 mm, 150 mm long (160 mm on the 20, 22 and 25 mm sizes). Tradesman quality, it is ideal for use in natural and artificial stone, masonry, brickwork and concrete.
It has a two-cutting-edge carbide percussion tip with a semi-positive profile for aggressive drilling in hard materials. A unique brazing process ensures a perfect bond between the tip and the body. The rolled double spiral flute provides greater dust extraction, extending drill life, and the parallel shank is for rotary hammer and percussion drilling. The 5 to 10 mm sizes have a 1/4" (6.35 mm) shank, the 11 to 14 mm sizes have a 10 mm shank and the 16 to 25 mm sizes have a 12.7 mm shank.
Where this product is used
- Natural and artificial stone, masonry, brickwork and concrete.
- Applications for the range include: DIY, trade, electrical, plumbing, carpentry, plastering and masonry work.
Design features

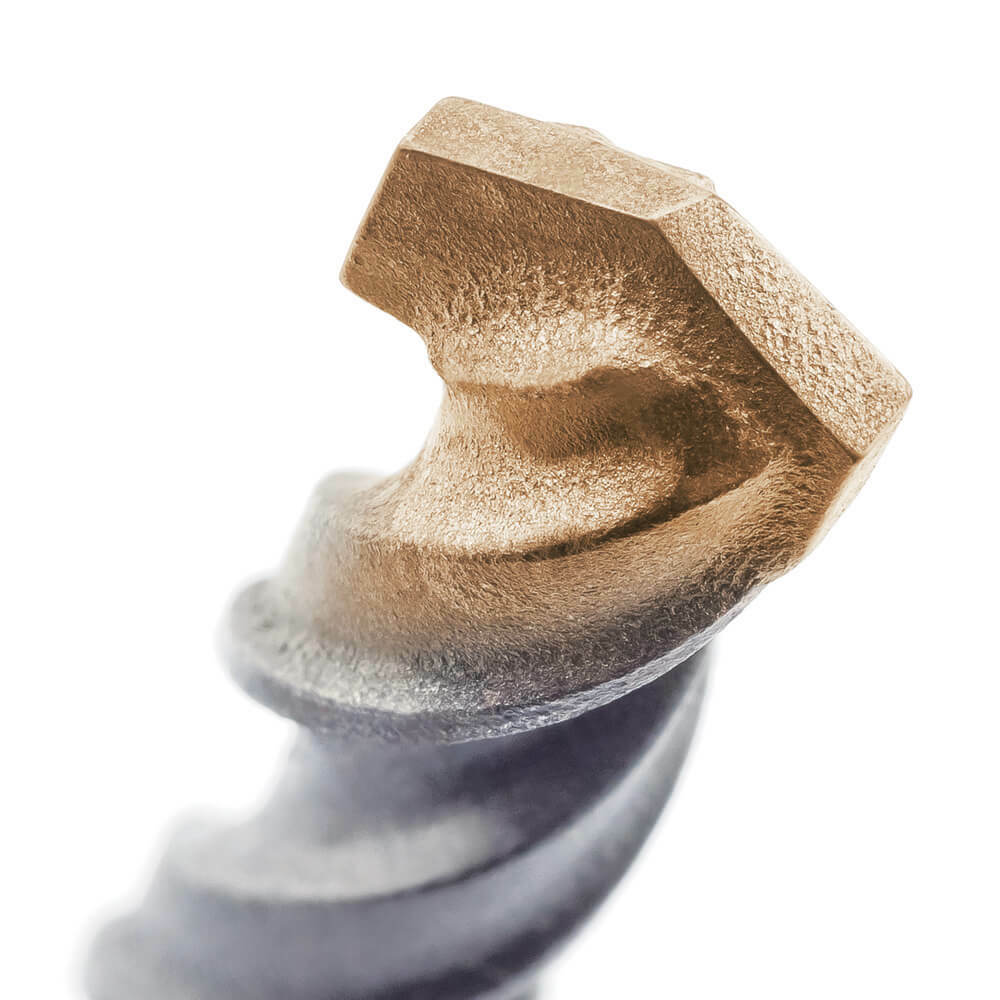

- TCT point: two-cutting-edge carbide percussion tip with a semi-positive profile, for aggressive drilling in hard materials.
- Brazed tip: a unique brazing process ensures a perfect bond between tip and body.
- Double spiral flute: the rolled double flute provides greater dust extraction, extending drill life.
- Parallel shank: for rotary hammer and percussion drilling.
Sizes and lengths
Diameters and item numbers are shown below. Lengths are in millimetres.
| Diameter (mm) | Overall length (mm) | Plug colour | Shank | Sutton item no. |
|---|---|---|---|---|
| 5 | 150 | White | 6.35 mm | D601 0500 |
| 5.5 | 150 | Red | 6.35 mm | D601 0550 |
| 6 | 150 | Red | 6.35 mm | D601 0600 |
| 6.5 | 150 | Green | 6.35 mm | D601 0650 |
| 7 | 150 | Green | 6.35 mm | D601 0700 |
| 8 | 150 | Blue | 6.35 mm | D601 0800 |
| 10 | 150 | Orange | 6.35 mm | D601 1000 |
| 11 | 150 | Grey | 10 mm | D601 1100 |
| 12 | 150 | Grey | 10 mm | D601 1200 |
| 13 | 150 | Grey | 10 mm | D601 1300 |
| 14 | 150 | Grey | 10 mm | D601 1400 |
| 16 | 150 | Black | 12.7 mm | D601 1600 |
| 20 | 160 | Black | 12.7 mm | D601 2000 |
| 22 | 160 | Black | 12.7 mm | D601 2200 |
| 25 | 160 | Black | 12.7 mm | D601 2500 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D601 |
| Range name | Single Brick |
| Type | Masonry drill bit |
| Tip | Tungsten carbide (TCT), brazed |
| Flute | Double spiral |
| Shank | Parallel; 6.35 mm (1/4 in) on the 5 to 10 mm sizes, 10 mm on the 11 to 14 mm sizes and 12.7 mm on the 16 to 25 mm sizes |
| Overall length | 150 mm (160 mm on the 20, 22 and 25 mm sizes) |
| Sizes in this range | 15 sizes, 5-25 mm |
