Sutton 5mm D651 Masonry Drill Bit - Single Brick - Pack of 5
Available

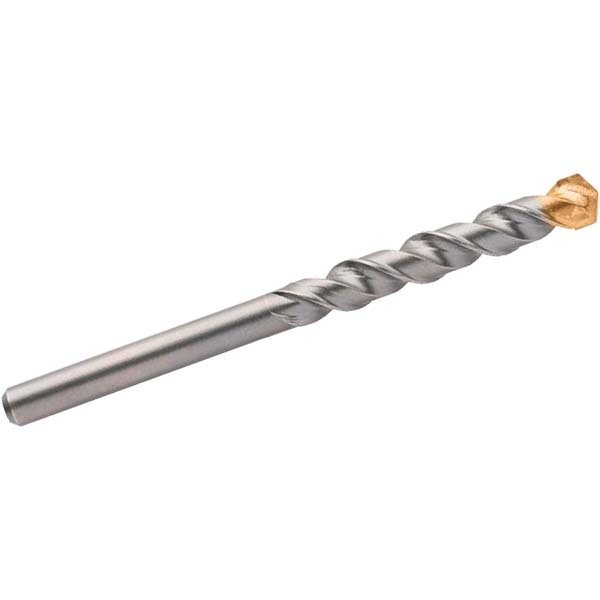

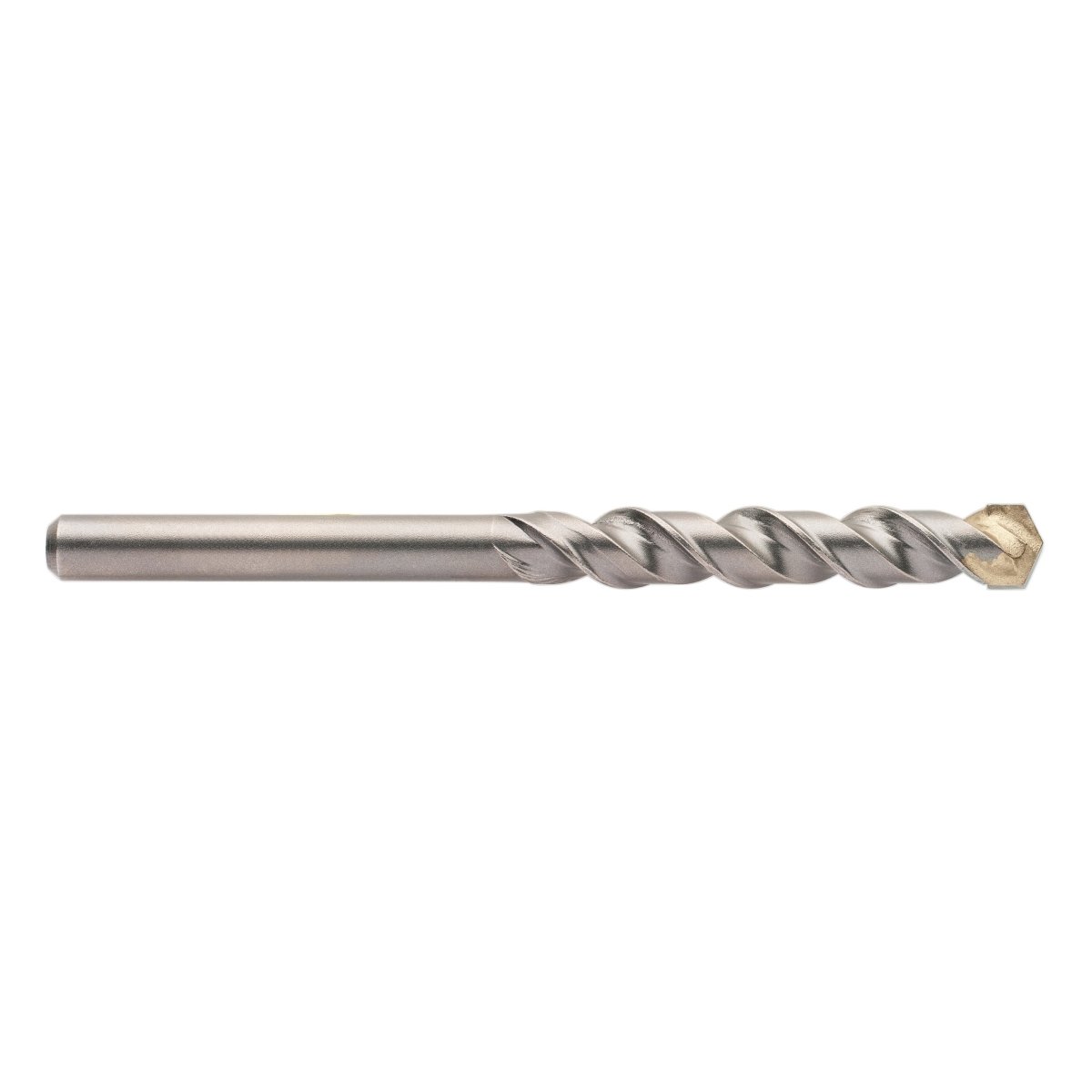

The Sutton D651 is the Single Brick masonry drill bit with a tungsten carbide tip (TCT) in a bulk pack, supplied in packs of 5 pieces of one size in 5 sizes from 5 to 10 mm, all 150 mm long. Tradesman quality, it is ideal for use in natural and artificial stone, masonry, brickwork and concrete.
It has a two-cutting-edge carbide percussion tip with a semi-positive profile for aggressive drilling in hard materials. A unique brazing process ensures a perfect bond between the tip and the body. The rolled double spiral flute provides greater dust extraction, extending drill life, and the parallel shank is for rotary hammer and percussion drilling.
Where this product is used
- Natural and artificial stone, masonry, brickwork and concrete.
Design features

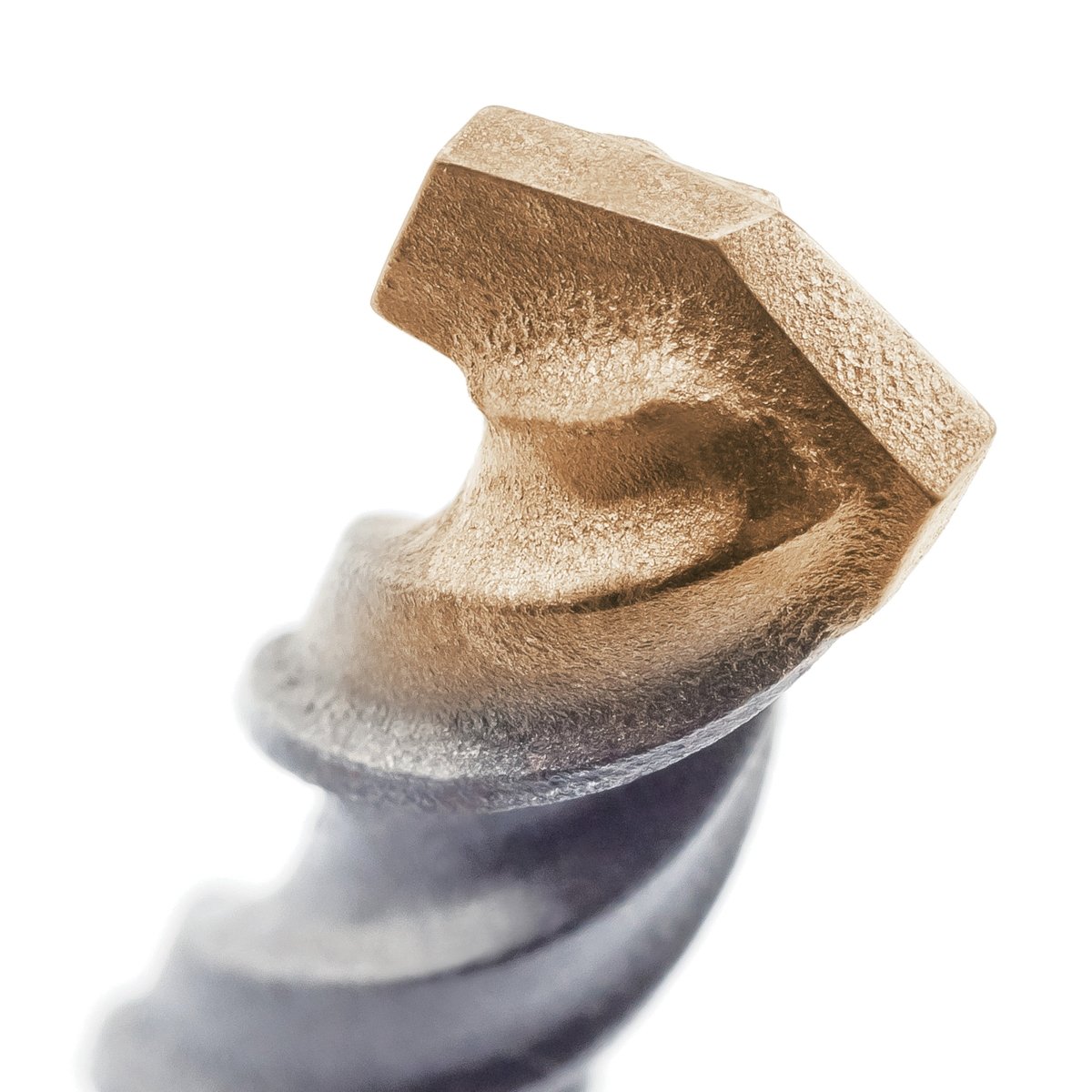

- TCT point: two-cutting-edge carbide percussion tip with a semi-positive profile, for aggressive drilling in hard materials.
- Brazed tip: a unique brazing process ensures a perfect bond between tip and body.
- Double spiral flute: the rolled double flute provides greater dust extraction, extending drill life.
- Parallel shank: for rotary hammer and percussion drilling.
Sizes and lengths
Diameters and item numbers are shown below. Lengths are in millimetres.
| Diameter (mm) | Overall length (mm) | Plug colour | Pieces | Sutton item no. |
|---|---|---|---|---|

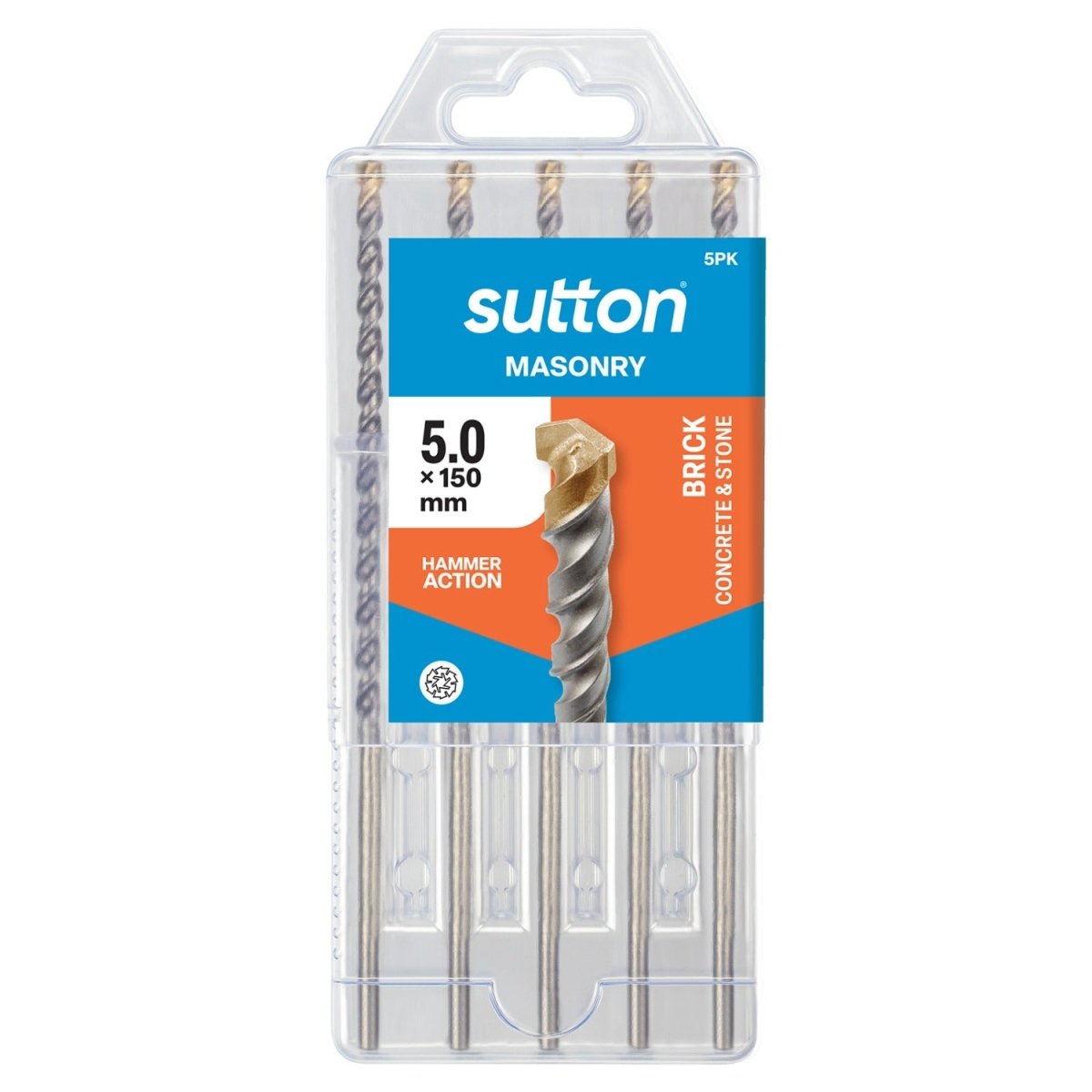

| 5 | 150 | White | 5 | D651 0500 |

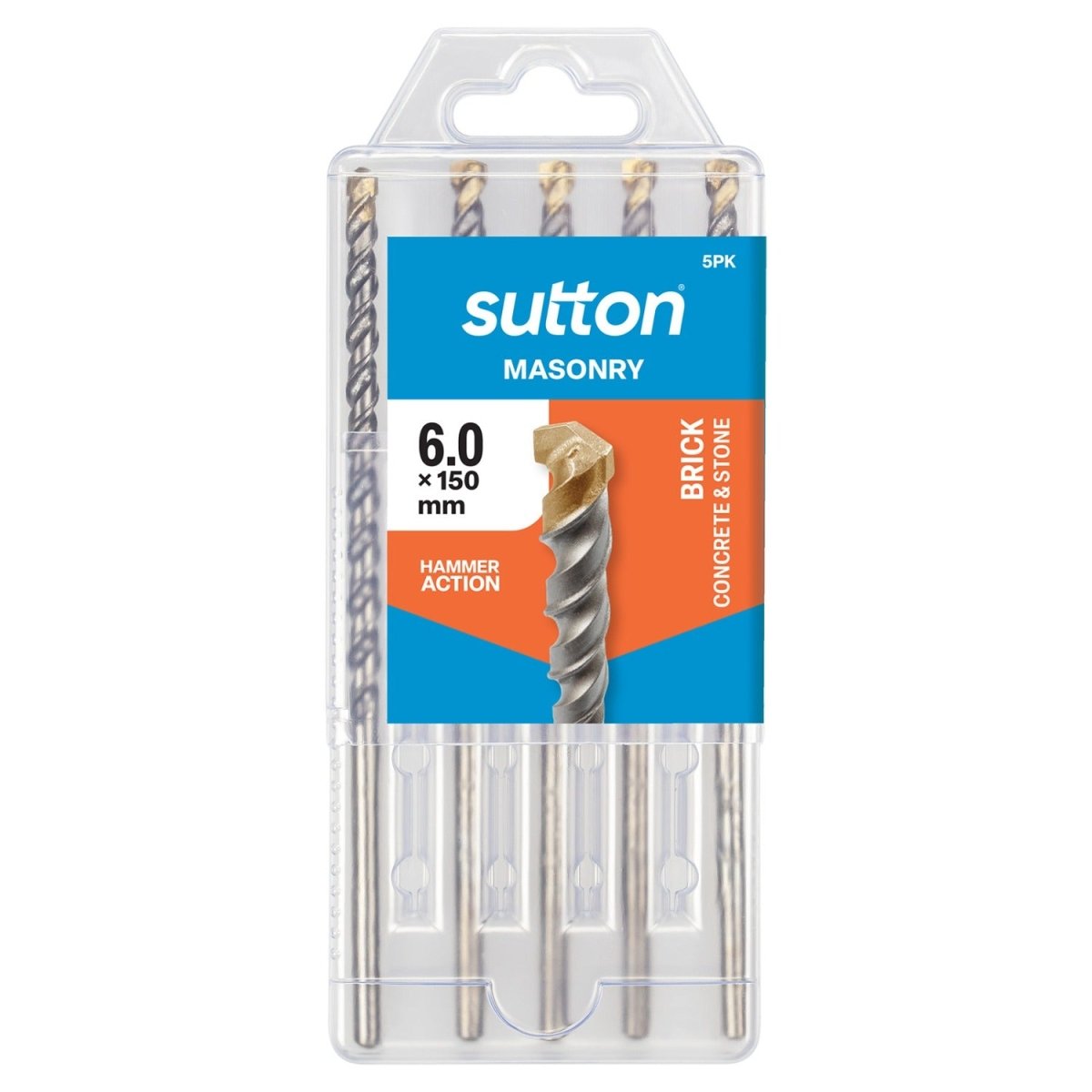

| 6 | 150 | 5 | D651 0600 | |
| 6.5 | 150 | Green | 5 | D651 0650 |

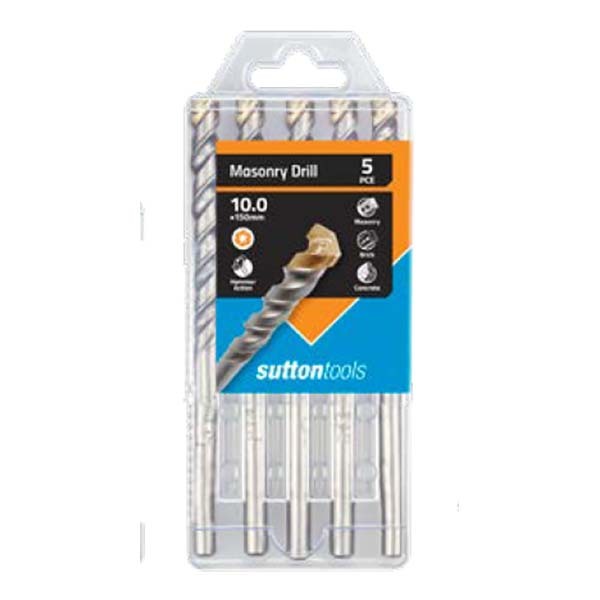

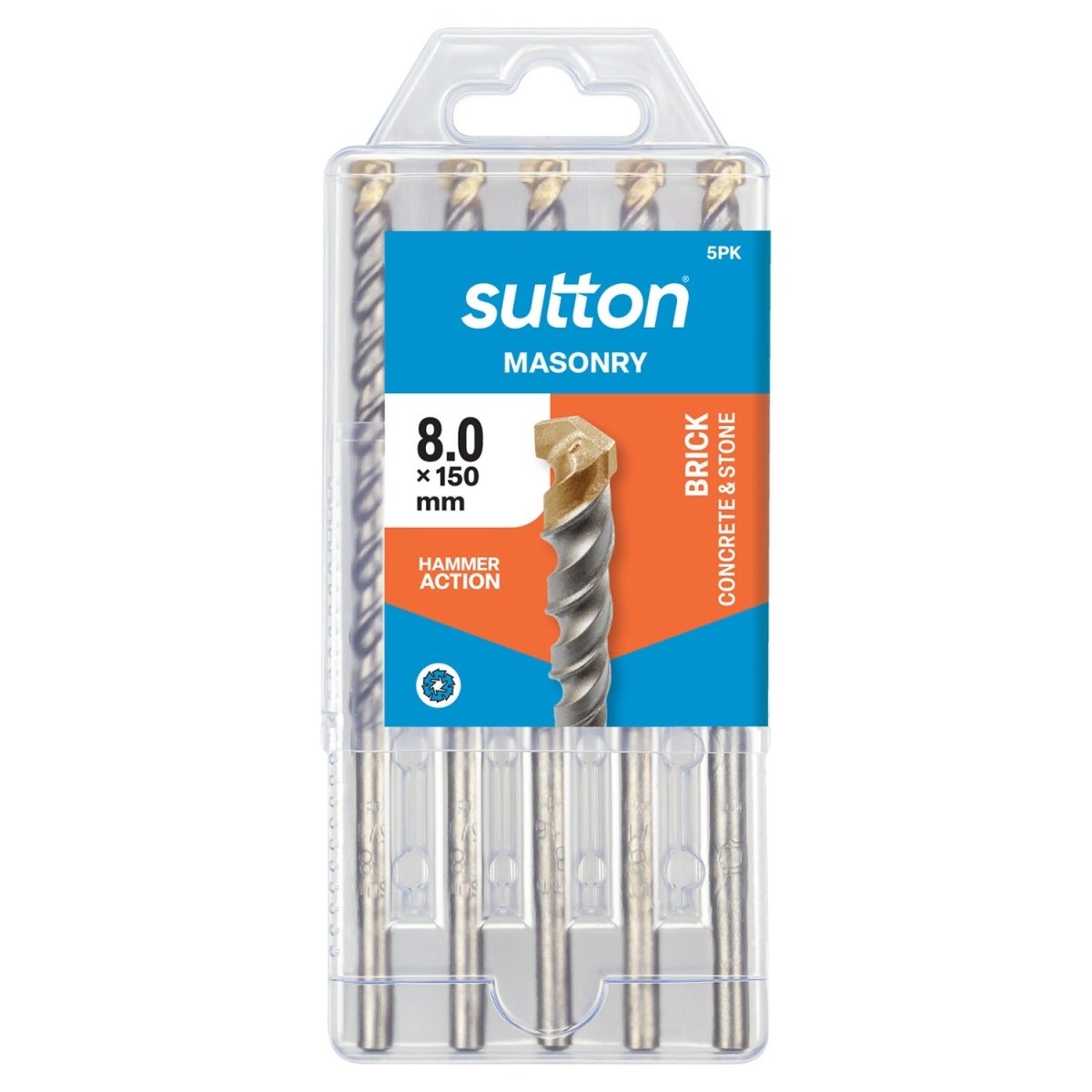

| 8 | 150 | Blue | 5 | D651 0800 |

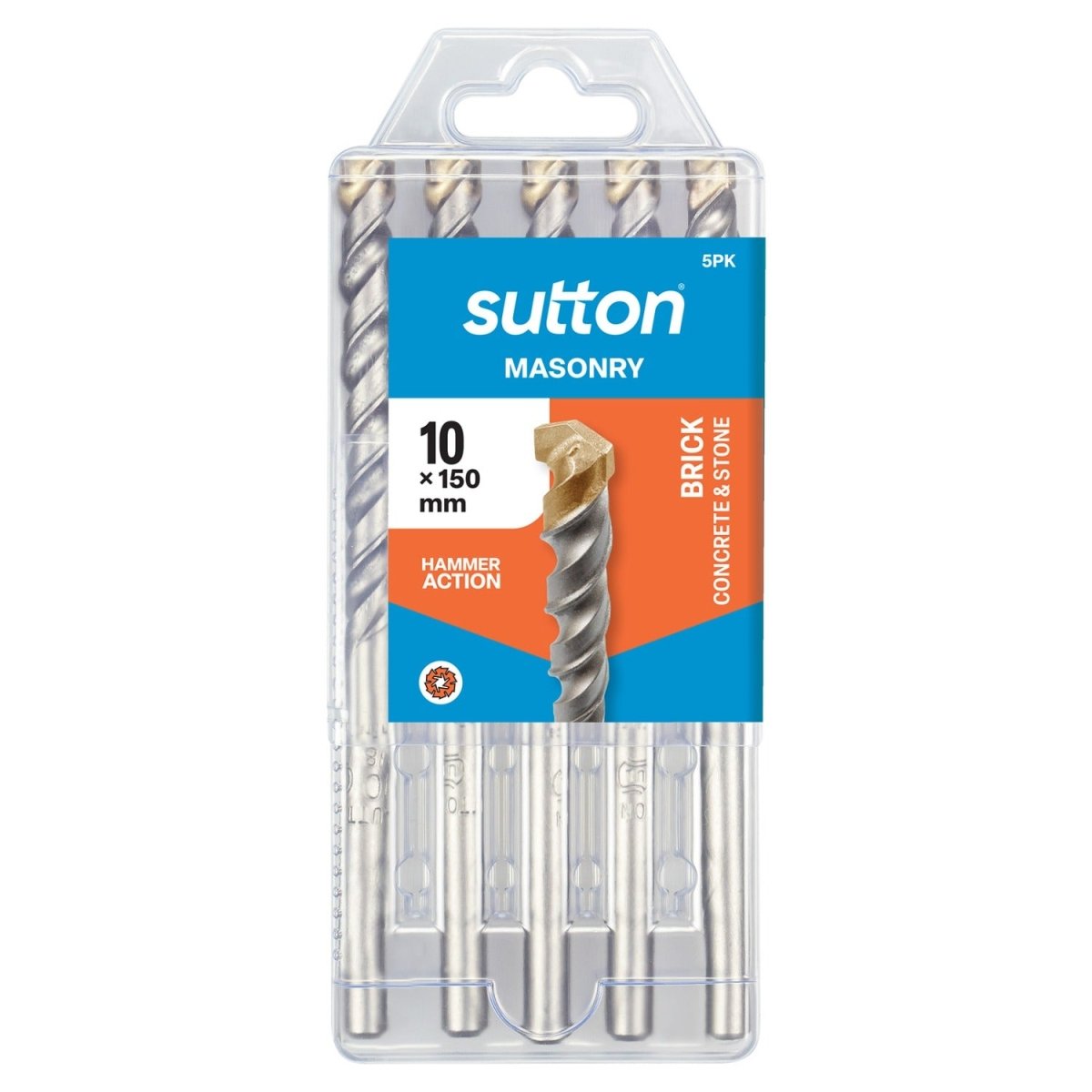

| 10 | 150 | Orange | 5 | D651 1000 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D651 |
| Range name | Single Brick bulk pack |
| Type | Masonry drill bit |
| Pack quantity | 5 pieces of one size |
| Tip | Tungsten carbide (TCT), brazed |
| Flute | Double spiral |
| Shank | Parallel |
| Overall length | 150 mm |
| Sizes in this range | 5 sizes, 5-10 mm |
Related drilling products
Single-piece version: D601 Single Brick. Compare D650 Standard Fix bulk pack. Browse all Masonry Drill Bits. Need help choosing? Our guide to choosing the right drill bit and drill bit selection guide cover drill types and materials.
