Sutton 5mm D650 Masonry Drill Bit - Standard Fixing - Pack of 5
Available

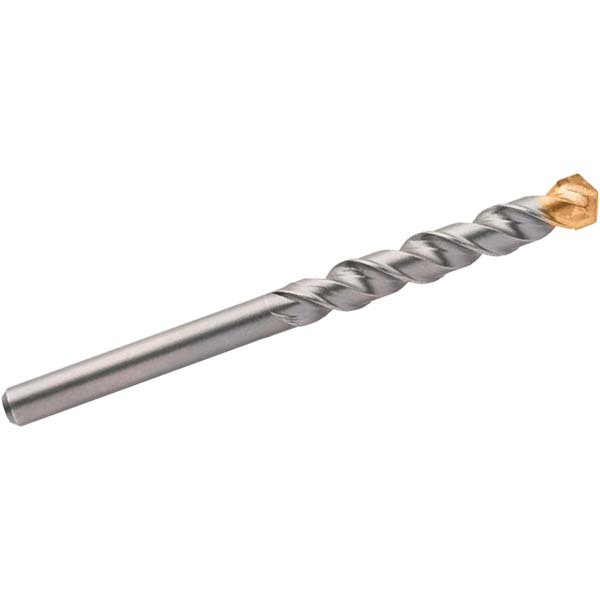

The Sutton D650 is the Standard Fixing masonry drill bit with a tungsten carbide tip (TCT) in a bulk pack, supplied in packs of 5 pieces of one size in 5 sizes from 5 to 10 mm, with overall lengths of 85 to 120 mm. Tradesman quality, it is ideal for use in natural and artificial stone, masonry, brickwork and concrete.
It has a two-cutting-edge carbide percussion tip with a semi-positive profile for aggressive drilling in hard materials. A unique brazing process ensures a perfect bond between the tip and the body. The rolled double spiral flute provides greater dust extraction, extending drill life, and the parallel shank is for rotary hammer and percussion drilling.
Where this product is used
- Natural and artificial stone, masonry, brickwork and concrete.
Design features
- TCT point: two-cutting-edge carbide percussion tip with a semi-positive profile, for aggressive drilling in hard materials.
- Brazed tip: a unique brazing process ensures a perfect bond between tip and body.
- Double spiral flute: the rolled double flute provides greater dust extraction, extending drill life.
- Parallel shank: for rotary hammer and percussion drilling.
Sizes and lengths
Diameters and item numbers are shown below. Lengths are in millimetres.
| Diameter (mm) | Overall length (mm) | Plug colour | Pieces | Sutton item no. |
|---|---|---|---|---|
| 5 | 85 | White | 5 | D650 0500 |
| 6 | 100 | 5 | D650 0600 | |
| 6.5 | 100 | Green | 5 | D650 0650 |
| 8 | 120 | Blue | 5 | D650 0800 |
| 10 | 120 | Orange | 5 | D650 1000 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D650 |
| Range name | Standard Fixing bulk pack |
| Type | Masonry drill bit |
| Pack quantity | 5 pieces of one size |
| Tip | Tungsten carbide (TCT), brazed |
| Flute | Double spiral |
| Shank | Parallel |
| Overall length | 85 to 120 mm |
| Sizes in this range | 5 sizes, 5-10 mm |
Related drilling products
Single-piece version: D600 Standard Fixing. Compare D651 Single Brick bulk pack. Browse all Masonry Drill Bits. Need help choosing? Our guide to choosing the right drill bit and drill bit selection guide cover drill types and materials.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-

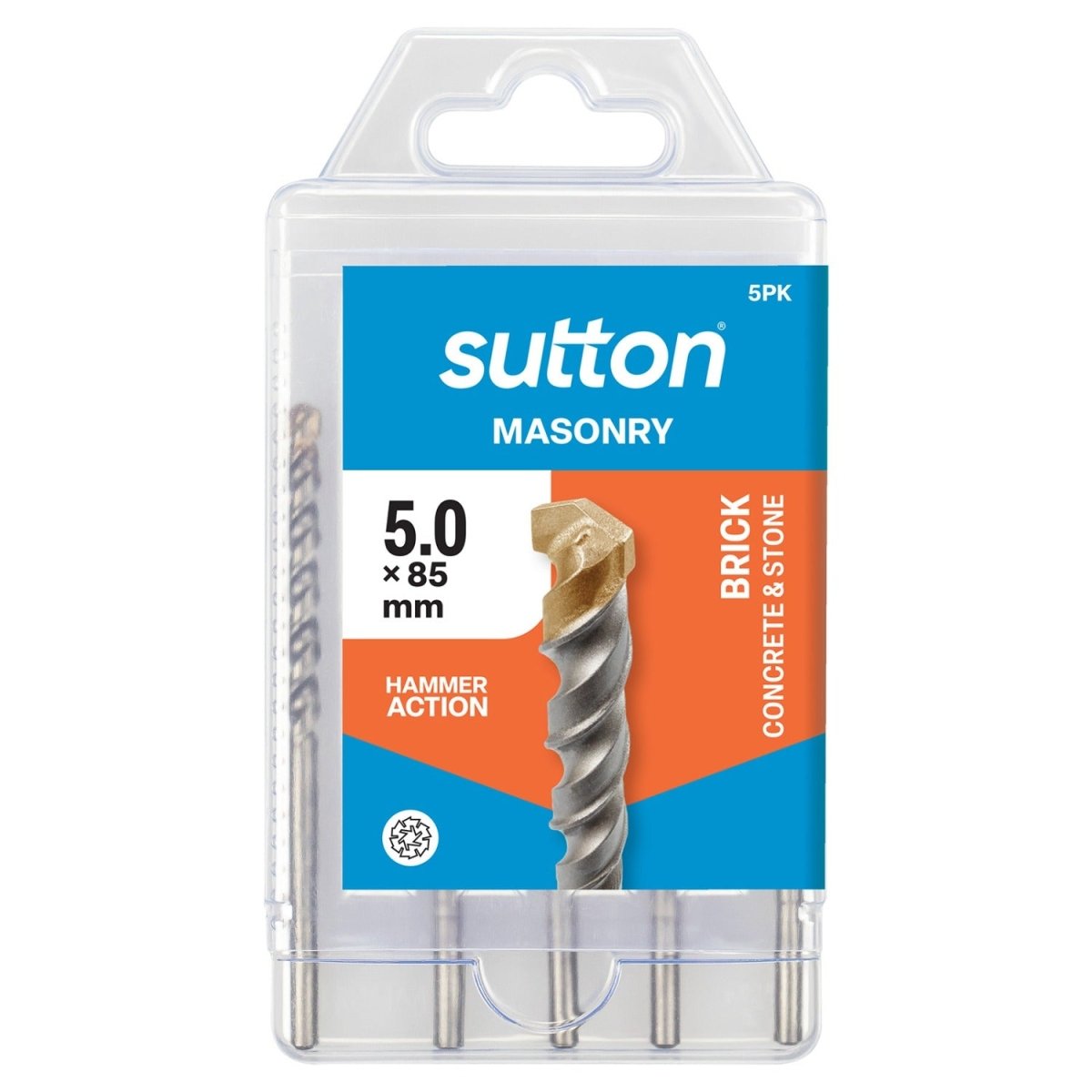

5mm drill bit
Model Number: D6500500
-
6mm drill bit
Model Number: D6500600
-

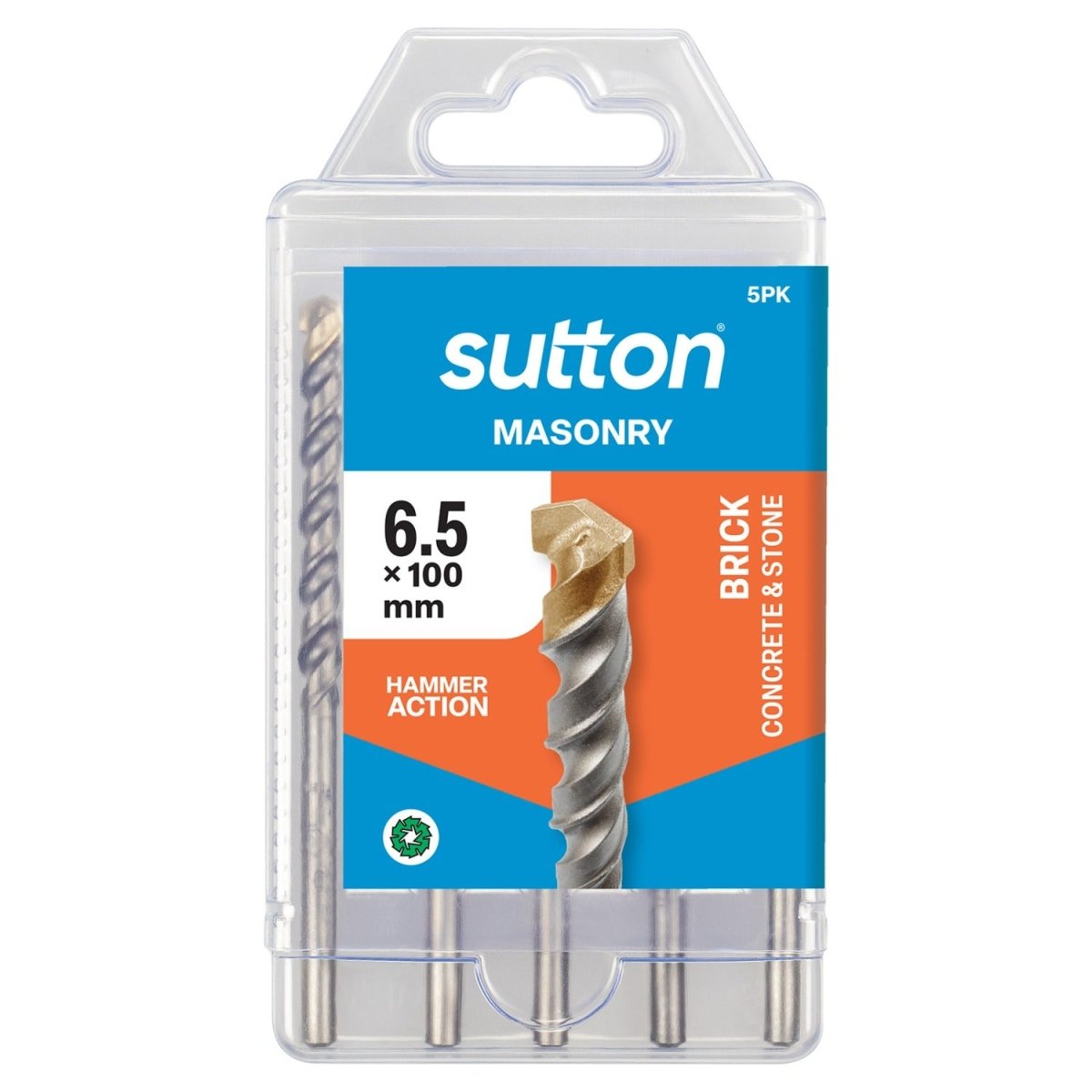

6.5mm drill bit
Model Number: D6500650
-

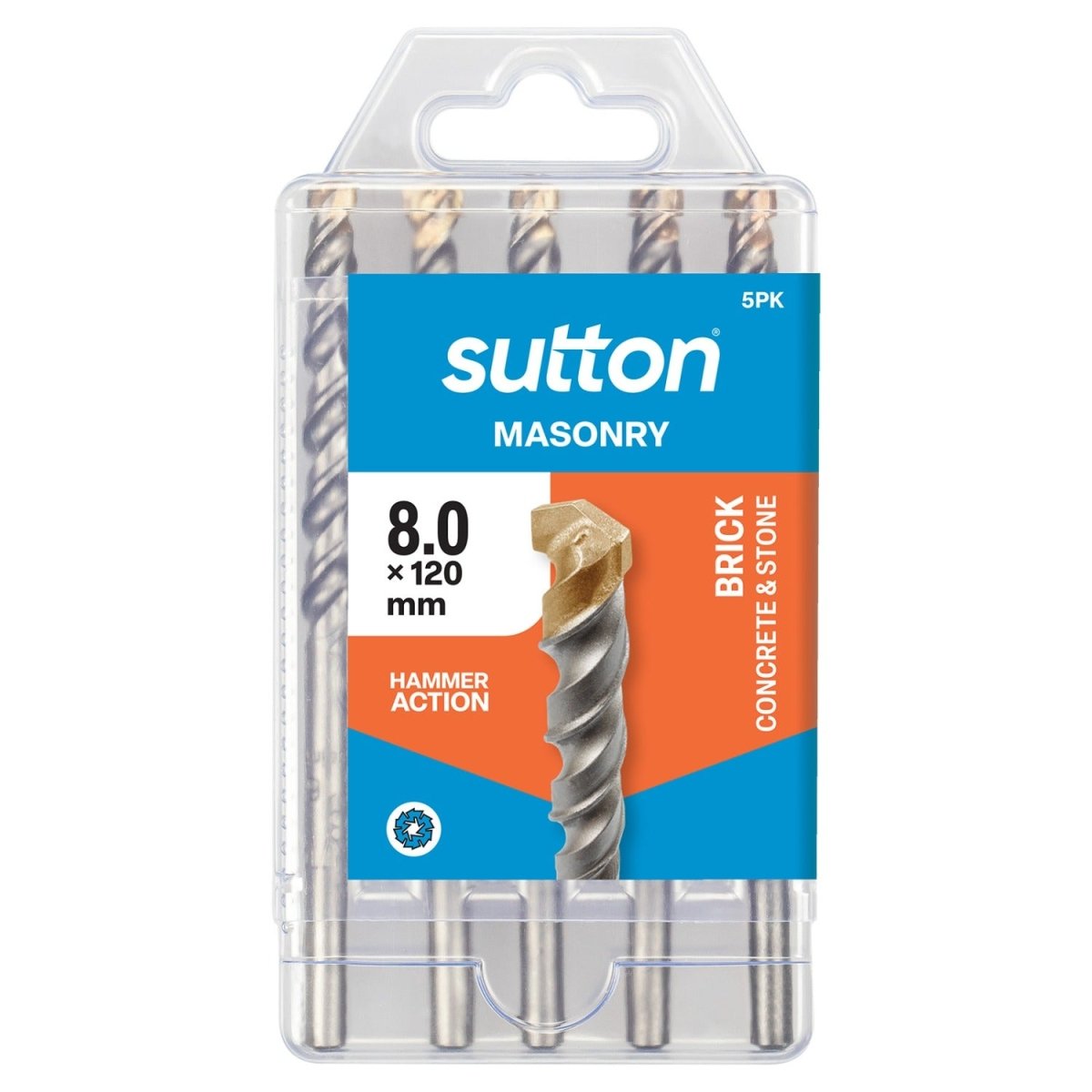

8mm drill bit
Model Number: D6500800
-

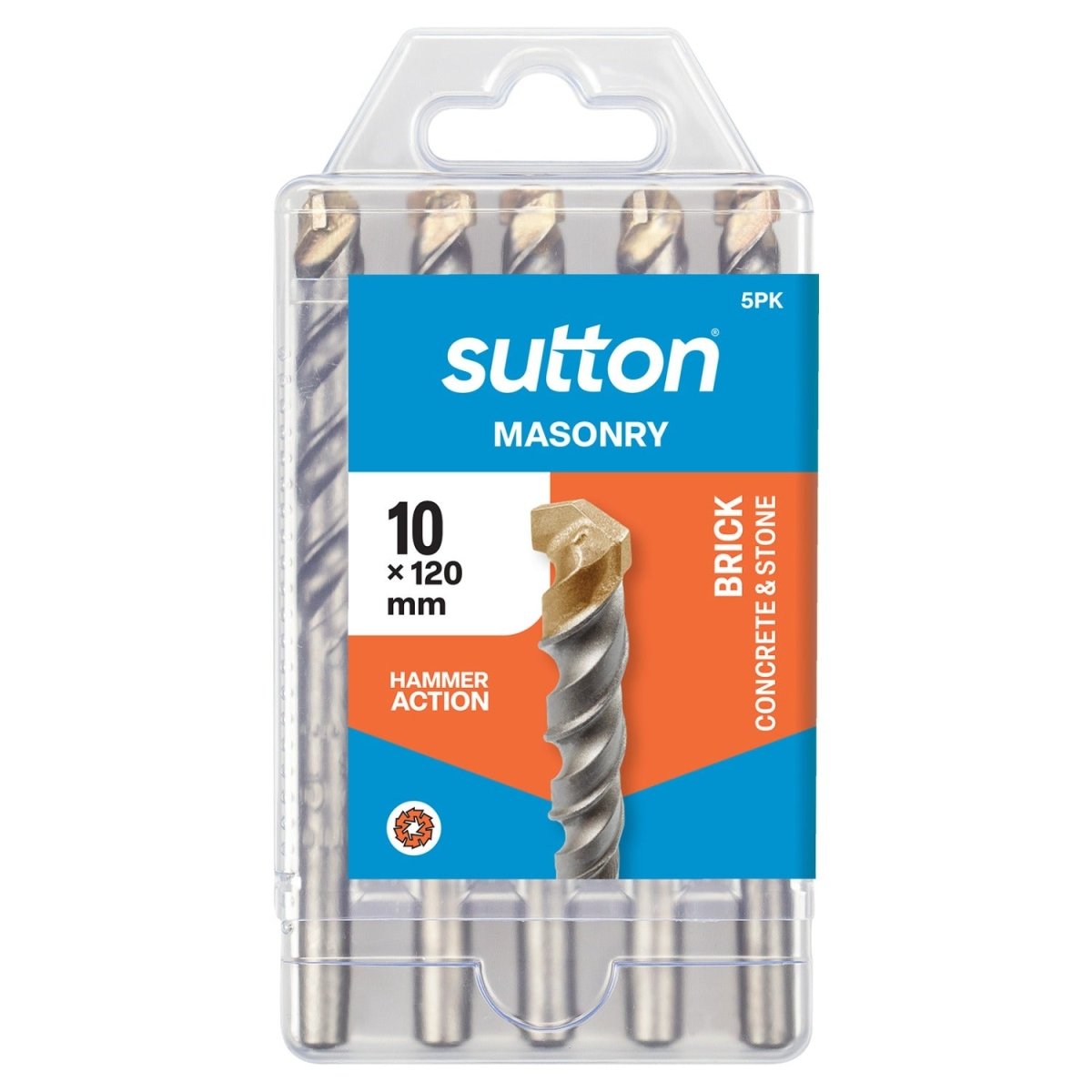

10mm drill bit
Model Number: D6501000
