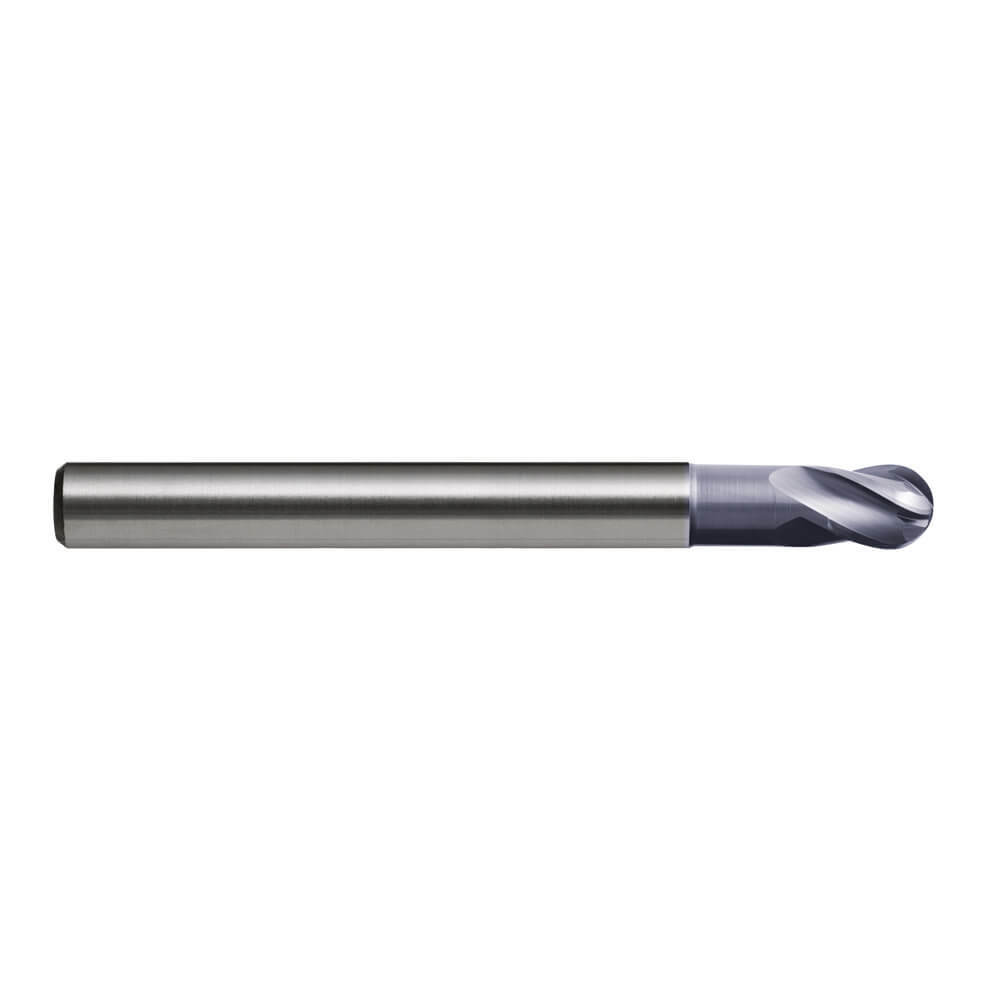

Sutton E442 Metric 4 Flute Ball Nose Endmill - Carbide VHM Ultra - AlCrN - Long Reach - HA: 62 / 2

SKU: A0009583 | Model: E4420200

This is the 62mm overall length, cutting tip 2 option of the Sutton E442 Metric 4 Flute Ball Nose Endmill - Carbide VHM Ultra - AlCrN - Long Reach - HA. Key details for this option: neck diameter 1.9mm, overall length 62mm.

Description

The Sutton E442 is a 4 flute ball nose endmill made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the long reach series. This listing covers 12 metric sizes from 2 mm to 20 mm.

The cutting edge has a 30° helix and the designation is UNI. The shank is a plain cylindrical shank (DIN 6535 form HA), with h5 shank tolerance and e8 cutting diameter tolerance. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
