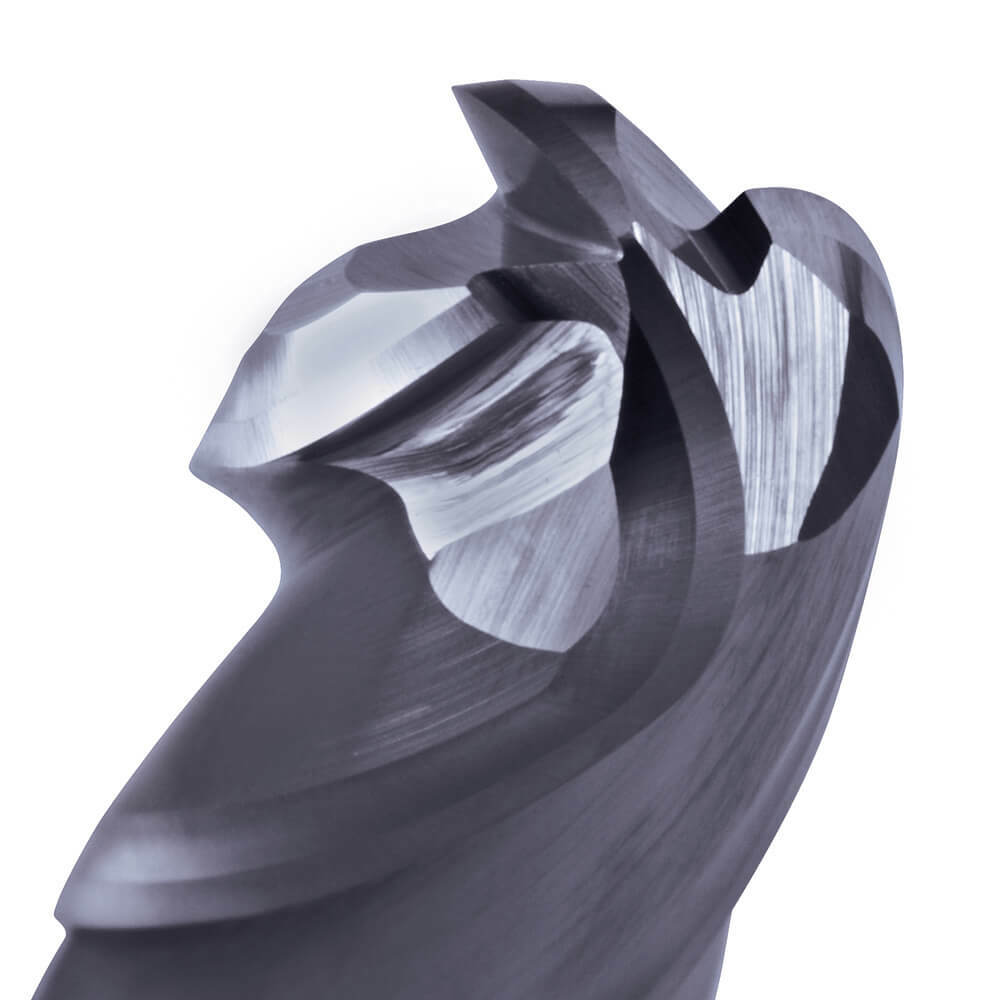

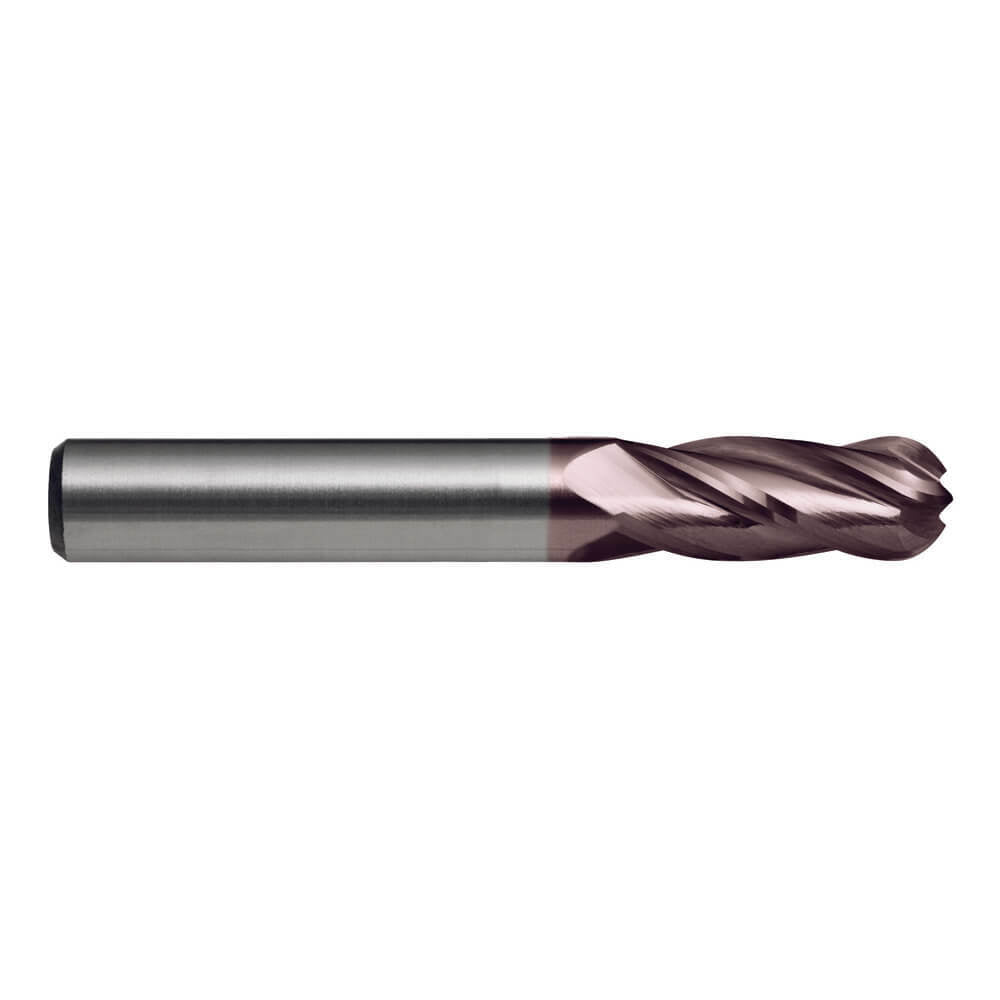

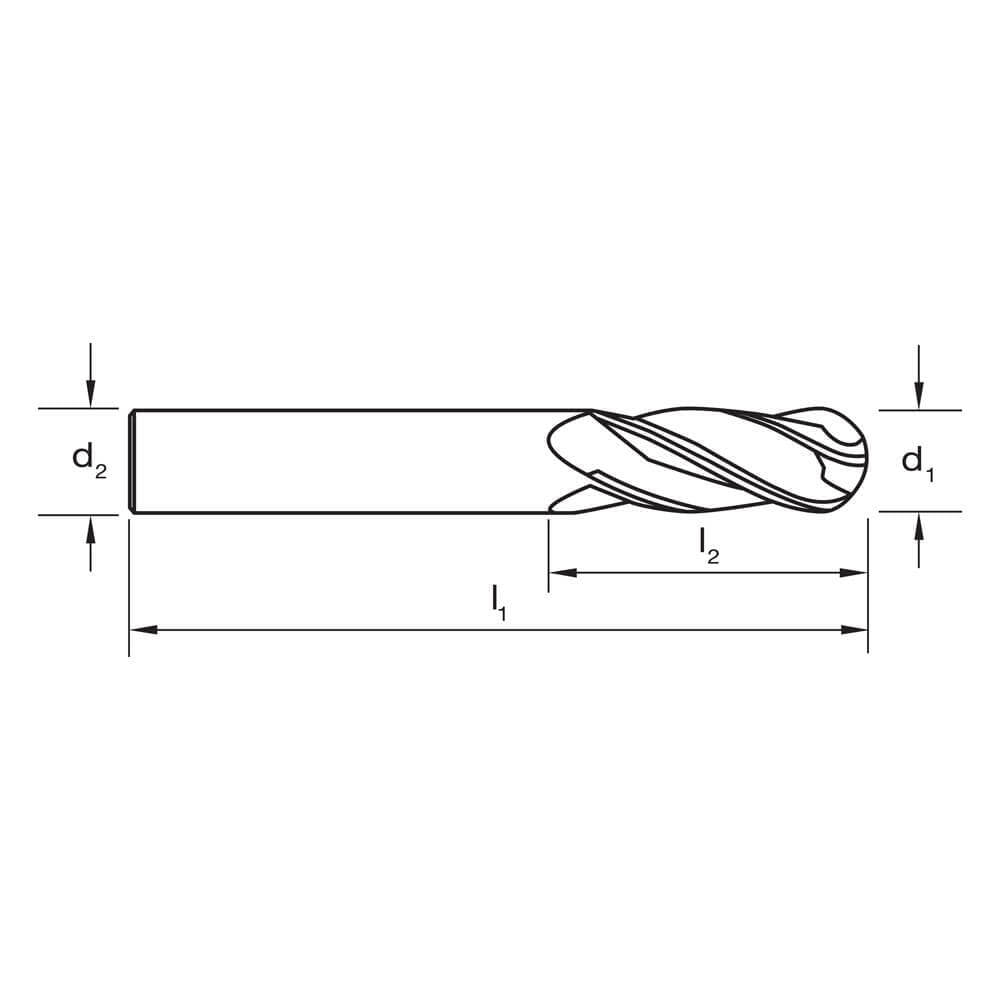

Sutton E319 Imperial 4 Flute Ball Nose Endmill Carbide AlCrN Regular1

Sutton E319 Imperial 4 Flute Ball Nose Endmill Carbide AlCrN Regular2

Sutton E319 Imperial 4 Flute Ball Nose Endmill Carbide AlCrN Regular3

Sutton E3190159 1/16 x 1/8 4Flute Ball Nose Endmill Carbide AlCrN Regular

Sutton E3190318 1/8" x 1/8" 4Flute Ball Nose Endmill Carbide AlCrN Regular

Sutton E3190476 3/16 x 3/16 4Flute Ball Nose Endmill Carbide AlCrN Regular

Sutton E3190635 1/4" x 1/4" 4Flute Ball Nose Endmill Carbide AlCrN Regular

Sutton E3190794 5/16 x 5/16 4Flute Ball Nose Endmill Carbide AlCrN Regular

Sutton E3190953 3/8" x 3/8" 4Flute Ball Nose Endmill Carbide AlCrN Regular

Sutton E3191270 1/2" x 1/2" 4Flute Ball Nose Endmill Carbide AlCrN Regular

Description +

Descriptions

For profile & contour milling applications
Increased feed rates than 2 flute variety

Specifications +

Specifications

Designation: N
Material: VHM
Finish: TiAIN
Shank Form: HA
Helix Angle: R30
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Ballnose
Type: N (finishing)
Rake Angle: 12
Standard: Sutton

Application +

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - High alloy, cast & tool- 200 HB
Optimal for Stainless Steel - Austenitic- 180 HB

Features & Benefits +

Features

Ballnose Endmill 4 Flute
Suitable for materials up to 1600 N/mm2
TiAlN for longer tool life

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton E319 Imperial 4 Flute Ball Nose Endmill Carbide AlCrN Regular

SKU: A0009213

$44.44

Inc. GST

Buy It Now

Available

The Sutton E319 is a 4 Flute Ball Nose Endmill, ideal for profile and contour milling. It provides higher feed rates than its 2 flute counterparts and handles materials up to 1600 N/mm2. A TiAlN finish ensures longer tool life.
