Sutton E474 20mm Corner Radius Endmill 5 Flute R1.5 - Carbide VHM Ultra - Xceed
Available

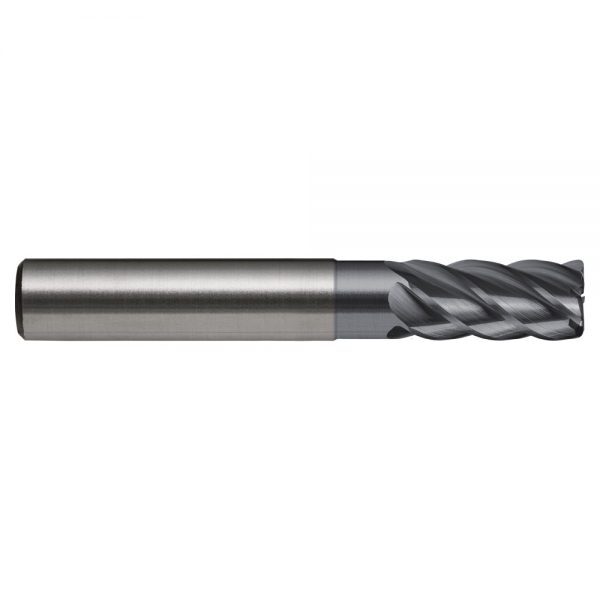

The Sutton E474 is a 5 flute corner radius endmill made from VHM-ULTRA grade solid carbide, with an Xceed coating. This listing covers 18 metric sizes from 6 mm to 20 mm. Corner radii in this listing: 0.5, 1.0, 1.5, 2.5, 4.0 mm.
The cutting edge has a 40/42° variable helix and the designation is Ni. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Stainless steels and super alloys.
- Slotting, side cutting and finishing.
Design features
- VHM-ULTRA grade solid carbide construction.
- Xceed coating for outstanding oxidation resistance and hot hardness.
- 5 flutes, 40/42° variable helix.
- Optimised geometry with variable helix design.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) e8, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|---|---|---|
| E474 0605 | 6 | 57 | 13 | 21 | 6 | 5.7 | 5 | 0.5 |
| E474 0610 | 6 | 57 | 13 | 21 | 6 | 5.7 | 5 | 1.0 |
| E474 0805 | 8 | 63 | 19 | 27 | 8 | 7.6 | 5 | 0.5 |
| E474 0810 | 8 | 63 | 19 | 27 | 8 | 7.6 | 5 | 1.0 |
| E474 1005 | 10 | 72 | 22 | 32 | 10 | 9.5 | 5 | 0.5 |
| E474 1010 | 10 | 72 | 22 | 32 | 10 | 9.5 | 5 | 1.0 |
| E474 1210 | 12 | 83 | 26 | 38 | 12 | 11.5 | 5 | 1.0 |
| E474 1215 | 12 | 83 | 26 | 38 | 12 | 11.5 | 5 | 1.5 |
| E474 1225 | 12 | 83 | 26 | 38 | 12 | 11.5 | 5 | 2.5 |
| E474 1240 | 12 | 83 | 26 | 38 | 12 | 11.5 | 5 | 4.0 |
| E474 1610 | 16 | 92 | 32 | 44 | 16 | 15.5 | 5 | 1.0 |
| E474 1615 | 16 | 92 | 32 | 44 | 16 | 15.5 | 5 | 1.5 |
| E474 1625 | 16 | 92 | 32 | 44 | 16 | 15.5 | 5 | 2.5 |
| E474 1640 | 16 | 92 | 32 | 44 | 16 | 15.5 | 5 | 4.0 |
| E474 2015 | 20 | 104 | 38 | 54 | 20 | 19.5 | 5 | 1.5 |
| E474 2010 | 20 | 104 | 38 | 54 | 20 | 19.5 | 5 | 1.0 |
| E474 2025 | 20 | 104 | 38 | 54 | 20 | 19.5 | 5 | 2.5 |
| E474 2040 | 20 | 104 | 38 | 54 | 20 | 19.5 | 5 | 4.0 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E474 |
| Type | Corner Radius Endmill, 5 flute |
| Material | VHM-ULTRA solid carbide |
| Finish | Xceed |
| Helix / geometry | R40/42 |
| Designation | Ni |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 18 sizes, 6 to 20 mm |
