Sutton E475 6mm Corner Radius Endmill 5 Flute R0.5 - Carbide VHM Ultra - Xceed
Available

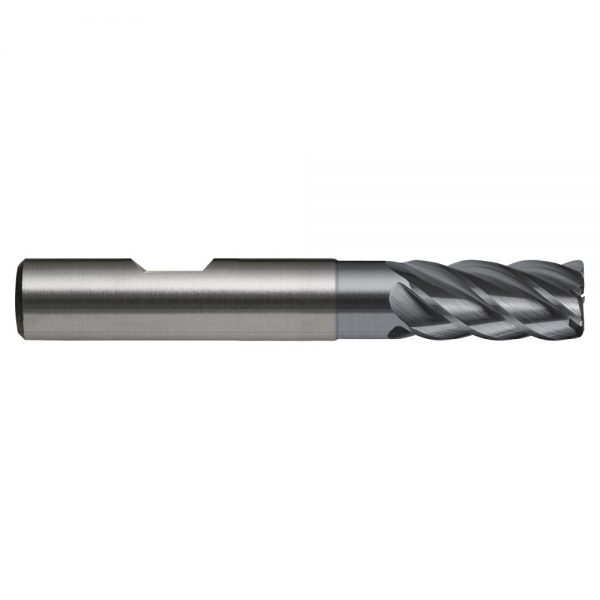

The Sutton E475 is a 5 flute corner radius endmill made from VHM-ULTRA grade solid carbide, with an Xceed coating. This listing covers 18 metric sizes from 6 mm to 20 mm. Corner radii in this listing: 0.5, 1.0, 1.5, 2.5, 4.0 mm.
The cutting edge has a 40/42° variable helix and the designation is Ni. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h6 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Stainless steels and super alloys.
- Slotting, side cutting and finishing.
Design features
- VHM-ULTRA grade solid carbide construction.
- Xceed coating for outstanding oxidation resistance and hot hardness.
- 5 flutes, 40/42° variable helix.
- Optimised geometry with variable helix design.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) e8, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|---|---|---|
| E475 0605 | 6 | 57 | 13 | 21 | 6 | 5.7 | 5 | 0.5 |
| E475 0610 | 6 | 57 | 13 | 21 | 6 | 5.7 | 5 | 1.0 |
| E475 0805 | 8 | 63 | 19 | 27 | 8 | 7.6 | 5 | 0.5 |
| E475 0810 | 8 | 63 | 19 | 27 | 8 | 7.6 | 5 | 1.0 |
| E475 1005 | 10 | 72 | 22 | 32 | 10 | 9.5 | 5 | 0.5 |
| E475 1010 | 10 | 72 | 22 | 32 | 10 | 9.5 | 5 | 1.0 |
| E475 1210 | 12 | 83 | 26 | 38 | 12 | 11.5 | 5 | 1.0 |
| E475 1215 | 12 | 83 | 26 | 38 | 12 | 11.5 | 5 | 1.5 |
| E475 1225 | 12 | 83 | 26 | 38 | 12 | 11.5 | 5 | 2.5 |
| E475 1240 | 12 | 83 | 26 | 38 | 12 | 11.5 | 5 | 4.0 |
| E475 1610 | 16 | 92 | 32 | 44 | 16 | 15.5 | 5 | 1.0 |
| E475 1615 | 16 | 92 | 32 | 44 | 16 | 15.5 | 5 | 1.5 |
| E475 1625 | 16 | 92 | 32 | 44 | 16 | 15.5 | 5 | 2.5 |
| E475 1640 | 16 | 92 | 32 | 44 | 16 | 15.5 | 5 | 4.0 |
| E475 2010 | 20 | 104 | 38 | 54 | 20 | 19.5 | 5 | 1.0 |
| E475 2015 | 20 | 104 | 38 | 54 | 20 | 19.5 | 5 | 1.5 |
| E475 2025 | 20 | 104 | 38 | 54 | 20 | 19.5 | 5 | 2.5 |
| E475 2040 | 20 | 104 | 38 | 54 | 20 | 19.5 | 5 | 4.0 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E475 |
| Type | Corner Radius Endmill, 5 flute |
| Material | VHM-ULTRA solid carbide |
| Finish | Xceed |
| Helix / geometry | R40/42 |
| Designation | Ni |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 18 sizes, 6 to 20 mm |
Related products
Related Sutton carbide endmills: E474 metric corner radius endmill, Xceed, plain shank, E478 metric corner radius endmill (regular), plain shank, E471 metric corner radius endmill (regular), AlNova, Weldon flat shank, E470 metric corner radius endmill (regular), AlNova, plain shank, E467 metric corner radius endmill (regular), AlNova, Weldon flat shank.
