Sutton E562 6mm Endmill 4 Flute - Carbide VHM Ultra - AlCrN - Regular
Available

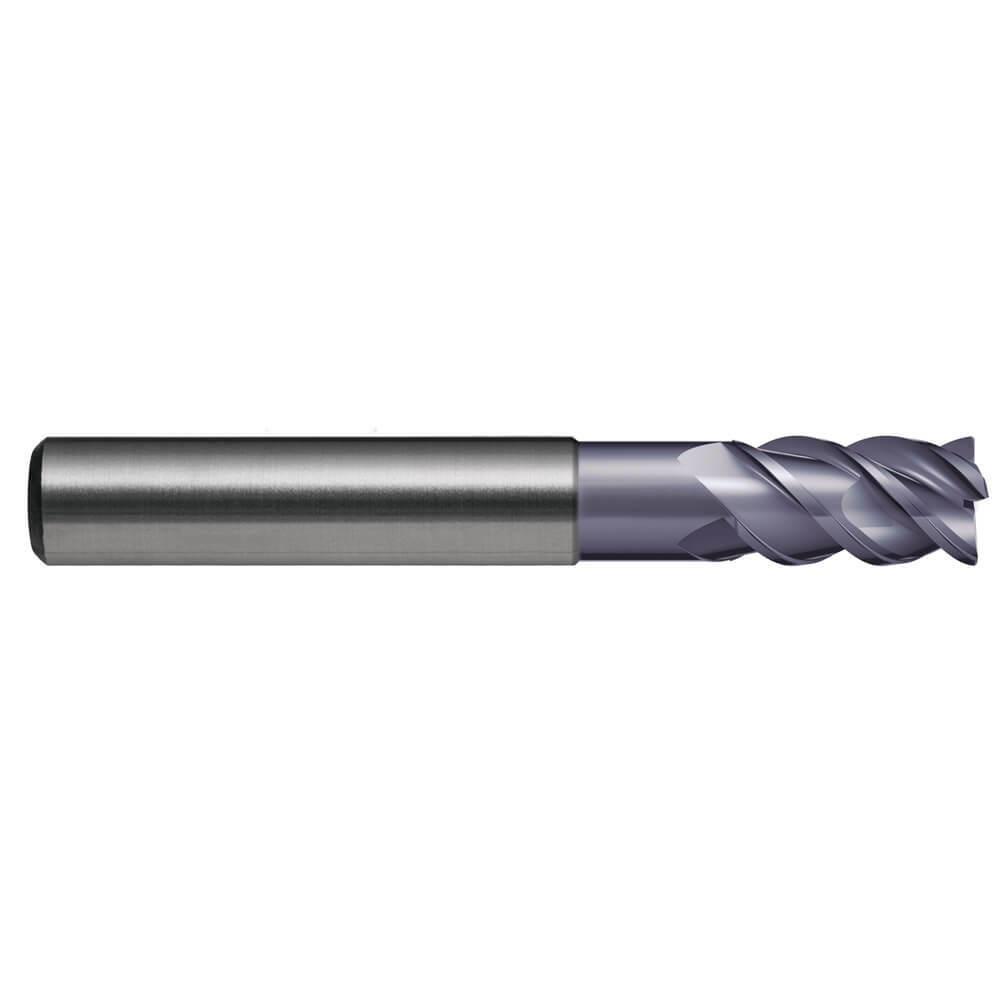

The Sutton E562 is a 4 flute endmill made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the regular length series. This listing covers 7 metric sizes from 6 mm to 20 mm.
The cutting edge has a 50° helix and the designation is NH. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and h10 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Pocket milling in MQL and HSC applications.
- Materials up to 48 HRC.
Design features

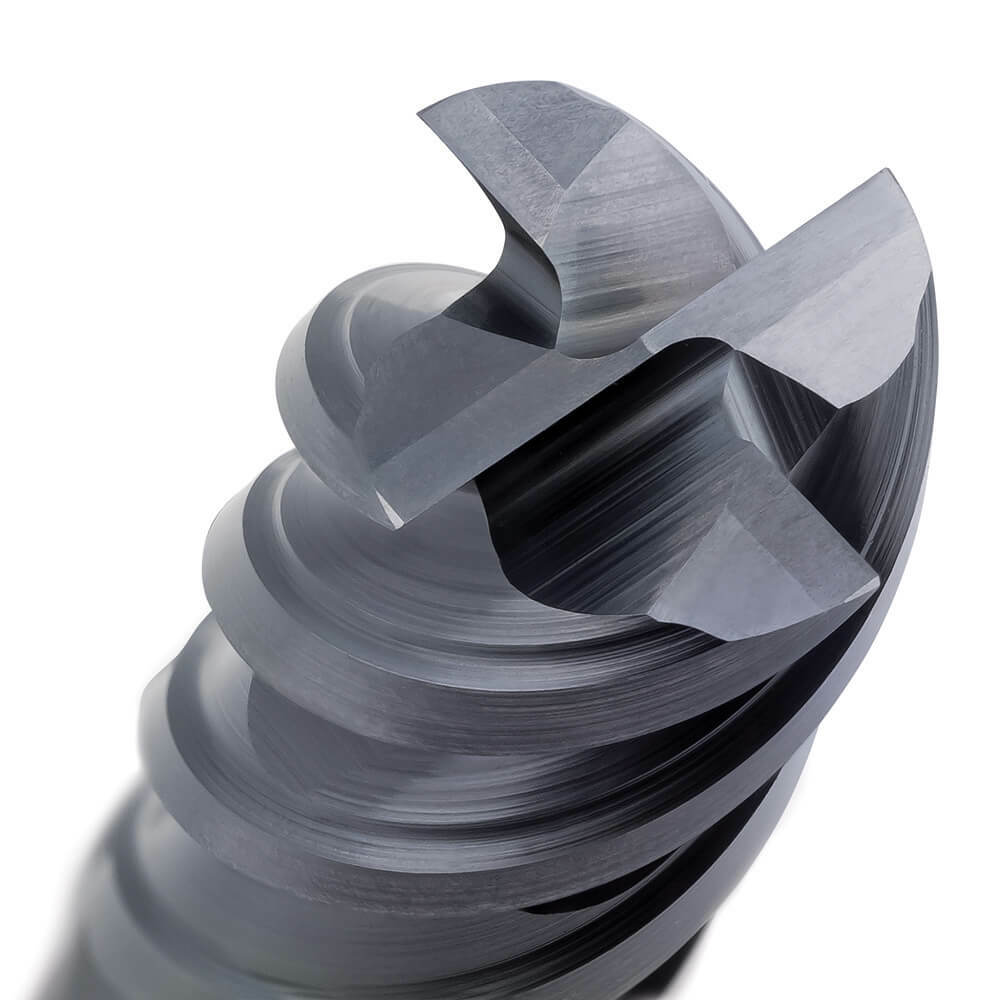

- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 4 flutes, 50° helix.
- Dual stepped core for optimal stability.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) h10, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

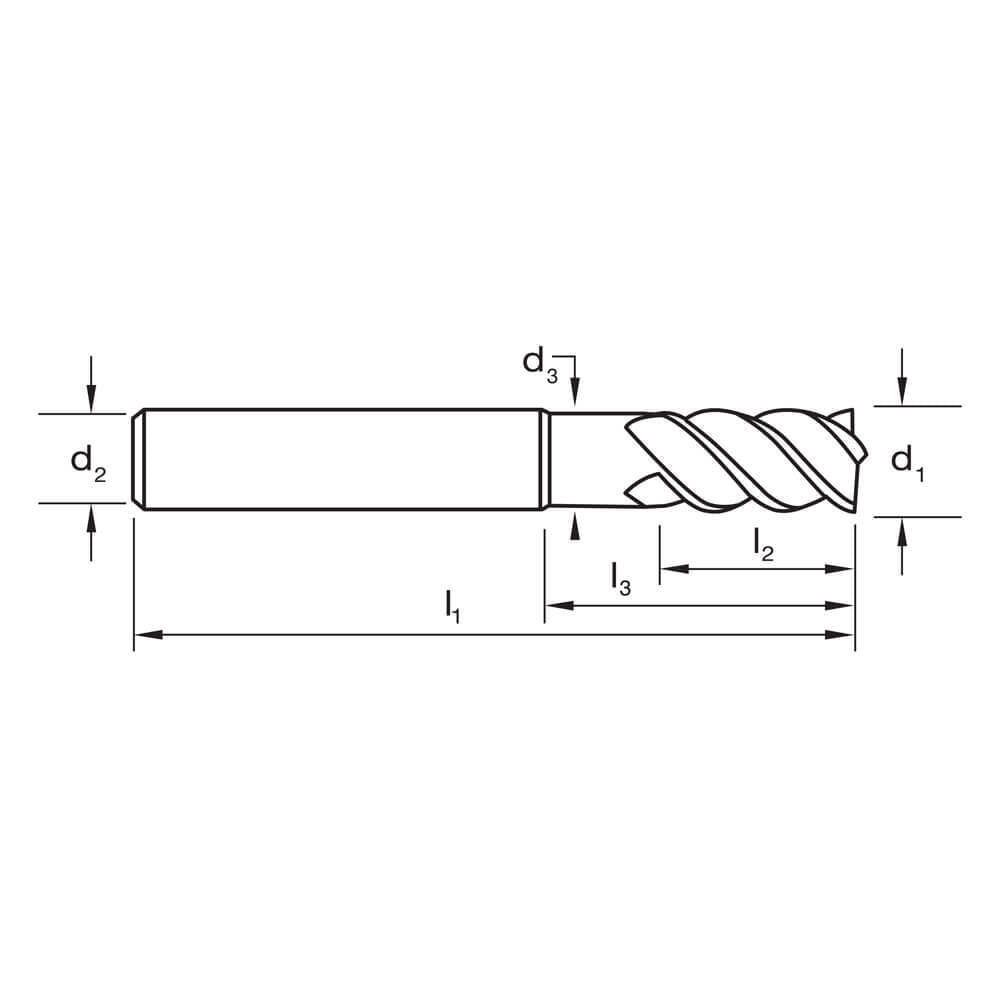

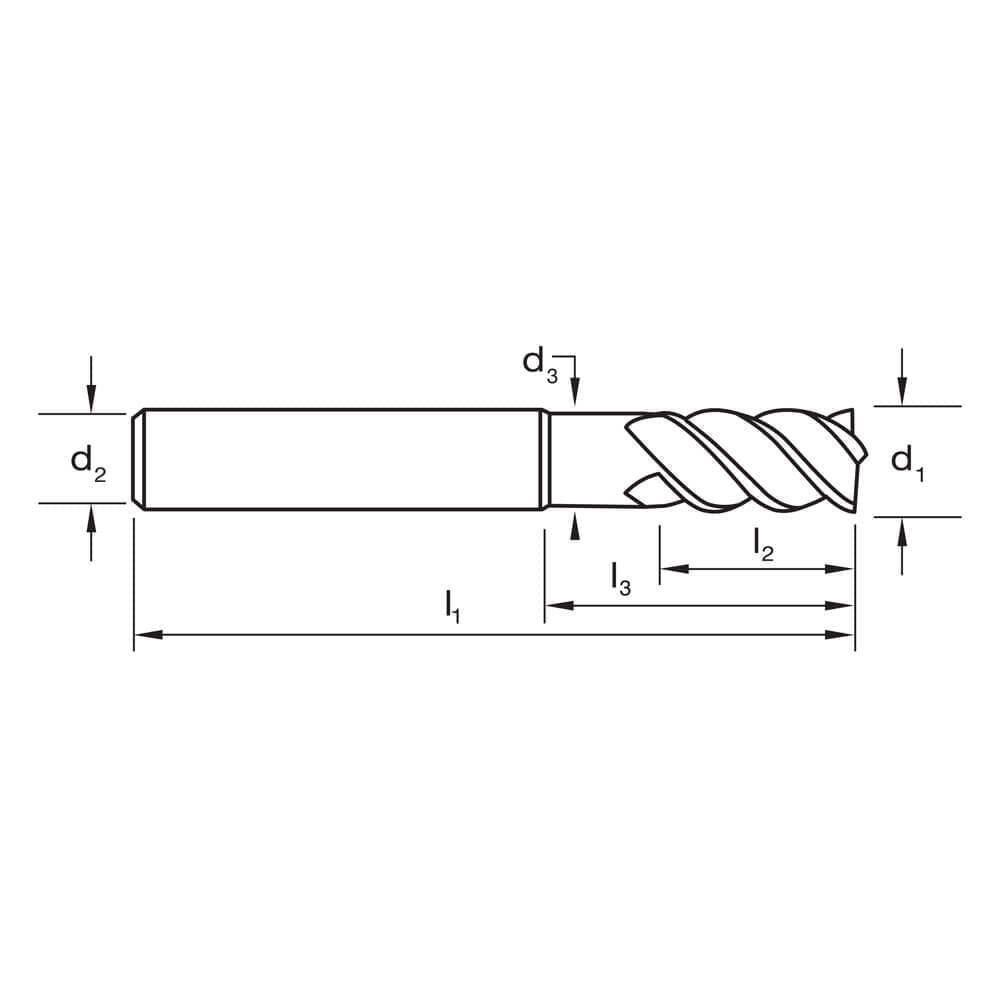

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes |
|---|---|---|---|---|---|---|---|
| E562 0600 | 6 | 57 | 13 | 21 | 6 | 5.5 | 4 |
| E562 0800 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 |
| E562 1000 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 |
| E562 1200 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 |
| E562 1400 | 14 | 83 | 26 | 38 | 14 | 13 | 4 |
| E562 1600 | 16 | 92 | 32 | 44 | 16 | 15 | 4 |
| E562 2000 | 20 | 104 | 38 | 54 | 20 | 19 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E562 |
| Type | Endmill, 4 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R50 |
| Designation | NH |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 7 sizes, 6 to 20 mm |
Related products
Related Sutton carbide endmills: E563 metric endmill (regular), AlCrN, Weldon flat shank, E566 20 mm endmill (regular), Aldura, plain shank, E567 20 mm endmill (regular), Aldura, Weldon flat shank, E544 20 mm endmill (regular), AlCrN, Weldon flat shank, E543 20 mm endmill (regular), AlCrN, plain shank.
