Sutton E563 6mm Endmill 4 Flute - Carbide VHM Ultra - AlCrN - Regular
Available

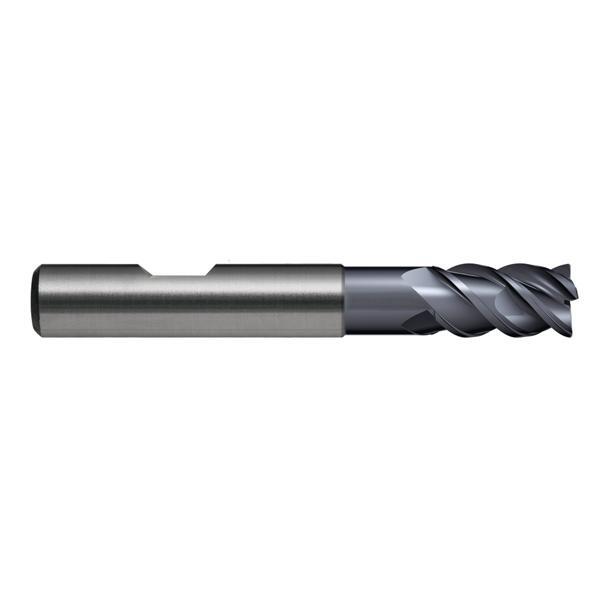

The Sutton E563 is a 4 flute endmill made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the regular length series. This listing covers 7 metric sizes from 6 mm to 20 mm.
The cutting edge has a 50° helix and the designation is NH. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h6 shank tolerance and h10 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Pocket milling in MQL and HSC applications.
- Materials up to 48 HRC.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 4 flutes, 50° helix.
- Dual stepped core for optimal stability.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) h10, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes |
|---|---|---|---|---|---|---|---|
| E563 0600 | 6 | 57 | 13 | 21 | 6 | 5.5 | 4 |
| E563 0800 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 |
| E563 1000 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 |
| E563 1200 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 |
| E563 1400 | 14 | 83 | 26 | 38 | 14 | 13 | 4 |
| E563 1600 | 16 | 92 | 32 | 44 | 16 | 15 | 4 |
| E563 2000 | 20 | 104 | 38 | 54 | 20 | 19 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E563 |
| Type | Endmill, 4 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R50 |
| Designation | NH |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 7 sizes, 6 to 20 mm |
