Sutton E604 1mm Endmill 4 Flute - Carbide VHM - TiAlN - Regular
Available

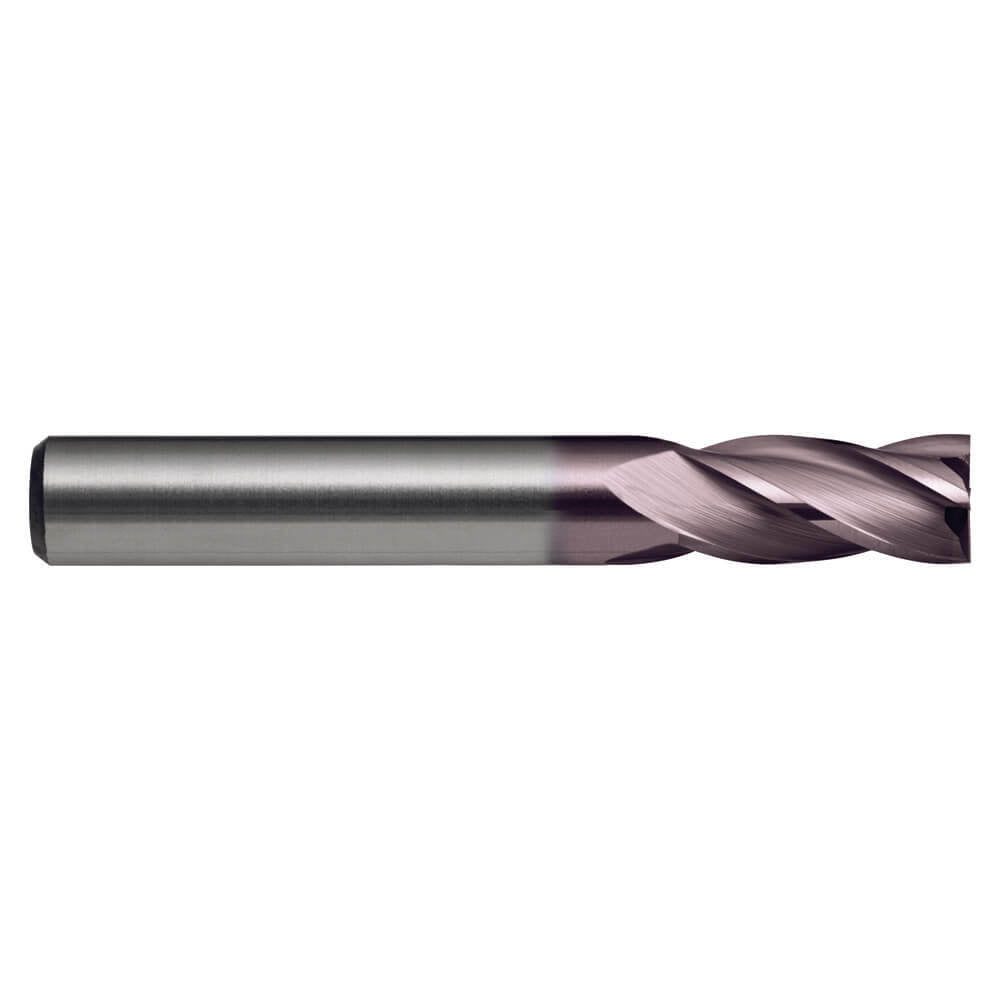

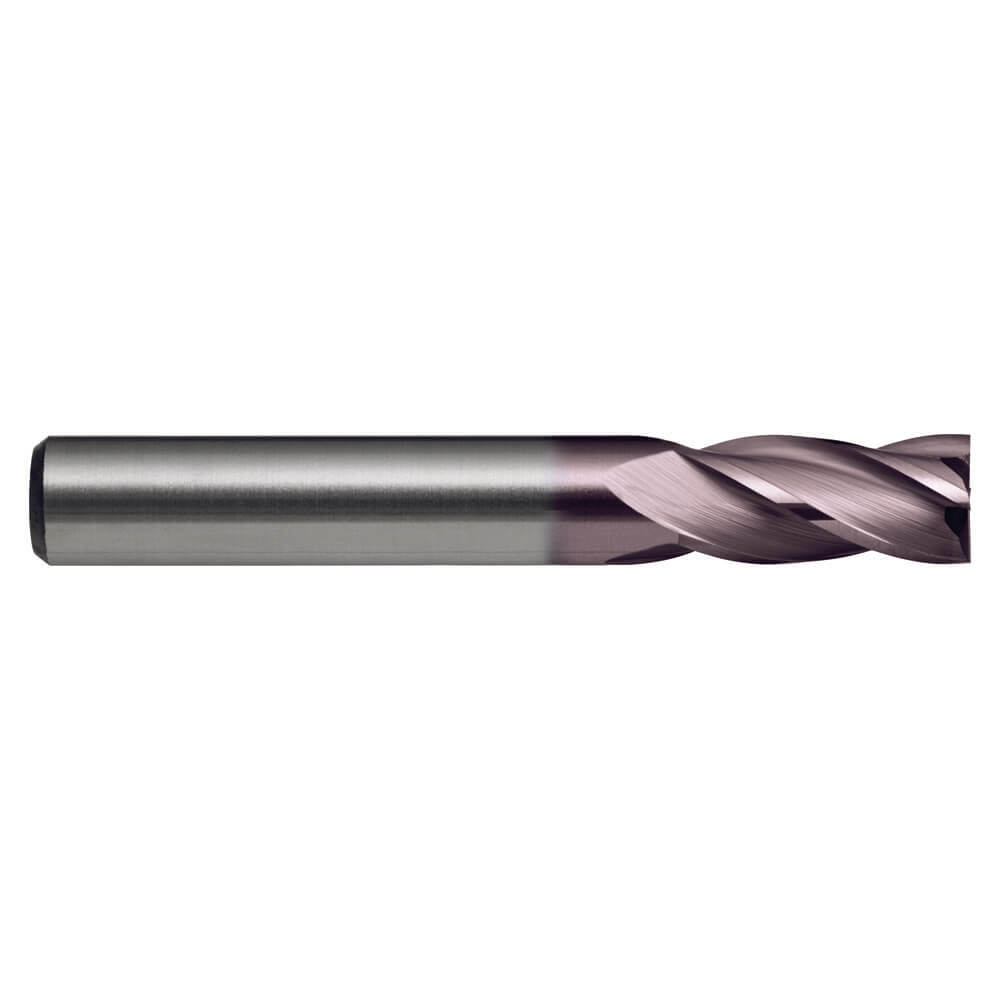

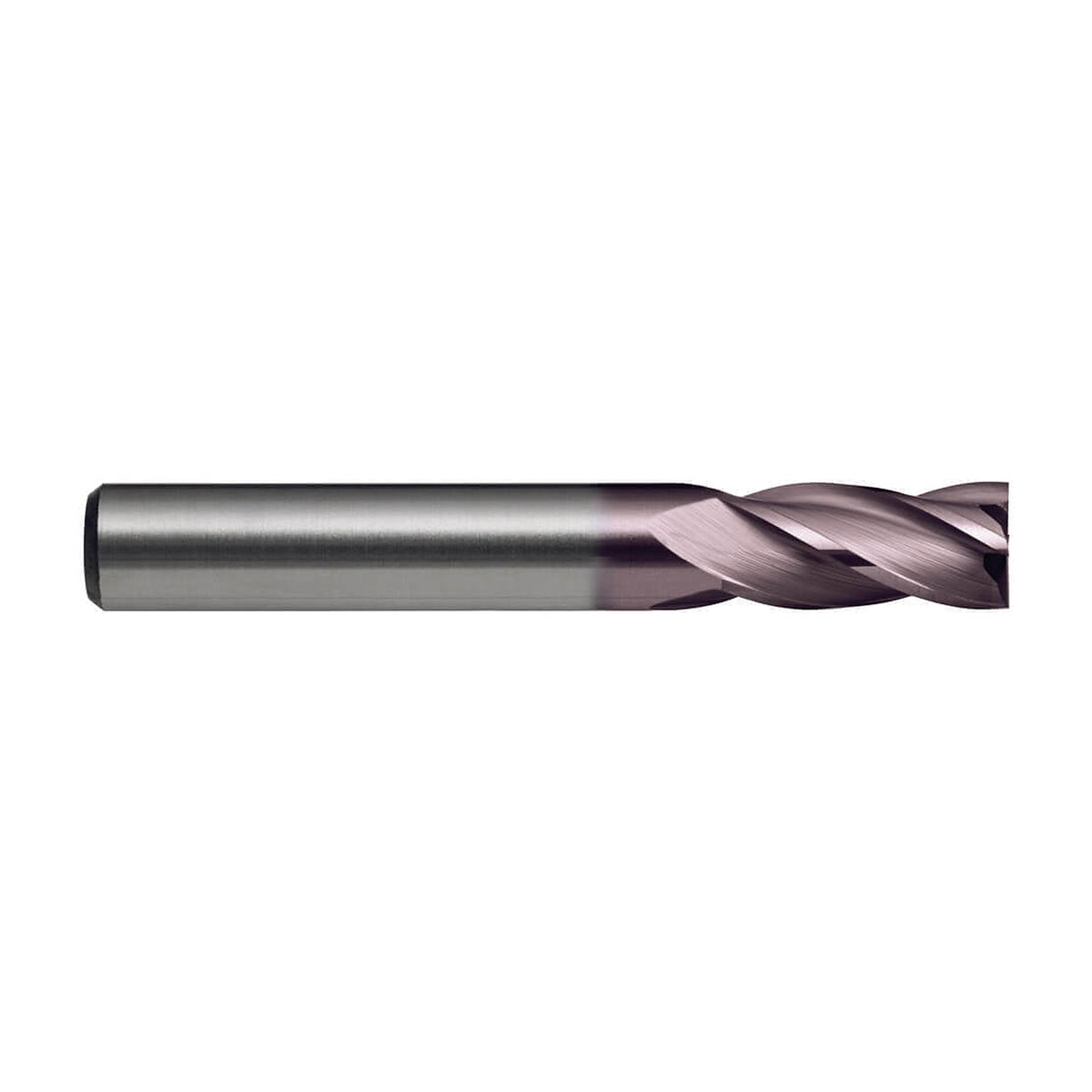

The Sutton E604 is a 4 flute endmill made from solid carbide (VHM), with a TiAlN coating. It is in the regular length series. This listing covers 21 metric sizes from 1 mm to 25 mm.

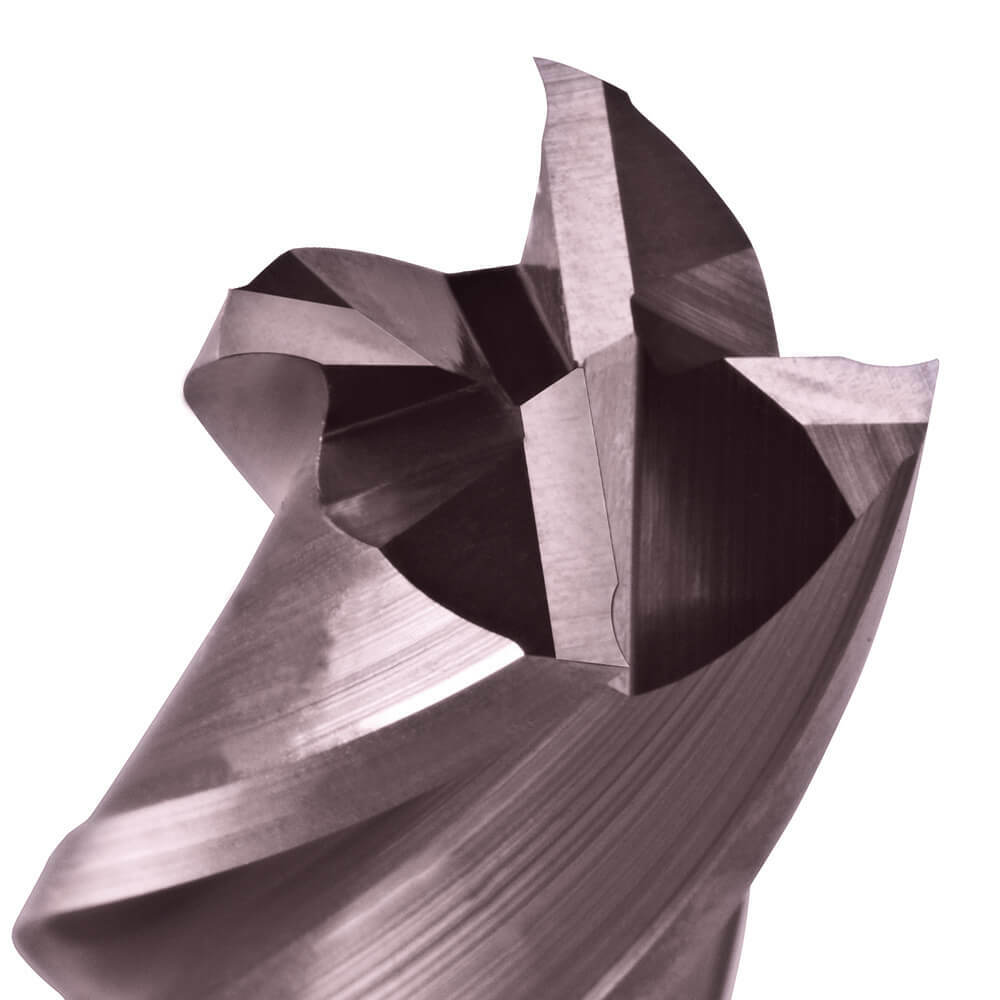

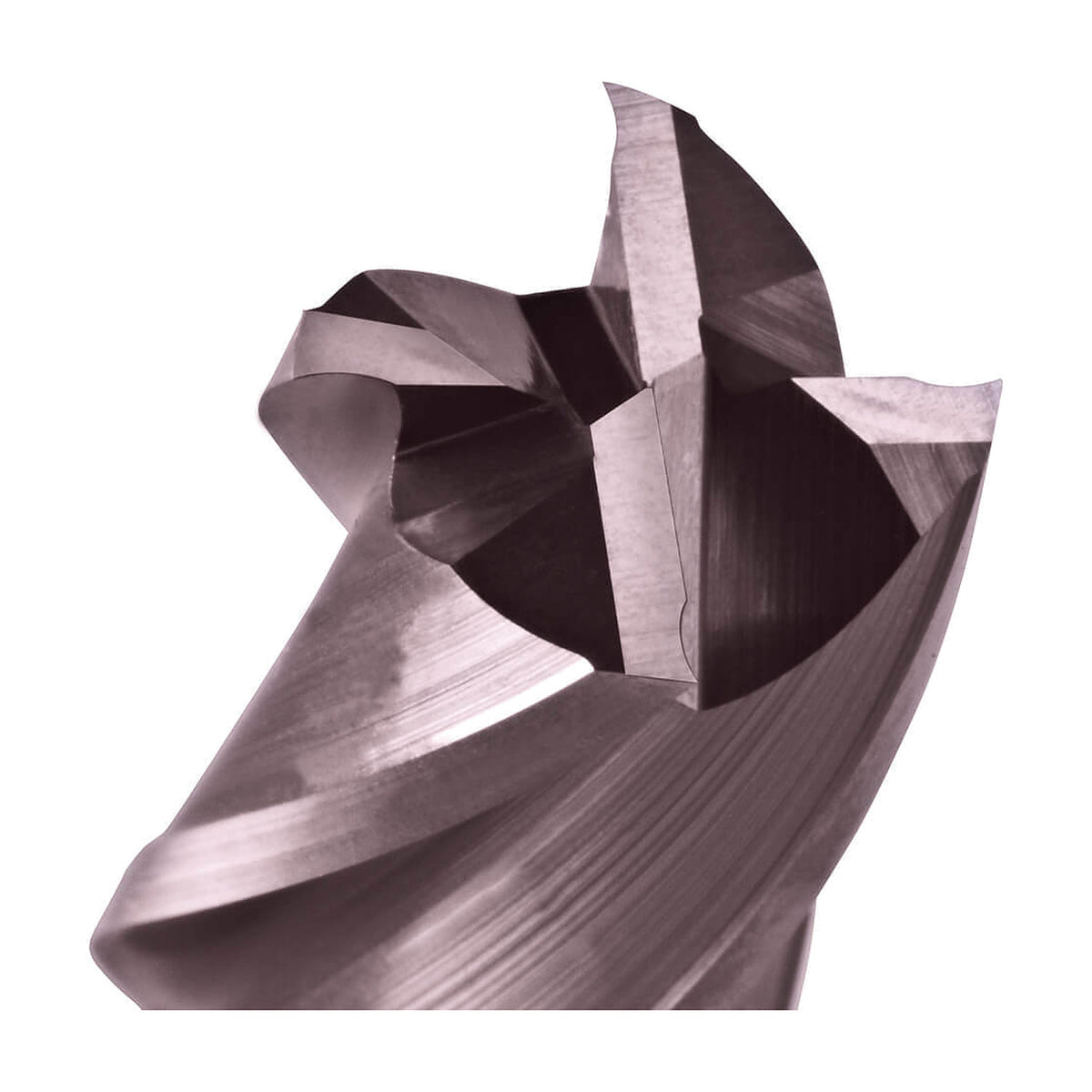

The cutting edge has a 30° helix and the designation is N. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and h10 cutting diameter tolerance.
Where this product is used
- Precision finish milling.
- Materials up to 1600 N/mm2.
Design features
- Solid carbide (VHM) construction.
- TiAlN coating for longer tool life.
- 4 flutes, 30° helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) h10, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

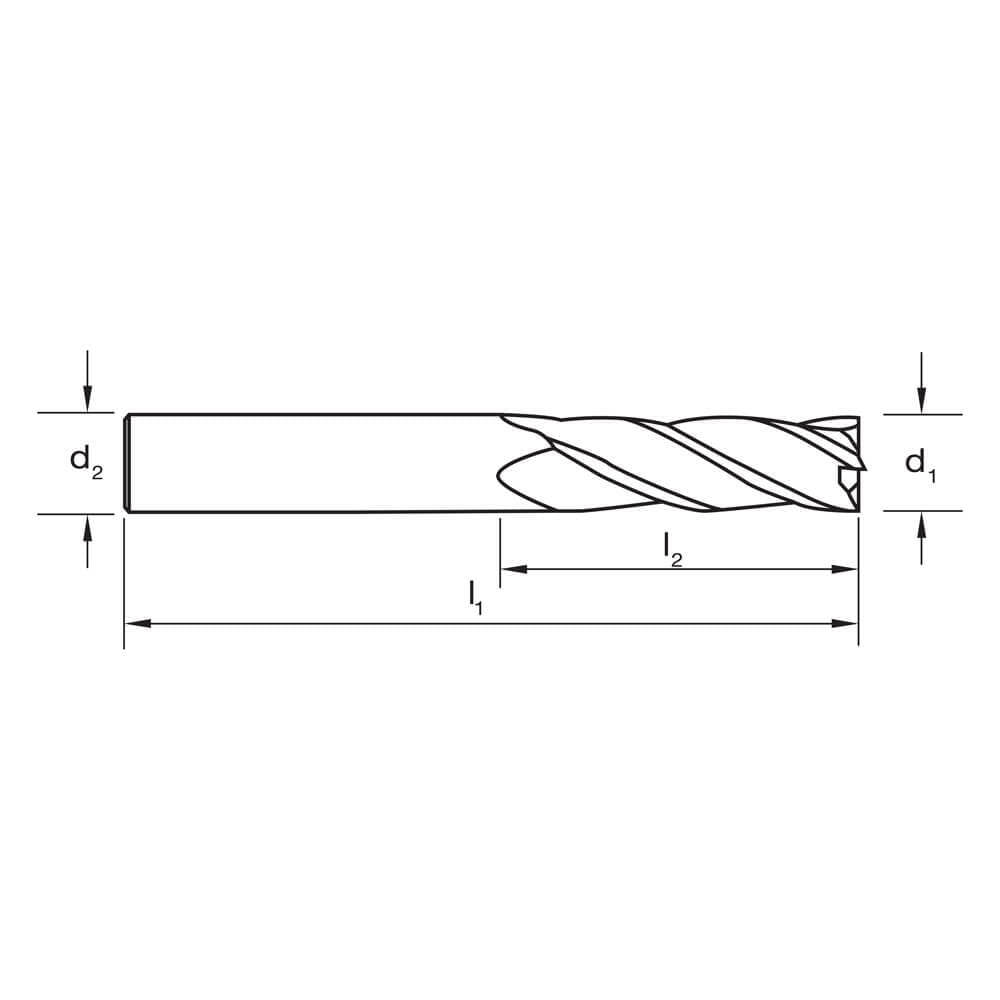

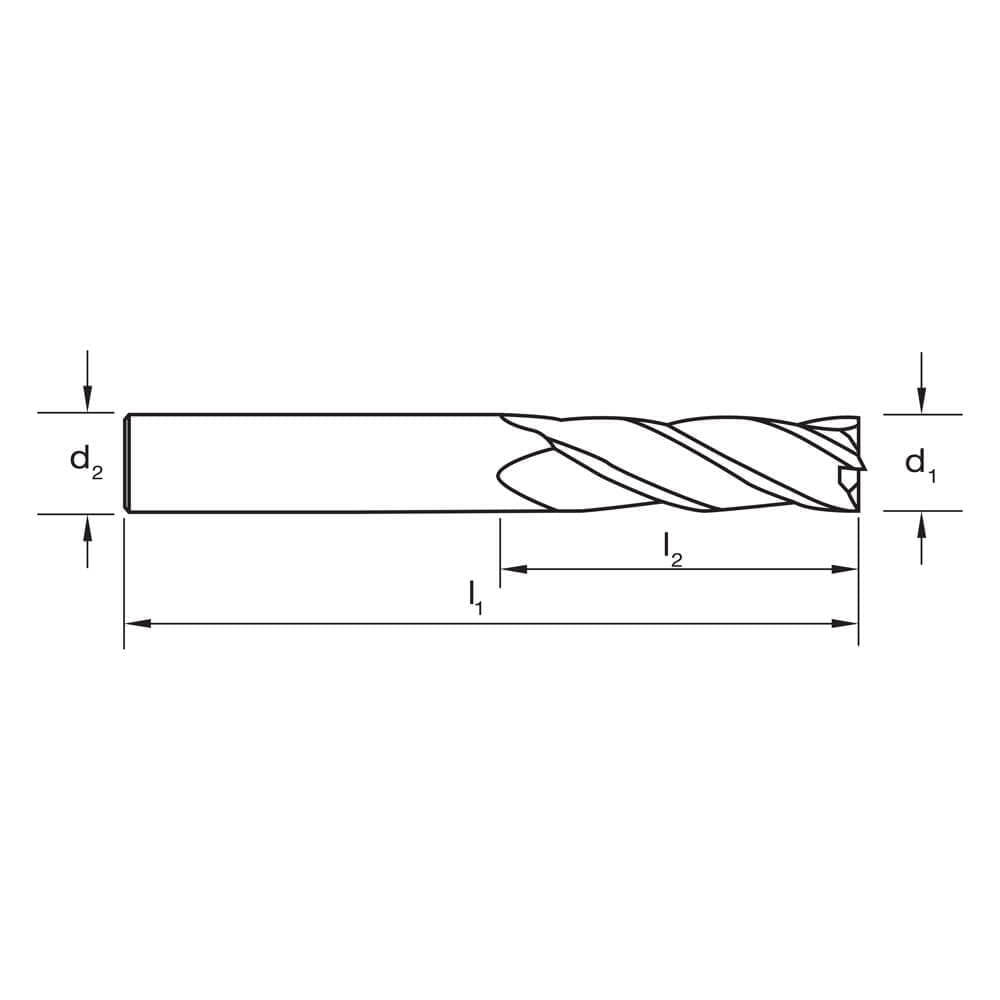

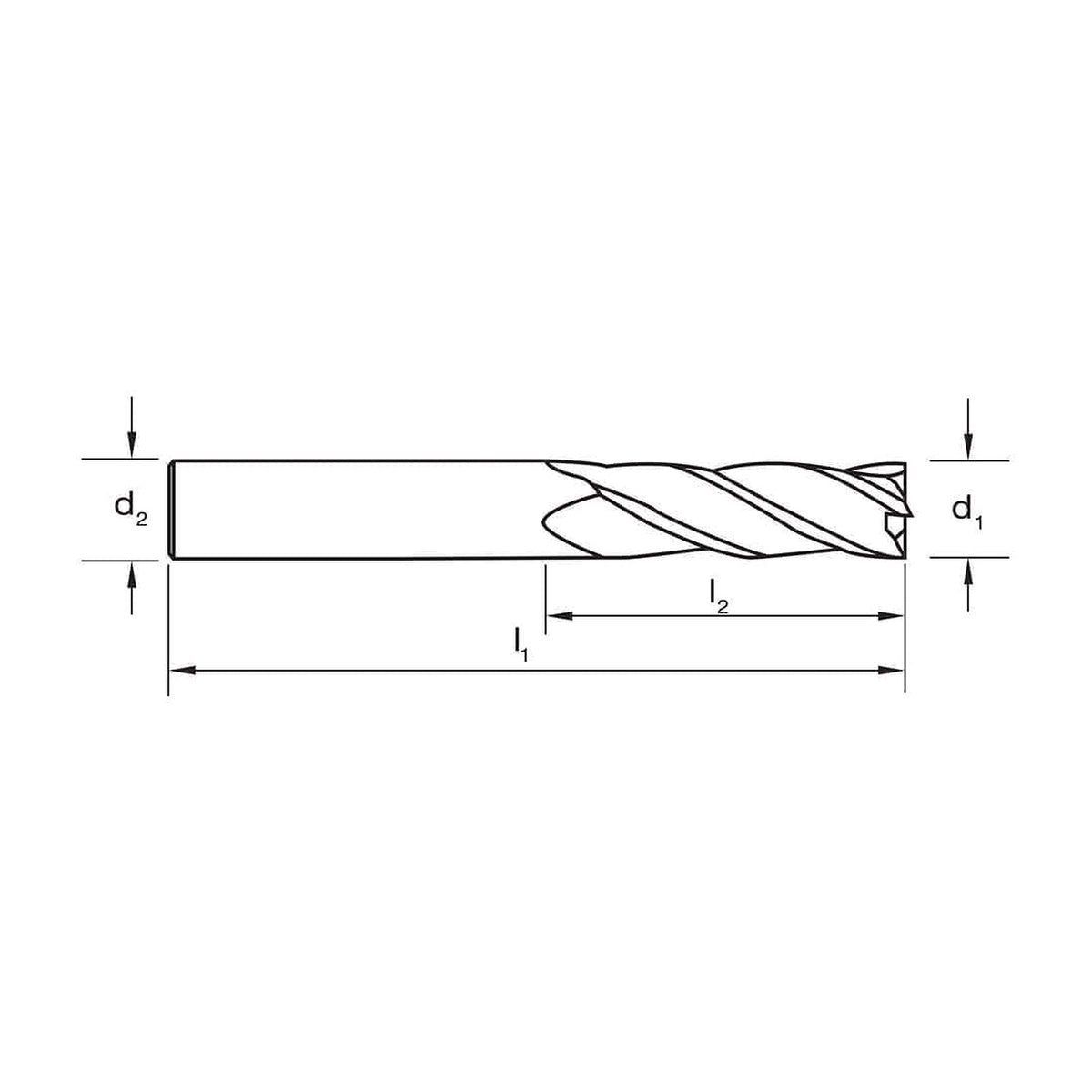

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E604 0100 | 1 | 38 | 4 | 3 | 4 |
| E604 0150 | 1.5 | 38 | 4.5 | 3 | 4 |
| E604 0200 | 2 | 38 | 6 | 3 | 4 |
| E604 0250 | 2.5 | 38 | 9.5 | 3 | 4 |
| E604 0300 | 3 | 38 | 12 | 3 | 4 |
| E604 0350 | 3.5 | 50 | 12 | 4 | 4 |
| E604 0400 | 4 | 50 | 14 | 4 | 4 |
| E604 0450 | 4.5 | 50 | 16 | 6 | 4 |
| E604 0500 | 5 | 50 | 16 | 6 | 4 |
| E604 0600 | 6 | 50 | 19 | 6 | 4 |
| E604 0700 | 7 | 63 | 19 | 8 | 4 |
| E604 0800 | 8 | 63 | 20 | 8 | 4 |
| E604 0900 | 9 | 75 | 22 | 10 | 4 |
| E604 1000 | 10 | 75 | 22 | 10 | 4 |
| E604 1100 | 11 | 75 | 25 | 12 | 4 |
| E604 1200 | 12 | 75 | 25 | 12 | 4 |
| E604 1400 | 14 | 89 | 32 | 14 | 4 |
| E604 1600 | 16 | 89 | 32 | 16 | 4 |
| E604 1800 | 18 | 100 | 38 | 18 | 4 |
| E604 2000 | 20 | 100 | 38 | 20 | 4 |
| E604 2500 | 25 | 100 | 38 | 25 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E604 |
| Type | Endmill, 4 flute, regular length |
| Material | solid carbide (VHM) |
| Finish | TiAlN |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | h10 |
| Shank tolerance | h6 |
| Sizes in this listing | 21 sizes, 1 to 25 mm |
Related products
Related Sutton carbide endmills: E601 metric endmill (regular), plain shank, E608 metric endmill (extra long), plain shank, E609 metric endmill (extra long), plain shank, E610 metric endmill (regular), plain shank, E611 metric endmill (regular), TiAlN, plain shank.
