Sutton E611 1mm Endmill 3 Flute - Carbide VHM - TiAlN - Regular
Out of stock

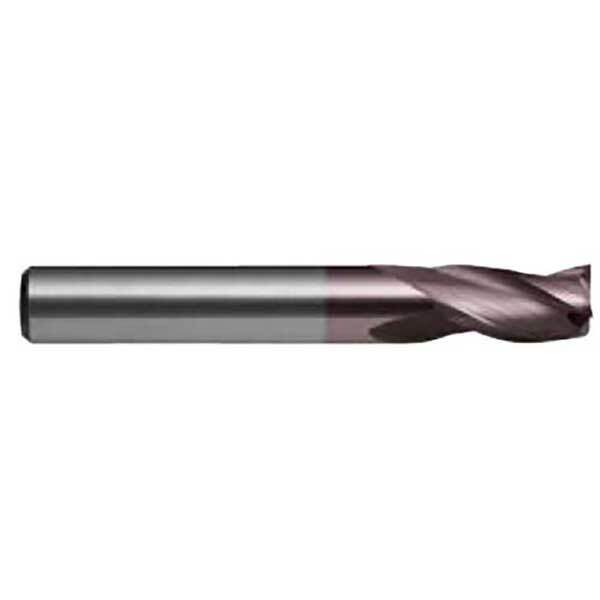

The Sutton E611 is a 3 flute endmill made from solid carbide (VHM), with a TiAlN coating. It is in the regular length series. This listing covers 21 metric sizes from 1 mm to 25 mm.

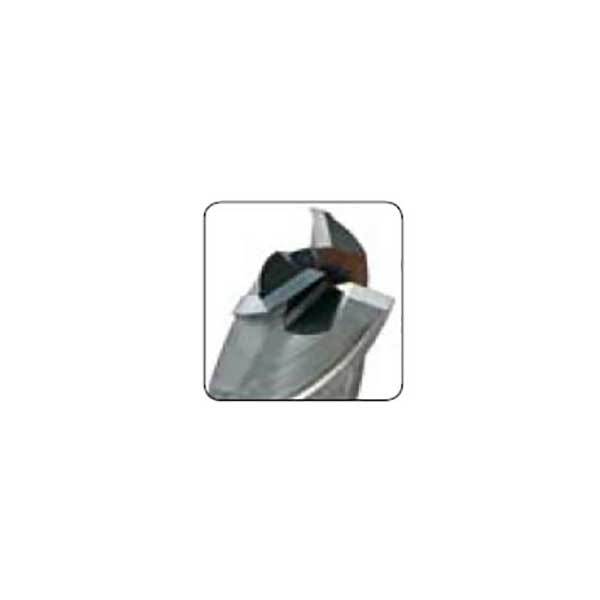

The cutting edge has a 30° helix and the designation is N. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance.
Where this product is used
- Precision milling of slots and cavities.
- Materials up to 1600 N/mm2.
Design features
- Solid carbide (VHM) construction.
- TiAlN coating for longer tool life.
- 3 flutes, 30° helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: shank h6.
Sizes

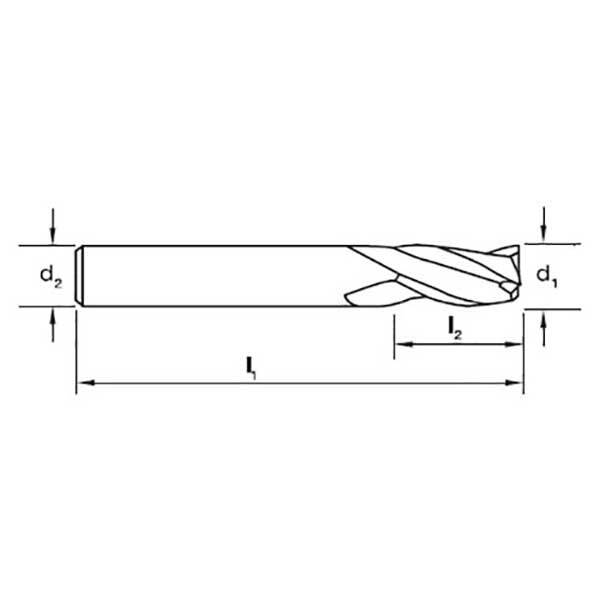

Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E611 0100 | 1 | 38 | 4 | 3 | 3 |
| E611 0150 | 1.5 | 38 | 4.5 | 3 | 3 |
| E611 0200 | 2 | 38 | 6 | 3 | 3 |
| E611 0250 | 2.5 | 38 | 9.5 | 3 | 3 |
| E611 0300 | 3 | 38 | 12 | 3 | 3 |
| E611 0350 | 3.5 | 50 | 12 | 4 | 3 |
| E611 0400 | 4 | 50 | 14 | 4 | 3 |
| E611 0450 | 4.5 | 50 | 16 | 6 | 3 |
| E611 0500 | 5 | 50 | 16 | 6 | 3 |
| E611 0600 | 6 | 50 | 19 | 6 | 3 |
| E611 0700 | 7 | 63 | 19 | 8 | 3 |
| E611 0800 | 8 | 63 | 20 | 8 | 3 |
| E611 0900 | 9 | 75 | 22 | 10 | 3 |
| E611 1000 | 10 | 75 | 22 | 10 | 3 |
| E611 1100 | 11 | 75 | 25 | 12 | 3 |
| E611 1200 | 12 | 75 | 25 | 12 | 3 |
| E611 1400 | 14 | 89 | 32 | 14 | 3 |
| E611 1600 | 16 | 89 | 32 | 16 | 3 |
| E611 1800 | 18 | 100 | 38 | 18 | 3 |
| E611 2000 | 20 | 100 | 38 | 20 | 3 |
| E611 2500 | 25 | 100 | 38 | 25 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E611 |
| Type | Endmill, 3 flute, regular length |
| Material | solid carbide (VHM) |
| Finish | TiAlN |
| Helix / geometry | R30 |
| Designation | N |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Shank tolerance | h6 |
| Sizes in this listing | 21 sizes, 1 to 25 mm |
