Sutton M602 Screw Extractor and Stub Drill Set #1 - M4-M5 - Set with 2 mm Stub Drill

The Sutton M602 is a screw extractor and stub drill set (Easy-Out type) in 5 sizes, #1-#5, for broken screws and bolts from M4 to M20 (5/32 to 3/4 in). Each set has 2 pieces: the extractor and the matching drill.

Designed to remove broken studs, bolts, socket screws and fittings. Made from chrome steel. The aggressive left hand spiral is designed for extra gripping power, and the spiral flutes are designed to embed themselves deeper, so the extractor's grip increases as the fastener resists. The square end suits hand operation in a variety of holders. Applications for the range include DIY, trade, automotive, plumbing, machine shop and MRO work.

Where this product is used

• Removing broken studs, bolts, socket screws and fittings.
• Automotive, plumbing and machine shop repairs where a fastener has broken off.
• DIY, trade and MRO work.

Design features

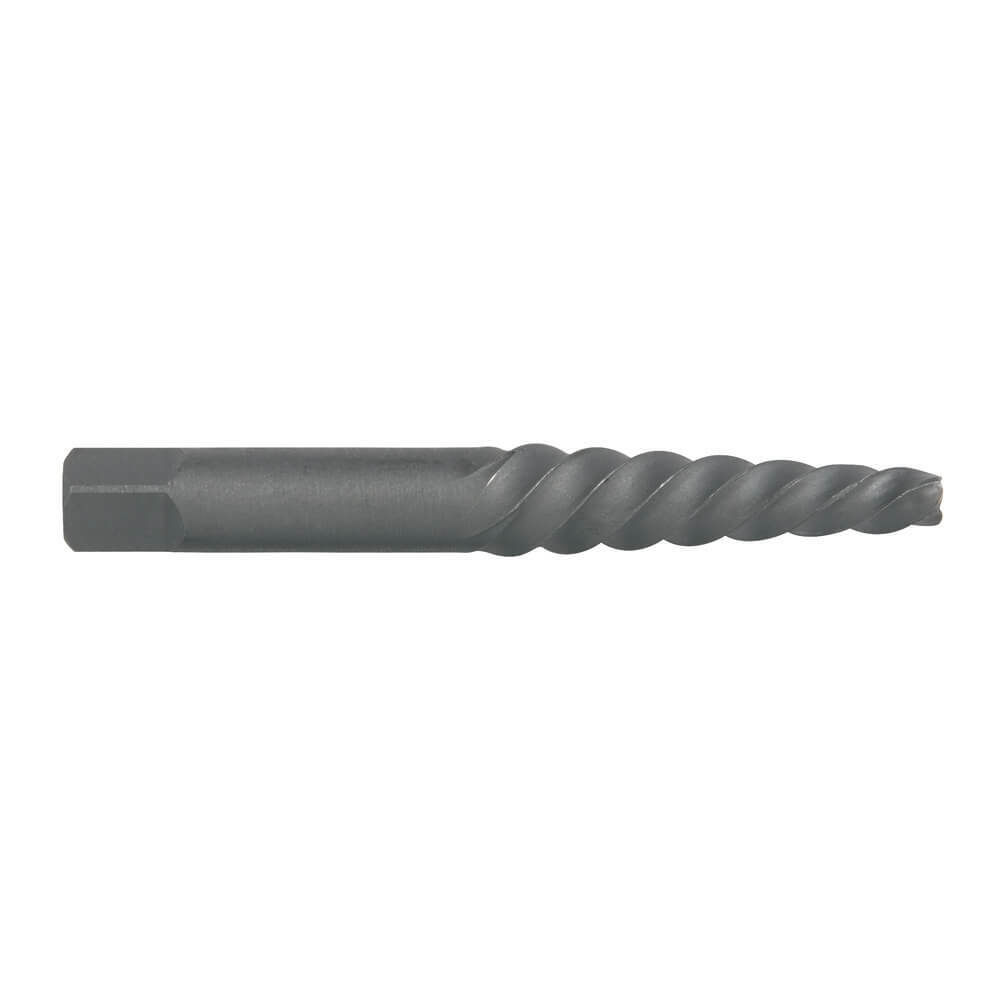

• Aggressive left hand spiral: for extra gripping power.
• Square end: hand operation in a variety of holders.
• Spiral flutes: designed to embed themselves deeper, so as fastener resistance increases the extractor's grip increases.
• Made from chrome steel.

Sizes and item numbers

Choose the extractor by the size of the broken fastener. The drill size is the hole to drill before using the extractor.

Using the screw extractor

• Drill a centred hole in the broken fastener with the drill size shown in the size table for the extractor you are using. Keep the drill square to the surface.
• Insert the extractor into the hole, fit a tap wrench or similar holder on the square end and turn it anticlockwise with steady pressure. The left hand spiral is designed to bite as the fastener resists.
• Do not force the extractor. One that breaks off in the hole is much harder to remove than the original fastener, so use a penetrating oil on seized fasteners and work steadily.
• Choose the extractor by the size of the broken screw or bolt, using the metric or imperial range in the size table.

Key specifications
