Sutton 6.35mm (1/4") HSS Pilot Drill - H100 0063 - HC1 and HC2 Arbors
Regular price
$18.38
Sale price
$18.38
Regular price
Inc. GST
Available

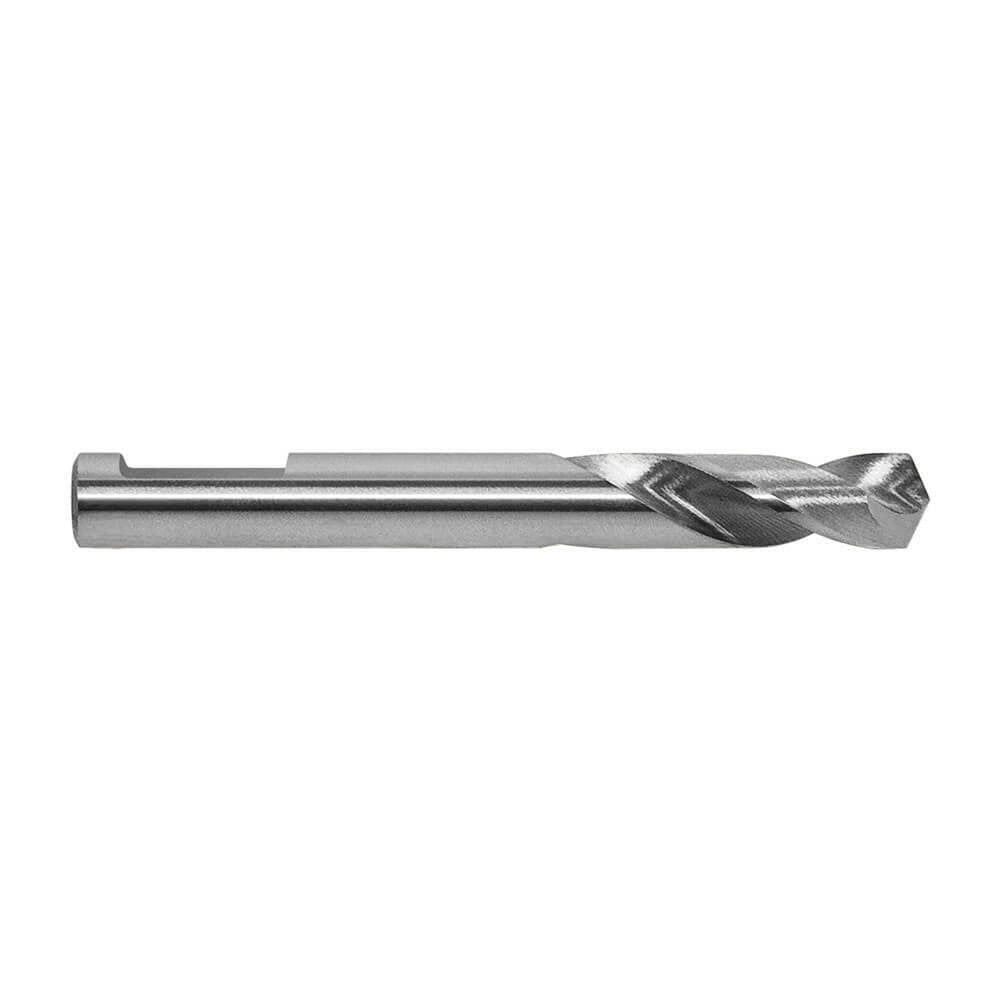

The Sutton H100 0063 is a 6.35 mm (1/4") pilot drill made from high speed steel (HSS), 54 mm long overall. It is the pilot drill for the H100 HC1 and HC2 arbors.
The arbors are used with Sutton HSS sheet metal holesaws from 16 to 50 mm, which are designed to produce accurate, round clean holes in steel and alloy sheets up to 2 mm thick. The pilot drill is replaceable and is secured with a grub screw.
Where this product is used
- Replacement pilot drill for the H100 HC1 arbor (16 to 25 mm holesaws) and the H100 HC2 arbor (32 to 50 mm holesaws).
- Starting the hole for HSS sheet metal holesaws, 16 to 50 mm, in steel and alloy sheets up to 2 mm thick.
Design features
- High speed steel (HSS) construction.
- 6.35 mm (1/4") diameter, 54 mm overall length.
- Suits both the HC1 and HC2 arbors.
- Replaceable, secured in the arbor with a grub screw.
Arbor fit
Holesaw sizes are in millimetres.
| Arbor | Holesaw size (mm) | Thread |
|---|---|---|
| H100 HC1 | 16 to 25 | 1/2 UNF |
| H100 HC2 | 32 to 50 | 5/8 UNF |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | H100 |
| Type | Holesaw pilot drill |
| Material | HSS |
| Diameter | 6.35 mm (1/4") |
| Overall length | 54 mm |
| Suits arbors | H100 HC1 and HC2 |
| Holesaw range | 16 to 50 mm |
| Sutton item number | H100 0063 |
Related products
Related products: the H100 holesaw arbor (16 to 50 mm) and the H101 holesaw set with arbor and pilot drill (16 to 50 mm).
