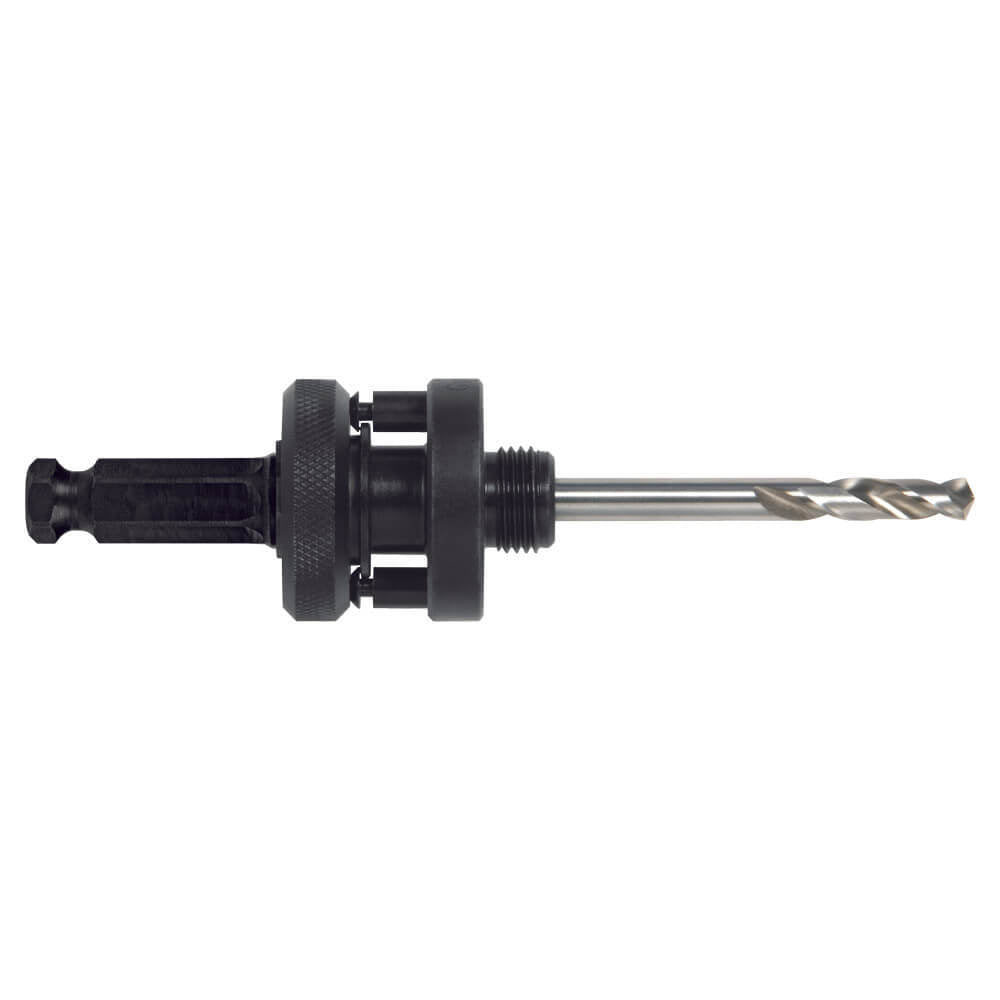

Sutton 6.35mm (1/4") HSS Pilot Drill - H107 BD25 - BA0 Arbor
Regular price
$11.66
Sale price
$11.66
Regular price
Inc. GST
Available
The Sutton H107 BD25 is a 6.35 mm (1/4") pilot drill made from high speed steel (HSS), 104 mm long overall. It is the pilot drill for the H107 BA0 arbor. Sold individually.
The BA0 arbor fits holesaws from 14 to 30 mm and has a 1/2 UNF thread, a 1/4" round shank and a 10 mm chuck size. Sutton BA arbors use a thread pattern made to an international standard to fit the Sutton holesaw range.
Where this product is used
- Replacement pilot drill for the H107 BA0 arbor.
- Starting the hole for holesaws from 14 to 30 mm fitted to the BA0 arbor.
Design features
- High speed steel (HSS) construction.
- 6.35 mm (1/4") diameter, 104 mm overall length.
- The pilot drill matched to the BA0 arbor.
Arbor fit
Holesaw sizes are in millimetres.
| Arbor | Holesaw size (mm) | Thread | Shank | Chuck size (mm) |
|---|---|---|---|---|
| H107 BA0 | 14 to 30 | 1/2 UNF | 1/4" round | 10 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | H107 |
| Type | Holesaw pilot drill |
| Pilot drill code | BD25 |
| Material | HSS |
| Diameter | 6.35 mm (1/4") |
| Overall length | 104 mm |
| Suits arbor | H107 BA0 |
| Sutton item number | H107 BD25 |
| Pack size | Sold individually |
Related products
Related products: the H107 BD24 pilot drill (82 mm).
