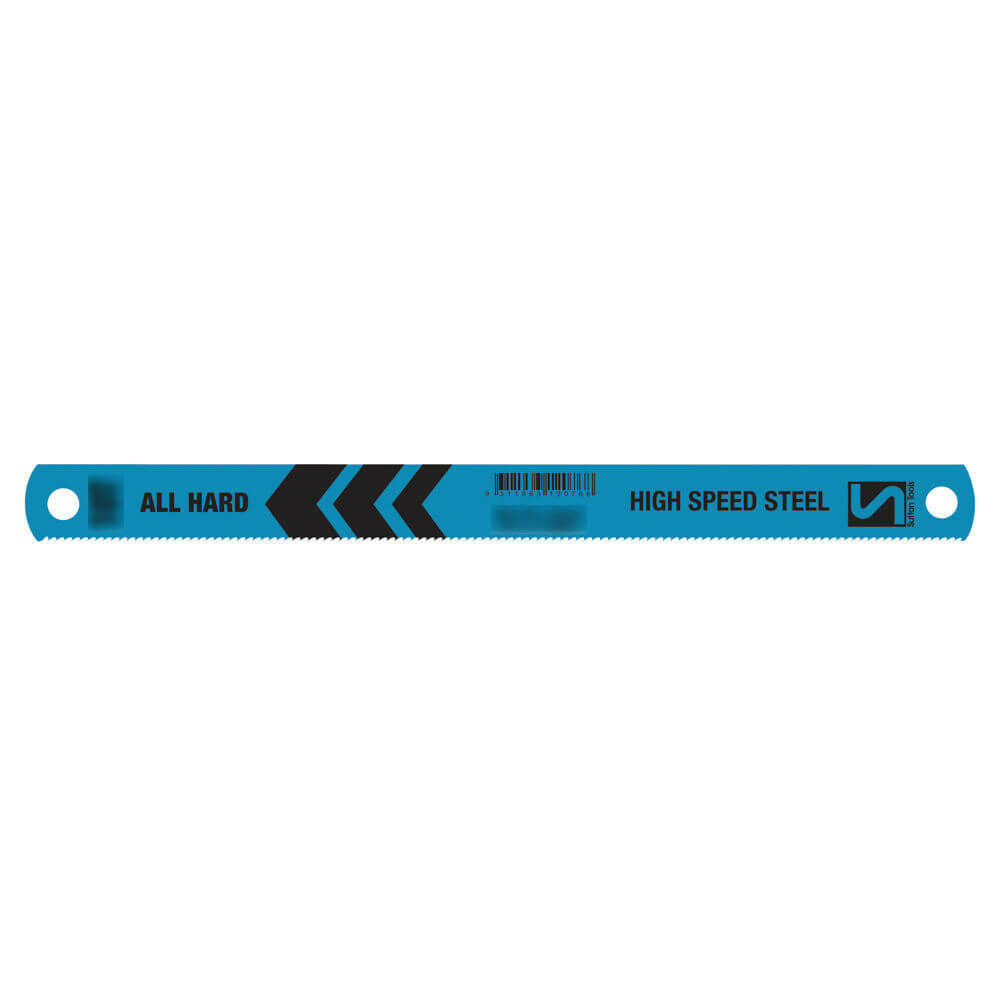

Sutton H201 300 x 25 mm Power Hacksaw Blade 10 TPI - All Hard HSS - Pack of 10
The price shown is for the pack.
Available
The Sutton H201 is an All Hard HSS power hacksaw blade (powersaw blade), 300 x 25 mm (12 x 1 in), in 10 and 14 TPI. Blades are sold in packs of 10.
The blade is made from top quality high speed steel, hardened throughout. The All Hard HSS grade (colour code blue) is designed to cut even the most difficult materials with great accuracy, with consistent performance and long life. The pin hole centres are 8.2 mm.
Where this product is used
- Cutting off metal bar, tube and section on power hacksaw machines.
- Trade and industrial cutting in metalworking, fabrication and machine shop work.
- Automotive and maintenance workshops that cut off steel stock.
Sizes and item numbers
All blades are 300 x 25 mm, with 10 blades per pack.
| Item no. | TPI | Size | Pieces per pack | Item code |
|---|---|---|---|---|
| H201 2510 | 10 TPI | 300 x 25 mm | 10 | H2012510 |
| H201 2514 | 14 TPI | 300 x 25 mm | 10 | H2012514 |
The power hacksaw blade range
The Sutton power hacksaw blades in this range are All Hard HSS and are sold in packs of 10.
| Blade | Size (length x width) | TPI | Pin hole centres |
|---|---|---|---|
| H201 300 x 25 mm | 12 x 1 in | 10 and 14 | 8.2 mm |
| H202 350 x 25 mm | 14 x 1 in | 10 and 14 | 8.2 mm |
| H202 350 x 32 mm | 14 x 1.25 in | 6 and 10 | 8.2 mm |
| H203 400 x 32 mm | 16 x 1.25 in | 6, 10 and 14 | 8.2 mm |
| H204 450 x 32 mm | 18 x 1.25 in | 6 and 10 | 10.2 mm |
| H204 450 x 38 mm | 18 x 1.50 in | 6 and 10 | 10.2 mm |
Using the blade
- Check the blade length, width and pin hole dimension against the machine before ordering. The blade must match the machine blade holder.
- Choose the TPI so that at least 3 teeth are in contact with the work at all times. Use a coarser pitch for thick or large sections and a finer pitch for thin sections, tube and profiles.
- Fit the blade with the teeth facing the cutting direction of the machine and set the tension to the machine maker's instructions.
- Use cutting fluid or coolant as recommended for the material, and keep the feed steady so the blade is not overloaded.
- Replace the blade when it is worn rather than forcing a dull blade through the cut.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | H201 (All Hard HSS power hacksaw blade) |
| Material | All Hard HSS, colour code blue |
| Length | 300 mm (12 in) |
| Width | 25 mm (1 in) |
| Thickness | 1.25 mm (0.050 in) |
| TPI | 10 and 14 |
| Pin hole centres | 8.2 mm |
| Pack quantity | 10 |
Related products
These blades suit power hacksaw machines that take 300 x 25 mm blades. For hand hacksaw blades, see the H340 Bi-Metal HSS 300 mm hacksaw blades. Browse all power hacksaw blades, saws and hacksaws and saw blades.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton H201 300 x 25 mm Power Hacksaw Blade - All Hard HSS - Pack of 10: 10
SKU: A0010628 | Model: H2012510
This is the tpi 10 option of the Sutton H201 300 x 25mm Power Hacksaw Blade - All Hard HSS - Pack of 10. Key details for this option: material All Hard HSS, length 300mm, width 25mm, thickness 1.25mm, pack quantity 10.
Sutton Tools Powersaw Blades - All Hard HSS
Sutton Tools All Hard HSS Powersaw Blades have consistent performance and long life and are capable of cutting a broad cross-section of materials, even the most difficult tough alloys such as stainless steel, with great accuracy.
Available in a variety of lengths to suit most powersaw machines.
