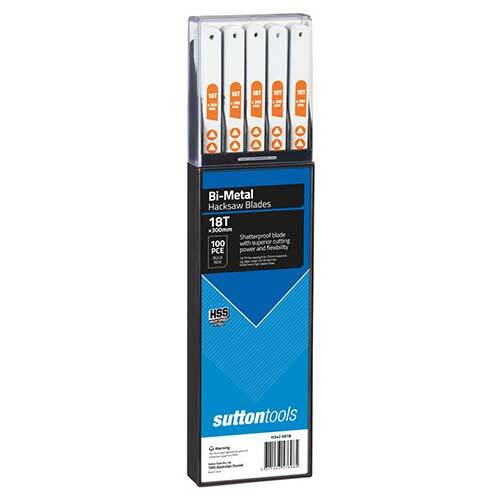

Sutton 300mm Bi-Metal HSS Hacksaw Blade 18 TPI - Pack of 100 - H342
The price shown is for the pack.
Available
The Sutton H342 is a Bi-Metal HSS hacksaw blade, 300 mm long, in 18, 24 and 32 TPI. It is sold in packs of 100 (merchandiser). The blade is a shatterproof blade with superior cutting power and flexibility.
The bi-metal blade is designed to be shatterproof, with superior cutting power and flexibility. The 300 mm pin hole centres fit all standard hacksaw frames, and the blade is colour coded (orange) with clear markings for easy identification.
Where this product is used
- 18 TPI, for 6 to 25 mm materials such as pipe, angle iron and steel bar.
- 24 TPI, for 3 to 6 mm materials such as conduit, heavy sheet metal and tubing.
- 32 TPI, for materials up to 3 mm thick such as thin sheet metal and metal trim.
Sizes and item numbers
All blades are 300 mm long, with 100 blades per pack.
| Item no. | TPI | Pieces per pack | Item code |
|---|---|---|---|
| H342 0018 | 18 TPI | 100 | H3420018 |
| H342 0024 | 24 TPI | 100 | H3420024 |
| H342 0032 | 32 TPI | 100 | H3420032 |
Choosing the TPI
Match the teeth per inch (TPI) to the thickness of the material being cut.
| TPI | Material thickness | Typical materials |
|---|---|---|
| 18 TPI | 6-25 mm | pipe, angle iron and steel bar |
| 24 TPI | 3-6 mm | conduit, heavy sheet metal and tubing |
| 32 TPI | up to 3 mm | thin sheet metal and metal trim |
Choosing the blade grade
Each grade is colour coded for easy identification.
| Grade | Colour | Designed for |
|---|---|---|
| Bi-Metal HSS | Orange | Shatterproof blade with superior cutting power and flexibility |
| All Hard HSS | Blue | Highly accurate cutting and high wear resistance |
| Flexible HSS | Red | General purpose blade with flexibility and safety |
| Bi-Metal Cobalt | Purple | Tough materials such as stainless steel |
Using the blade
- Choose the TPI by the material thickness, so at least 3 teeth are in contact with the work at all times.
- Fit the blade with the teeth pointing away from the handle, so it cuts on the forward stroke, and tension the frame firmly.
- Use long, steady strokes and light pressure on the forward stroke. Use cutting fluid when working stainless steel.
- Support the work close to the cut so it does not vibrate or pinch the blade.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | H342 (Bi-Metal HSS hacksaw blade) |
| Material | Bi-Metal HSS |
| Colour code | Orange |
| Length | 300 mm |
| TPI | 18, 24 and 32 |
| Pack quantity | 100 |
| Pin hole centres | 300 mm |
Related products
Same blade in other pack sizes: H340 pack of 2 and H341 pack of 10. The same pack size in other grades: H347 All Hard HSS, H352 Flexible HSS and H357 Bi-Metal Cobalt. Fit them to a H315 hacksaw frame or H305 junior hacksaw. The three-piece combo pack is also available. Browse all saws and hacksaws and saw blades.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton H342 300mm Bi-Metal HSS Hacksaw Blade - Pack of 100: 18
SKU: A0131776 | Model: H3420018
This is the tpi 18 option of the Sutton H342 300mm Bi-Metal HSS Hacksaw Blade - Pack of 100. Key details for this option: material Bi-Metal HSS, overall length 300mm, pack quantity 100.
Sutton H342 Hacksaw Blades - Bi-Metal - Bulk
Sutton Tools Bi-Metal HSS Hacksaw Blades are shatterproof, with superior cutting power & flexibility.
All Sutton Tools hacksaw blades have a 300mm hole center to fit all standard size hacksaw frames.
