Sutton H4381002 T-Shank Jigsaw Blade Wood Double Edge 100mm 6 TPI 2 Pack
Available

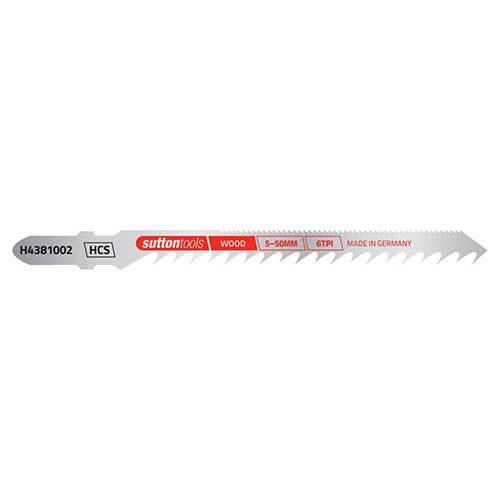

The Sutton H4381002 is a 100 mm T-shank jigsaw blade for fast cuts with extremely narrow curves in wood. It has a 75 mm cutting length, 6 TPI, is 1.27 mm thick and 6.5 mm tall, and is supplied as a 2 pack.
It is suitable for cutting hard wood, soft wood, plywood, MDF and chipboard (5.0-50 mm). Sutton's cut-type rating for this blade is fast, rough cut.
Sutton jigsaw blades have a T-shank, and they suit jigsaws from AEG, Black & Decker, Bosch, DeWalt, Festool, Hitachi, Makita, Metabo, Milwaukee and Ryobi. For Black & Decker, Makita and Ryobi, this applies to new models only. The blade is made in Germany. Blade lengths are overall (O/A) lengths; the cut length is the usable length of the toothed edge.
Where this blade is used
- Rough shaping of tight curves in timber, plywood and chipboard
- Cutting out curved profiles in thicker board where speed matters
- Carpentry and joinery roughing before finishing
Design features
- Double-edge blade design allows extremely narrow curved cuts
- Coarse teeth for fast, rough cuts
- Teeth side set and diagonally sharpened for fast, rough cuts
- Alloyed tool steel (HCS) body: a flexible blade for cutting soft materials
- T-shank fitting for jigsaws
- Made in Germany
Dimensions
Overall length is measured end to end including the shank. Cut thickness is the workpiece thickness for the blade.
| Item no. | Overall length (mm) | Cut length (mm) | TPI | Thickness (mm) | Height (mm) | Cut thickness | Pack |
|---|---|---|---|---|---|---|---|
| H4381002 | 100 | 75 | 6 | 1.27 | 6.5 | 5.0-50 mm | 2 pack |
Key specifications
| Specification | Detail |
|---|---|
| Brand | Sutton |
| Item number | H4381002 |
| Type | T-shank jigsaw blade |
| Blade material | HCS (alloyed tool steel) |
| Tooth pitch | 6 TPI |
| Overall length | 100 mm |
| Cut length | 75 mm |
| Blade thickness | 1.27 mm |
| Blade height | 6.5 mm |
| Cut thickness | 5.0-50 mm |
| Cut type | Fast, rough cut |
| Pack quantity | 2 |
| Shank | T-shank |
| Country of origin | Germany |
Related Sutton jigsaw blades
Compare other blade types: H4371002 100mm Wood General Purpose Jigsaw Blade, 6 TPI, H4411152 115mm Wood Extra Fine Cut Jigsaw Blade, 10 TPI, H4351002 100mm Wood Clean Cut Jigsaw Blade, 6 TPI, H4421302 130mm Wood Clean Cut Jigsaw Blade, 8.5 TPI, H490 multi-purpose jigsaw blade set (5 piece).
