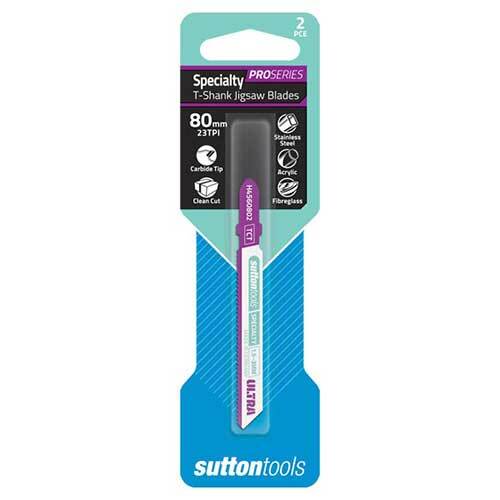

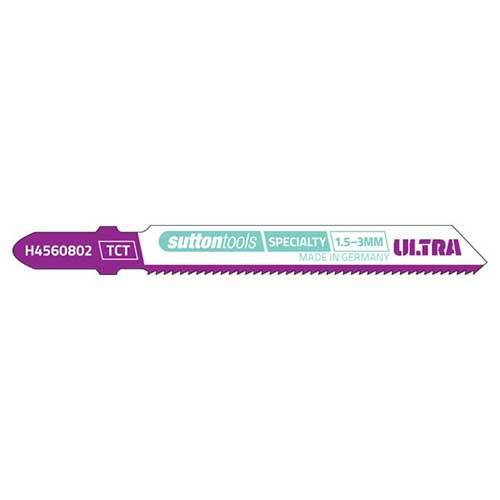

Sutton H4560802 T-Shank Jigsaw Blade Stainless Steel TCT Ultra 80mm 23 TPI 2 Pack
Available
The Sutton H4560802 is a 80 mm T-shank jigsaw blade for specialised cutting in stainless steel and abrasive materials. It has a 50 mm cutting length, 23 TPI, is 2.3 mm thick and 8.8 mm tall, and is supplied as a 2 pack.
It is suitable for cutting stainless steel, steel, acrylic, fibreglass and carbon fibre (1.5-3.0 mm). Sutton's cut-type rating for this blade is clean cut.
Sutton jigsaw blades have a T-shank, and they suit jigsaws from AEG, Black & Decker, Bosch, DeWalt, Festool, Hitachi, Makita, Metabo, Milwaukee and Ryobi. For Black & Decker, Makita and Ryobi, this applies to new models only. The blade is made in Germany. Blade lengths are overall (O/A) lengths; the cut length is the usable length of the toothed edge.
Where this blade is used
- Cutting stainless steel sheet for benchtops, splashbacks and enclosures
- Cutting fibreglass, carbon fibre and acrylic panels
- Fabrication where standard blades dull quickly
Design features
- Tungsten carbide strip with ground, straight taper-set teeth for high wear resistance
- Ground to a sharper edge for wear resistance
- Heavy duty thick, rigid body that resists bending and fracturing
- T-shank fitting for jigsaws
- Made in Germany
Dimensions
Overall length is measured end to end including the shank. Cut thickness is the workpiece thickness for the blade.
| Item no. | Overall length (mm) | Cut length (mm) | TPI | Thickness (mm) | Height (mm) | Cut thickness | Pack |
|---|---|---|---|---|---|---|---|
| H4560802 | 80 | 50 | 23 | 2.3 | 8.8 | 1.5-3.0 mm | 2 pack |
Key specifications
| Specification | Detail |
|---|---|
| Brand | Sutton |
| Item number | H4560802 |
| Type | T-shank jigsaw blade |
| Blade material | Tungsten carbide tipped (TCT) |
| Tooth pitch | 23 TPI |
| Overall length | 80 mm |
| Cut length | 50 mm |
| Blade thickness | 2.3 mm |
| Blade height | 8.8 mm |
| Cut thickness | 1.5-3.0 mm |
| Cut type | Clean cut |
| Pack quantity | 2 |
| Shank | T-shank |
| Country of origin | Germany |
Related Sutton jigsaw blades
Compare other blade types: H4551002 100mm Speciality Plastic Jigsaw Blade, 8.5 TPI, H4580801 80mm Carbide Grit Jigsaw Blade, H490 multi-purpose jigsaw blade set (5 piece).
