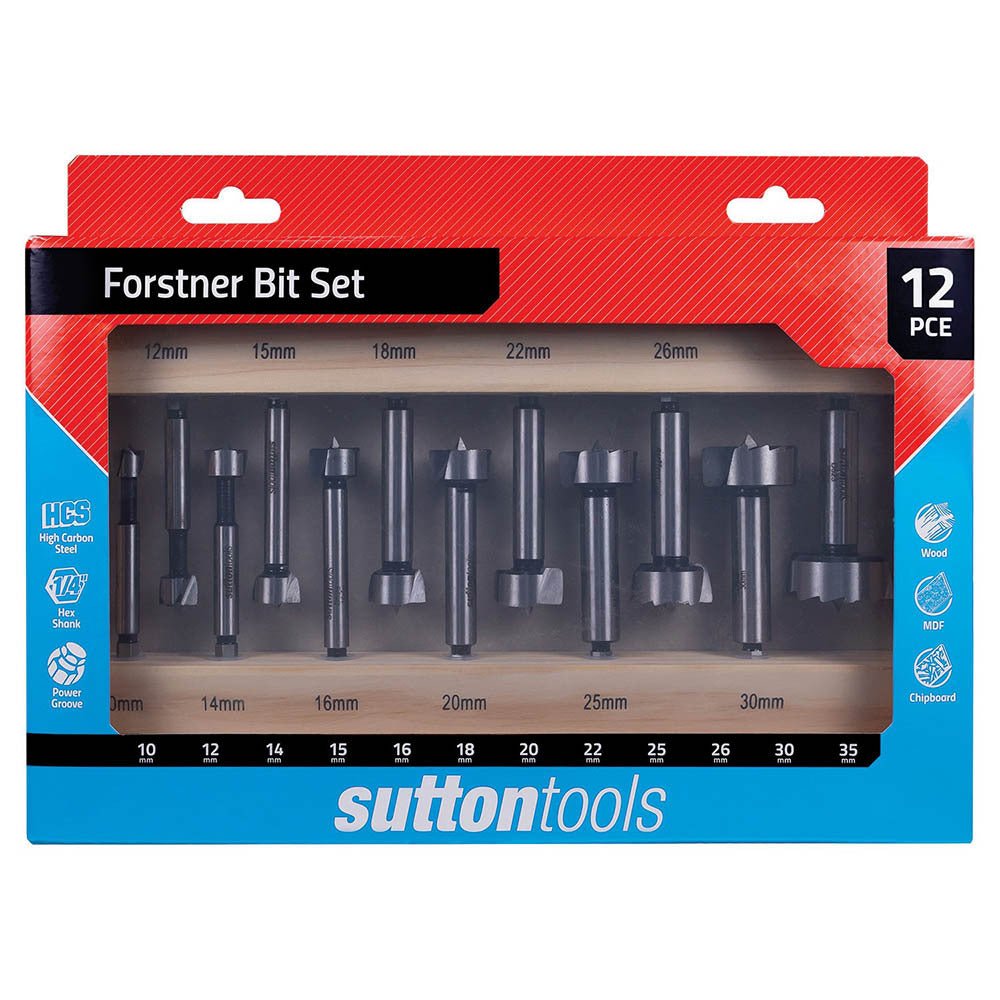

Sutton D523 0012 HCS Forstner Drill Bit Set, 12 Piece, 10 to 35 mm

The Sutton D523 0012 is a 12 piece Power Groove Forstner bit set in high carbon steel (HCS), with 10 mm, 12 mm, 14 mm, 15 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm, 26 mm, 30 mm and 35 mm bits and a 1/4" hex shank. Each bit is 90 mm long overall. It is for drilling precise flat-bottomed, overlapping or partial holes with smooth sides in wood, MDF or chipboard.

The rim-guided edge drills cleanly without deflection and the centre point ensures an accurate start and prevents wandering. The smooth sides and flat bottom finish aid gluing dowels. The Power Groove enables use with quick-change adaptors, and the 1/4" hex shank is suited for use with most power drills. The 26 mm and 35 mm bits are suitable for installing Euro-style hinges.

Where this product is used

• Precise flat-bottomed holes in wood, MDF and chipboard.
• Overlapping or partial holes with smooth sides.
• Installing Euro-style (cupboard) hinges with the 26 mm and 35 mm bits.
• Dowel holes, where the smooth sides and flat bottom help glue-up.
• Applications include DIY, trade and carpentry.

Design features

• Rim-guided edge: drills cleanly without deflection.
• Centre point: ensures an accurate start and prevents wandering.
• Smooth sides and flat bottom finish.
• Made from high carbon steel.
• Power Groove: enables use with quick-change adaptors.
• 1/4" hex shank: suited for use with most power drills.
• 12 bits, 10 to 35 mm, 90 mm overall length.

Bits in this set

Every bit in the set. Overall length is in millimetres.

Key specifications
