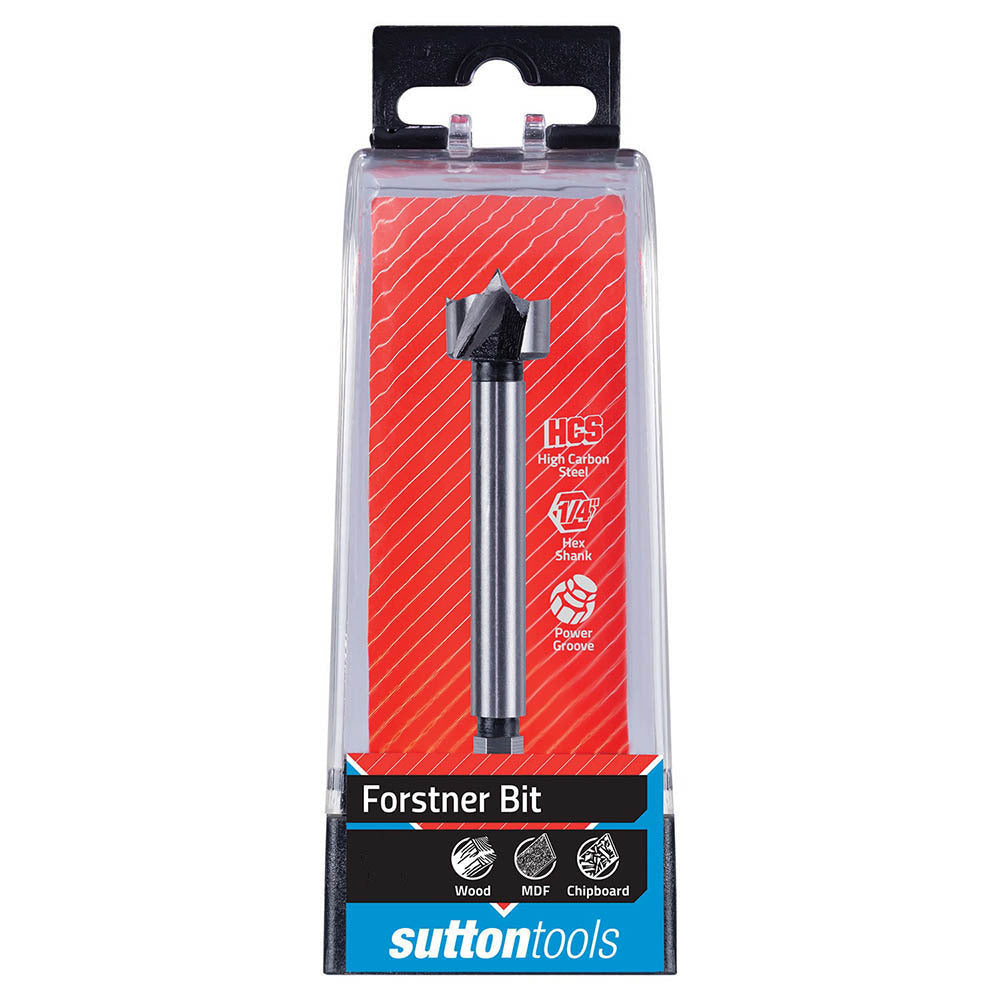

Sutton 10mm D523 Power Groove Forstner Bit
Available

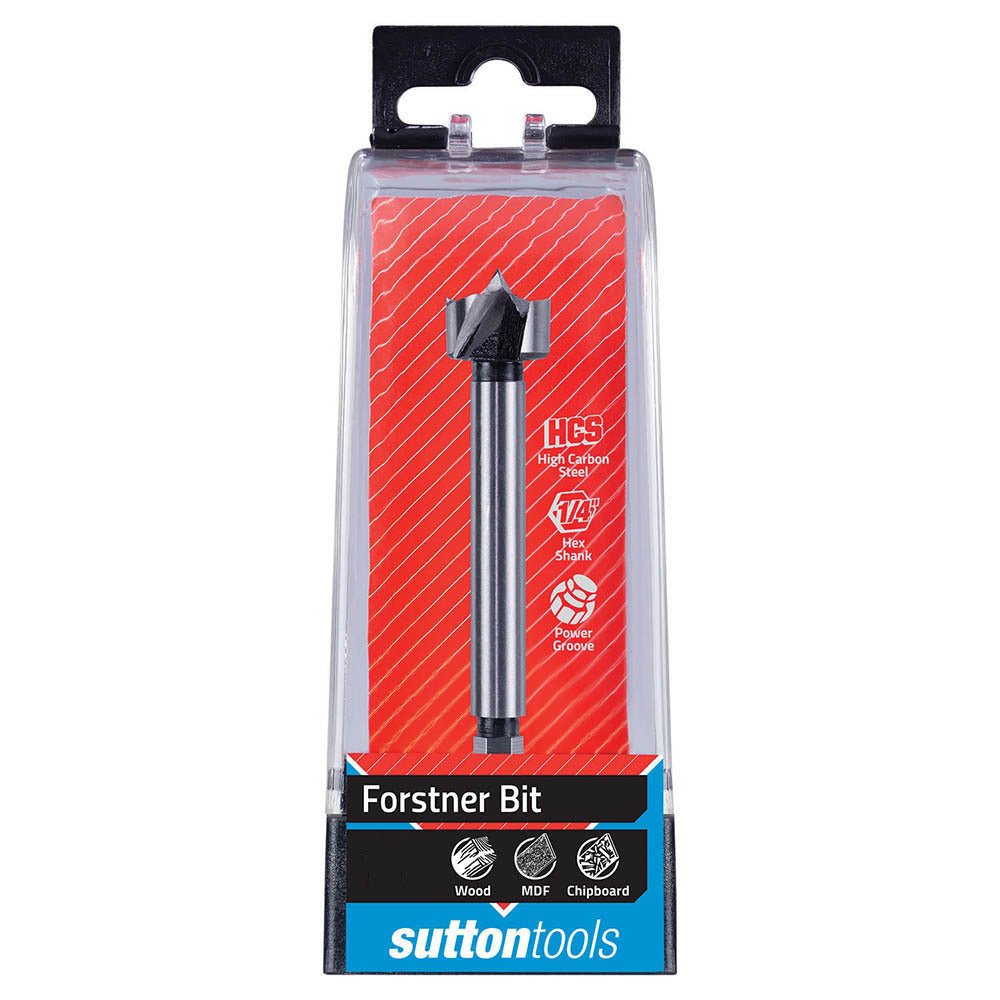

The Sutton D523 Power Groove Forstner bit has a 1/4" hex shank, a rim-guided edge and a centre point, for drilling precise flat-bottomed, overlapping or partial holes with smooth sides in wood, MDF or chipboard. It is listed in 12 sizes from 10 to 35 mm, all with a 90 mm overall length.
The 26 mm and 35 mm sizes are suitable for installation of Euro-style hinges. The rim-guided edge drills cleanly without deflection, the centre point ensures an accurate start and prevents wandering, and the Power Groove enables use with quick-change adaptors. The 1/4" hex shank is suited for use with most power drills.
Where this product is used
- Precise flat-bottomed, overlapping or partial holes with smooth sides in wood, MDF or chipboard.
- Installing Euro-style hinges with the 26 mm and 35 mm sizes, which suit that job.
- Applications for the range include: DIY, trade and carpentry.
Design features
- Rim-guided edge: drills cleanly without deflection.
- Centre point: ensures an accurate start and prevents wandering.
- Smooth sides and flat bottom finish.
- Power Groove: enables use with quick-change adaptors.
- 1/4" hex shank: suited for use with most power drills.
Sizes and lengths
Diameters and item numbers are shown below. Lengths are in millimetres.
| Diameter (mm) | Overall length (mm) | Shank (inch) | Pieces | Sutton item no. |
|---|---|---|---|---|
| 10 | 90 | 1/4 hex | 1 | D523 0100 |

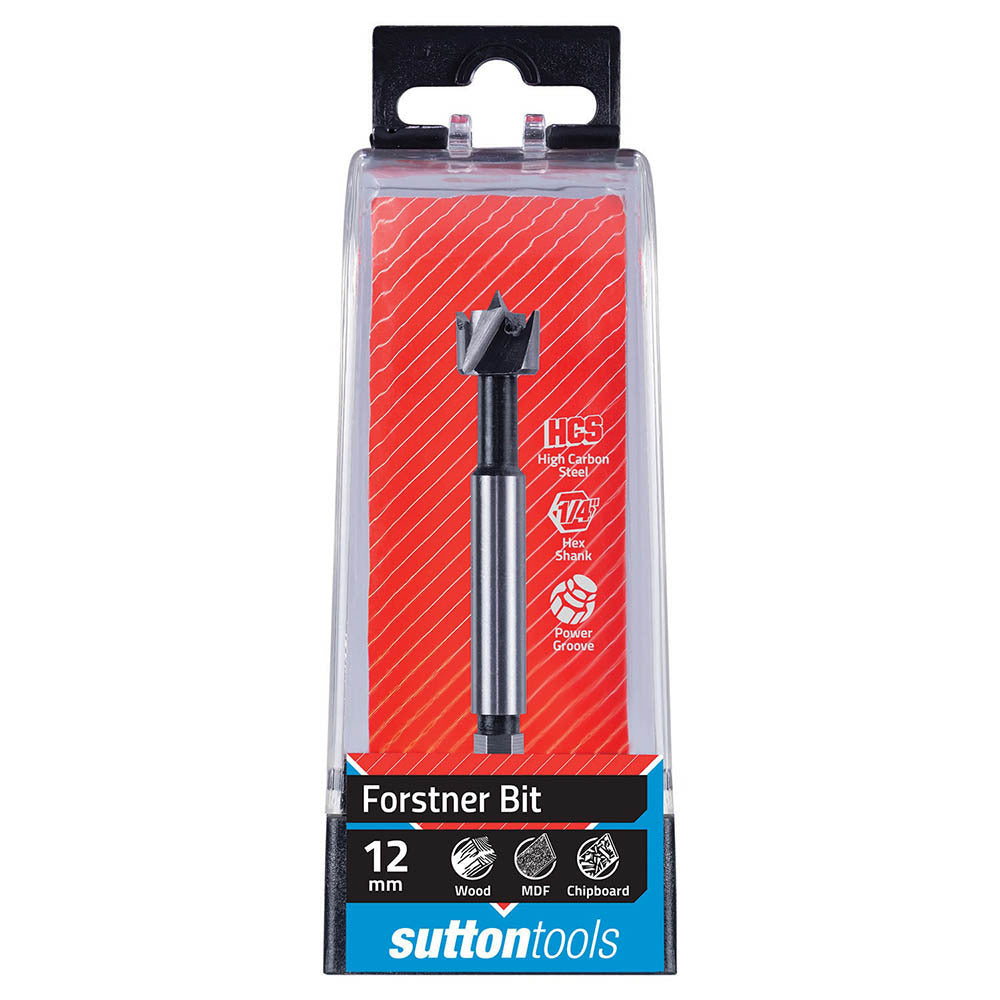

| 12 | 90 | 1/4 hex | 1 | D523 0120 |
| 14 | 90 | 1/4 hex | 1 | D523 0140 |
| 15 | 90 | 1/4 hex | 1 | D523 0150 |

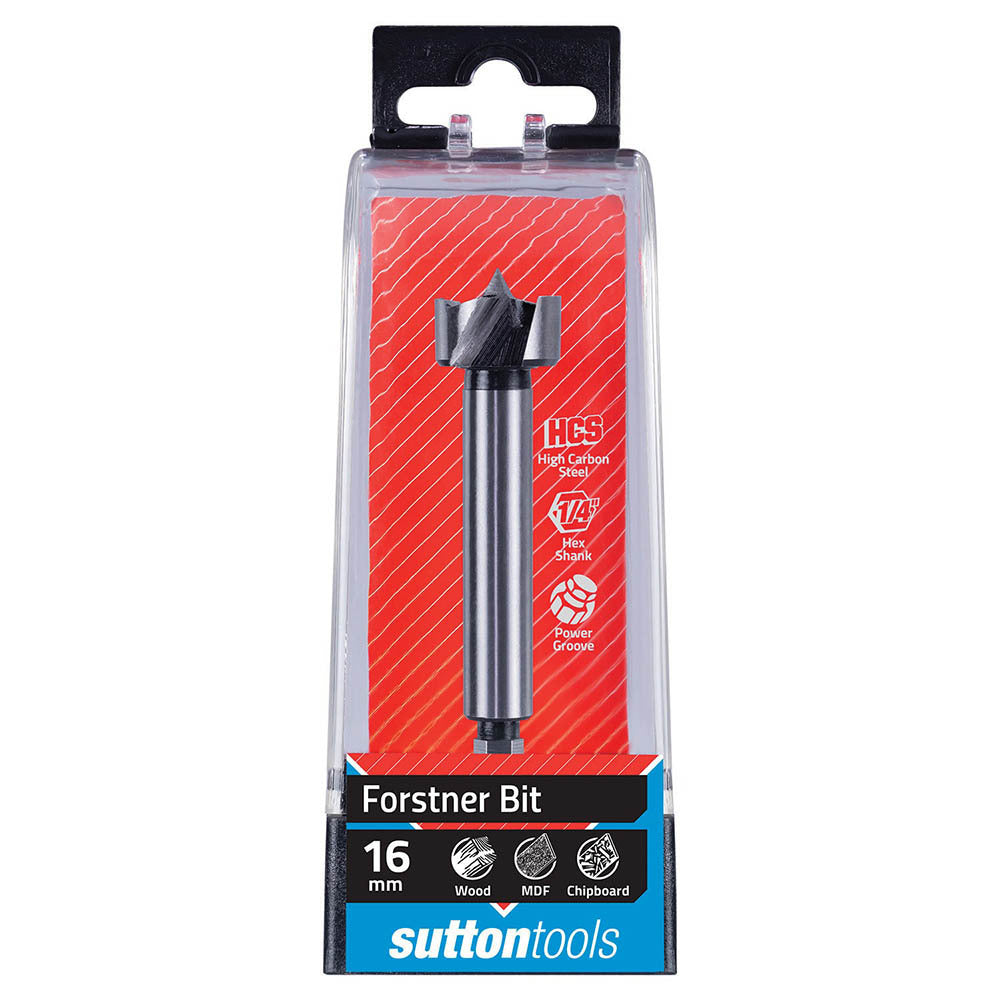

| 16 | 90 | 1/4 hex | 1 | D523 0160 |
| 18 | 90 | 1/4 hex | 1 | D523 0180 |

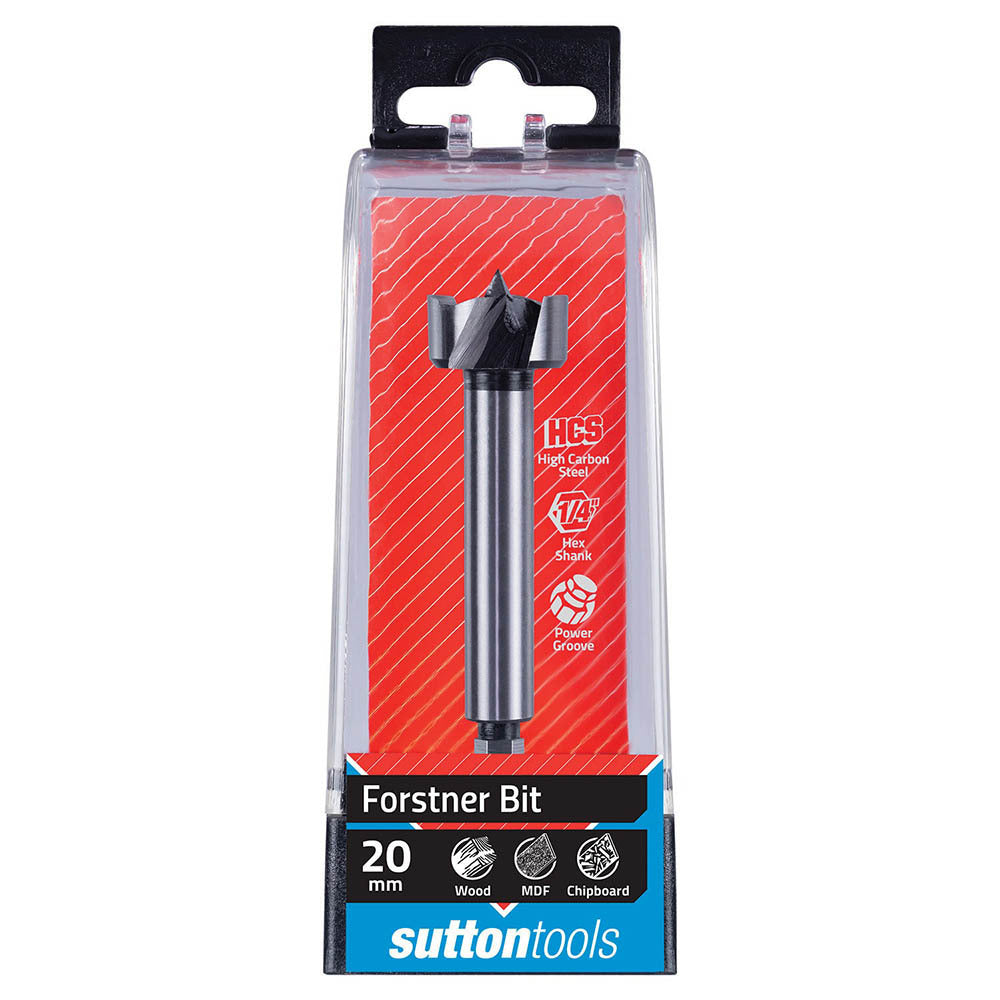

| 20 | 90 | 1/4 hex | 1 | D523 0200 |

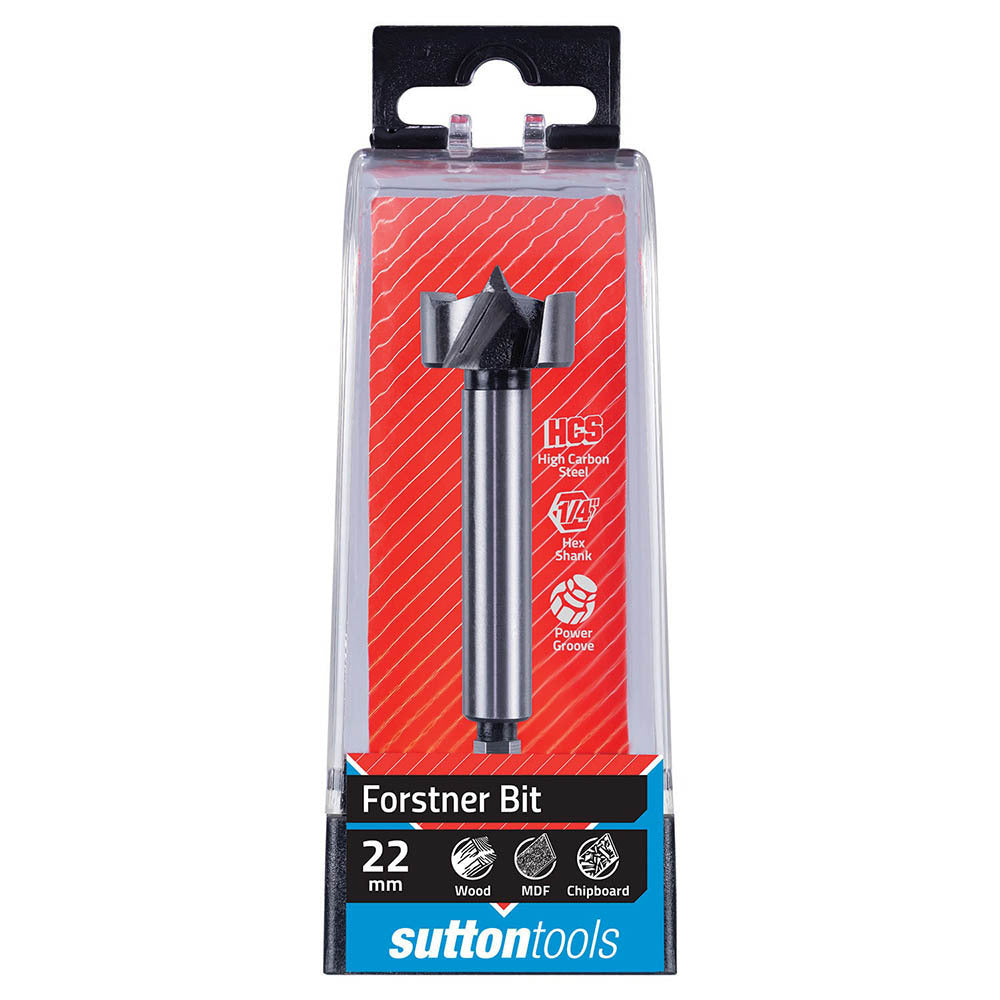

| 22 | 90 | 1/4 hex | 1 | D523 0220 |

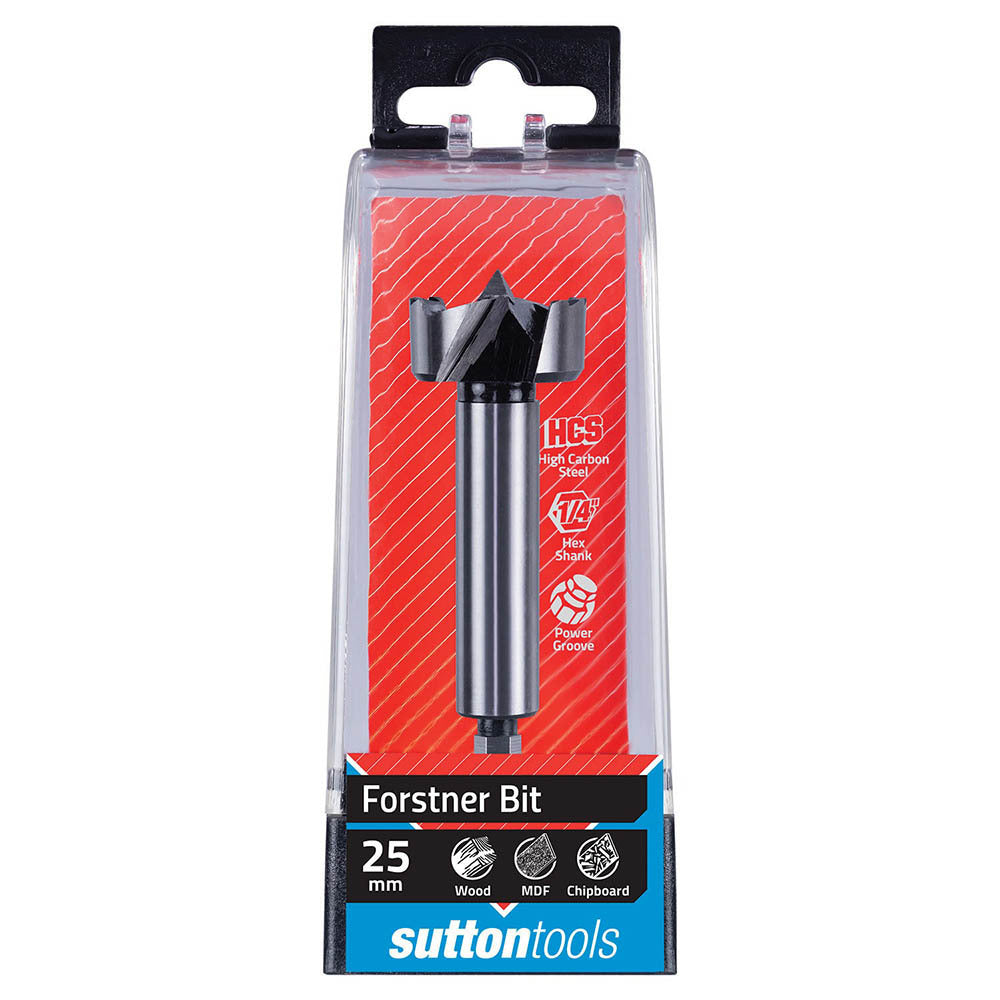

| 25 | 90 | 1/4 hex | 1 | D523 0250 |

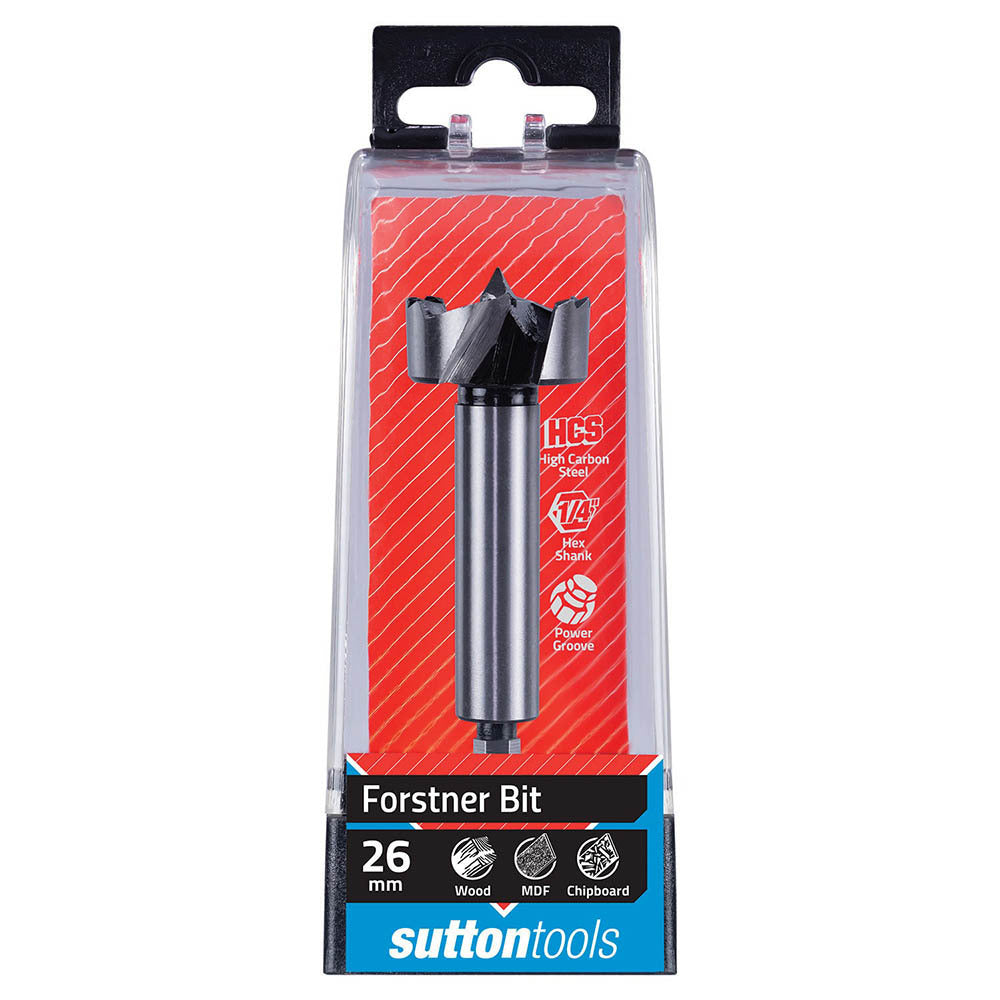

| 26 | 90 | 1/4 hex | 1 | D523 0260 |

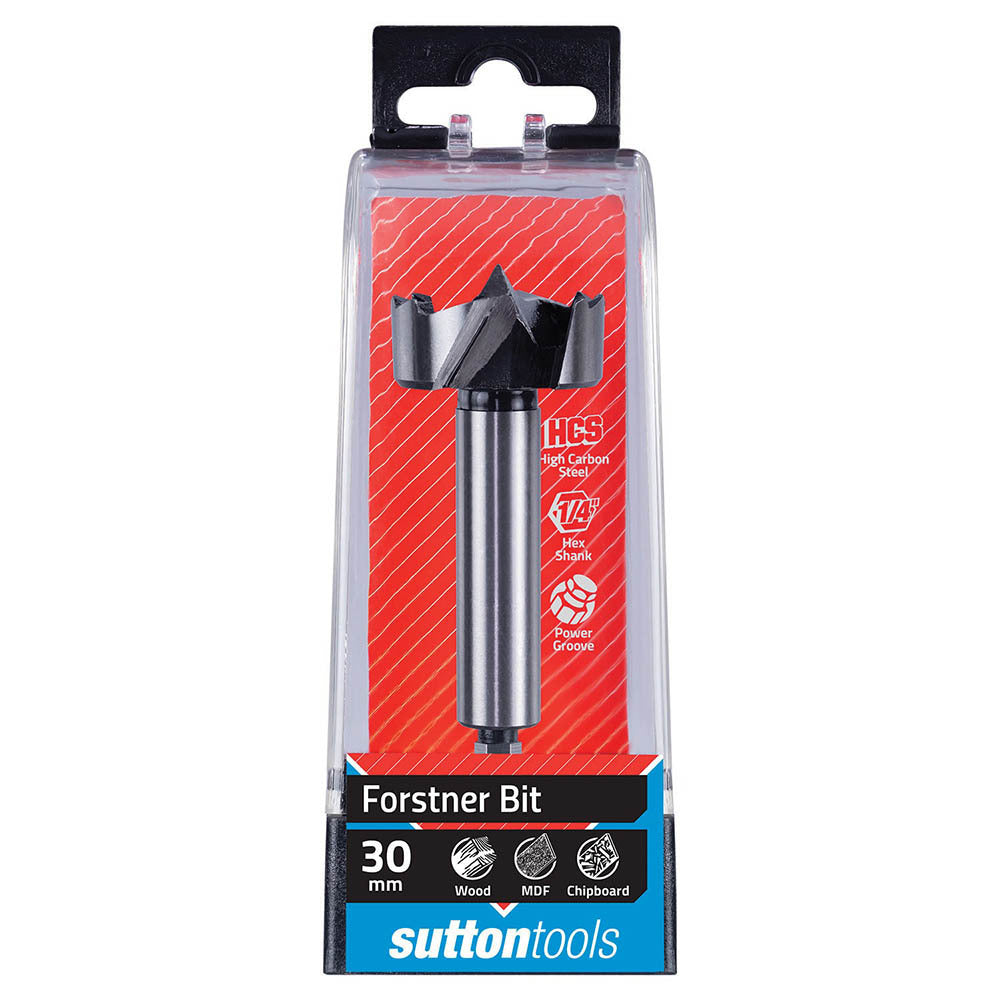

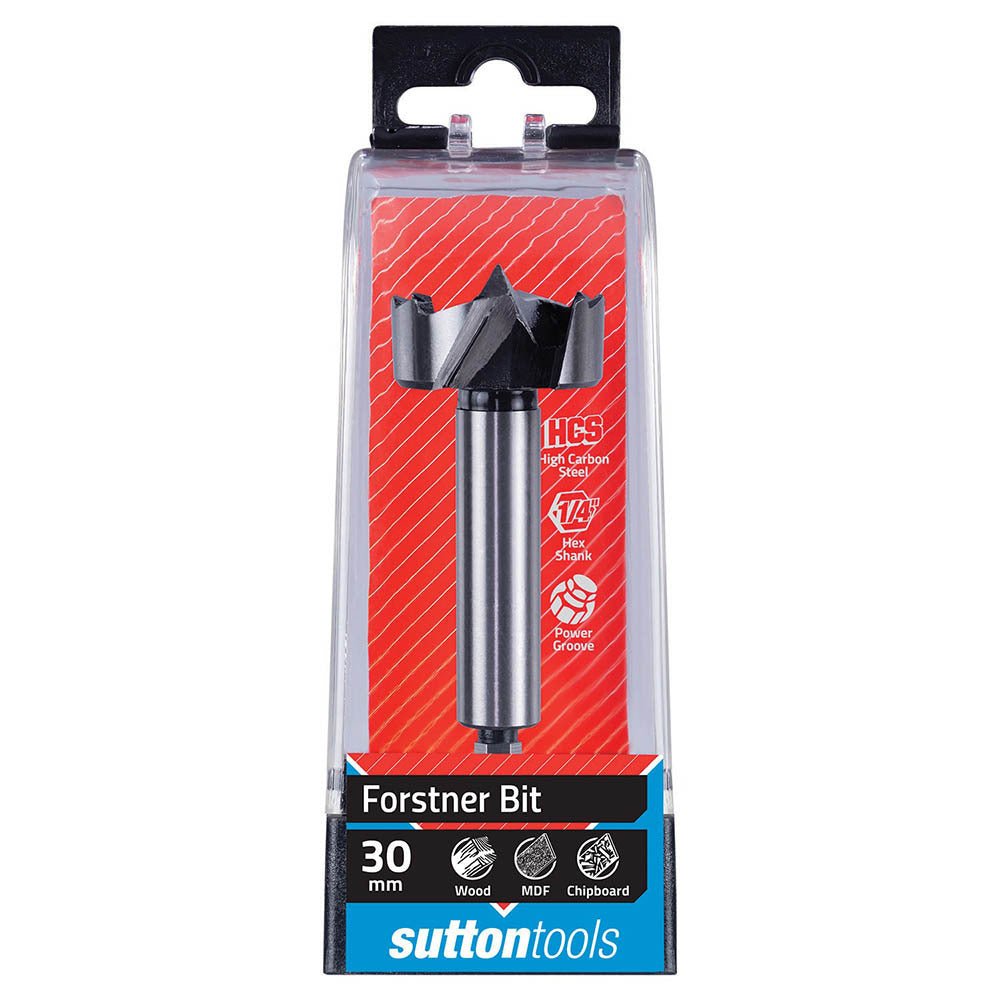

| 30 | 90 | 1/4 hex | 1 | D523 0300 |

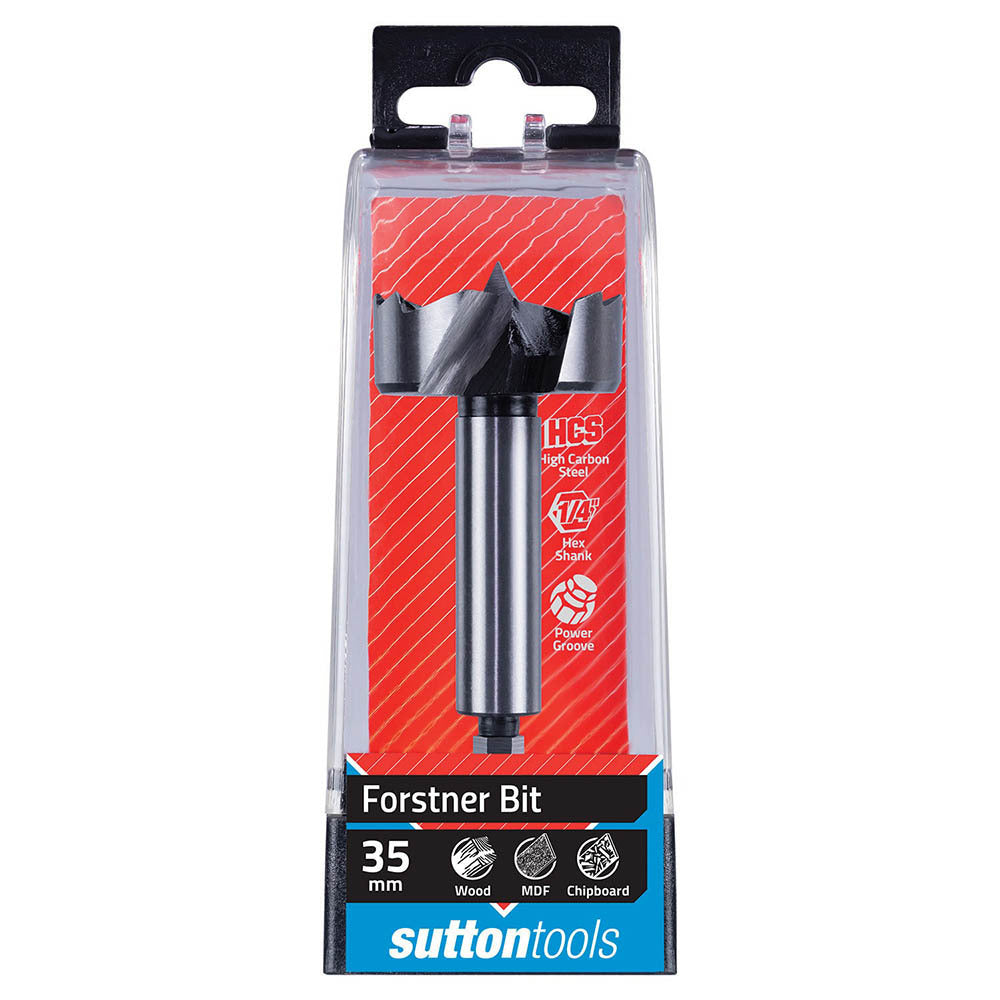

| 35 | 90 | 1/4 hex | 1 | D523 0350 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D523 |
| Range name | Power Groove |
| Type | Forstner bit |
| Shank | 1/4 in hex |
| Overall length | 90 mm |
| Quantity per item | 1 |
| Sizes in this range | 12 sizes, 10-35 mm |
