Sutton 6mm D512 Long Series Auger Bit - 460 mm
Available
The Sutton D512 is the Long Series of Sutton's solid core auger bits, made from tungsten chrome alloy with a hex shank, for fast cutting through holes in timber such as fence posts and railway sleepers. It is listed in 14 sizes from 6 to 38 mm, with overall lengths of 460 to 500 mm and a flute length of 400 mm.
The range is suitable for kiln dried timber hardwood, softwood, MDF and particle boards, and not suitable for green sap woods. It has a solid centre design for extra rigidity while drilling, a coarse screw point that draws the bit into the work piece for fast drilling in hard and soft woods, a single-spur cutting edge that scribes the circumference of the hole for a smoother finish, and wide lands that keep the bit straight as it bores through the hole. The Power Groove hex shank gives positive grip and prevents slippage in the chuck, and fits Sutton Tools extension shanks.
Where this product is used
- Fast cutting through holes in timber such as fence posts and railway sleepers.
- Kiln dried timber hardwood, softwood, MDF and particle boards. The range is not suitable for green sap woods.
- Applications for the range include: DIY, trade, electrical, plumbing, carpentry, woodworking and roofing.
Design features
- Solid core: solid centre design provides extra rigidity while drilling.

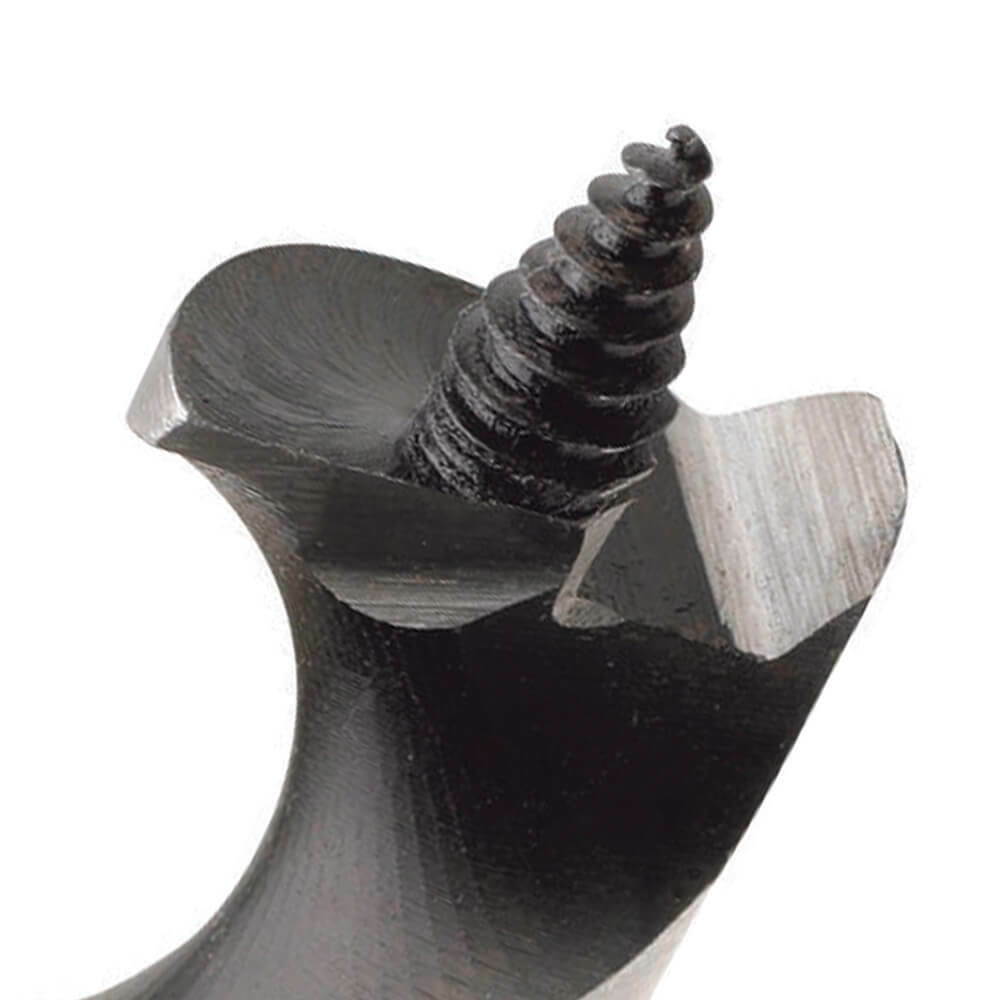

- Coarse screw point: draws the bit into the work piece, providing fast drilling in hard and soft woods.
- Single-spur cutting edge: scribes the circumference of the hole for a smoother finish.
- Wide lands: keep the bit straight as it bores through the hole.
- Power Groove hex shank: positive grip, preventing slippage in the chuck. Fits Sutton Tools extension shanks.
- Made from tungsten chrome alloy.
Sizes and lengths
Diameters and item numbers are shown below. Lengths are in millimetres.

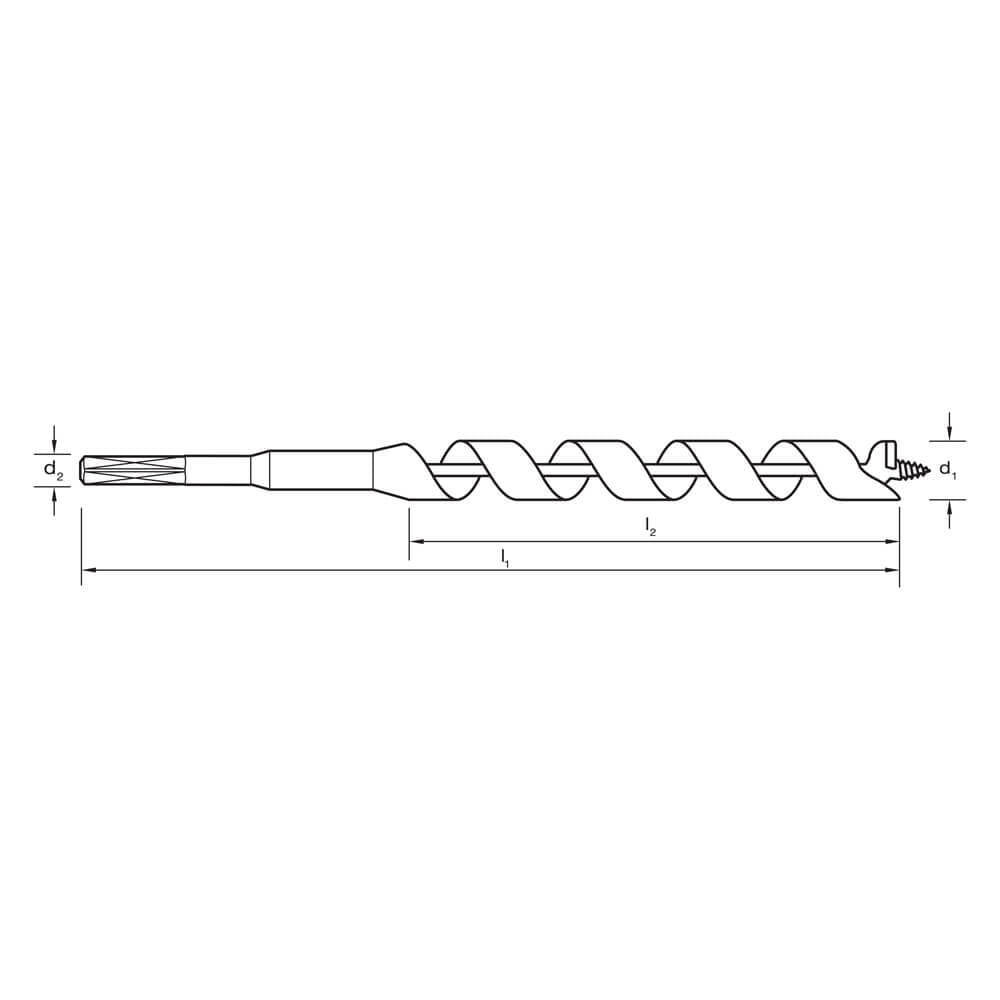

| Diameter (mm) | Overall length (mm) | Flute length (mm) | Shank (inch) | Sutton item no. |
|---|---|---|---|---|

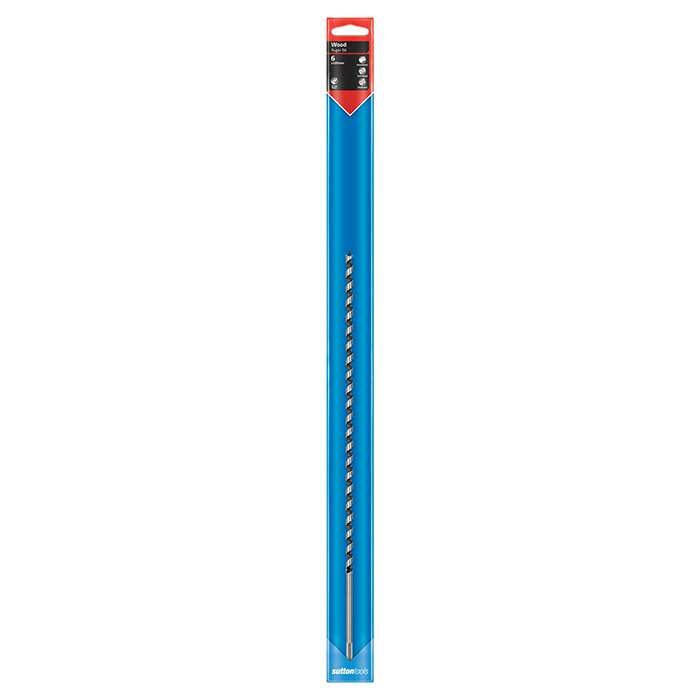

| 6 | 460 | 400 | 1/4 | D512 0600 |

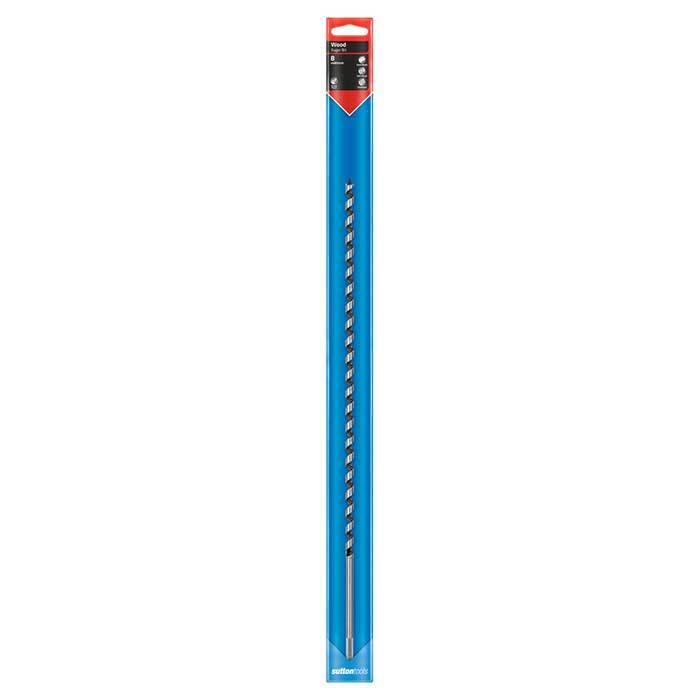

| 8 | 460 | 400 | 1/4 | D512 0800 |
| 10 | 500 | 400 | 1/4 | D512 1000 |
| 12 | 500 | 400 | 1/4 | D512 1200 |
| 13 | 500 | 400 | 7/16 | D512 1300 |
| 14 | 500 | 400 | 7/16 | D512 1400 |

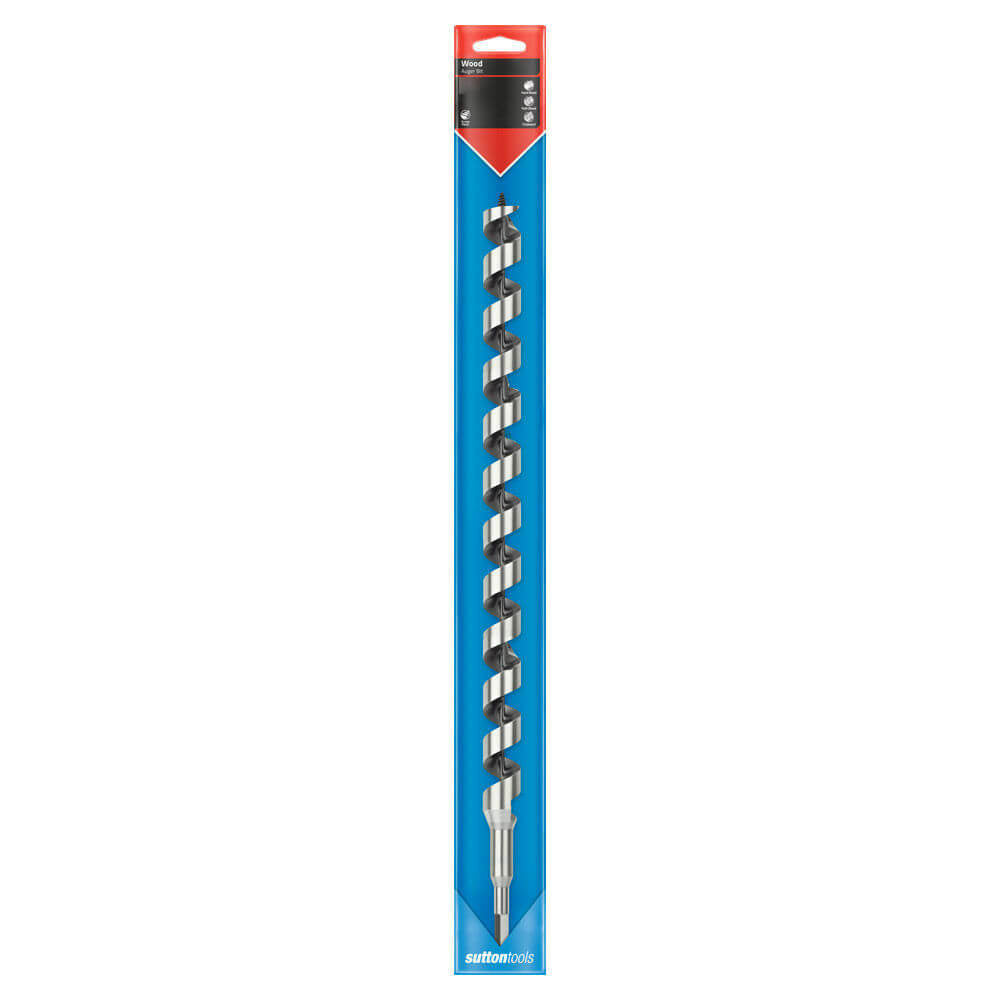

| 16 | 500 | 400 | 7/16 | D512 1600 |
| 18 | 500 | 400 | 7/16 | D512 1800 |
| 20 | 500 | 400 | 7/16 | D512 2000 |
| 22 | 500 | 400 | 7/16 | D512 2200 |
| 25 | 500 | 400 | 7/16 | D512 2500 |

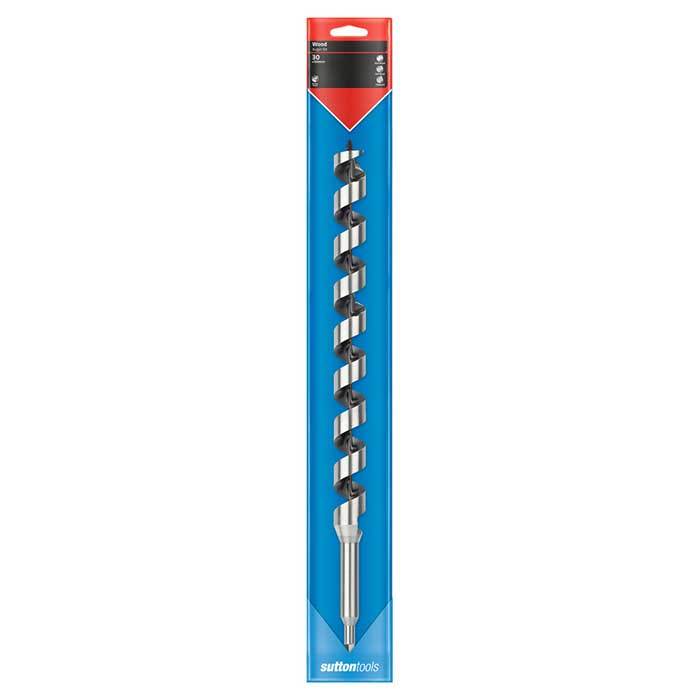

| 30 | 500 | 400 | 7/16 | D512 3000 |
| 32 | 500 | 400 | 7/16 | D512 3200 |

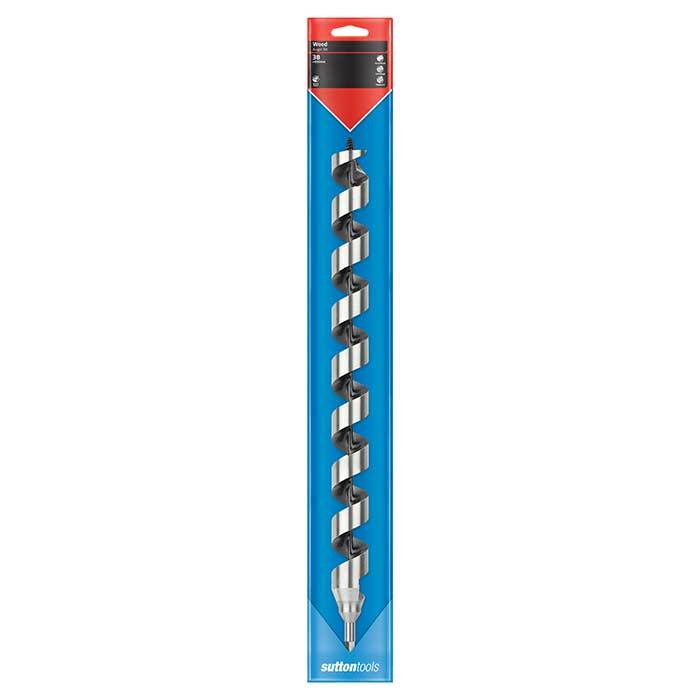

| 38 | 500 | 400 | 7/16 | D512 3800 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D512 |
| Range name | Long Series |
| Type | Auger bit |
| Material | Tungsten chrome alloy |
| Shank | Hex, 1/4 in or 7/16 in (see size table) |
| Flute length | 400 mm |
| Overall length | 460 to 500 mm |
| Sizes in this range | 14 sizes, 6-38 mm |
