Sutton 6mm D501 SupaBore Spade Bit - 150mm
Available

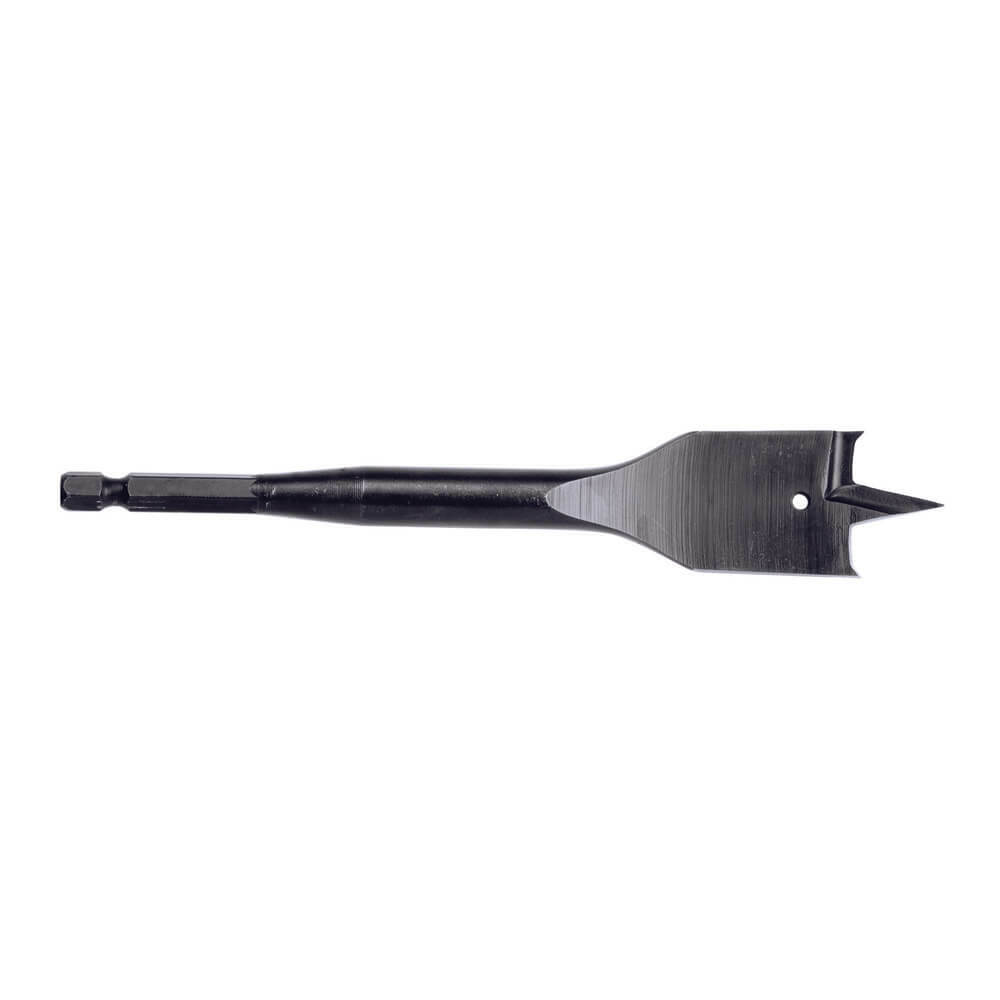

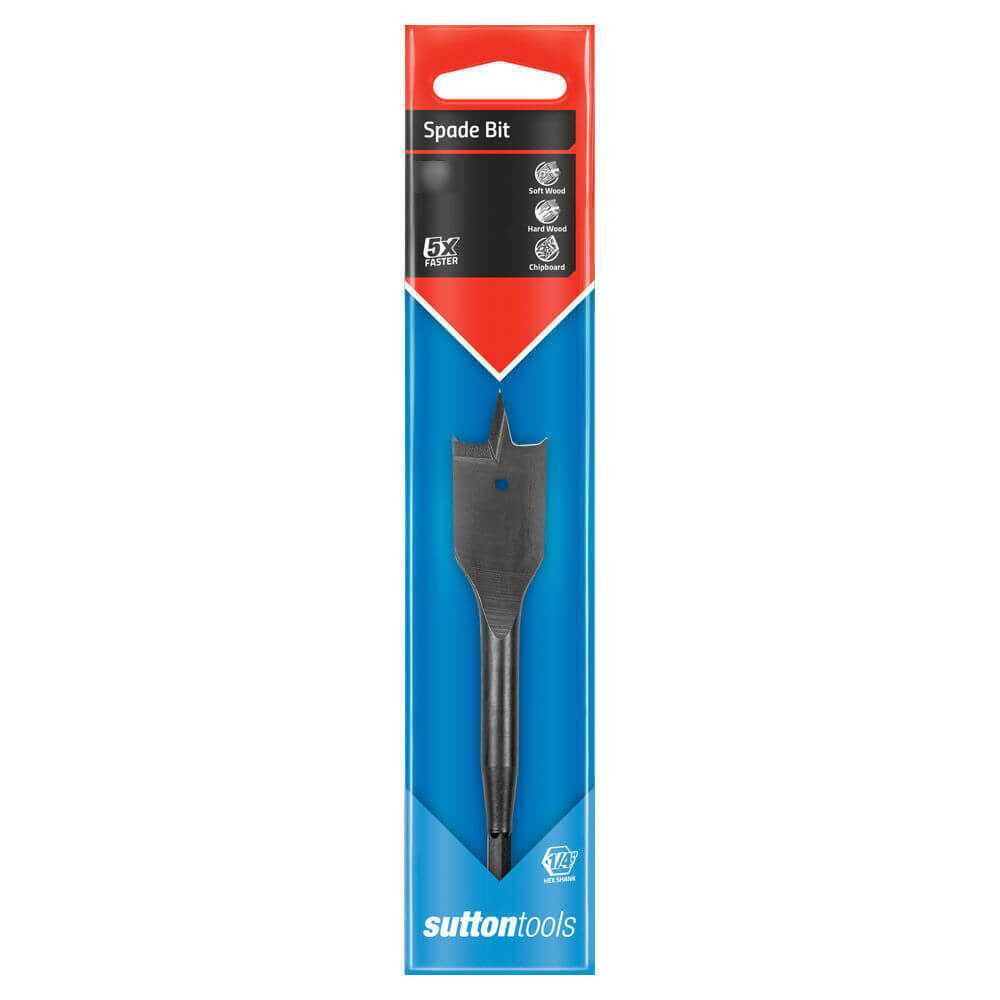

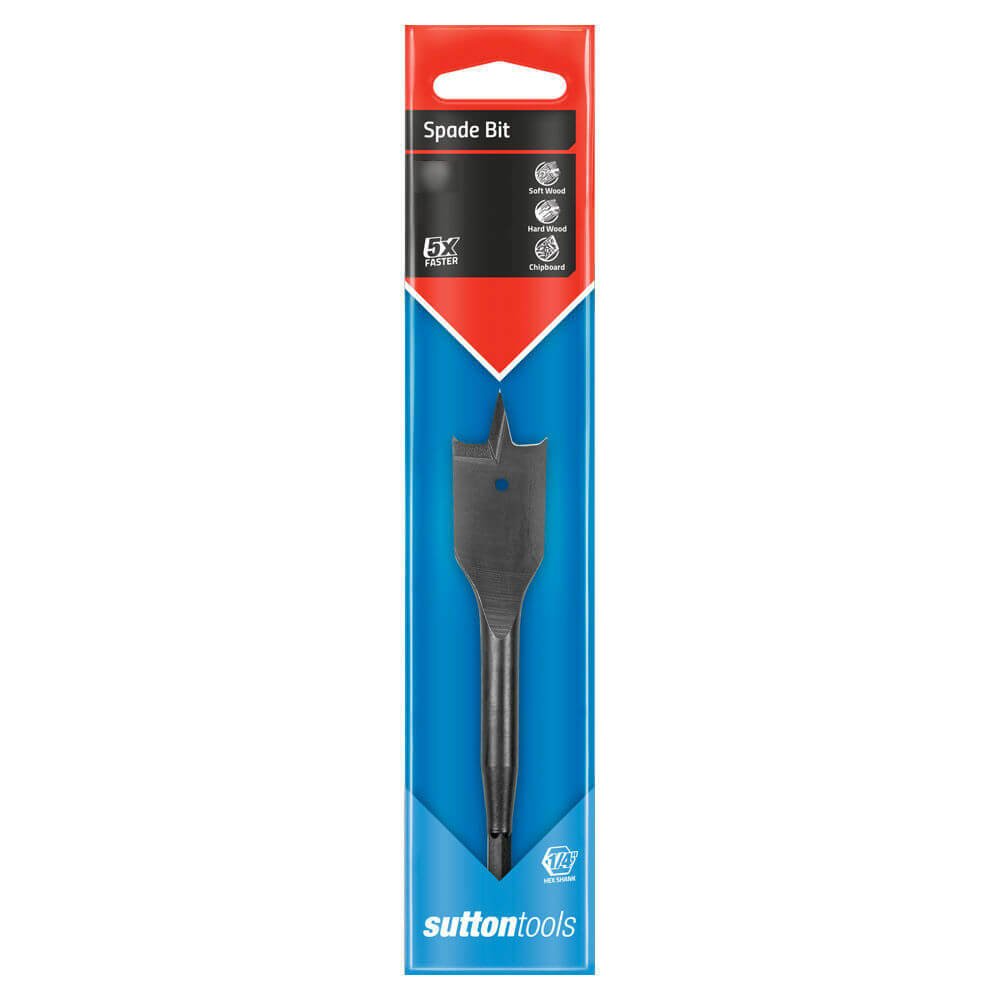

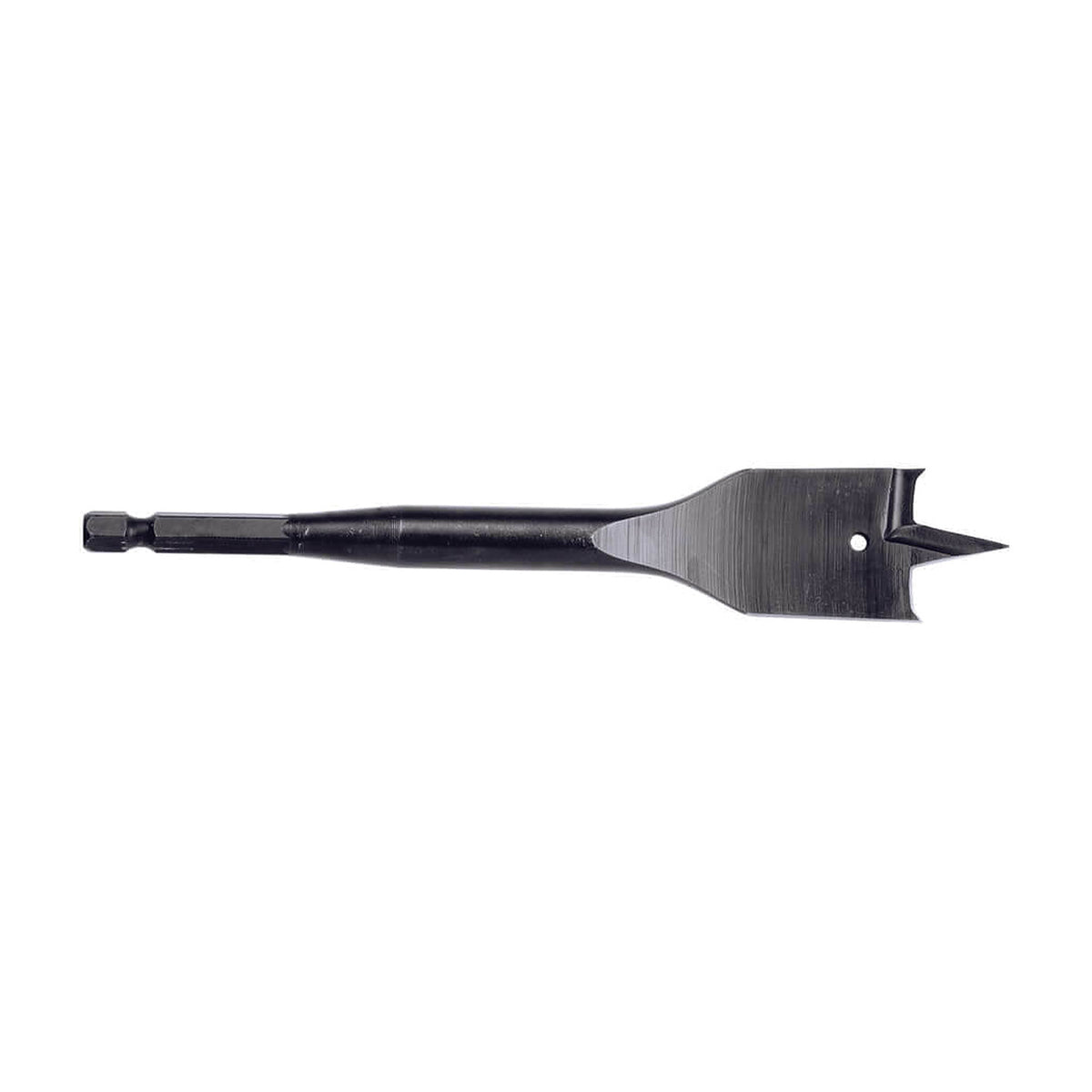

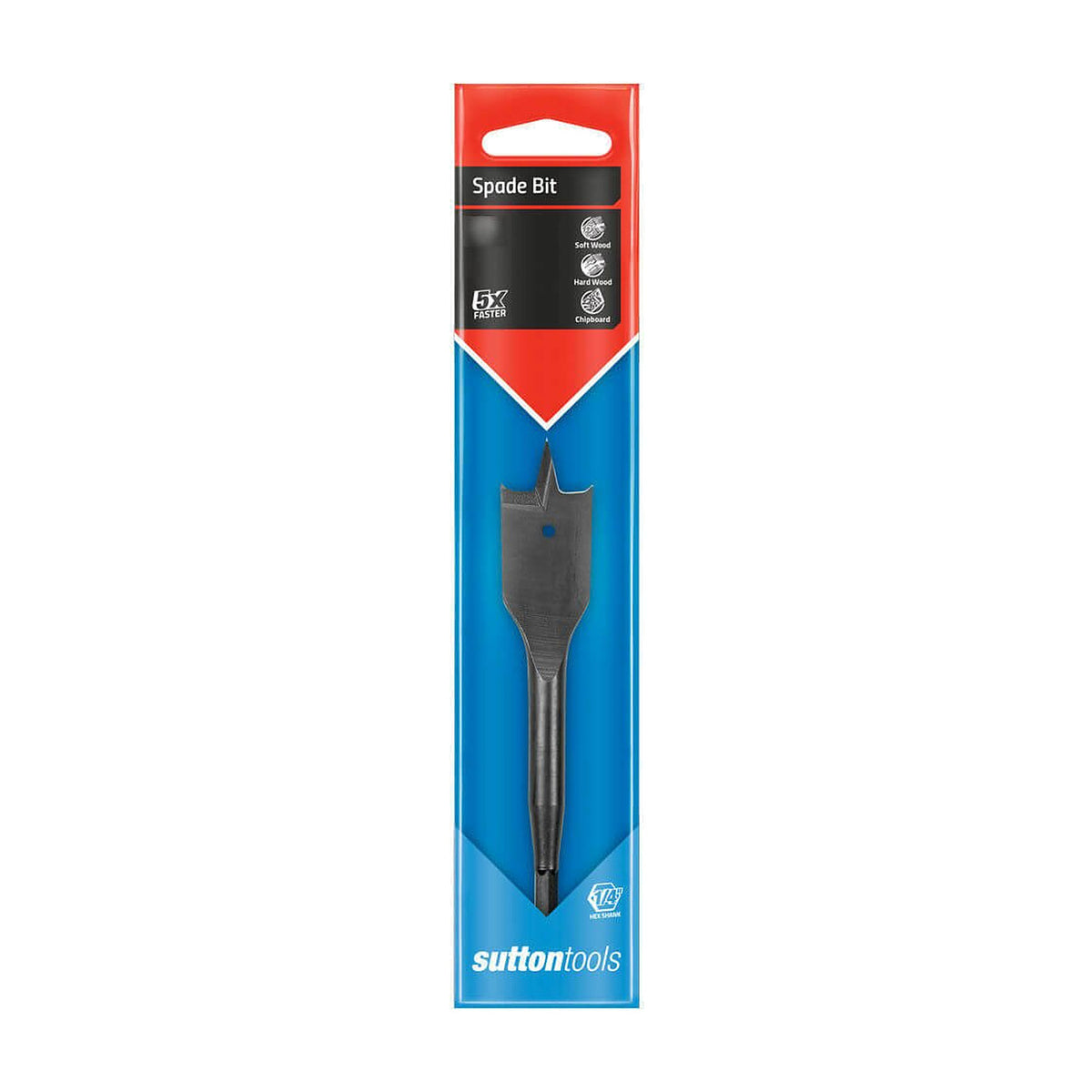

The Sutton D501 SupaBore spade bit is a carbon steel spade bit with a 1/4" hex shank, designed for drilling timber and light building materials. The power chip-breaker edges are designed to cut 5 times faster than standard spade bits, and the heavy duty shank increases efficiency and battery life of your power tool, with clean cutting and minimal break out on exit. It is listed in 19 sizes from 6 to 40 mm, all 150 mm long.
It has a heavy duty shank for maximum strength and durability and greater power transfer, giving more holes per battery charge, a hex shank for positive grip that prevents slippage in the chuck, and a centre hole for pulling wires through holes. The bit is made from carbon steel with a manganese phosphate coating, which gives the highest hardness and superior corrosion and wear resistance. Extension shanks (D502, 150 mm and 300 mm) are available for use with spade bits of 19 mm and larger.
Where this product is used
- Drilling timber and light building materials.
- Materials covered include MDF, pallet, soft wood, window frame, chipboard, hard wood, plywood and laminate.
- Use with impact drivers and drills, which the 1/4" hex shank suits.
Design features

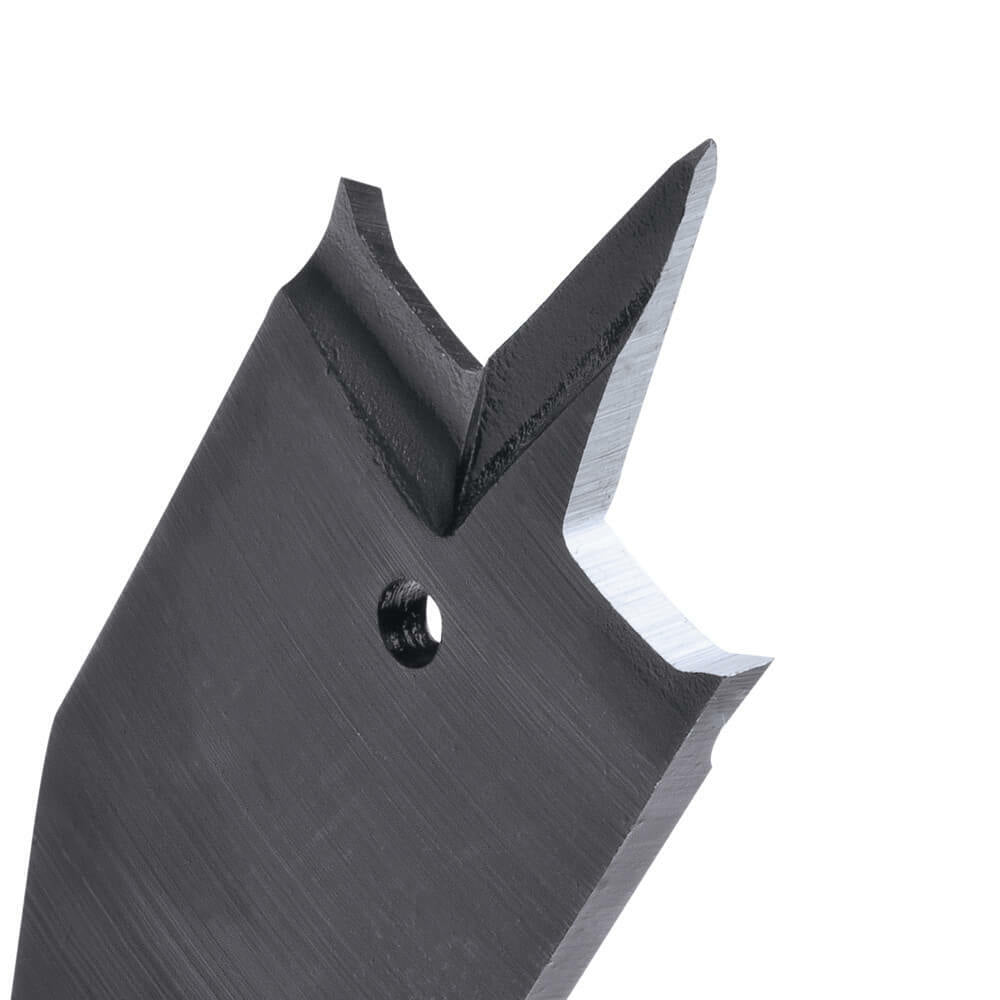

- Power chip-breaker edges: designed to cut 5 times faster than standard spade bits.
- Heavy duty shank: maximum strength and durability, with greater power transfer for more holes per battery charge.
- Hex shank: positive grip, preventing slippage in the chuck.

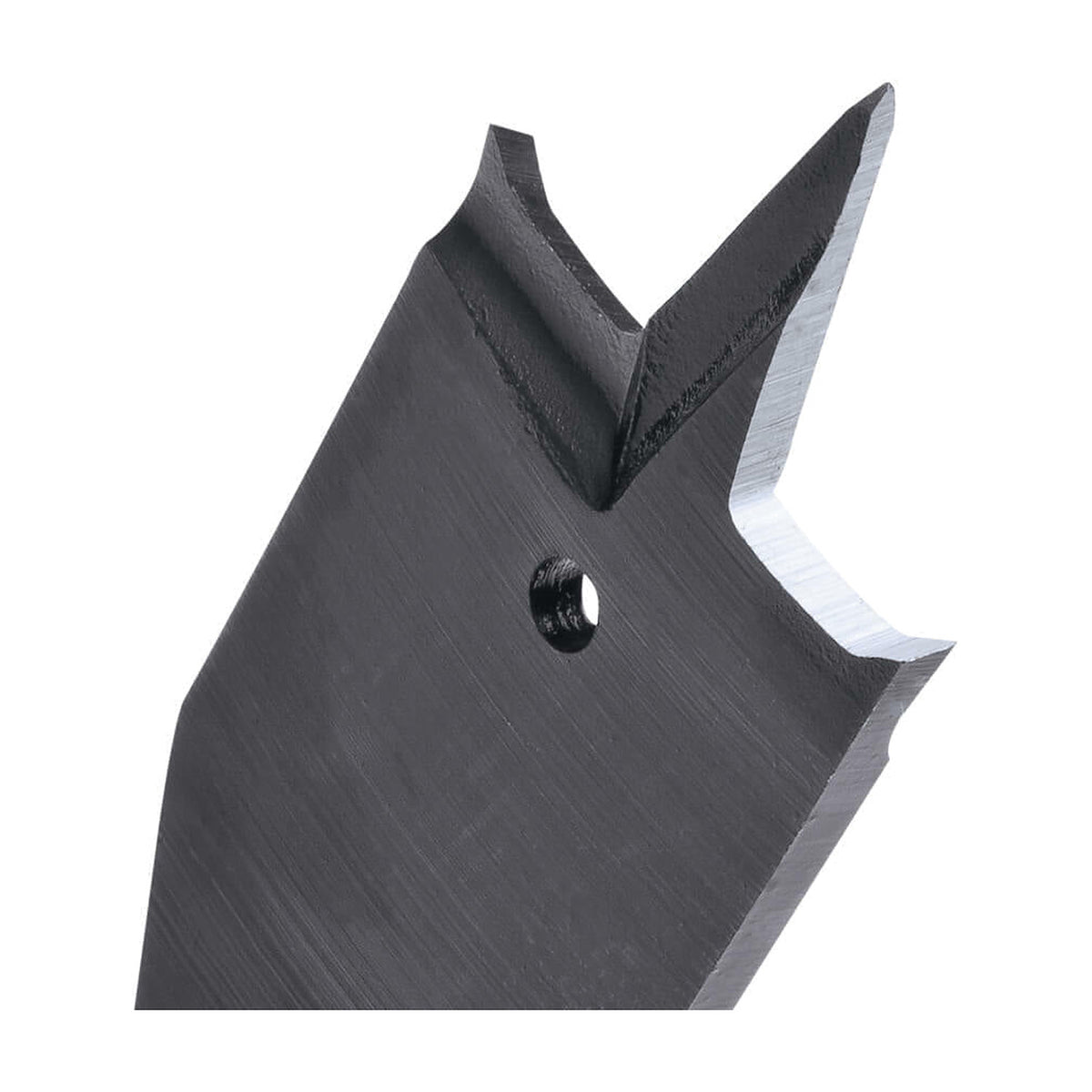

- Centre hole: for pulling wires through holes.
- Carbon steel with manganese phosphate coating: gives the highest hardness and superior corrosion and wear resistance.
Sizes and lengths
Diameters and item numbers are shown below. Lengths are in millimetres.
| Diameter (mm) | Overall length (mm) | Shank (inch) | Sutton item no. |
|---|---|---|---|
| 6 | 150 | 1/4 hex | D501 0600 |
| 8 | 150 | 1/4 hex | D501 0800 |
| 10 | 150 | 1/4 hex | D501 1000 |
| 12 | 150 | 1/4 hex | D501 1200 |
| 13 | 150 | 1/4 hex | D501 1300 |
| 14 | 150 | 1/4 hex | D501 1400 |
| 16 | 150 | 1/4 hex | D501 1600 |
| 18 | 150 | 1/4 hex | D501 1800 |

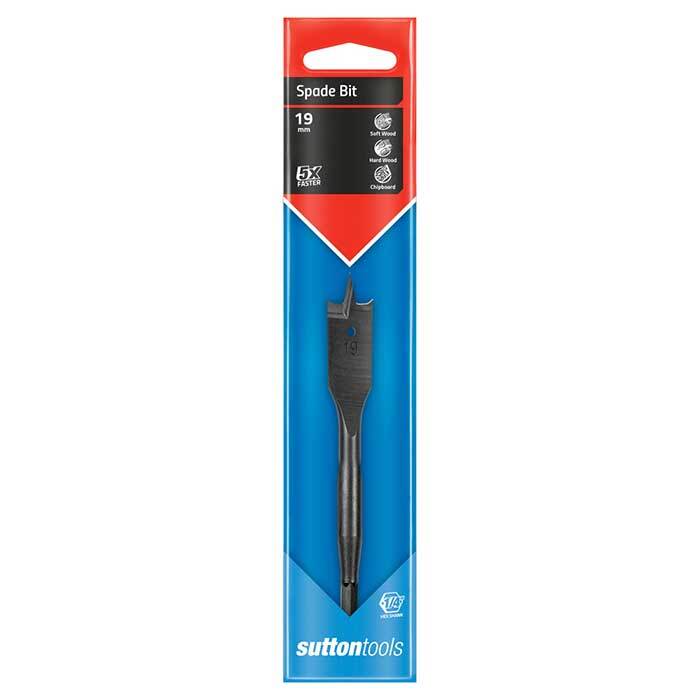

| 19 | 150 | 1/4 hex | D501 1900 |
| 20 | 150 | 1/4 hex | D501 2000 |
| 22 | 150 | 1/4 hex | D501 2200 |
| 24 | 150 | 1/4 hex | D501 2400 |
| 25 | 150 | 1/4 hex | D501 2500 |
| 28 | 150 | 1/4 hex | D501 2800 |
| 30 | 150 | 1/4 hex | D501 3000 |

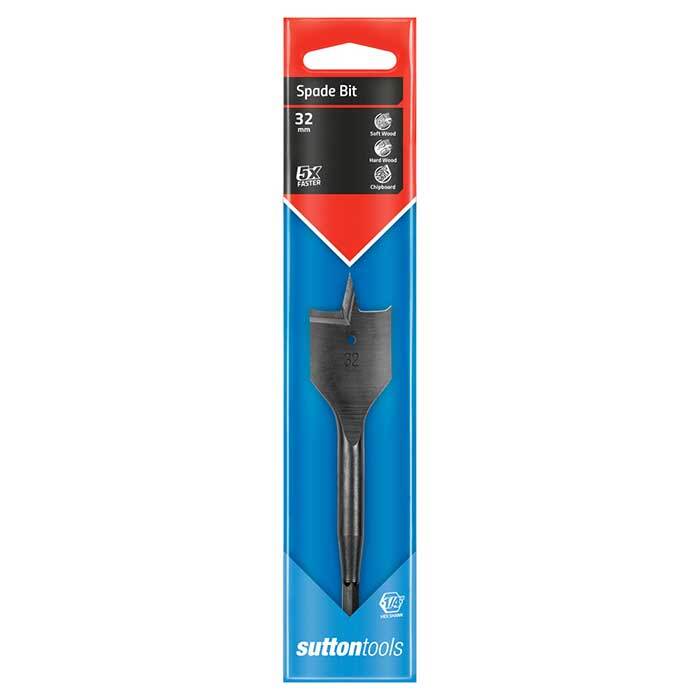

| 32 | 150 | 1/4 hex | D501 3200 |
| 35 | 150 | 1/4 hex | D501 3500 |
| 38 | 150 | 1/4 hex | D501 3800 |
| 40 | 150 | 1/4 hex | D501 4000 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D501 |
| Range name | SupaBore |
| Type | Spade bit |
| Material | Carbon Steel |
| Finish | Manganese Phosphate |
| Shank form | Hex (1/4 in) |
| Overall length | 150 mm |
| Quantity per item | 1 |
| Sizes in this range | 19 sizes, 6-40 mm |
Related drilling products
Compare other Sutton wood boring bits: D512 Long Series auger bit and D523 Power Groove Forstner bit. Browse all Spade Drill Bits. Need help choosing? Our guide to choosing the right drill bit and drill bit selection guide cover drill types and materials.
