Sutton M207 MF Hand Tap Set (Taper/Interm/Bottoming) Tungsten Chrome1

Sutton M207 MF Hand Tap Set (Taper/Interm/Bottoming) Tungsten Chrome2

Sutton M2070805 MF8 x 1 Hand Tap Set (Taper/Interm/Bottom) TCA

Sutton M2071005 MF10 x 1 Hand Tap Set (Taper/Interm/Bottom) TCA

Sutton M2071006 MF10 x 1.25 Hand Tap Set (Taper/Interm/Bottom) TCA

Sutton M2071206 MF12 x 1.25 Hand Tap Set (Taper/Interm/Bottom) TCA

Sutton M2071207 MF12 x 1.5 Hand Tap Set (Taper/Interm/Bottom) TCA

Sutton M2071407 MF14 x 1.5 Hand Tap Set (Taper/Interm/Bottom) TCA

Sutton M2071607 MF16 x 1.5 Hand Tap Set (Taper/Interm/Bottom) TCA

Sutton M2071807 MF18 x 1.5 Hand Tap Set (Taper/Interm/Bottom) TCA

Sutton M2072007 MF20 x 1.5 Hand Tap Set (Taper/Interm/Bottom) TCA

Sutton M2072207 MF22 x 1.5 Hand Tap Set (Taper/Interm/Bottom) TCA

Sutton M2072408 MF24 x 2 Hand Tap Set (Taper/Interm/Bottom) TCA

Description +

Descriptions

Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

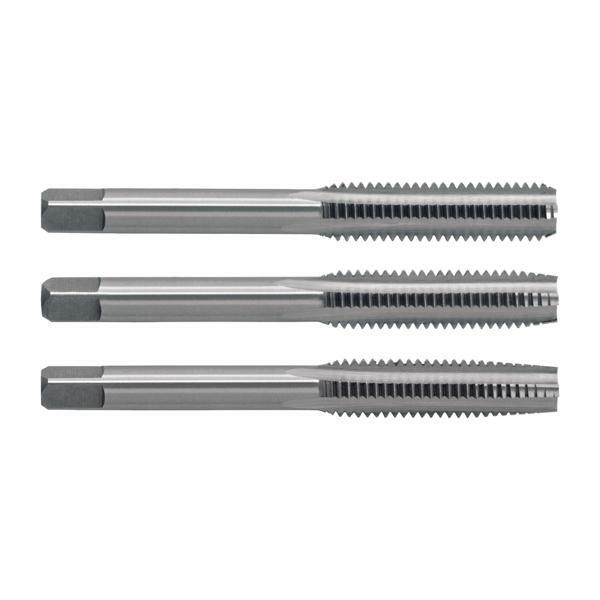

Set comprises 1 each- taper, intermediate & bottoming leads.

Features

Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter

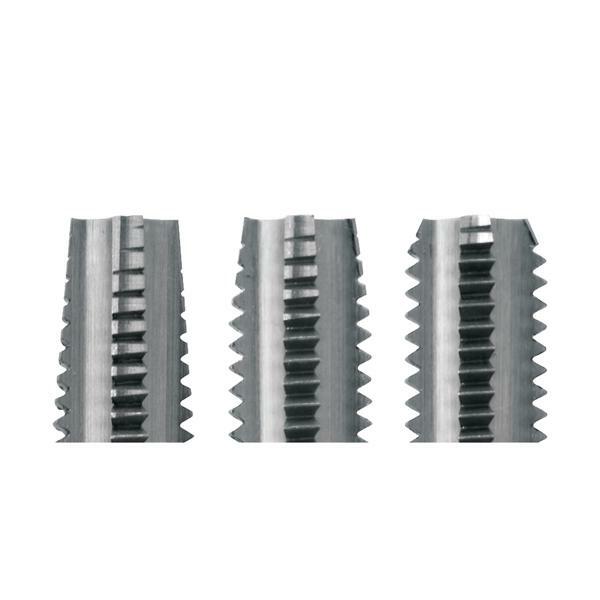

Taper lead: suitable for starting a thread
Intermediate lead: used after a taper lead and are suitable for through holes
Bottoming lead: used after a taper lead and are suitable for blind holes
Square shank for use with a suitable tap wrench to drive the tap
Made from tungsten chrome alloy
Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

Designation: N (for normal general purpose type materials)
Material: Tungsten Chrome Alloy (TCA)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Square Shank
X: als
Type: Straight Flute
Thread Form: ISO Metric Fine (MF)
Lead: Set

Specifications +

Designation: N (for normal general purpose type materials)
Material: Tungsten Chrome Alloy (TCA)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Square Shank
X: als
Type: Straight Flute
Thread Form: ISO Metric Fine (MF)
Lead: Set

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton M207 MF Hand Tap Set (Taper/Interm/Bottoming) Tungsten Chrome

SKU: A0011100

$33.80

Inc. GST

Available

The Sutton M207 MF Hand Tap Set (Taper/Interm/Bottoming) Tungsten Chrome by Sutton Tools is a 0 with Bright finish for general purpose applications non-ferrous metals. It offers tapping up to 1-1/2 x diameter and is suitable for machining.
