Sutton M226 BSW Hand Tap - Bottoming - Tungsten Chrome 1

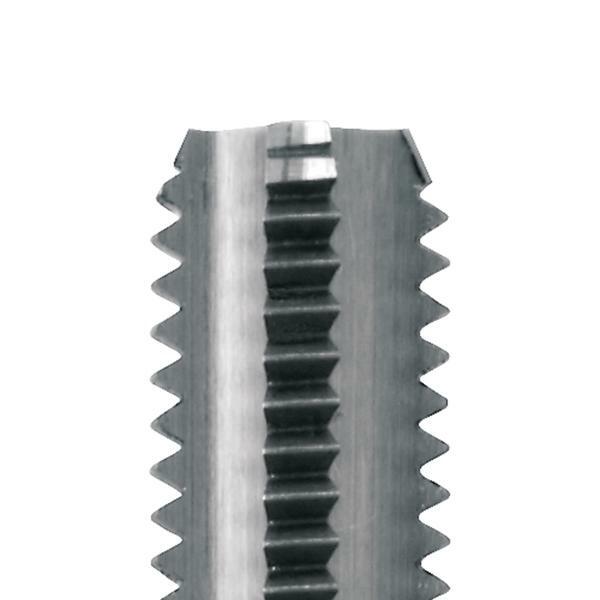

Sutton M226 BSW Hand Tap - Bottoming - Tungsten Chrome 2
Sutton M2260318 BSW 1/8 x 40 Hand Tap - Bottoming - Tungsten Chrome

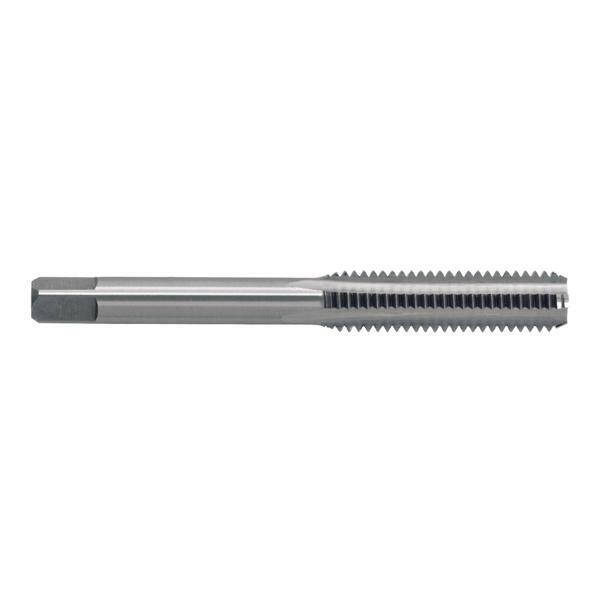

Sutton M2260397 BSW 5/32 x 32 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2260476 BSW 3/16 x 24 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2260635 BSW 1/4 x 20 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2260794 BSW 5/16 x 18 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2260953 BSW 3/8 x 16 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2261111 BSW 7/16 x 14 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2261270 BSW 1/2 x 12 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2261429 BSW 9/16 x 12 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2261588 BSW 5/8 x 11 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2262223 BSW 7/8 x 9 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2262540 BSW 1 x 8 Hand Tap - Bottoming - Tungsten Chrome
Sutton M226 BSW Hand Tap - Bottoming - Tungsten Chrome 1
Sutton M226 BSW Hand Tap - Bottoming - Tungsten Chrome 2
Sutton M2260318 BSW 1/8 x 40 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2260397 BSW 5/32 x 32 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2260476 BSW 3/16 x 24 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2260635 BSW 1/4 x 20 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2260794 BSW 5/16 x 18 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2260953 BSW 3/8 x 16 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2261111 BSW 7/16 x 14 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2261270 BSW 1/2 x 12 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2261429 BSW 9/16 x 12 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2261588 BSW 5/8 x 11 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2262223 BSW 7/8 x 9 Hand Tap - Bottoming - Tungsten Chrome
Sutton M2262540 BSW 1 x 8 Hand Tap - Bottoming - Tungsten Chrome

Sutton M226 BSW Hand Tap - Bottoming - Tungsten Chrome

Sutton M226 BSW Hand Tap - Bottoming - Tungsten Chrome

SKU: A0011296

$70.61
$70.61
Inc. GST
Buy It Now

Available

The Sutton M226 BSW Hand Tap by Sutton Tools is a 0 made from Tungsten Chrome. It provides 40 TPI and is suitable for machining.

Resources

Descriptions

  • Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
  • Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
  • Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Tungsten Chrome Alloy (TCA)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Square Shank
  • X: als
  • Type: Straight Flute
  • Thread Form: British Standard Whitworth 55¬∞ (BSW)
  • Lead: Bottoming

Features

  • Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
  • Bottoming lead: used after a taper lead tap and are suitable for creating threads close to the bottom of blind holes
  • Square shank for use with a suitable tap wrench to drive the tap
  • Made from tungsten chrome alloy
  • Bright finish for general purpose applications, non-ferrous metals & plastics
