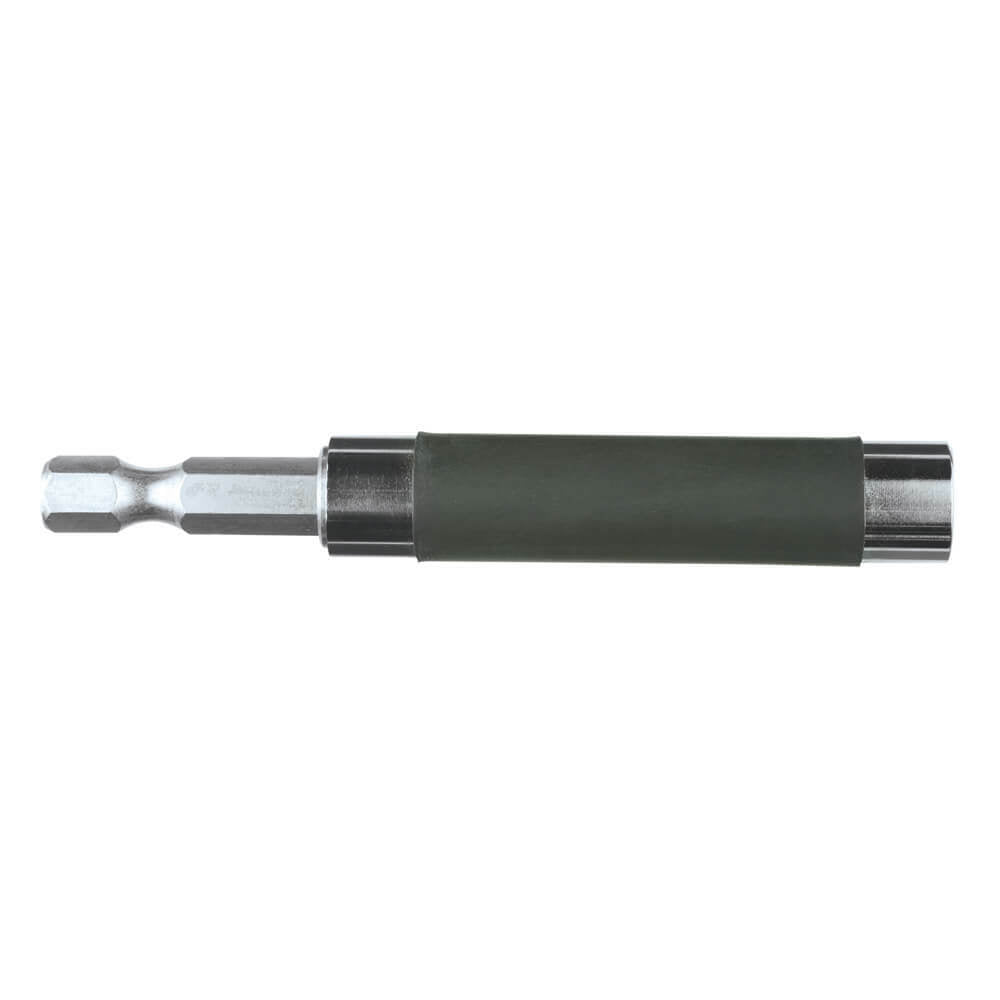

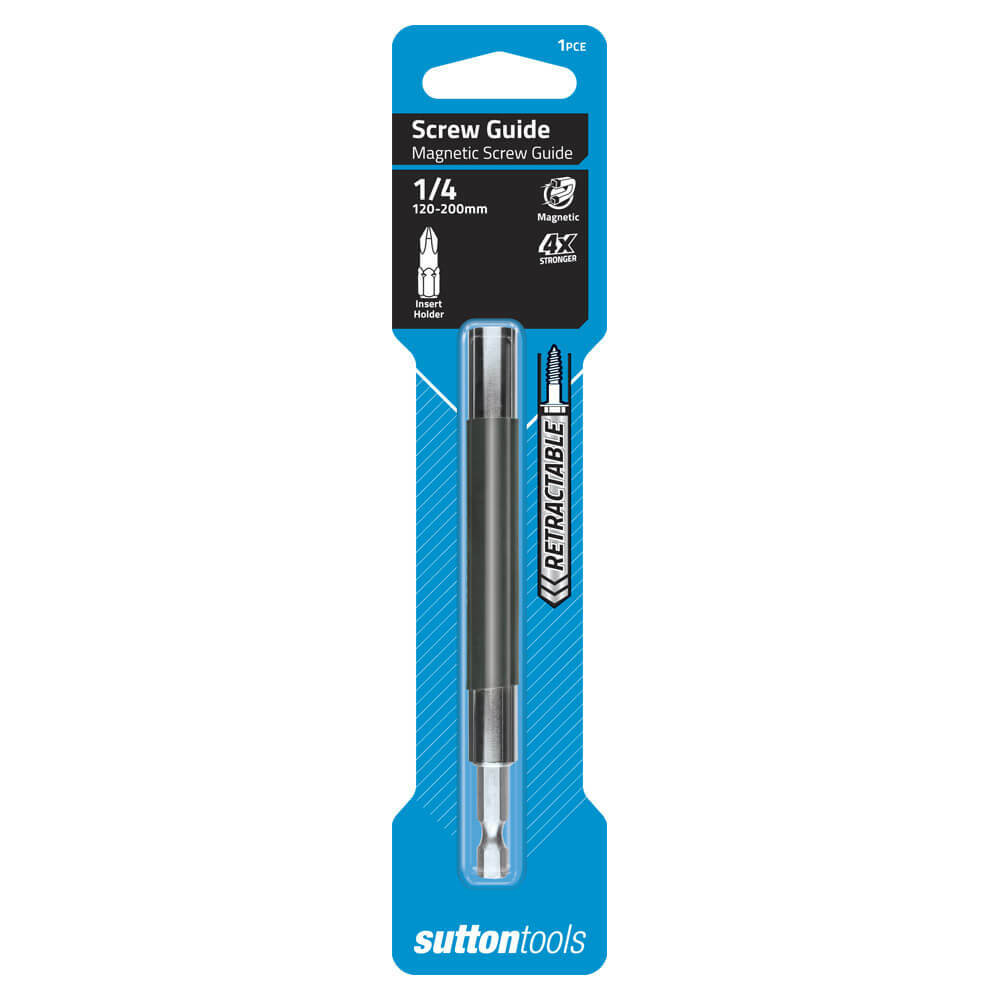

Sutton S13080120 Magnetic Screw Guide 120mm - 1/4in Hex, Retracting Sleeve
Available
The Sutton S130 is a magnetic power bit holder with a retracting sleeve (screw guide), in 120 mm and 200 mm lengths with a 1/4" hex shank. It is designed to hold extra long fasteners in place while they are driven.
The rare earth magnet is 4 times stronger than a standard magnet and is designed to hold the screw firmly. The retracting sleeve retracts as the fastener is driven into the workpiece, and the 1/4" hex shank is for use in power tools and quick change adapters. The length shown is the length when retracted.
Where this product is used
- Holding and driving extra long fasteners in place.
Design features
- Rare earth magnet: 4 times stronger than standard magnets, designed to hold the screw firmly.
- Retracting sleeve: retracts as the fastener is driven into the workpiece.
- 1/4" hex shank: for use in power tools and quick change adapters.
- Two lengths: 120 mm and 200 mm (retracted).
Lengths and item numbers
| Sutton item no. | Hex shank | Length (mm) |
|---|---|---|
| S130 80120 | 1/4" | 120 (retracted) |
| S130 120200 | 1/4" | 200 (retracted) |
Using the screw guide
- Fit the 1/4" hex shank in a power tool or quick change adapter and fit a bit in the holder.
- Place the screw in the magnetic guide and set it against the workpiece.
- Drive the fastener: the guide sleeve retracts as the fastener goes into the workpiece.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | S130 |
| Type | Magnetic power bit holder with retracting sleeve |
| Hex shank | 1/4" |
| Lengths | 120 mm and 200 mm (retracted) |
| Magnet | Rare earth |
Related products
Related Sutton accessories: D516 quick change extension shanks and S137 magnetic socket adaptor bit.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton S130 Magnetic Screw Guide Power Bit Holder 1/4" Hex - 120mm and 200mm, Retracting Sleeve: 3.1 - 4.7
SKU: A0012750 | Model: S13080120
Tool Length (inch) 3.1 - 4.7. Descriptions
Magnetic Screw Guides are Designed to hold extra long fasteners in place, for more efficient hands-free fixing
The guide sleeve retracts as the fastener is driven into the workpiece
The extra-strong rare earth magnet ensures the fastener will stay in place while working.
