Sutton T105 M6 x 1 Spiral Point Tap - HSSE - TiN - DIN 376
Available

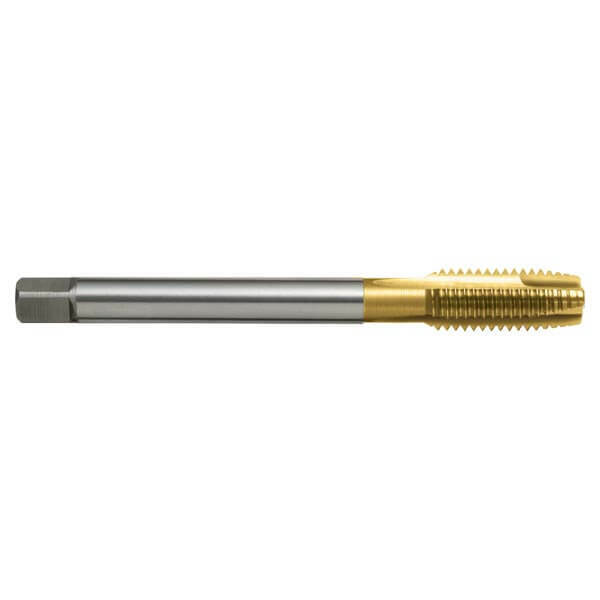

The Sutton T105 is a spiral point (gun) tap (N designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a gold titanium nitride (TiN) coating. This listing covers 8 sizes from M6 x 1 to M30 x 3.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 376: reduced shank with square drive.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through holes.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Gold titanium nitride (TiN) coating for 3 to 8 times longer tool life than uncoated tools, with higher speeds and feeds.
- 3 to 4 flutes, depending on size.
- Form B chamfer, 4.5 x P.
- Thread tolerance ISO 2 / 6H.
- The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
- DIN 376 construction, reduced shank with square drive.
Sizes

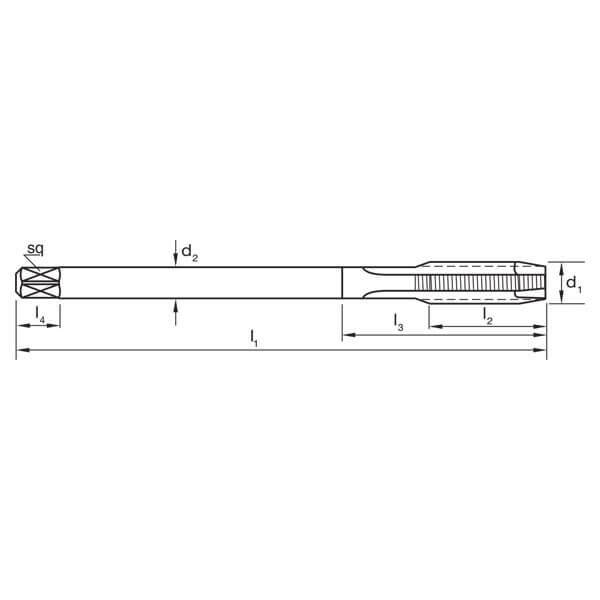

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T105 0600 | M6 x 1 | 1 | 5 | 80 | 19 | 4.5 | 3.4 | 6 | 3 |
| T105 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 24 | 7 | 5.5 | 8 | 3 |
| T105 1200 | M12 x 1.75 | 1.75 | 10.2 | 110 | 28 | 9 | 7 | 10 | 3 |
| T105 1400 | M14 x 2 | 2 | 12 | 110 | 30 | 11 | 9 | 12 | 3 |
| T105 1600 | M16 x 2 | 2 | 14 | 110 | 32 | 12 | 9 | 12 | 3 |
| T105 2200 | M22 x 2.5 | 2.5 | 19.5 | 140 | 34 | 18 | 14.5 | 17 | 4 |
| T105 2700 | M27 x 3 | 3 | 24 | 160 | 38 | 20 | 16 | 19 | 4 |
| T105 3000 | M30 x 3.5 | 3.5 | 26.5 | 180 | 45 | 22 | 18 | 21 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T105 |
| Type | Spiral point (gun) tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | TiN |
| Designation | N |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 376 |
| Flutes | 3 to 4 |
| Sizes in this listing | 8 sizes, M6 x 1 to M30 x 3.5 |
