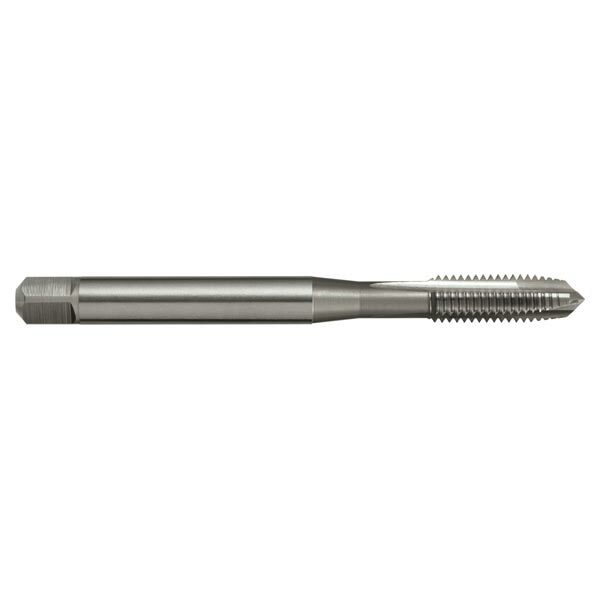

Sutton T106 Metric Spiral Point Tap - Premium HSS

Sutton T106 Metric Spiral Point Tap - Premium HSS

SKU: A0012876

$45.90
$45.90
Inc. GST
Buy It Now

Available

The Sutton T106 Metric Spiral Point Tap by Sutton Tools is a 0 made of Premium Grade High Speed Steel (HSSE-V3). It provides l1 (mm): 100 and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Dimensions

  • d1: M3
  • d2 (mm): 3.5
  • l1 (mm): 56
  • l2 (mm): 11
  • l3 (mm): 18
  • l4 (mm): 6
  • Square Size (mm): 2.7
  • z: 3
  • Drill Size (mm): 2.5 (drill)
  • Pitch (mm): 0.5 (pitch)

Features

  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 3 / 6G
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Dimensions

  • d1: M3
  • d2 (mm): 3.5
  • l1 (mm): 56
  • l2 (mm): 11
  • l3 (mm): 18
  • l4 (mm): 6
  • Square Size (mm): 2.7
  • z: 3
  • Drill Size (mm): 2.5 (drill)
  • Pitch (mm): 0.5 (pitch)

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 3 / 6G
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features

  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to 3 x d1
