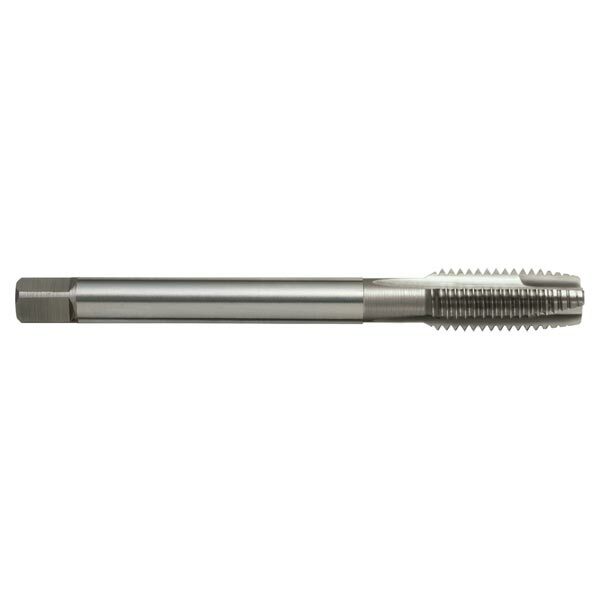

Sutton T1011200 Metric M12 x 1.75 Spiral Point Tap - HSSE V3
Sutton T1011400 Metric M14 x 2 Spiral Point Tap - HSSE V3
Sutton T1011600 Metric M16 x 2 Spiral Point Tap - HSSE V3
Sutton T1011800 Metric M18 x 2.5 Spiral Point Tap - HSSE V3
Sutton T1012000 Metric M20 x 2.5 Spiral Point Tap - HSSE V3
Sutton T1012200 Metric M22 x 2.5 Spiral Point Tap - HSSE V3
Sutton T1012400 Metric M24 x 3 Spiral Point Tap - HSSE V3
Sutton T1012700 Metric M27 x 3 Spiral Point Tap - HSSE V3
Sutton T1013000 Metric M30 x 3.5 Spiral Point Tap - HSSE V3
Sutton T1013300 Metric M33 x 3.5 Spiral Point Tap - HSSE V3
Sutton T1013600 Metric M36 x 4 Spiral Point Tap - HSSE V3
Sutton T1013900 Metric M39 x 4 Spiral Point Tap - HSSE V3
Sutton T1014200 Metric M42 x 4.5 Spiral Point Tap - HSSE V3
Sutton T1014500 Metric M45 x 4.5 Spiral Point Tap - HSSE V3
Sutton T1014800 Metric M48 x 5 Spiral Point Tap - HSSE V3
Sutton T1015200 Metric M52 x 5 Spiral Point Tap - HSSE V3
Sutton T101 Metric Spiral Point Tap - Premium HSS 1
Sutton T101 Metric Spiral Point Tap - Premium HSS 2
Sutton T1010300 Metric M3 x 0.5 Spiral Point Tap - HSSE V3
Sutton T1010400 Metric M4 x 0.7 Spiral Point Tap - HSSE V3
Sutton T1010500 Metric M5 x 0.8 Spiral Point Tap - HSSE V3
Sutton T1010600 Metric M6 x 1 Spiral Point Tap - HSSE V3
Sutton T1010800 Metric M8 x 1.25 Spiral Point Tap - HSSE V3
Sutton T1011000 Metric M10 x 1.5 Spiral Point Tap - HSSE V3
Sutton T1011200 Metric M12 x 1.75 Spiral Point Tap - HSSE V3
Sutton T1011400 Metric M14 x 2 Spiral Point Tap - HSSE V3
Sutton T1011600 Metric M16 x 2 Spiral Point Tap - HSSE V3
Sutton T1011800 Metric M18 x 2.5 Spiral Point Tap - HSSE V3
Sutton T1012000 Metric M20 x 2.5 Spiral Point Tap - HSSE V3
Sutton T1012200 Metric M22 x 2.5 Spiral Point Tap - HSSE V3
Sutton T1012400 Metric M24 x 3 Spiral Point Tap - HSSE V3
Sutton T1012700 Metric M27 x 3 Spiral Point Tap - HSSE V3
Sutton T1013000 Metric M30 x 3.5 Spiral Point Tap - HSSE V3
Sutton T1013300 Metric M33 x 3.5 Spiral Point Tap - HSSE V3
Sutton T1013600 Metric M36 x 4 Spiral Point Tap - HSSE V3
Sutton T1013900 Metric M39 x 4 Spiral Point Tap - HSSE V3
Sutton T1014200 Metric M42 x 4.5 Spiral Point Tap - HSSE V3
Sutton T1014500 Metric M45 x 4.5 Spiral Point Tap - HSSE V3
Sutton T1014800 Metric M48 x 5 Spiral Point Tap - HSSE V3
Sutton T1015200 Metric M52 x 5 Spiral Point Tap - HSSE V3

Sutton T101 Metric Spiral Point Tap - Premium HSS

Sutton T101 Metric Spiral Point Tap - Premium HSS

SKU: A0012807

Type: Spiral Flute Tap

$66.72
$66.72
Inc. GST
⚙High Speed Steel (HSS)
⚙Sutton Metric Spiral Point
📐Multiple Sizes Available
🔩Precise Thread Cutting
🏗Metalworking & Manufacturing
☑High Speed Operation Rated

Available

Product Highlights −

Dimensions

  • d1: M3
  • d2 (mm): 2.2
  • l1 (mm): 56
  • l2 (mm): 11
  • z: 3
  • Drill Size (mm): 2.5 (drill)
  • Pitch (mm): 0.5 (pitch)

Features

  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Dimensions

  • d1: M3
  • d2 (mm): 2.2
  • l1 (mm): 56
  • l2 (mm): 11
  • z: 3
  • Drill Size (mm): 2.5 (drill)
  • Pitch (mm): 0.5 (pitch)

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features

  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to 3 x d1
Payment & Security
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Options:
  • M3mm spiral flute tap
    Model Number: T1010300
  • M4mm spiral flute tap
    Model Number: T1010400
  • M5mm spiral flute tap
    Model Number: T1010500
  • M6mm spiral flute tap
    Model Number: T1010600
  • M8mm spiral flute tap
    Model Number: T1010800
  • M10mm spiral flute tap
    Model Number: T1011000
  • M12mm spiral flute tap
    Model Number: T1011200
  • M14mm spiral flute tap
    Model Number: T1011400
  • M16mm spiral flute tap
    Model Number: T1011600
  • M18mm spiral flute tap
    Model Number: T1011800
  • M20mm spiral flute tap
    Model Number: T1012000
  • M22mm spiral flute tap
    Model Number: T1012200
  • M24mm spiral flute tap
    Model Number: T1012400
  • M27mm spiral flute tap
    Model Number: T1012700
  • M30mm spiral flute tap
    Model Number: T1013000
  • M33mm spiral flute tap
    Model Number: T1013300
  • M36mm spiral flute tap
    Model Number: T1013600
  • M39mm spiral flute tap
    Model Number: T1013900
  • M42mm spiral flute tap
    Model Number: T1014200
  • M45mm spiral flute tap
    Model Number: T1014500
  • M48mm spiral flute tap
    Model Number: T1014800
  • M52mm spiral flute tap
    Model Number: T1015200
