Sutton T100 Metric Spiral Point Tap - Premium HSS 1

Sutton T100 Metric Spiral Point Tap - Premium HSS 2

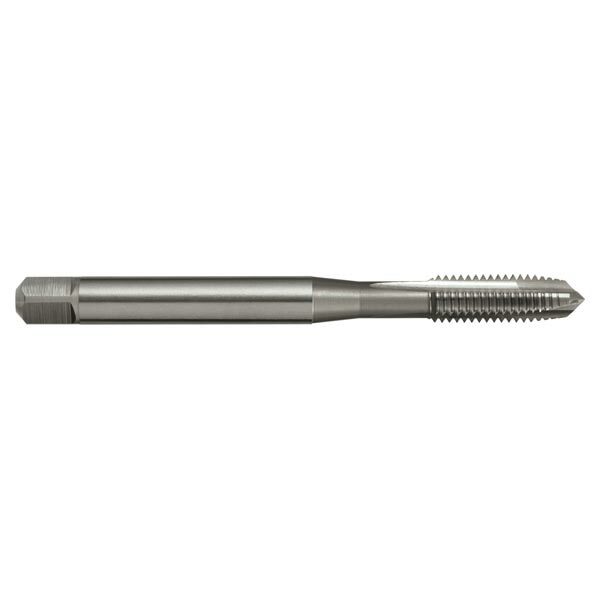

Sutton T1000100 Metric M1 x 0.25 Spiral Point Tap - HSSE V3

Sutton T1000120 Metric M1.2 x 0.25 Spiral Point Tap - HSSE V3

Sutton T1000140 Metric M1.4 x 0.3 Spiral Point Tap - HSSE V3

Sutton T1000160 Metric M1.6 x 0.35 Spiral Point Tap - HSSE V3

Sutton T1000180 Metric M1.8 x 0.35 Spiral Point Tap - HSSE V3

Sutton T1000200 Metric M2 x 0.4 Spiral Point Tap - HSSE V3

Sutton T1000220 Metric M2.2 x 0.45 Spiral Point Tap - HSSE V3

Sutton T1000230 Metric M2.3 x 0.4 Spiral Point Tap - HSSE V3

Sutton T1000250 Metric M2.5 x 0.45 Spiral Point Tap - HSSE V3

Sutton T1000260 Metric M2.6 x 0.45 Spiral Point Tap - HSSE V3

Sutton T1000300 Metric M3 x 0.5 Spiral Point Tap - HSSE V3

Sutton T1000350 Metric M3.5 x 0.6 Spiral Point Tap - HSSE V3

Sutton T1000400 Metric M4 x 0.7 Spiral Point Tap - HSSE V3

Sutton T1000500 Metric M5 x 0.8 Spiral Point Tap - HSSE V3

Sutton T1000600 Metric M6 x 1 Spiral Point Tap - HSSE V3

Sutton T1000700 Metric M7 x 1 Spiral Point Tap - HSSE V3

Sutton T1000800 Metric M8 x 1.25 Spiral Point Tap - HSSE V3

Sutton T1001000 Metric M10 x 1.5 Spiral Point Tap - HSSE V3

Description +

Dimensions

d1: M1
d2 (mm): 2.5
l1 (mm): 40
l2 (mm): 6
l4 (mm): 5
sq: 2.1
z: 2
Drill Size (mm): 0.75 (drill)
Pitch (mm): 0.25 (pitch)

Features

Suitable for materials up to 1000N/mm2
Through holes
Depths up to 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications +

Dimensions

d1: M1
d2 (mm): 2.5
l1 (mm): 40
l2 (mm): 6
l4 (mm): 5
sq: 2.1
z: 2
Drill Size (mm): 0.75 (drill)
Pitch (mm): 0.25 (pitch)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features & Benefits +

Features

Suitable for materials up to 1000N/mm2
Through holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T100 Metric Spiral Point Tap - Premium HSS

SKU: A0012790

$57.43

Inc. GST

Buy It Now

Available

The Sutton T100 Metric Spiral Point Tap by Sutton Tools is a 0 made from Premium Grade High Speed Steel (HSSE-V3). It provides a 0.95 mm drill size and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed.
