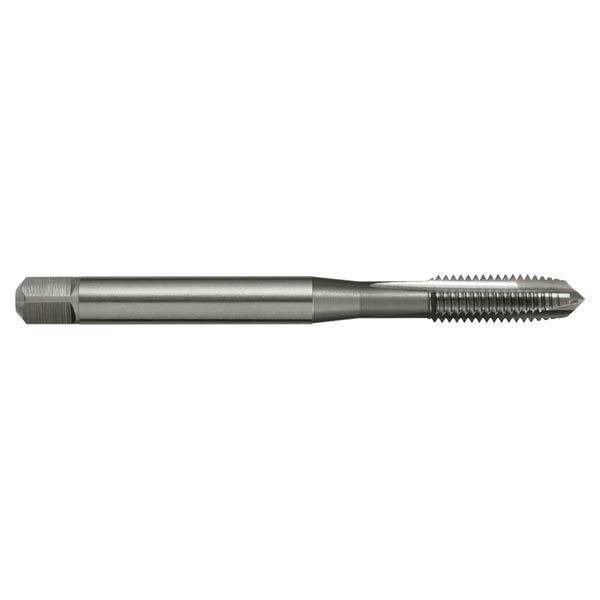

Sutton T122 M4 x 0.7 Spiral Point Tap W - HSSE - Plasma Nitride - DIN 371
Available
The Sutton T122 is a spiral point (gun) tap (W designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a plasma nitride (Ni) finish. This listing covers 5 sizes from M4 x 0.7 to M10 x 1.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The W designation is for soft materials, with a very high rake angle and low thread relief for good chip flow. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 371: reinforced shank with square drive.
Where this product is used
- Suitable for use in soft materials.
- Through holes.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Plasma nitride (Ni) finish to increase surface hardness and carry lubricant better, for cast iron and aluminium alloys.
- 3 flutes.
- Form B chamfer, 4.5 x P.
- Thread tolerance ISO 2 / 6H.
- The W designation is for soft materials, with a very high rake angle and low thread relief for good chip flow.
- CrN (Ni) for copper and non-ferrous materials.
- DIN 371 construction, reinforced shank with square drive.
Sizes

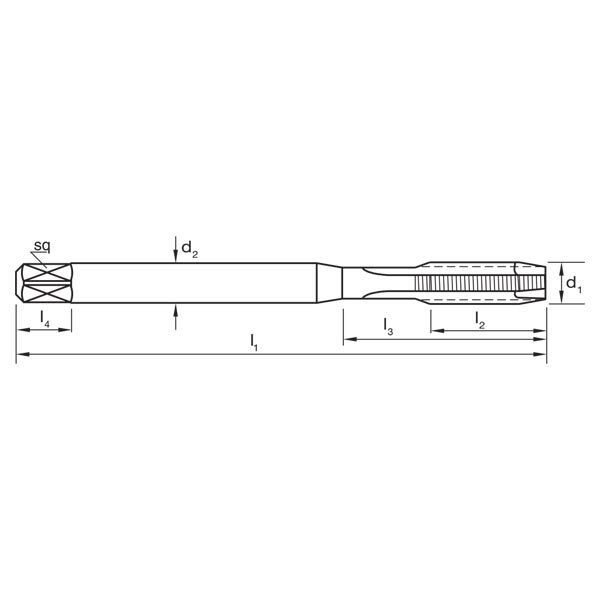

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T122 0400 | M4 x 0.7 | 0.7 | 3.3 | 63 | 13 | 21 | 4.5 | 3.4 | 6 | 3 |
| T122 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 16 | 25 | 6 | 4.9 | 8 | 3 |
| T122 0600 | M6 x 1 | 1 | 5 | 80 | 19 | 30 | 6 | 4.9 | 8 | 3 |
| T122 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 22 | 35 | 8 | 6.2 | 9 | 3 |
| T122 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 24 | 39 | 10 | 8 | 11 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T122 |
| Type | Spiral point (gun) tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | Plasma Nitride |
| Designation | W |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 371 |
| Flutes | 3 |
| Sizes in this listing | 5 sizes, M4 x 0.7 to M10 x 1.5 |
Related products
Related Sutton taps: T123 Metric Coarse Spiral Point Tap W - HSSE - Plasma Nitride - DIN 376, T121 Metric Coarse Spiral Point Tap VA DH - PM-HSSE V3 - TiCN - DIN 376, T124 Metric Coarse Spiral Point Tap W - HSSE - Steam Oxide - DIN 371, T119 Metric Coarse Spiral Point Tap VA PM IK - PM-HSSE V3 - TiCN - DIN 376, T125 Metric Coarse Spiral Point Tap W - HSSE - Steam Oxide - DIN 376.
