Sutton T121 Metric Spiral Point Tap - Vanadium HSS TiCN1

Sutton T121 Metric Spiral Point Tap - Vanadium HSS TiCN2

Sutton T1211200 Metric M12 x 1.75 Spiral Point Tap - HSSE V3 TiCN

Sutton T1211400 Metric M14 x 2 Spiral Point Tap - HSSE V3 TiCN

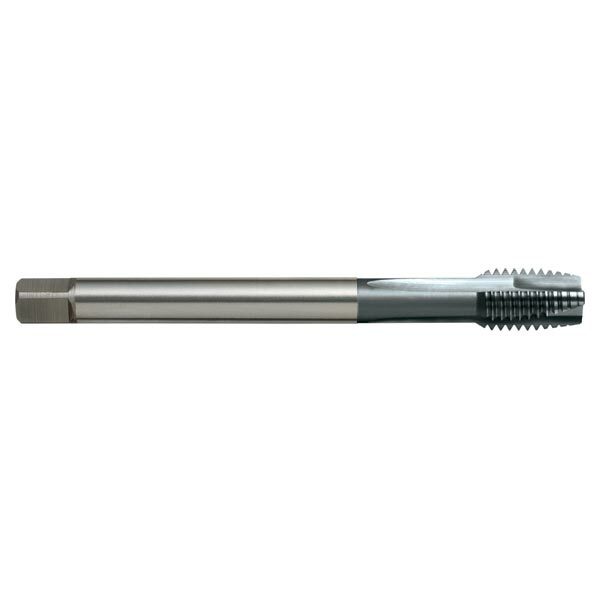

Sutton T1211600 Metric M16 x 2 Spiral Point Tap - HSSE V3 TiCN

Sutton T1211800 Metric M18 x 2.5 Spiral Point Tap - HSSE V3 TiCN

Sutton T1212000 Metric M20 x 2.5 Spiral Point Tap - HSSE V3 TiCN

Description +

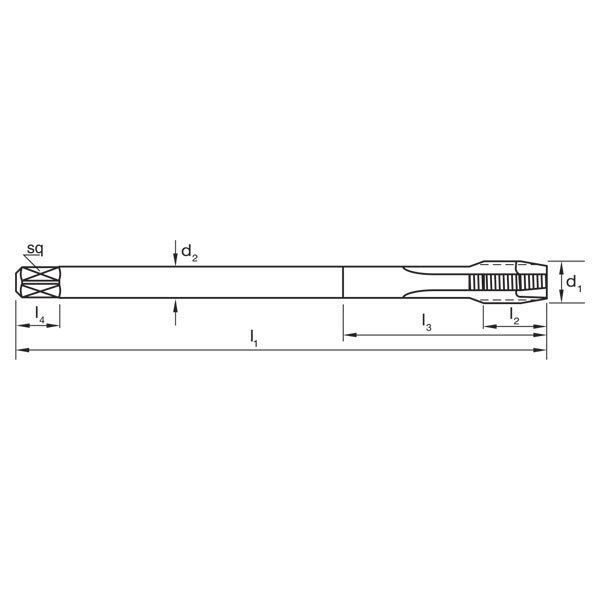

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 17.5
l4 (mm): 10
Square Size (mm): 7
z: 3
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (pitch)

Features

Suitable for synchronous tapping in deep holes
PM-HSSE V3 offers superior performance
Use in stainless steels and high strength steels up to 850N/mm2
Through holes
Depths up to 3.5 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3.5xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening

Specifications +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 17.5
l4 (mm): 10
Square Size (mm): 7
z: 3
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (pitch)

Specifications

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3.5xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening

Features & Benefits +

Features

Suitable for synchronous tapping in deep holes
PM-HSSE V3 offers superior performance
Use in stainless steels and high strength steels up to 850N/mm2
Through holes
Depths up to 3.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T121 Metric Spiral Point Tap - Vanadium HSS TiCN

SKU: A0012967

$154.66

Inc. GST

Buy It Now

Available

The Sutton T121 Metric Spiral Point Tap by Sutton Tools is a 0 made from Powdered Metallurgy Vanadium Grade High Speed Steel PM-HSSE V3. It provides 10.2 mm drill size and is suitable for Stainless Steel - Corrosion resistant & cast - Ferritic / Martensitic.
