Sutton T205 Metric Spiral Flute Tap - R50 VAPM - Premium HSS TiCN1

Sutton T205 Metric Spiral Flute Tap - R50 VAPM - Premium HSS TiCN2

Sutton T2050160 M1.6 x 0.35 Spiral Flute Tap - R50 VAPM - HSSE V3 TiCN

Sutton T2050200 M2 x 0.4 Spiral Flute Tap - R50 VAPM - HSSE V3 TiCN

Sutton T2050250 M2.5 x 0.45 Spiral Flute Tap - R50 VAPM - HSSE V3 TiCN

Sutton T2050300 M3 x 0.5 Spiral Flute Tap - R50 VAPM - HSSE V3 TiCN

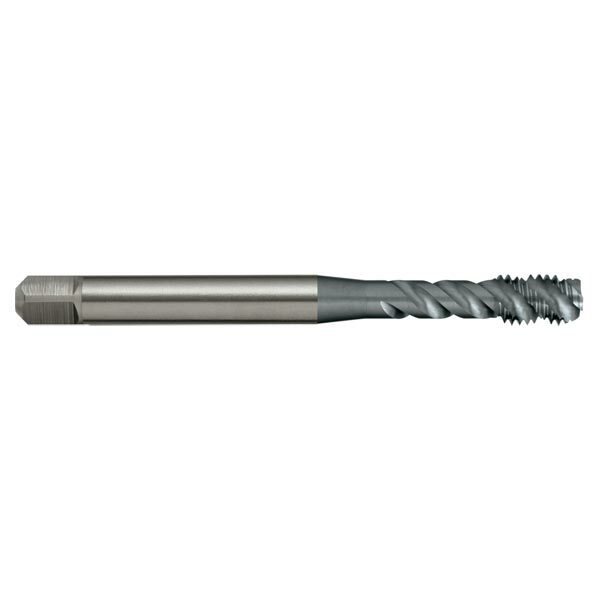

Sutton T2050350 M3.5 x 0.6 Spiral Flute Tap - R50 VAPM - HSSE V3 TiCN

Sutton T2050400 M4 x 0.7 Spiral Flute Tap - R50 VAPM - HSSE V3 TiCN

Sutton T2050500 M5 x 0.8 Spiral Flute Tap - R50 VAPM - HSSE V3 TiCN

Sutton T2050600 M6 x 1 Spiral Flute Tap - R50 VAPM - HSSE V3 TiCN

Sutton T2050800 M8 x 1.25 Spiral Flute Tap - R50 VAPM - HSSE V3 TiCN

Sutton T2051000 M10 x 1.5 Spiral Flute Tap - R50 VAPM - HSSE V3 TiCN

Description +

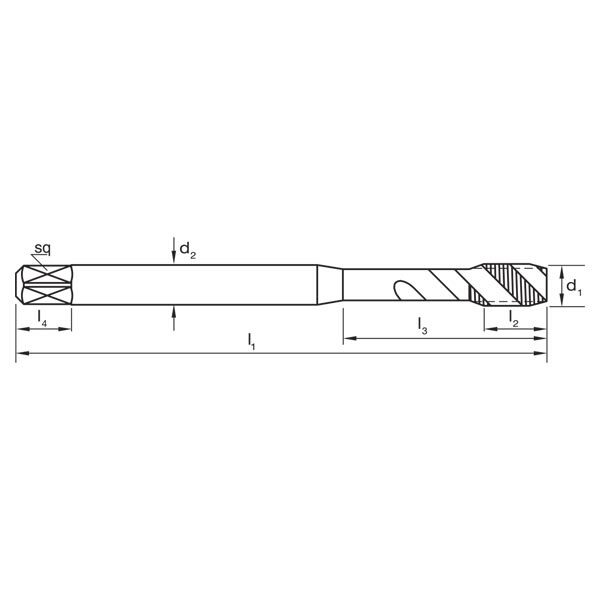

Dimensions

d1: M1.6
d2 (mm): 2.5
l1 (mm): 40
l2 (mm): 8
l4 (mm): 5
Square Size (mm): 2.1
z: 3
Drill Size (mm): 1.25 (drill)
Pitch (mm): 0.35 (pitch)

Features

Universal high performance tapping
PM-HSSE V3 offers superior tool life
Use in stainless steels and high strength steels up to 850N/mm2
Deep blind holes
Depths up to 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Heix Angle: R50
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed
High temperature alloys - Ni / Co based: Annealed

Specifications +

Dimensions

d1: M1.6
d2 (mm): 2.5
l1 (mm): 40
l2 (mm): 8
l4 (mm): 5
Square Size (mm): 2.1
z: 3
Drill Size (mm): 1.25 (drill)
Pitch (mm): 0.35 (pitch)

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Heix Angle: R50
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed
High temperature alloys - Ni / Co based: Annealed

Features & Benefits +

Features

Universal high performance tapping
PM-HSSE V3 offers superior tool life
Use in stainless steels and high strength steels up to 850N/mm2
Deep blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T205 Metric Spiral Flute Tap - R50 VAPM - Premium HSS TiCN

SKU: A0013620

$120.07

Inc. GST

Buy It Now

Available

The Sutton T205 Metric Spiral Flute Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel (HSSE-V3) material. It provides depths up to 3 x d1 and is suitable for High temperature alloys - Ni / Co based: Annealed.
